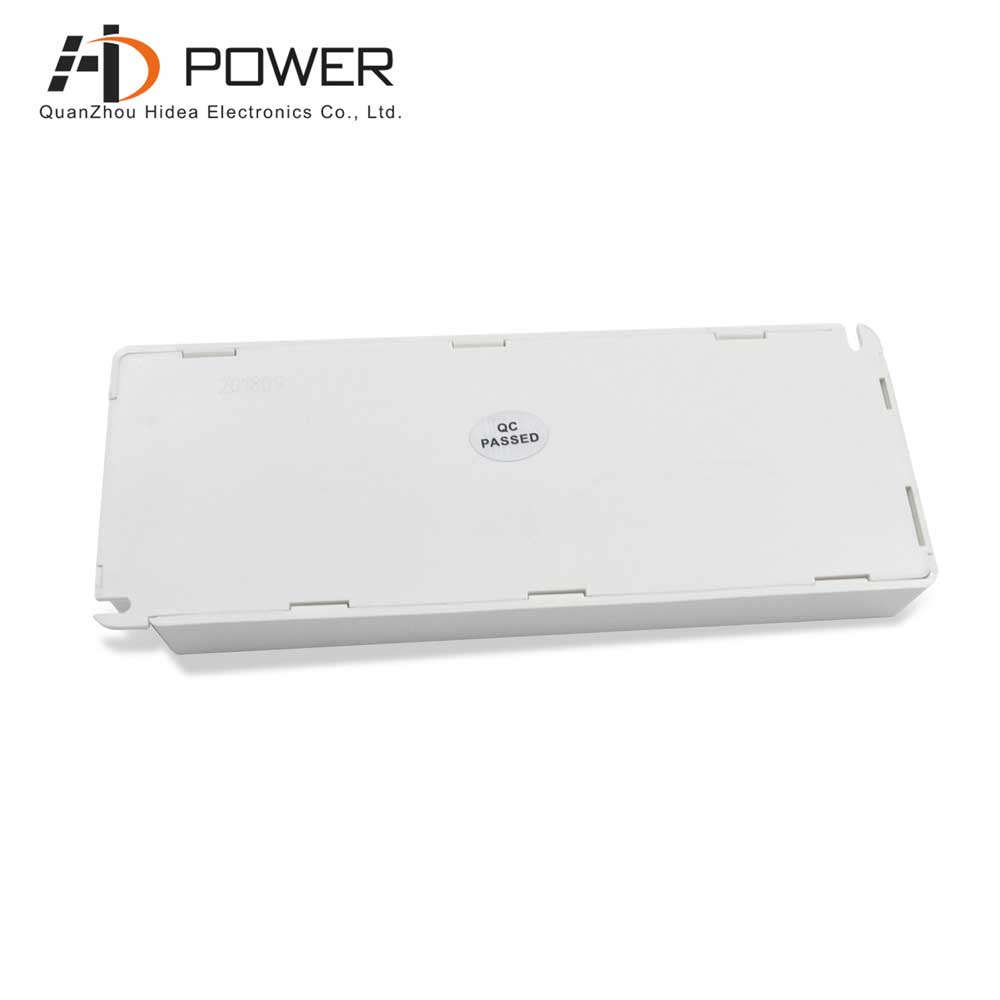

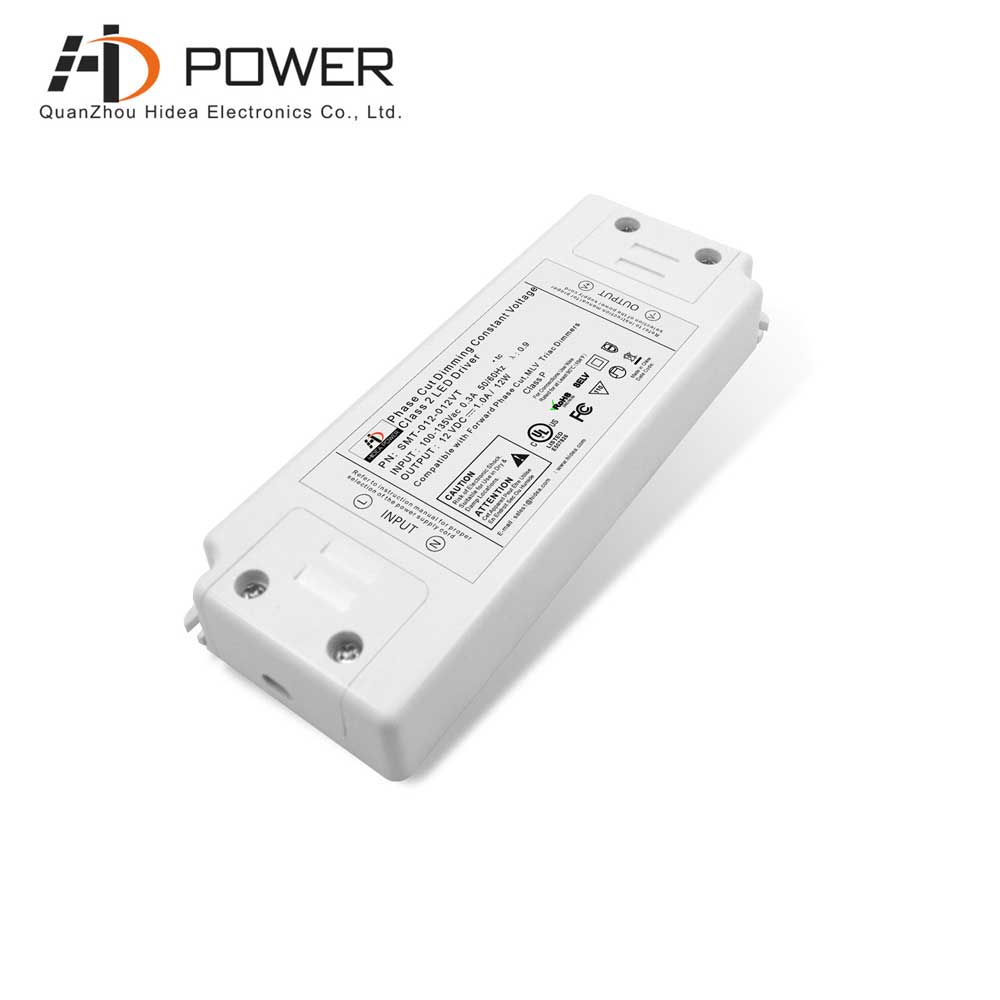

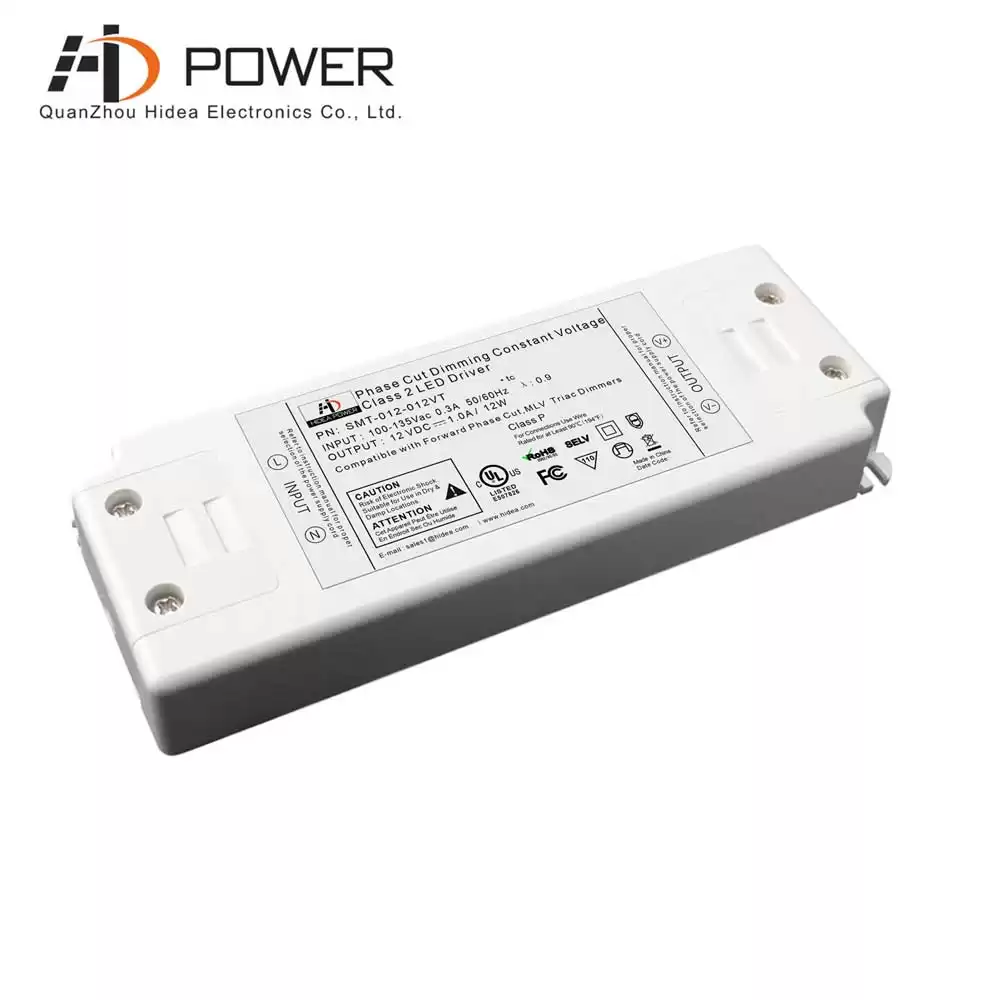

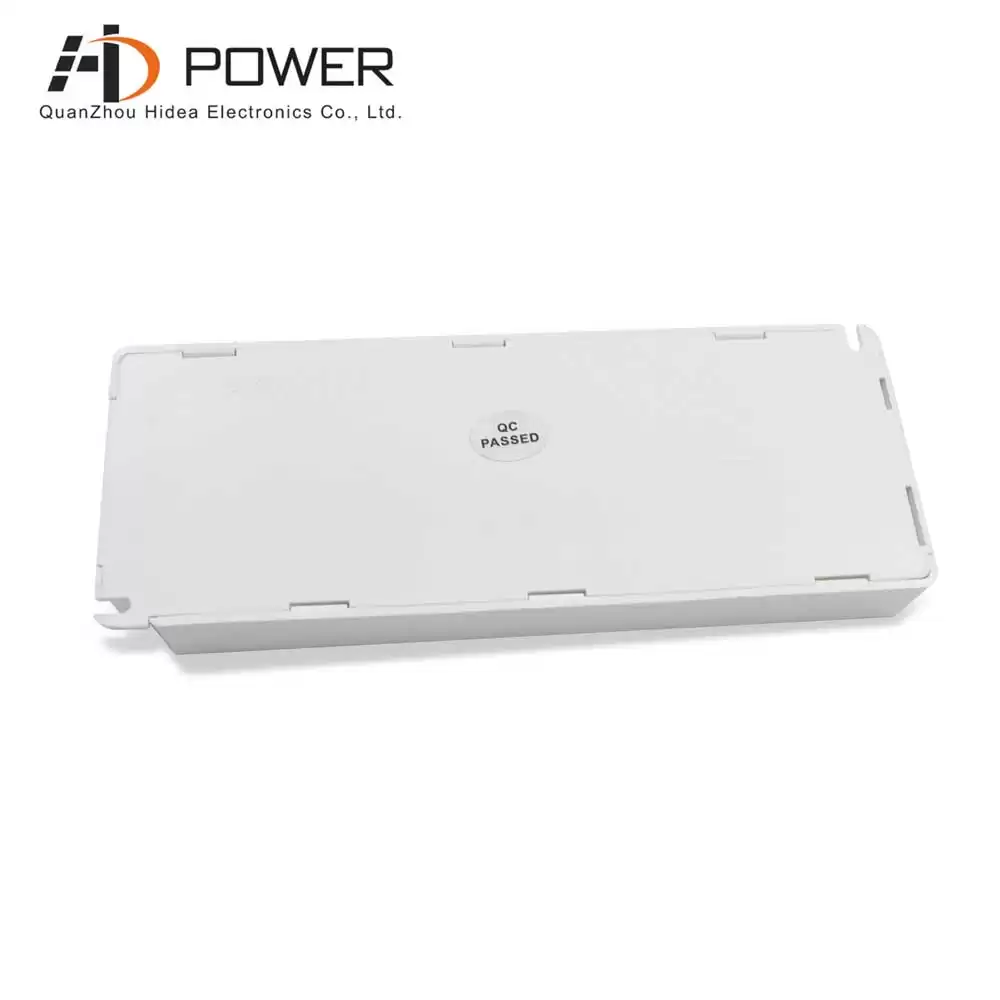

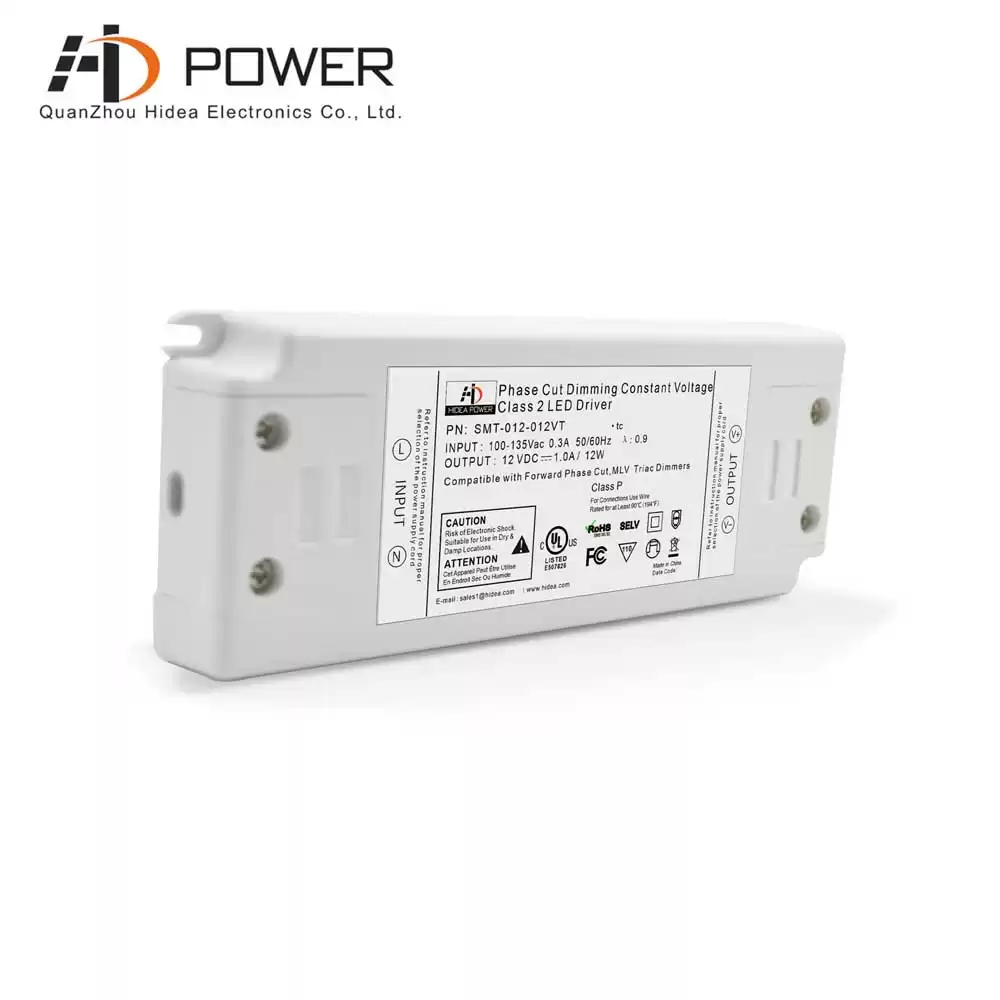

24V 12W constant voltage triac dimmable led strip lights driver power supply selv ip20
12W triac dimmable led driver input voltage range is between 90~135VAC, built-in active PFC function, constant voltage working mode, efficiency up to 84%, with five-year warranty
Specification
|
Model
|
SMT-012-012VT
|
SMT-024-012VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
1.0A
|
0.5A
|
|
Rated power
|
12W
|
|
Input
|
Voltage Range
|
90~135VAC / 180-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≥0.95(Full loading)
|
|
Efficiency(Typ.)
|
78%
|
79%
|
|
AC Current(Max.)
|
0.13A
|
0.12A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
0.2Kg
|
|
Size
|
140*55*19.5mm(L*W*H)
|
|
packing
|
350*280*215mm 50PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 60-100%.
|
Compatible Light Type
HIDEA 12w triac dimmable drivers are easy to wire and offer a smooth, flicker free dimming performance.It can match well with TENMIRO 65.6ft led strip lights.
Related Products
|

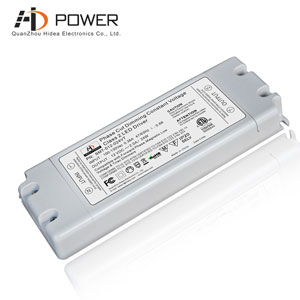

 24W 12V triac dimmable constant voltage LED driver, plastic shell design, compact body, easy and fast installation, suitable for indoor lighting projects, with 5-year warranty
