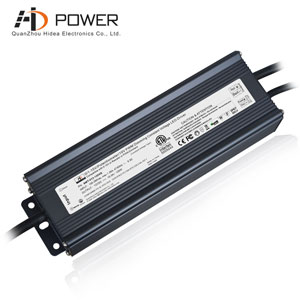

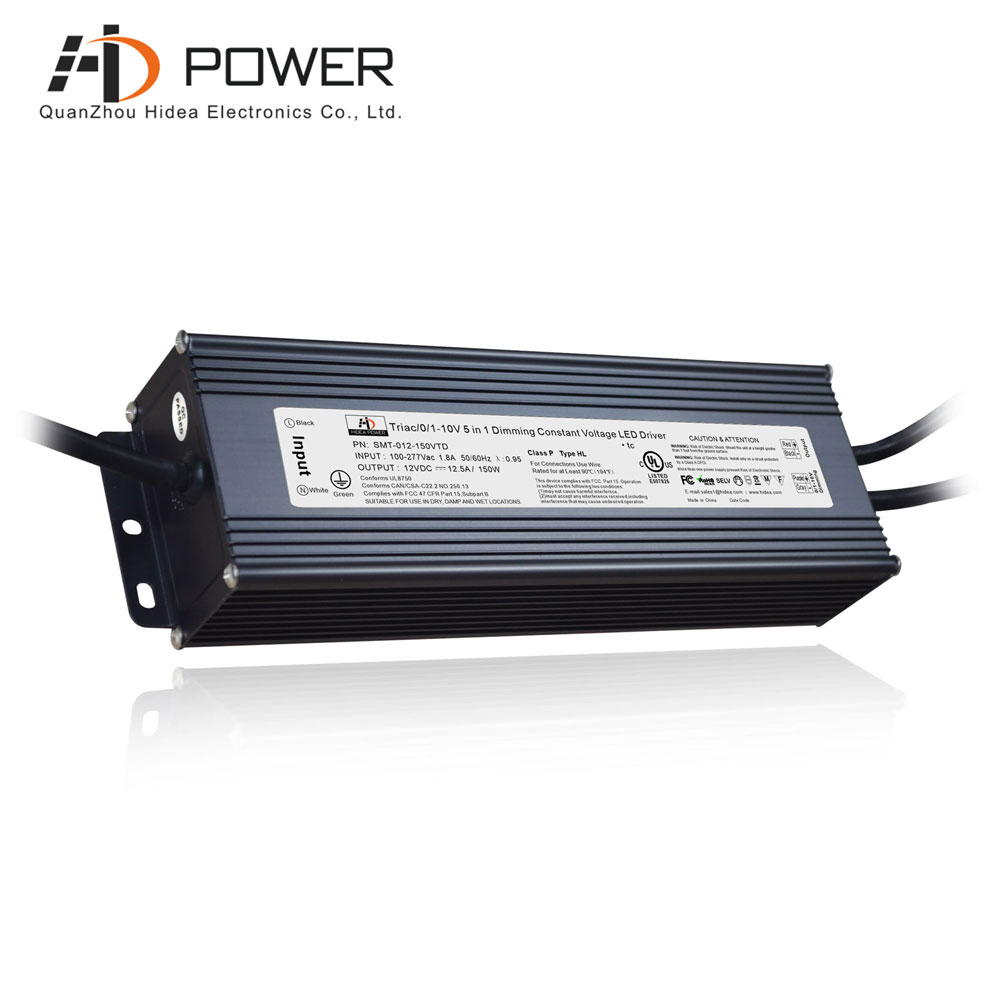

24v 150W triac & 0 10v constant voltage dimming LED driver strip power supply
Constant voltage 5 in 1 dimmable led driver 150W Built-in active PFC function, with short circuit/overload/over temperature protection, aluminum shell design, free air convection cooling, good heat dissipation, with 7-year warranty
Specification
|
model
|
SMT-012-150VTD
|
SMT-024-150VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
12.5A
|
6.25A
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2 %
|
±1 %
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ.) @full load
|
<20%
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.97@120VAC 0.94@277VAC
|
|
Full Load Efficiency(Typ.)
|
85%@120VAC 86%@277VAC
|
85%@120VAC 87%@277VAC
|
|
AC Current(Typ.)
|
1.8A/110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120VAC; 30A, 50% 1.4ms @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm(L*W*H)
|
|
packing
|
340*280*185mm 10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

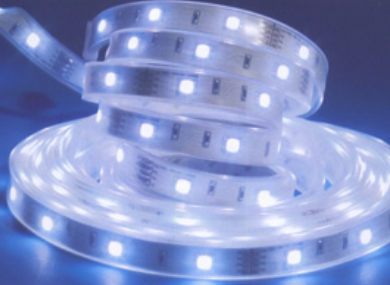

Compatible Light Type
With high performance and excellent design solution, this 1 10v dimmable led driver operates 100-277VAC universal input range. Dueto the multi function, when selecting 0/1-10V dimming mode,the drivers are compatible with universal 0/1-10V dimmers. And we suggest that ledels led strip light is one of the option.
