24V 200A Electric Forklift Washing Truck Lifepo4 Battery Charger
1.Product Introduction:
**Power Efficiency and Correction:**
- The charging power module incorporates a three-phase Vienna rectification circuit with DSP digital control technology.
- Achieves single-phase power factor correction (PF) greater than or equal to 0.99 under rated load.
- DC/DC section employs DSP digital technology, interleaved full-bridge LLC resonant circuit topology.
- Realizes zero-voltage switching (ZVS) for the full-bridge MOSFET switches and zero-current switching (ZCS) for the rectifier diodes, reducing stress on power components and optimizing system efficiency.
**Integrated Design:**
- Innovative integration of magnetic core components, enabling the customization of different output power and current levels while maintaining standardization.
- Balanced voltage and thermal stress on magnetic core components.
- Modular and component-based design for efficient power module ventilation and system structural integration.
**Universal Compatibility:**
- Designed for compatibility with various charging interfaces, including national standard charging guns and REMA plugs.
- Adaptable to different communication protocols and requirements.
- Prevents damage to charging guns through coordinated hardware and software control, safeguarding against non-standard disconnection procedures.
2.Technical Parameters：
|
Input technical parameters :
|
|
Input voltage
|
Three-phase four-wire system (AC480Vac±10%)
|
|
Input voltage range
|
432Vac ~ 528Vac
|
|
Input maximum current
|
12A
|
|
Breaker specifications
|
C16A
|
|
Maximum power
|
6.7kW
|
|
Frequency
|
60Hz
|
|
Power factor
|
≥0.99
|
|
Output parameters :
|
|
Maximum output voltage
|
30VDC
|
|
Minimum output voltage
|
20VDC
|
|
Maximum output current
|
200A
|
|
Minimum output current
|
5A
|
|
Maximum output power
|
6.0kW
|
|
Current limiting range
|
10% ~100% Continuous
|
|
Working efficiency
|
≥93%
|
|
Voltage regulation accuracy
|
≤±0.5%
|
|
Current regulation accuracy
|
≤±1%
|
|
Current sharing coefficient
|
≤±5%
|
|
Condition and Environment :
|
|
Operating temperature
|
-20℃ ~ 50℃
|
|
Storage temperature
|
-40℃ ~ 75℃
|
|
Relative humidity
|
5～95% , non-condensing
|
|

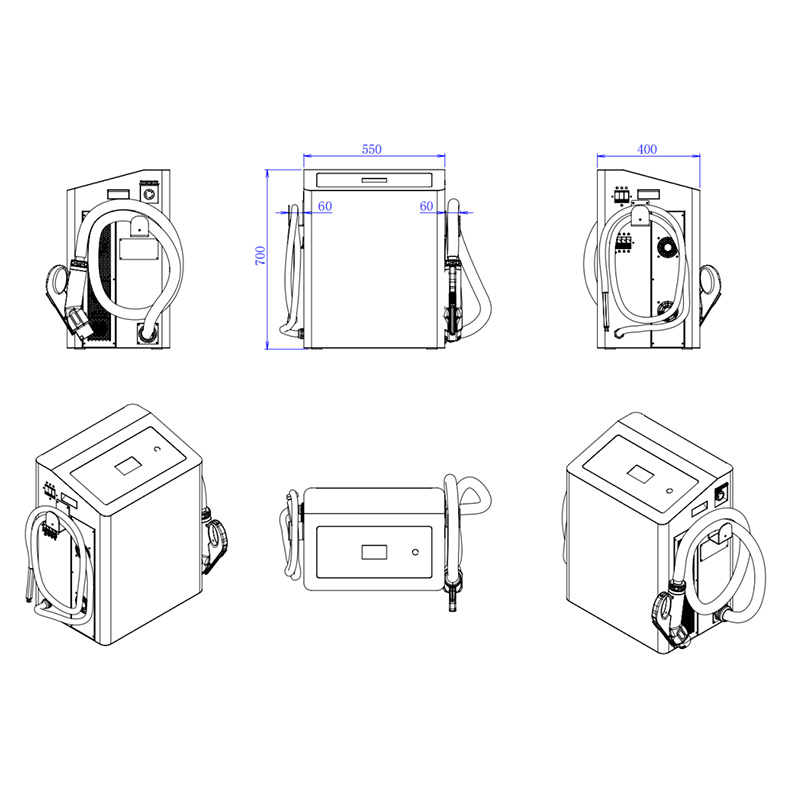

External dimensions
|
Lengths * Widths * Heights : 550 * 400 * 700 mm
|
|
Weight
|
60kg
|
|
Protective function :
|
|
Protection Class
|
IP 20
|
|
Level of protection
|
Class I
|
|
Environment of use
|
Indoor
|
|
Over voltage category
|
OVC III
|
|
Pollution level
|
PD 2
|
|
Output short circuit protection
|
Enter shutdown protection mode within 1 second
|
|
Over temperature protection
|
Reduced output: 50°C~65°C, above 65°C shutdown protection
|

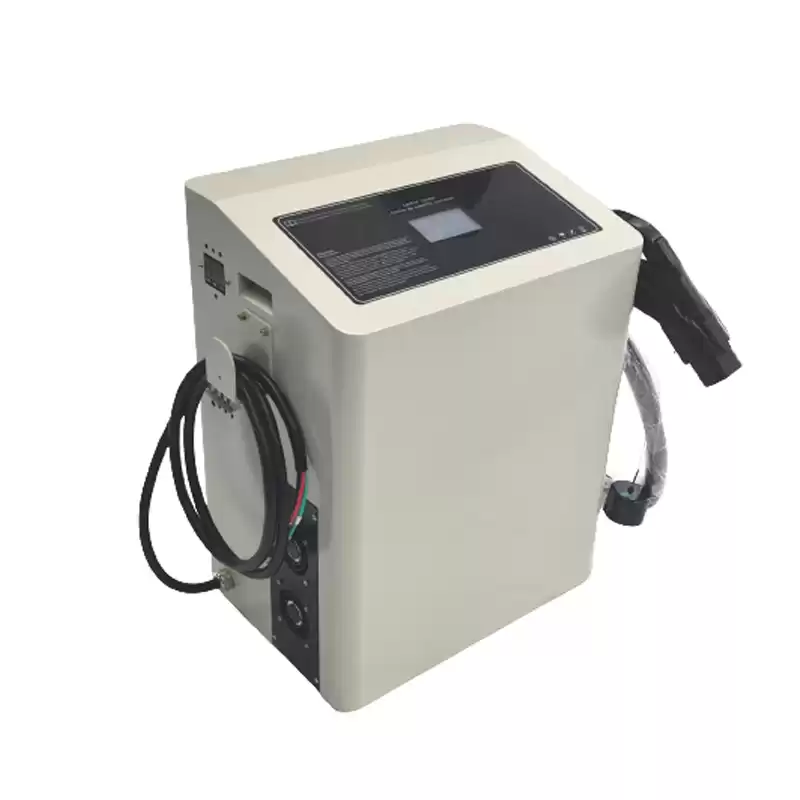

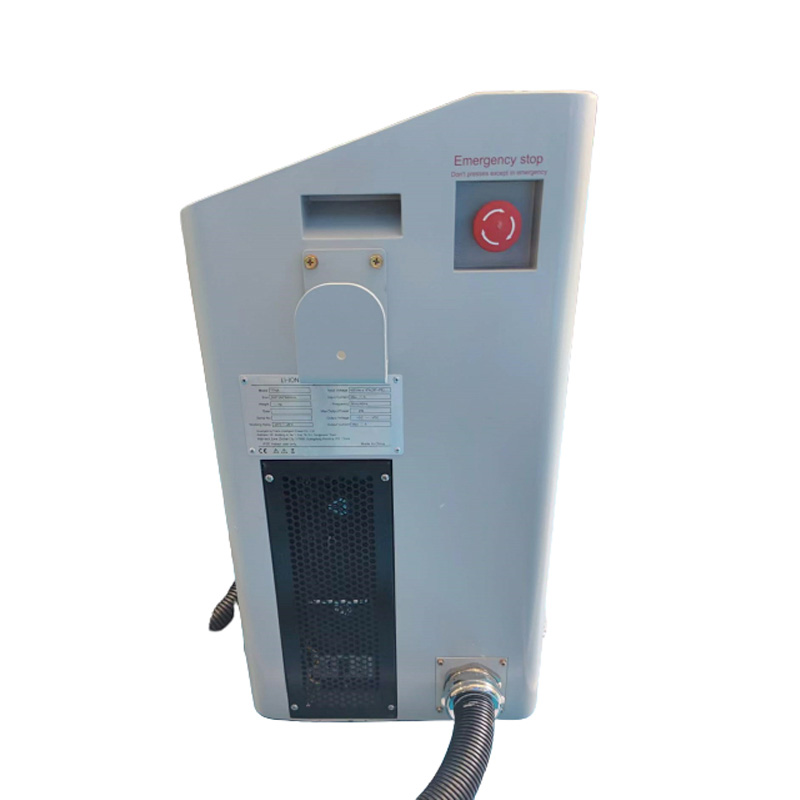

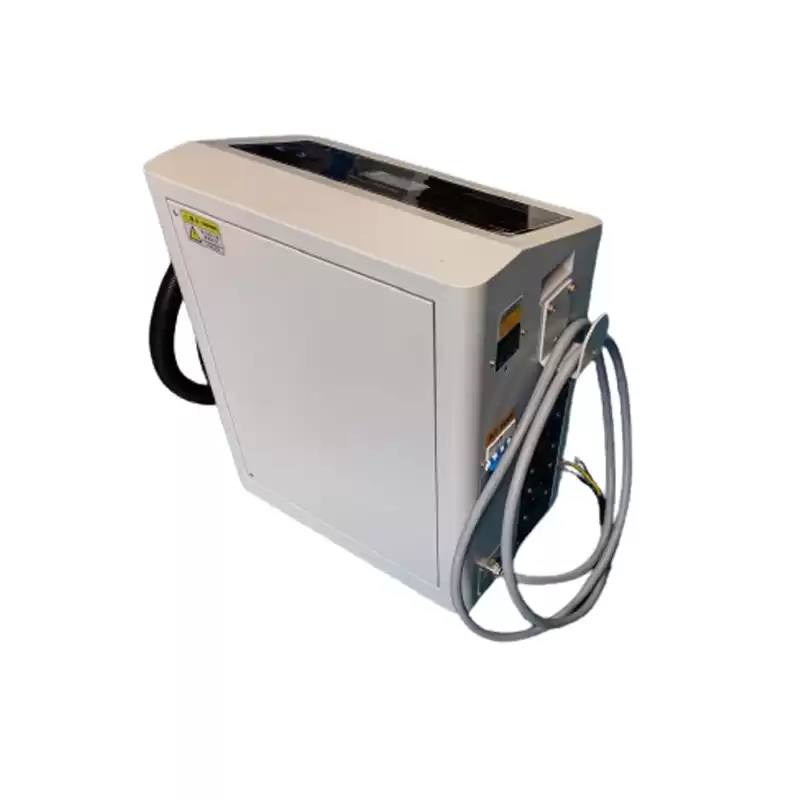

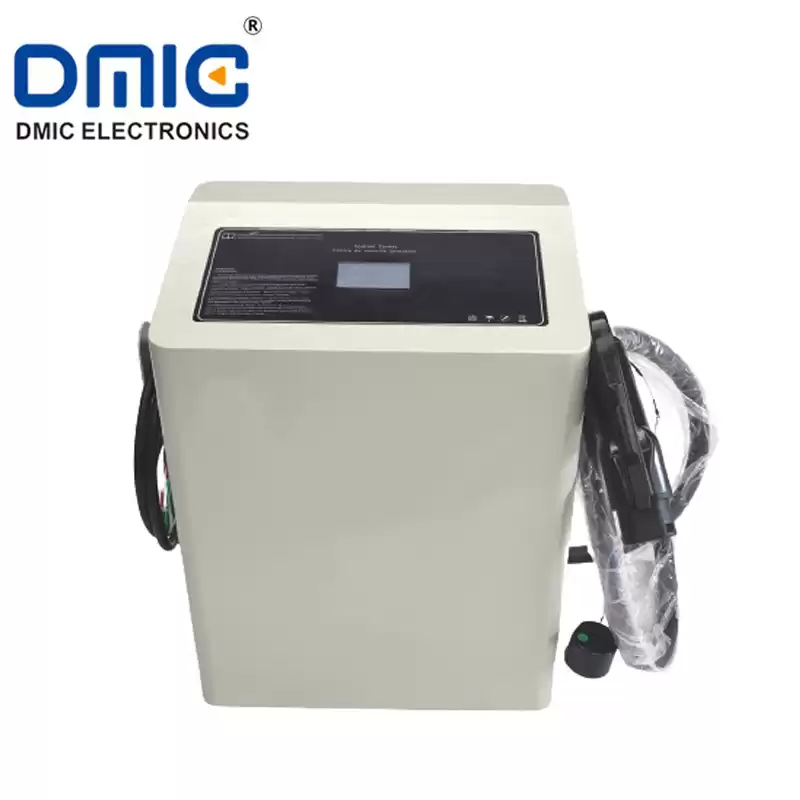

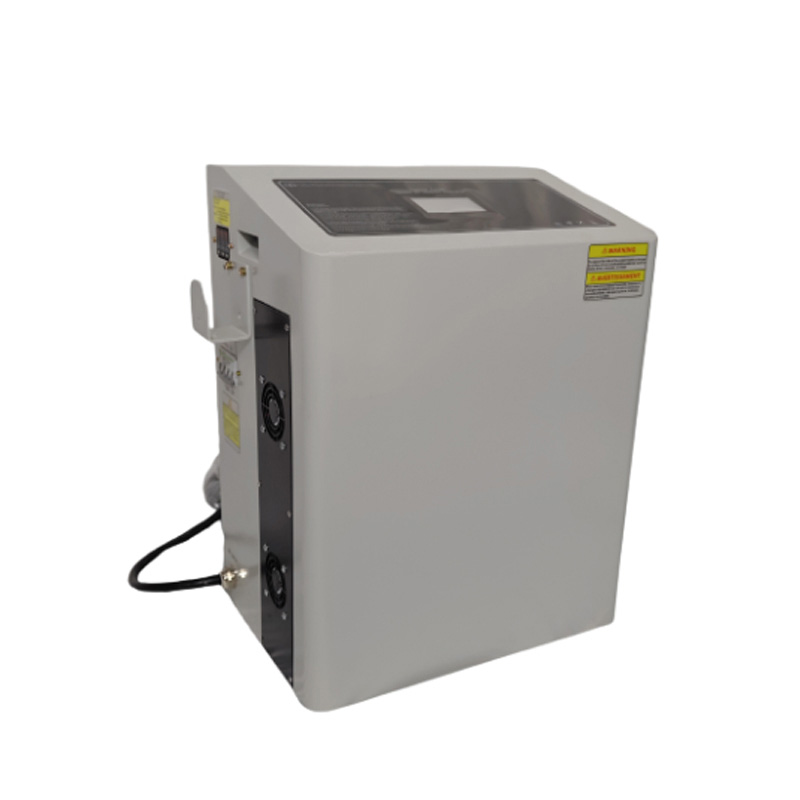

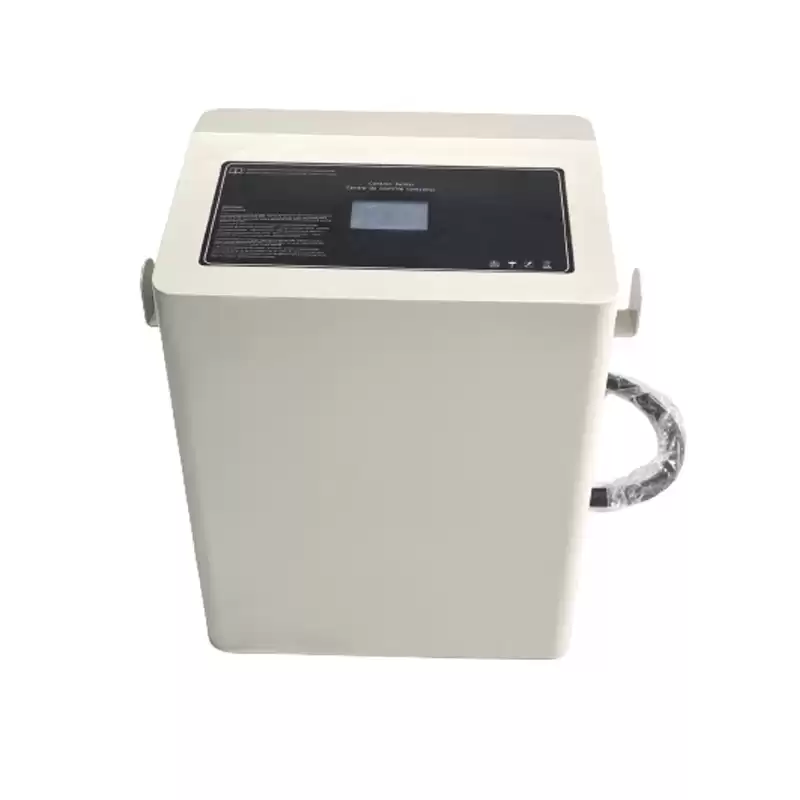

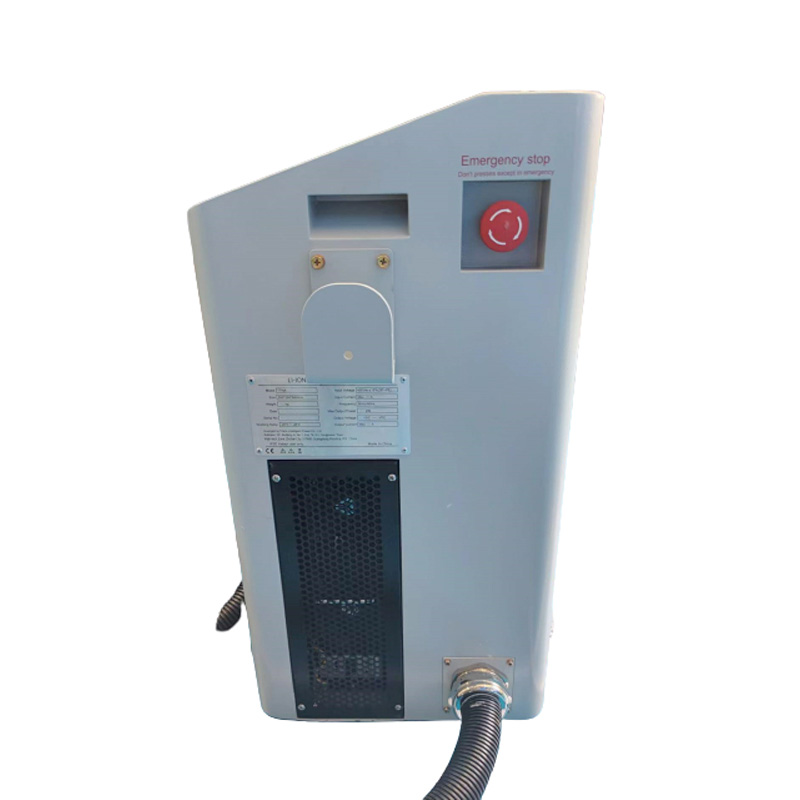

3.Picture Introduction:
4.Our Advantages:

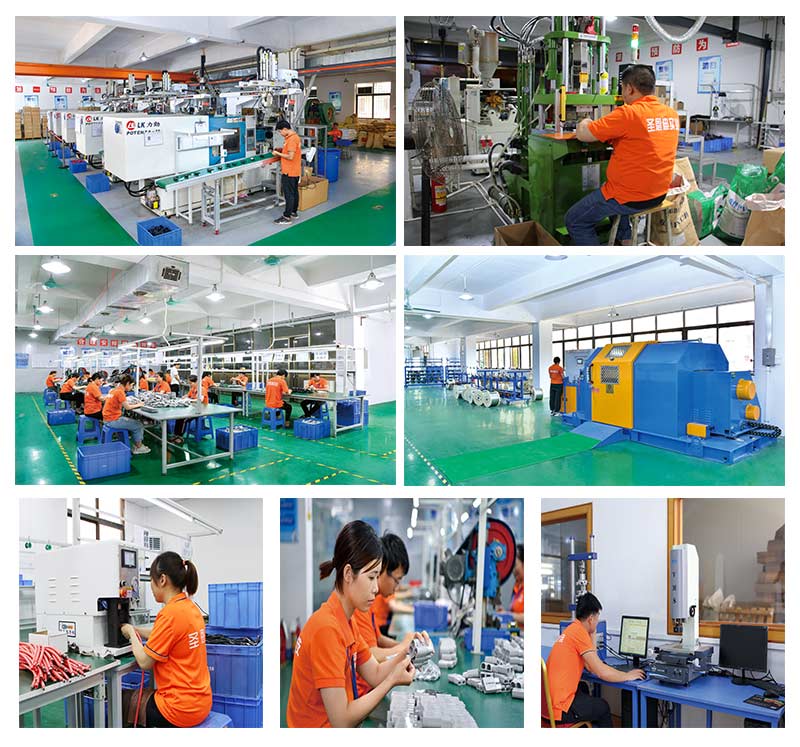

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
