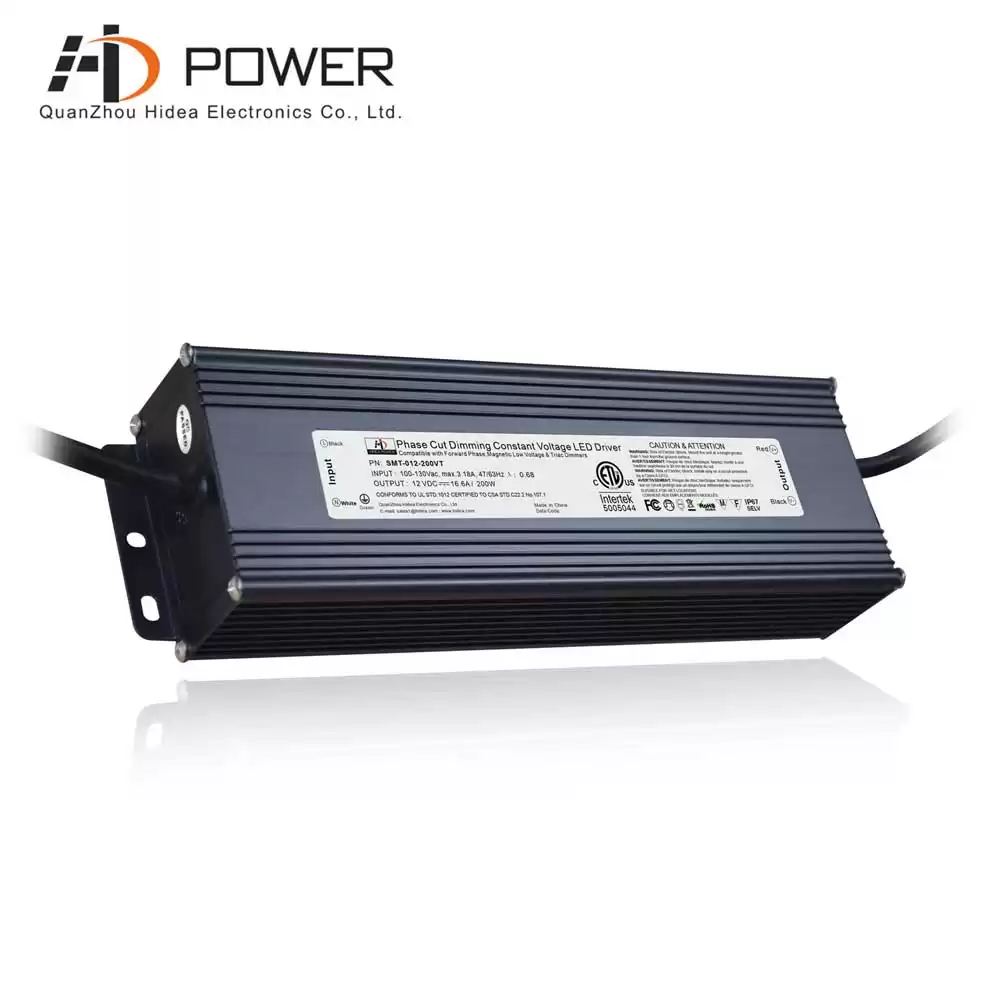

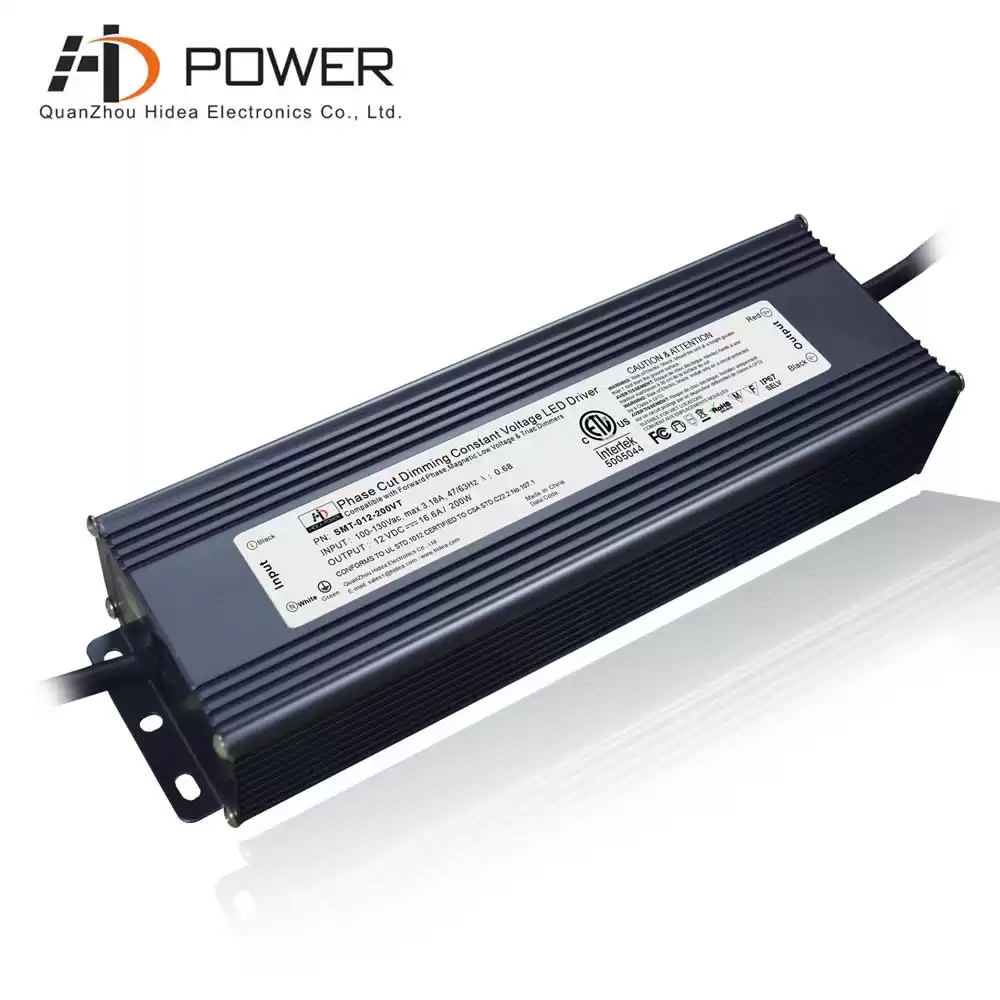

This constant voltage 24v 200W triac dimmable led driver has an input voltage of 100~130VAC/ 170-265VAC, aluminum housing protection design, waterproof level ip67, ETL certification, in line with global LED safety laws, and provides a five-year warranty
Specification
|
Model
|
SMT-012-200VT
|
SMT-024-200VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
16.66A
|
8.3A
|
|
Rated power
|
200W
|
|
Input
|
Voltage Range
|
100~130VAC
|
|
Frequency Range
|
50~60HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
83%
|
85%
|
|
AC Current(Max.)
|
3.2A
|
3.2A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Over Loading
|
≤120%
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL1012
|
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge 4KV)
|
|
Others
|
Weight
|
1.65Kg
|
With junction 2.38Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
406*87*60mm (L*W*H)
|
|
packaging
|
305*295*210mm 10PCS/CTN
|
445*350*205mm 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type
SMT-024-200VT is a ETL,CE,ROHS,FCC listed rated 24v 8.33a 200 watt triac dimming led driver, the led drivers for AC & DC wires is about 20MM. this led driver is suitable for working with Led Luminaires of Litetronics dim to warm type.
Related Products
|

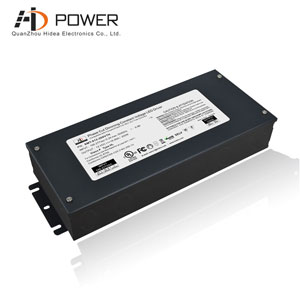

24v 200w triac dimmable led transformer is easy and quick to install, iron shell design, quality assurance, UL certification, mainly sold to North America. 7 years warranty
