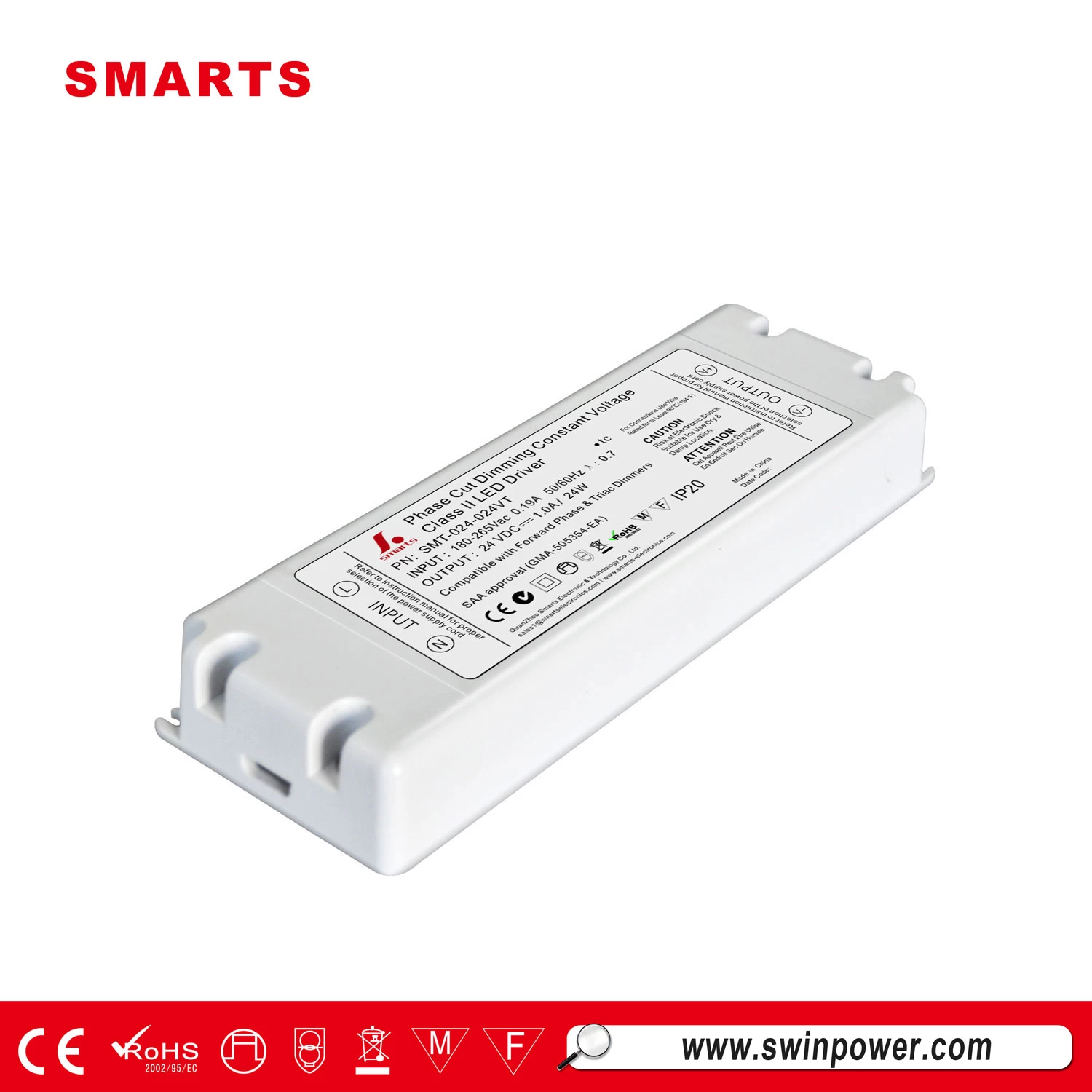

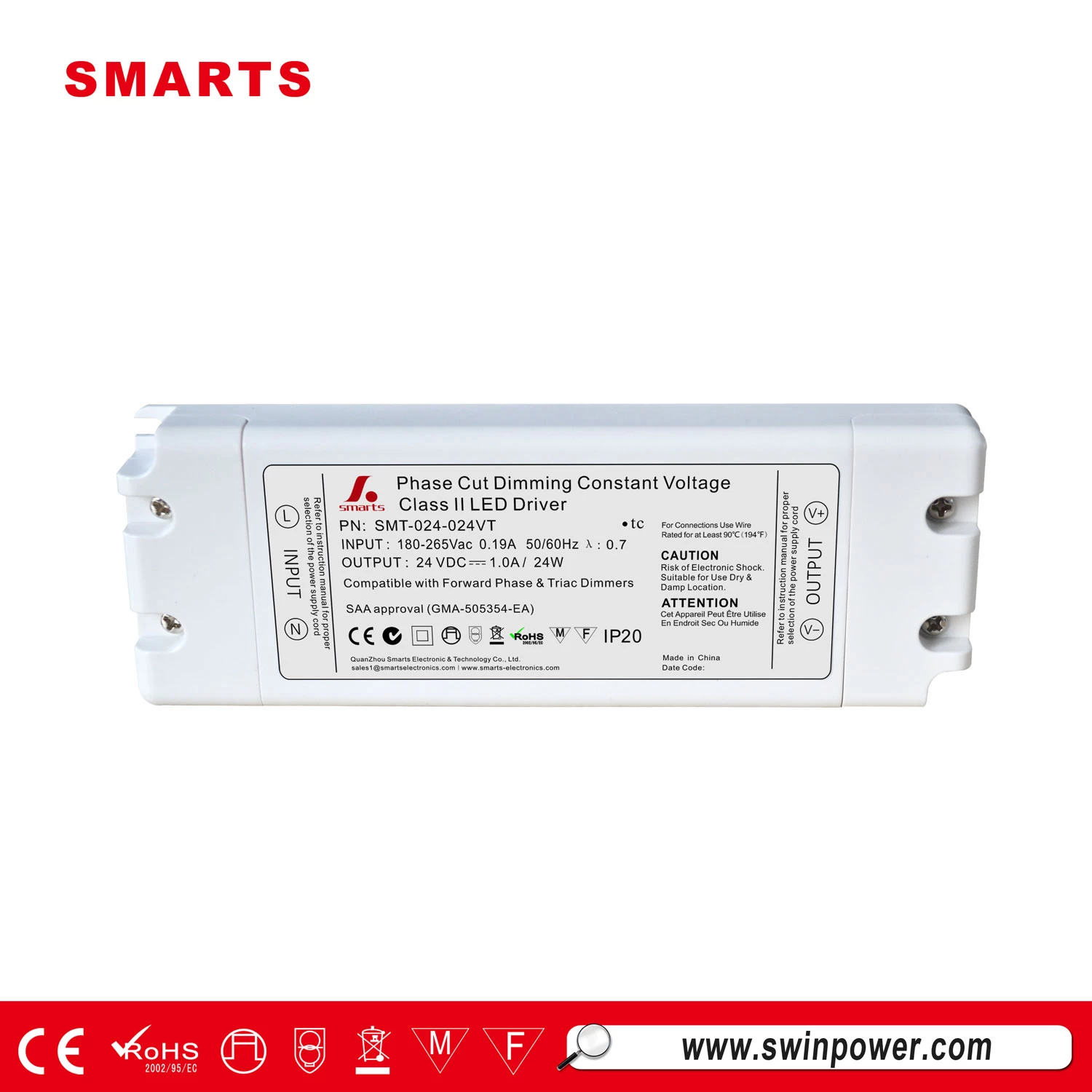

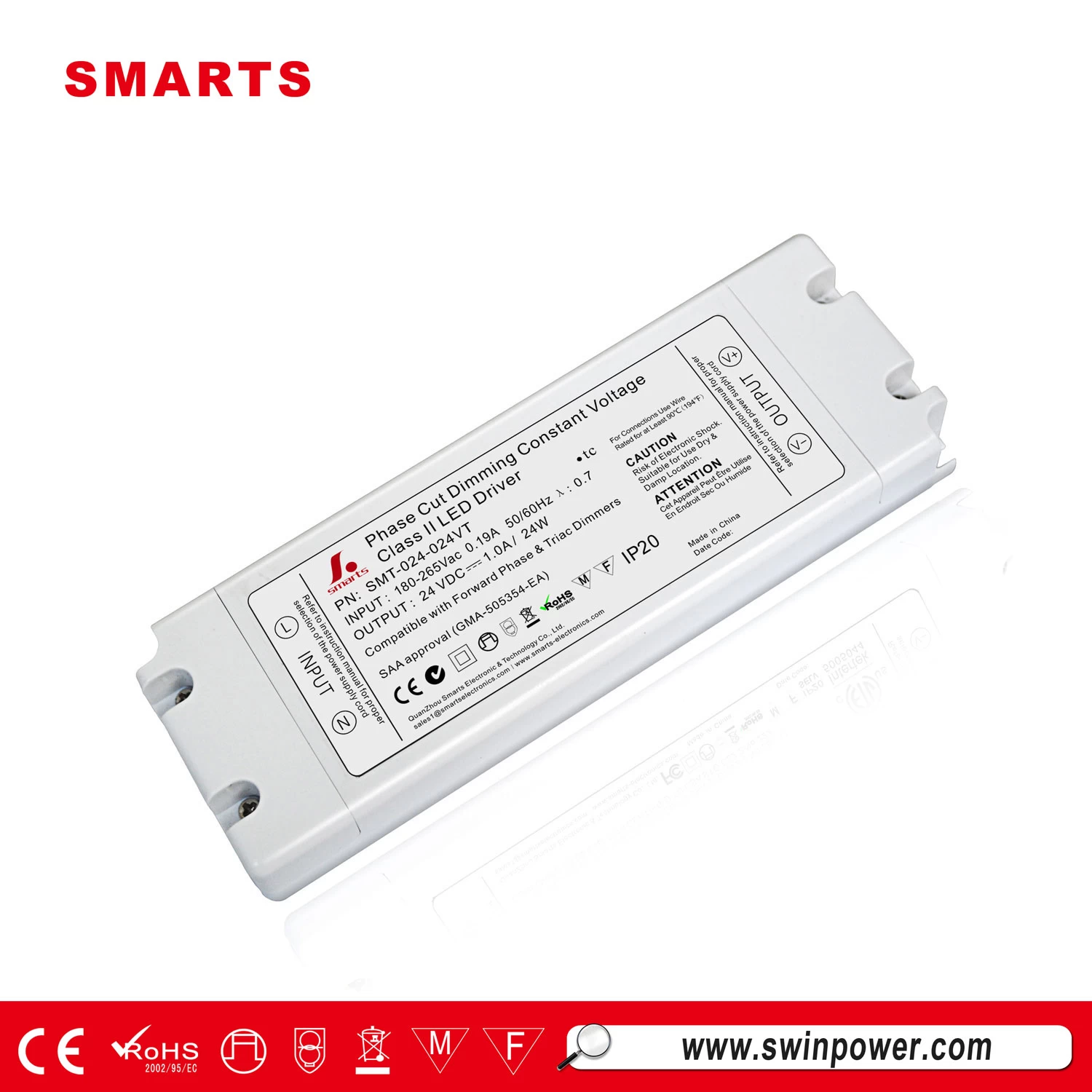

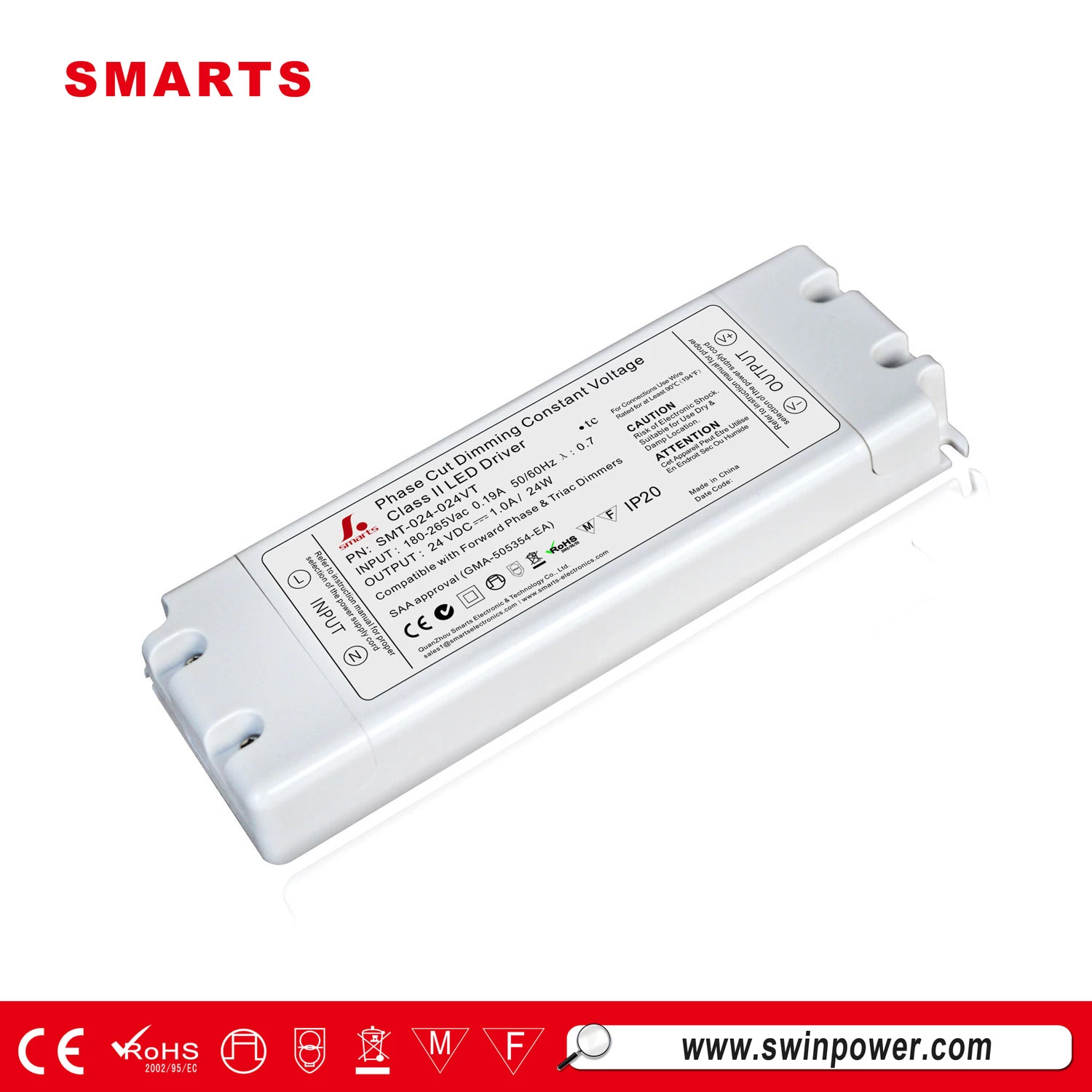

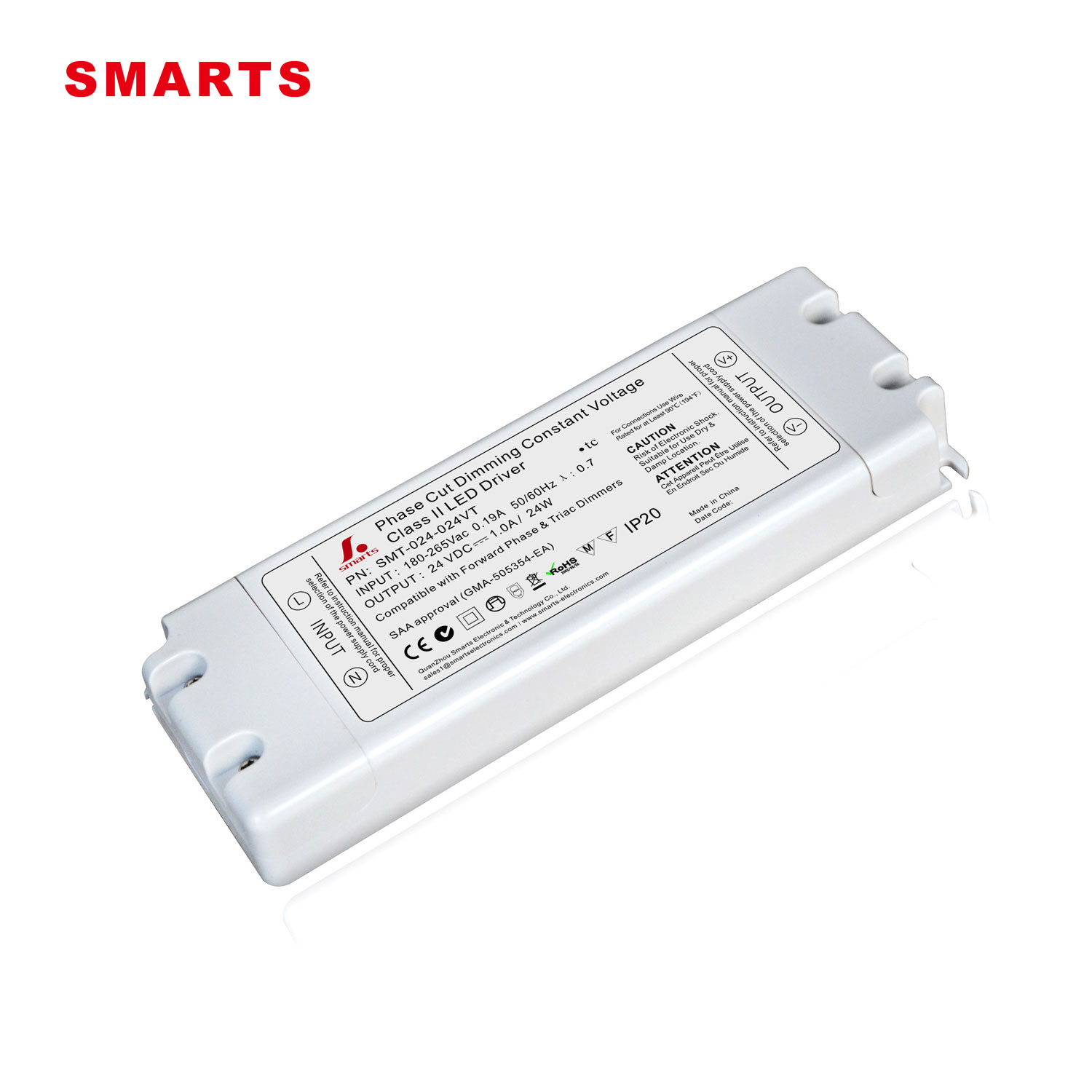

24v 24w Constant Voltage Triac Dimmable Led Power Supply

This is a constant voltage triac dimmable led driver, usually matching with leading edge triac dimmer.


  • CertificationSAA,CE,ROHS
  • Size155*54*20mm
  • Dimming modeTriac dimmable
  • Working ModeCV
  • Output Current1A
  • Output Voltage24VDC
  • Input Voltage180-265VAC

24v 24w Constant Voltage Triac Dimmable Led Power Supply


The Triac dimmable led driver from Smarts is designed to power and Dim 24v constant voltage LED's via mains dimming. Hook up to a trailing edge dimmer and this led driver will allow the user to have excellent control over light levels dimming the mains power running into the driver. Tidy clean and simple Triac Dimming. We suggest loading the led driver for about 85-90 %for the most effective dimming




 Features


  • Single output constant voltage
  • Universal AC input: 180-265VAC
  • Power Factor > 0.70
  • High efficiency > 84%
  • Protection:short circuit/over loading/over current/ Over temperature
  • Full protection plastic housing
  • Easy installation
  • Cooling by free air convection
  • Compatible with Forward phase,Magnetic low voltage,triac Dimmers




 Specifiation


Model

SMT-012-024VT

SMT-024-024VT

output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

2.08A

1.04A

Rated power

24W

input

Voltage Range

200~240VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF≥0.70

Efficiency(Typ.)

>84%

84%

>84%

AC Current(Typ.)

0.18A@220VAC

0.18A@220VAC

Leakage current

<0.5mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Current

≤1.2*I out

Over Loading

≤120%

Over temperature

100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic







Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes





Safety& EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1500KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

others

Net. Weight

0.20Kg

Size

155*54*20mm(L*W*H)

packing

350*195*180mm  30PCS/CTN



24v triac dimmable led driver


 Dimming Operation



  • The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
  • Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).
  • Please try to use dimmers with power at least 2.5 times as the output power of the driver.
  • For Forward phase,Magnetic low voltage and Triac Dimmers
