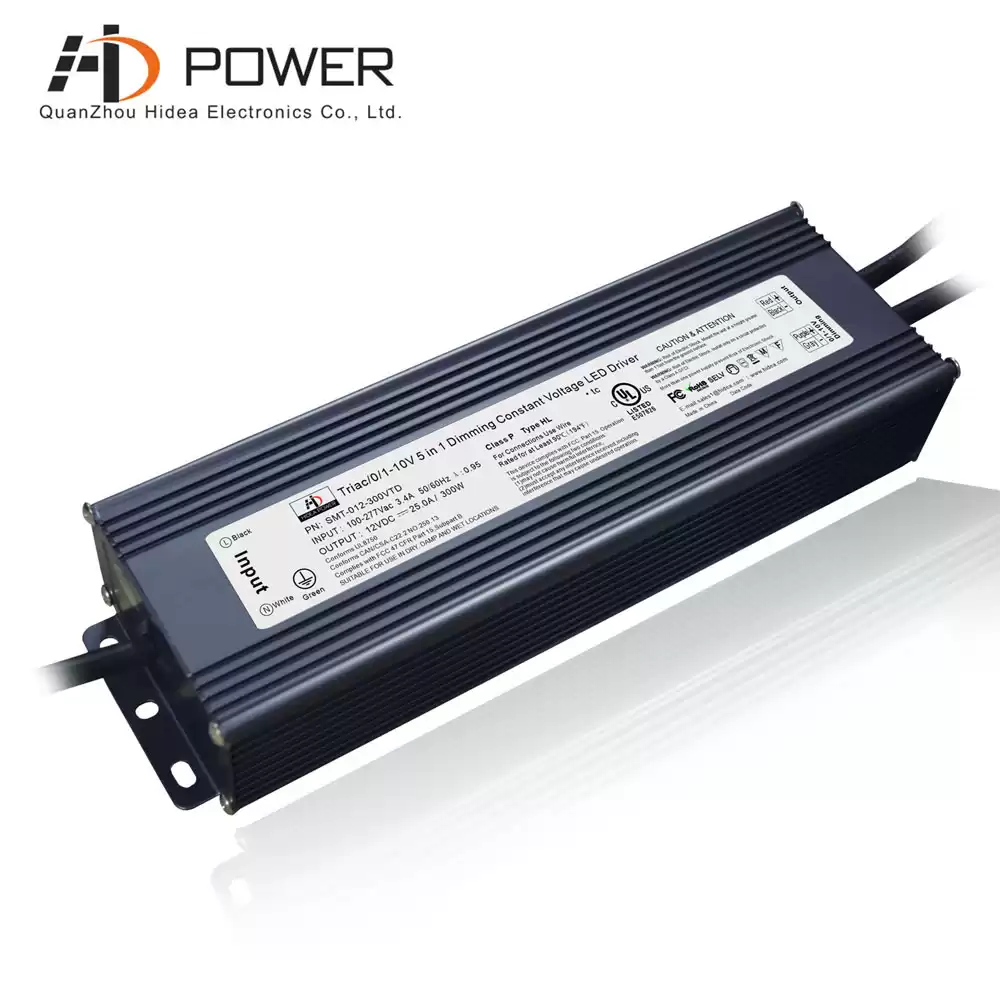

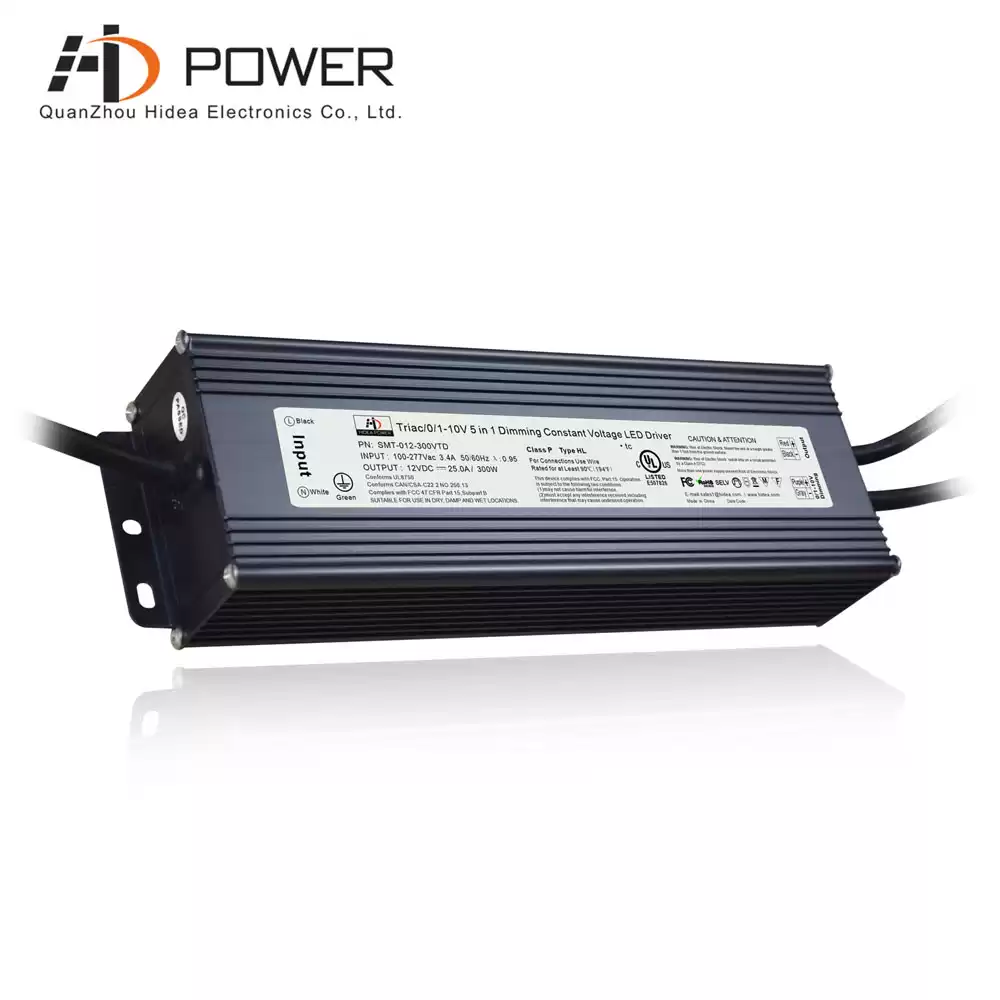

24v 300W constant voltage triac & 0 10v dimmable led driver for strip lights
UL certified 100-277vac Input voltage range 5 in 1 dimmable 300W led power supply Aluminum housing design, waterproof grade ip67, effectively waterproof and dustproof, suitable for outdoor LED lighting projects
Specification
|
Model
|
SMT-012-300VTD
|
SMT-024-300VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated current
|
25.0A
|
12.5A
|
|
Rated power
|
300W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.97@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.9ms @120VAC; 35A, 50% 1.9ms @277VAC
|
|
Full Load @Efficiency(Typ.)
|
86%@120VAC 88%@277VAC
|
88%@120VAC 92%@277VAC
|
|
AC Current(Typ.)
|
3.4A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
1.7Kg
|
|
Size
|
276*78*47mm (L*W*H)
|
|
packaging
|
Carton size: 390*310*185mm , 10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment.
|
|
4. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
The dimming mode of this 12V 300W dimmable waterproof power supply is Triac + PWM + 0-10V + 10V PWM + Resistor. Meet T24/JA8 standard, PWM output 20KHZ,Flicker free, starting time<0.5s. Compatible with Ustellar LED strips.
Related Products
|
 Constant voltage 0-10v dimmable led driver 12v 300W meets the needs of users who need high-power lamps. This 300W dimmable led driver can provide safe and stable protection for lamps and has a 7-year warranty.
Mode：SMT-012-300VDHW
Dimming Mode : 0 10V Dimming
Output Power : 300W
intput voltage：100-277VAC
Size：276*78*47MM （L*W*H）
|
