24v 30w triac dimmable led power supply driver selv ip20

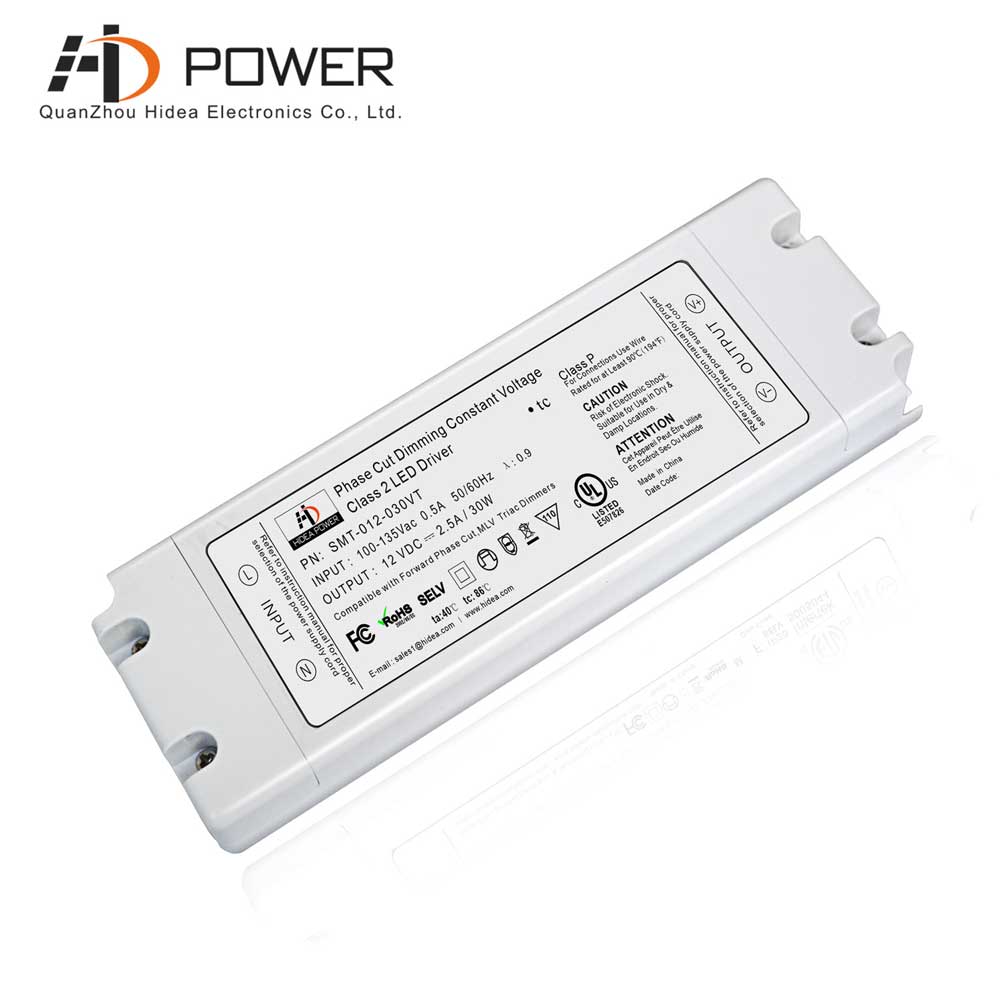

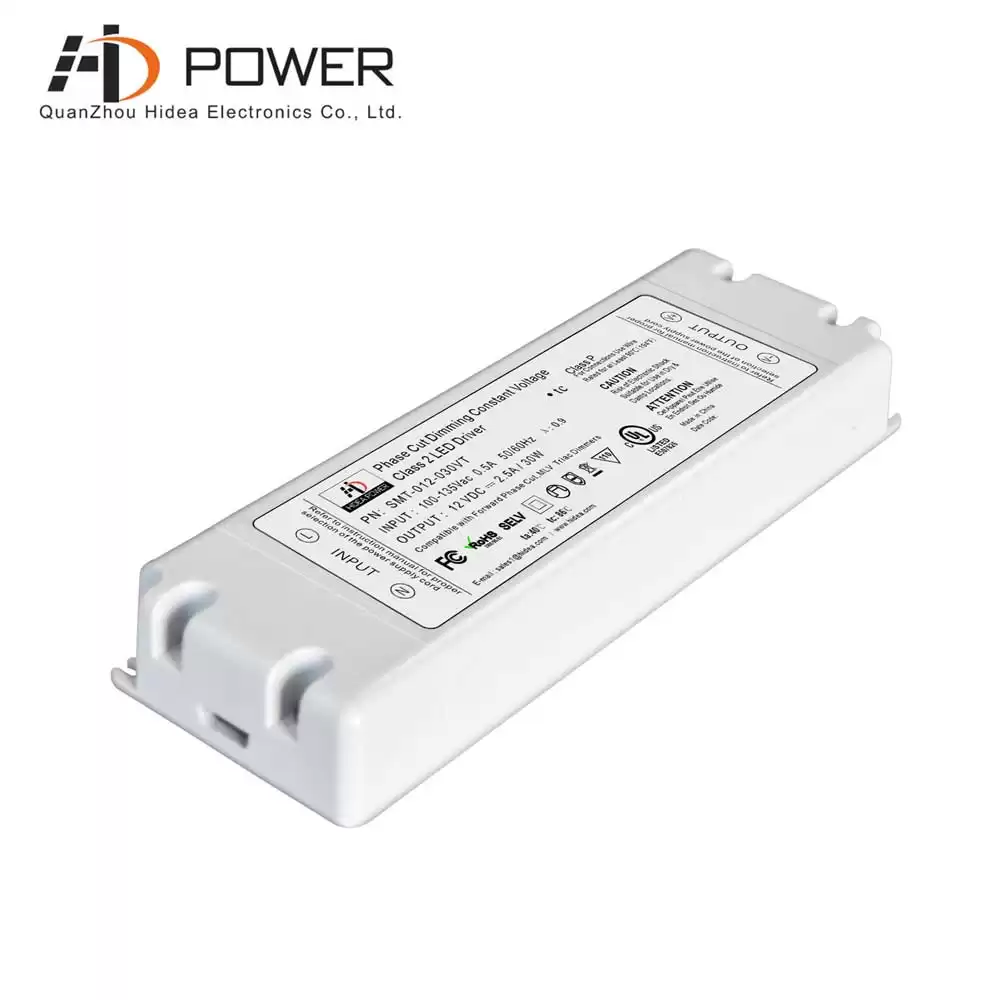

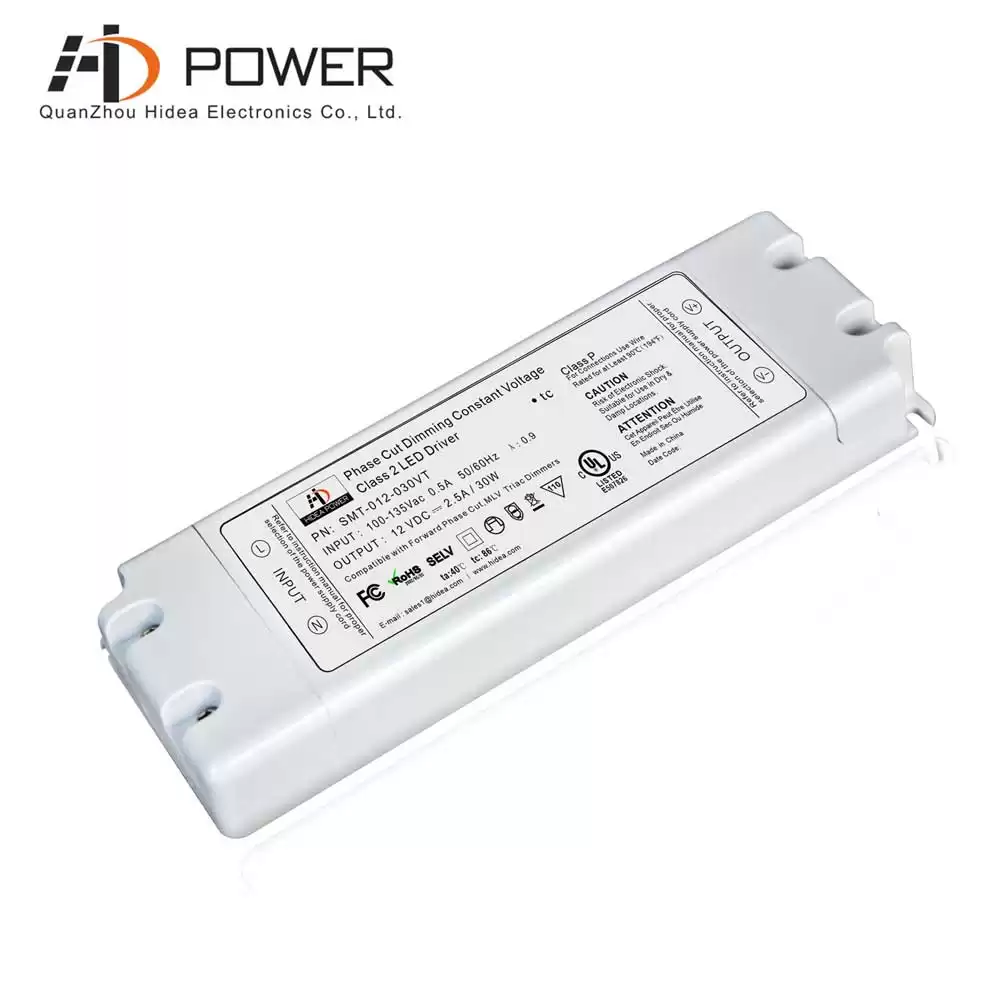

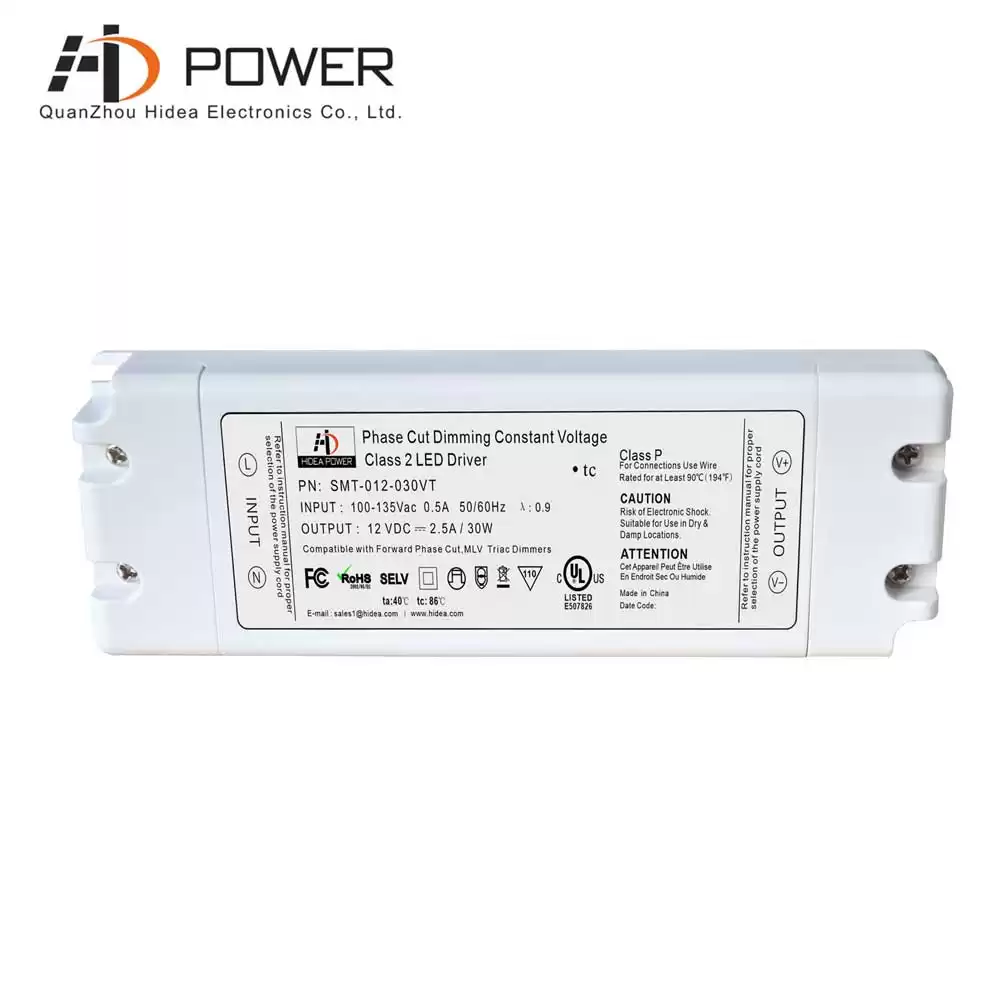

This 30w dimmable led driver has a small body and is easy and quick to install. The size is only 180*60*35mm. It has a plastic shell design and an IP20 waterproof rating. It is suitable for the installation of indoor lighting projects in small spaces.
Specification
|
Model
|
SMT-012-030VT
|
SMT-024-030VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
2.5A
|
1.25A
|
|
Rated power
|
30W
|
|
Input
|
Voltage Range
|
90~135VAC / 170-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≥ 0.95 (Full loading)
|
|
Efficiency(Typ.)
|
81%
|
83%
|
|
AC Current(Max.)
|
0.41A
|
0.4A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
0.55Kg
|
|
Size
|
180*60*35mm(L*W*H)
|
|
packing
|
350*195*180mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 60-100%.
|
Compatible Light Type
This is 12v dimmable led driver and rated power is 30w with class2. About over Current is 1.4 Times output current. More than 0.7 power factor and 83% efficiency.Can be used with ELKO 315GLE dimmer.
