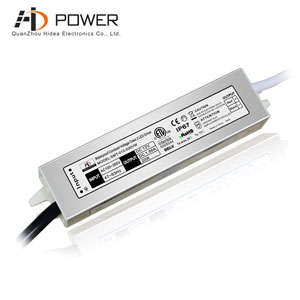

24v 500ma constant current 20w led driver power supply ip67

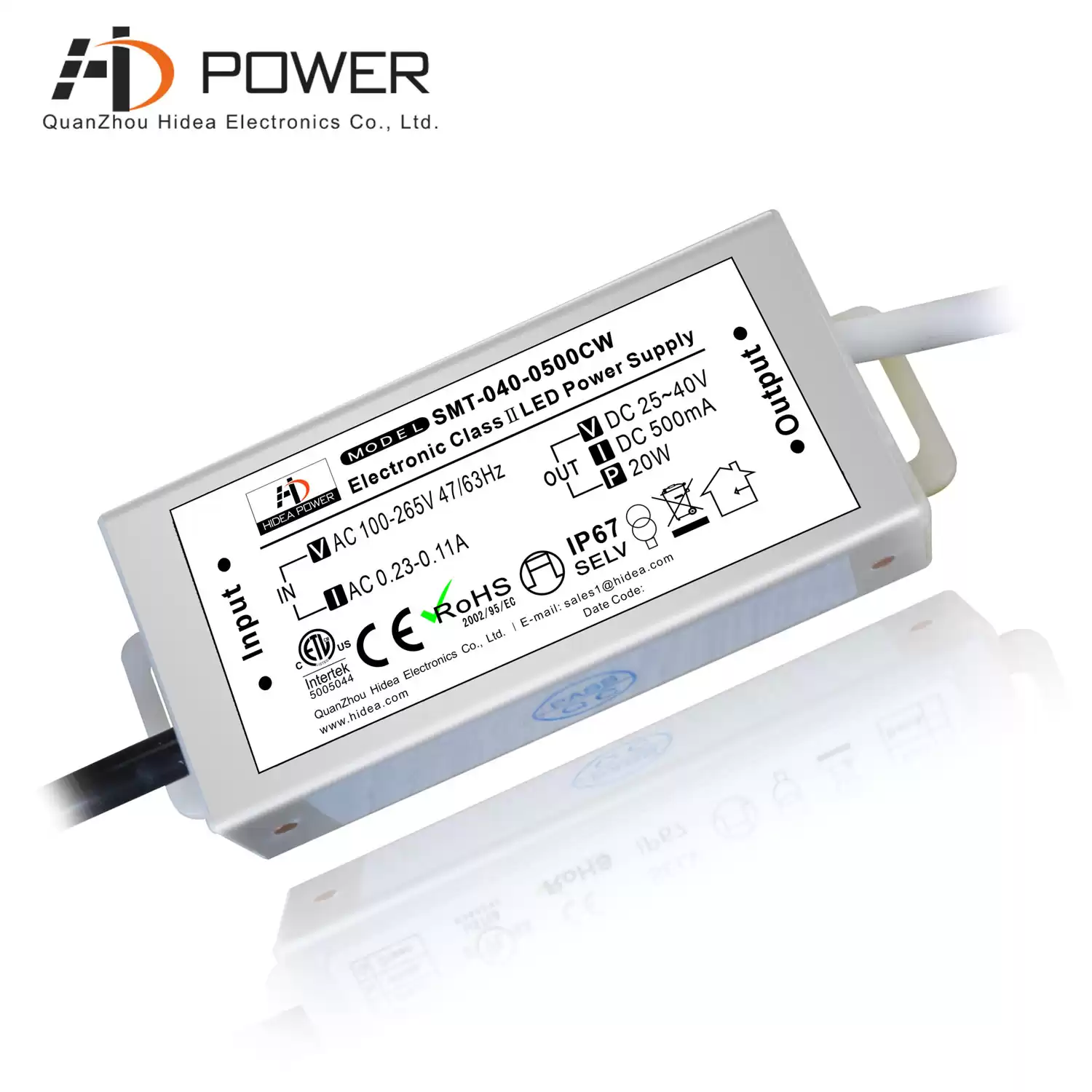

SMARTS CW series SMT-040-0500CW is constant current 20W led driver power supply, input voltage is 100-267v, passed CE certification, the main market is in Europe
Specification
|
MODEL
|
SMT-040-0500CW
|
SMT-060-0350CW
|
SMT-030-0700CW
|
SMT-036-0700CW
|
|
OUTPUT
|
DC VOLTAGE
|
<45V
|
<45V
|
<45V
|
<45V
|
|
RATED CURRENT
|
500mA
|
350mA
|
700mA
|
700mA
|
|
VOLTAGE RANGE
|
25-40V
|
30-60V
|
20-30V
|
25-36V
|
|
RATED POWER
|
20W
|
20W
|
21W
|
25W
|
|
RIPPLE&NOISE(max)
|
|
|
CURRENT TOLERANCE
|
±5%
|
±5%
|
±5%
|
±5%
|
|
LINE REGULATION
|
±5%
|
±5%
|
±5%
|
±5%
|
|
LOAD REGULATION
|
±5%
|
±5%
|
±5%
|
±5%
|
|
INPUT
|
VOLTAGE RANGE
|
90-265VAC
|
90-265VAC
|
90-265VAC
|
90-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
﹥0.92
|
﹥0.93
|
﹥0.92
|
﹥0.92
|
|
EFFICIENCY(Typ.)
|
﹥86%
|
﹥86%
|
﹥85%
|
﹥86%
|
|
AC CURRENT(Typ.)
|
0.15A/110V,220VAC
|
0.15A/110V, 220VAC
|
0.15A/110V, 220VAC
|
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:Hiccpe mode,recovers automatically after condition is removed
|
|
OVER CURRENT
|
Protection
|
|
OVER HEAT
|
Protection
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH,IP67
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V, 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
constant current led driver SMT-040-0500CW, the output power is 20W, the input voltage is 100-267v, and the constant current design can make the light strip work more stable.
