24v 50w ac to dc led driver suppliers
SMT-024-050VWP is a type of single output constant voltage 50w led driver. The best power led about its input voltage is 240v higher and 24v of its output voltage. As for over temperature, it will automatically recover after cooling.

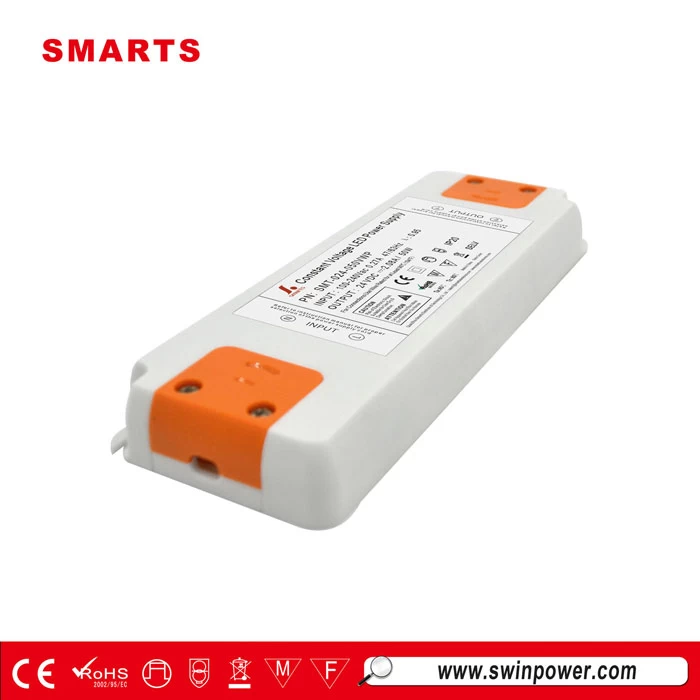

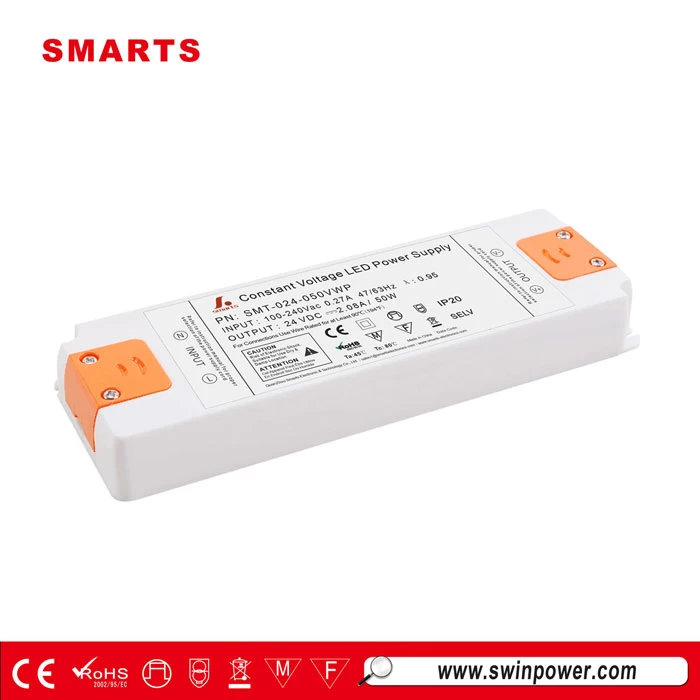

Label for 50w led driver:
Specification:
urervice&
|
MODEL
|
SMT-012-050VWP
|
SMT-024-050VWP
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
4.2Amp
|
2.1Amp
|
|
VOLTAGE RANGE
|
0-4.2A
|
0-2.1A
|
|
RATED POWER
|
50Watt
|
50Watt
|
|
RIPPLE&NOISE(max)
|
300mV
|
300mV
|
|
VOLTAGE TOLERANCE
|
±5%
|
±5%
|
|
LINE REGULATION
|
±1%
|
±1%
|
|
LOAD REGULATION
|
±2%
|
±2%
|
|
INPUT
|
VOLTAGE RANGE
|
100-265VAC
|
100-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
﹥83%
|
﹥83%
|
|
AC CURRENT(Typ.)
|
0.57A/110VAC, 0.28A/220VAC
|
0.57A/110VAC, 0.28A/220VAC
|
|
PROTECTION
|
SHORT CIRCUIT
|
Protection type:recovers automatically after condition is removed
|
|
OVER CURRENT
|
overload protected@145-160% above peak rating
|
|
OVER LOAD
|
4.8A
|
2.5A
|
|
OVER VOLTAGE
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-10～+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20～99% RH non-condensing
|
|
STORAGE TEMP.,HUMIDITY
|
-40～+80℃,10～99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13; CE /ROHS approval
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015;EN61000-3-2;EN61000-3-3;
|
|
EN61547;EN61000-4-2,3,4,5,6,8,11;
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
FAQ:
Our service & FAQ:
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 5-7 working days for samples, 10-15 working days for mass production.
Q8. What's the payment conditon?
A8: All are paid before production or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
what is the packing situation ??
MOQ: 1 PCS
Payment : T/T Western union Paypal Credit Card
Delivery : within 7 working days for sample order , 13 working days for 500pcs
Shipping term : FedEx DHL UPS TNT Air /Sea Transportation
Question:
Can our DALI dimming power supply color temperature?
Answer:
Our DALI power supply is currently only a single output, only bright and dark, not color temperature.
