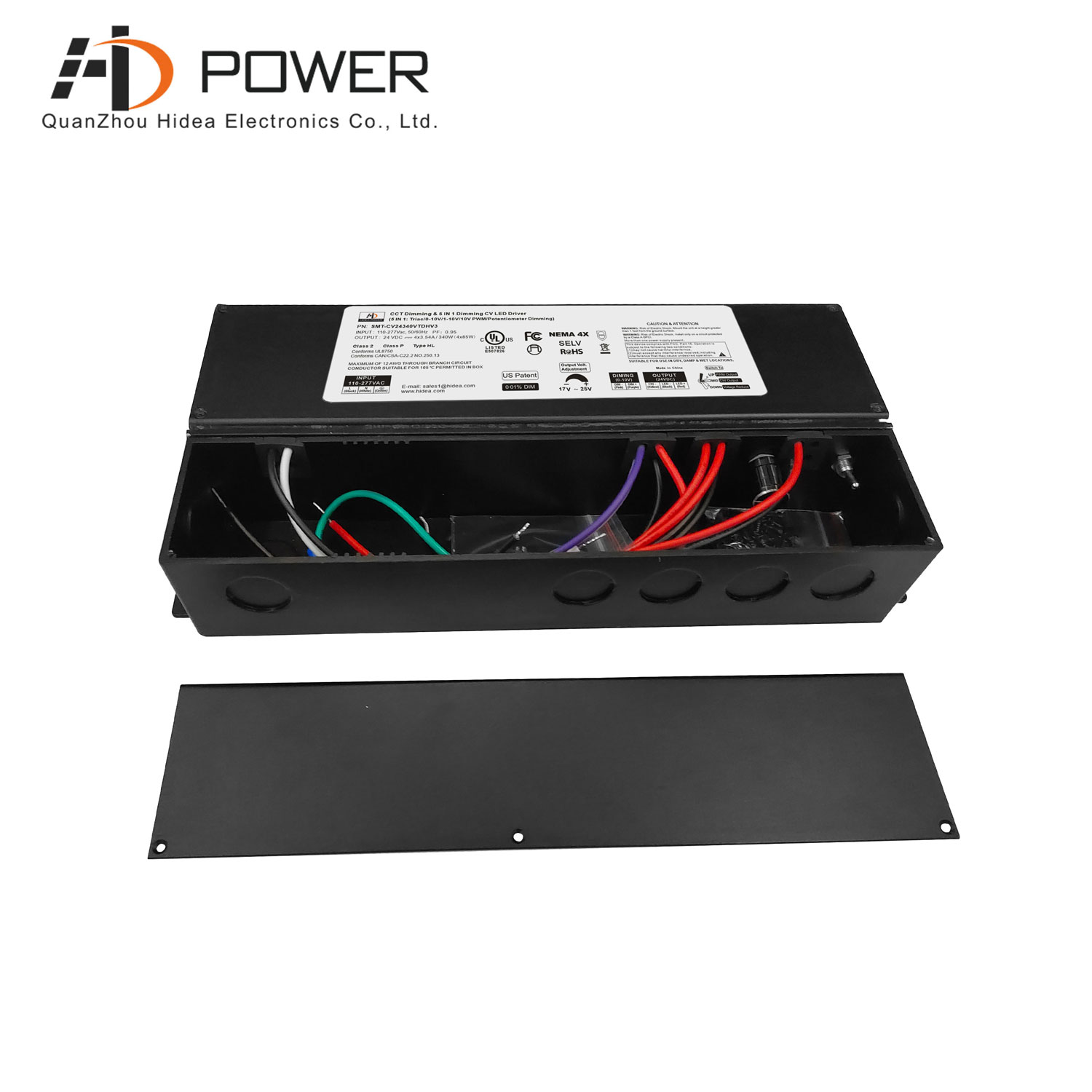

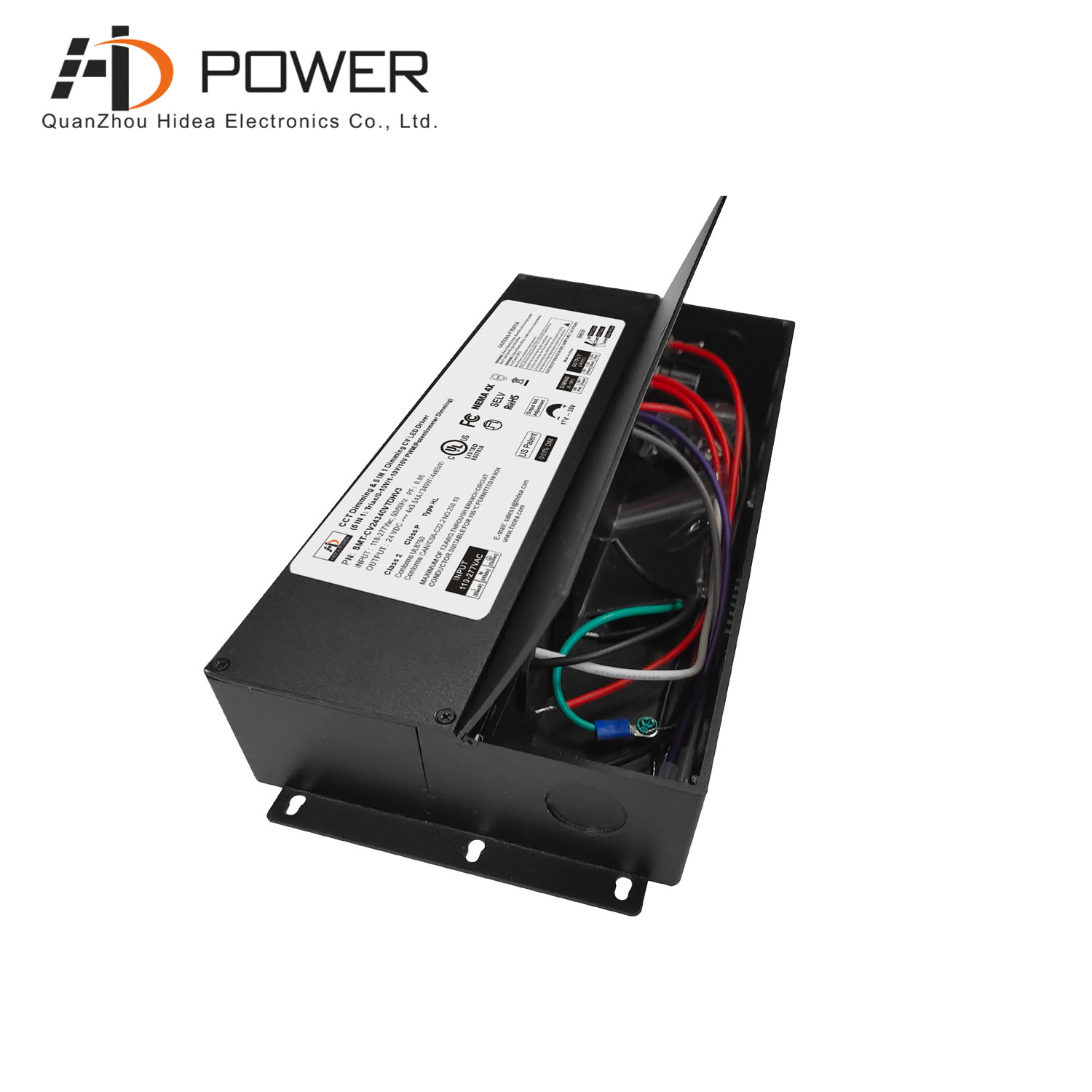

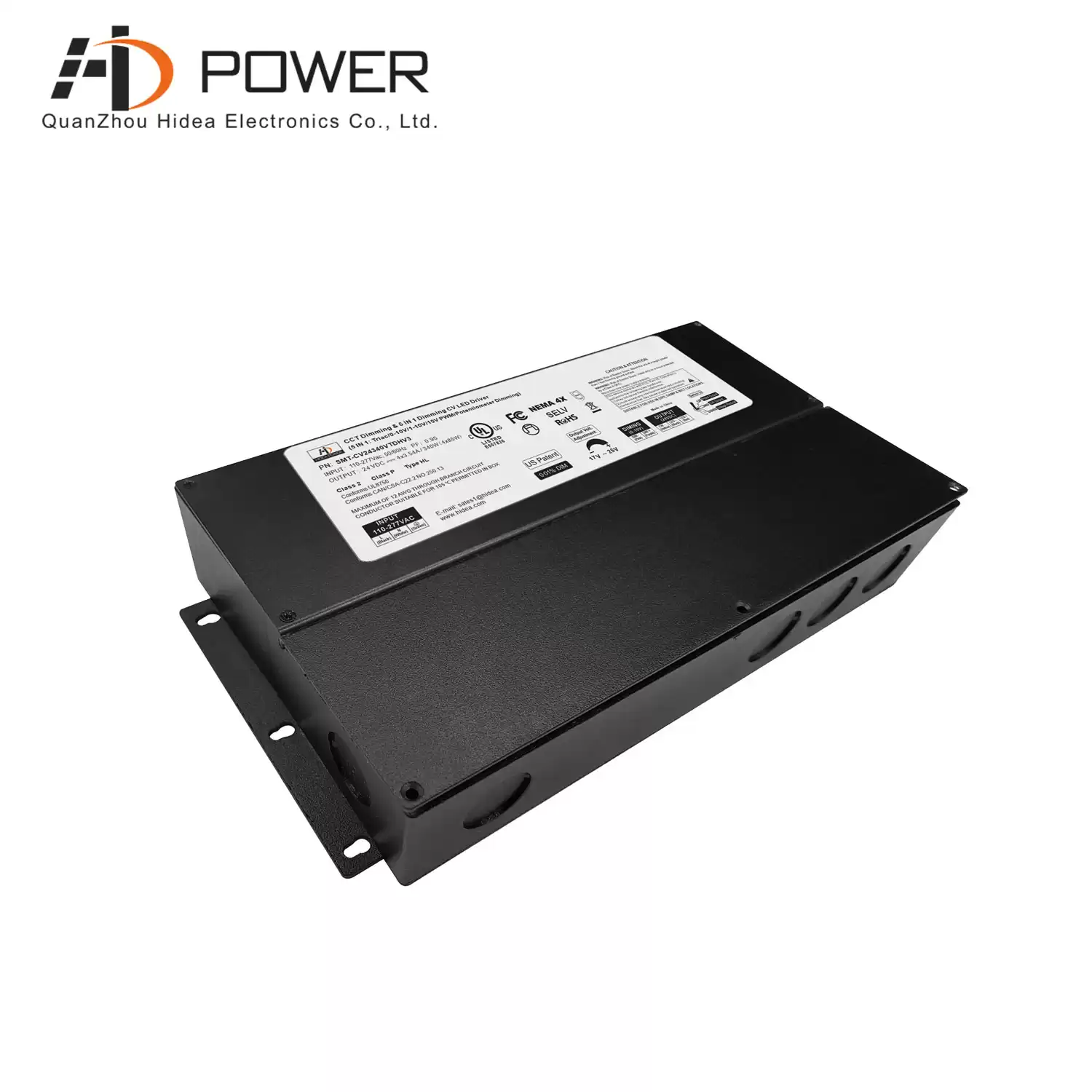

24v triac & 0-10v dimmable constant voltage led driver dimming power supply junction box

UL, class 2 certification, 24v 340W 5 in 1 dimmable LED power supply, the output voltage is 100-277vac, in line with North American lighting standards, multi-channel output, constant voltage working mode is stable and does not flicker

  • Size289*132*42.5mm
  • Shape & SizeJ-BOX Driver
  • Output Voltage12/24/48Vdc
  • Output Power(Watt)340W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Color DimmingCCT warm dimming
  • OutputDual channel (2 colors)
  • Dimming ModeCCT & 5 in 1(Triac 0-10V 1-10V Registor 10V PWM) Dimmable
  • Weight2.15KG
  • CertificationUL
  • Warranty7 Years
Facebook Twitter Pinterest LinkedIn 分享


Hidea power's new Triac/0-10V/1-10V/10V PWM/Potentiometer

dimming led power supply, the dimming range is 100%-0.01%

Ultra Deep Amplitude, can achieve smooth and flicker-free

dimming, with short circuit, over temperature, overload Protect.

Safe and reliable

  Specification

Model Number SMT-CV24340-VTDH4CV3 SMT-CV48340-VTDH4CV3
OUTPUT
Rated Power 340W (4*96W) 340W (4*96W)
Rated Voltage 24V 48V
Rated Current 4*3.54A 4*1.77A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 87%@120VAC   90%@277VAC 88%@120VAC   91%@277VAC
AC Current(Typ.) 3.7A@100VAC 3.6A@100VAC
Inrush Current(Typ.) 36A ,50%,960us @120VAC ;  44A,50%,1ms @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 289x132x49mm (L*W*H)  N.W: 2.7kg
Packing 8pcs/CTN   G.W:25.1KG   SIZE: 340*210*245mm


  Compatible Light Type

This new dimming power supply has built-in active PFC, PF>0.95, ultra-low load requirements, perfect operation under 10-100% load. Hidea power provides it with a 7-year warranty, for indoor and outdoor use; Wet, damp, and dry location.


  Related Products

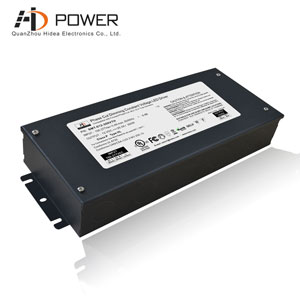

12v 100w led power supplyUL listed 12v 300W TRIAC dimmable led driver with iron housing, can work well in harsh environment
