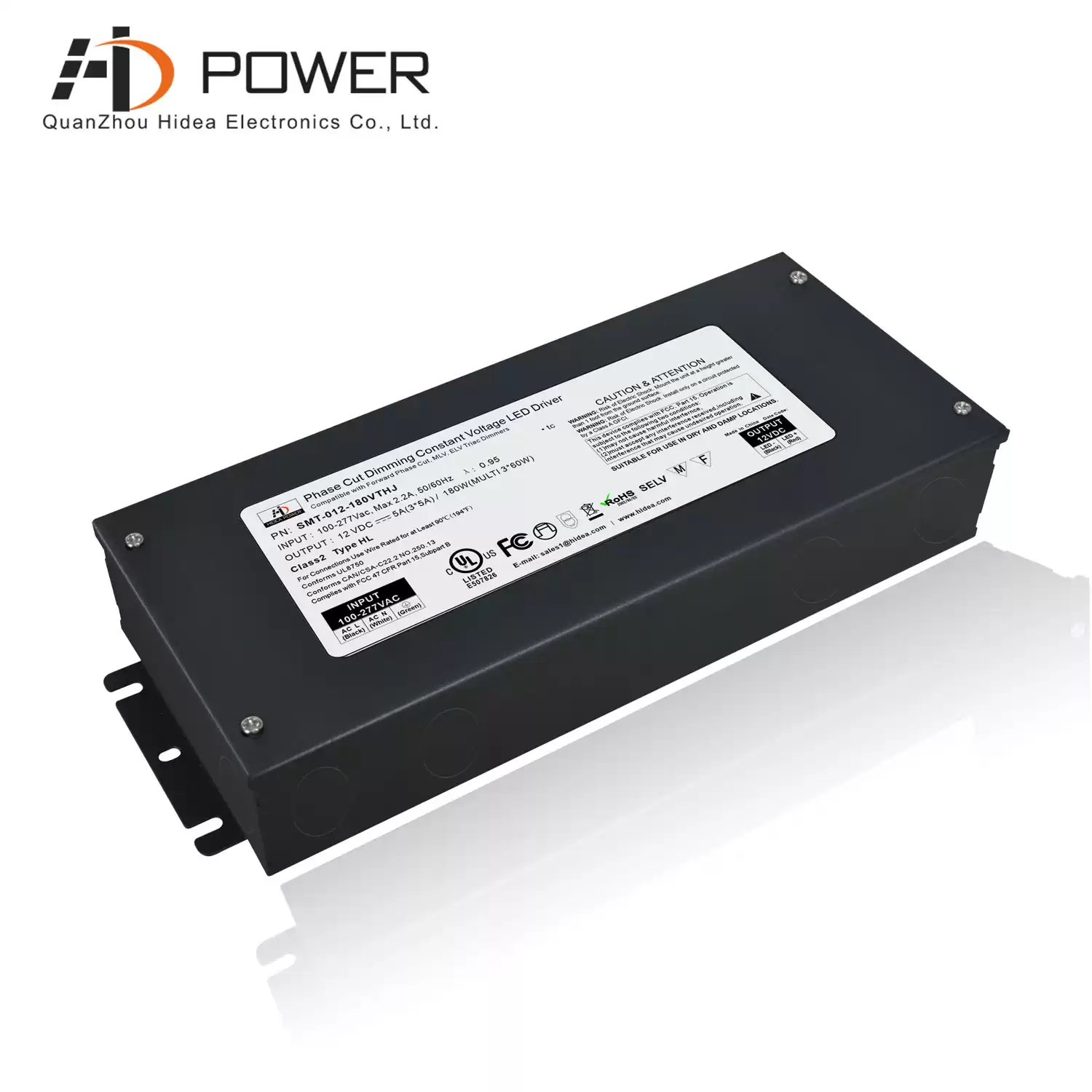

24v triac dimmable high power 180w class 2 led driver power supply for led strip lighting
180W Waterproof constant voltage triac dimming led driver has strong compatibility with triac dimmers on the market to achieve flicker-free dimming, with fully protected aluminum housing, can adapt to indoor and outdoor humid working environment
Specification
|
Model
|
SMT-012-180VTHJ (1.0 version)
SMT-012-180VTHJV2 (2.0 version)
SMT-012-180VTHJWV2 (3.0 version)
|
SMT-024-192VTHJ (1.0 version)
SMT-024-192VTHJV2 (2.0 version)
SMT-024-192VTHJWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±1%
|
±1%
|
|
Rated current
|
3*5A
|
2*4A
|
|
Rated power
|
180W(3*60W)
|
192W (2*96W)
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@full load
|
0.99@120VAC 0.94@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
THD(Typ.)@full load
|
<20%
|
|
Inrush Current(Typ.)
|
15A, 50%, 1.4ms
|
|
Full Load Efficiency(Typ.)
|
86%@120VAC , 88%@277VAC
|
87%@120VAC , 89%@277VAC
|
|
AC Current(Typ.)
|
2.2A@100VAC
|
2.3A@100VAC
|
|
Inrush Current (Typ.)
|
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC
|
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P: 1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
2.3Kg
|
|
Size
|
1.0version: 278*108*46mm / 2.0version: 278*110*45mm /3.0version: 278*130*45mm (L*W*H)
|
|
packaging
|
340*210*245mm/8pcs /CTN G.W.:19.50KG/CTN (1.0 version) 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature.
|
|
2..Tolerance:includes set us tolerance,line regulation and load regulation.
|
Related Products
|

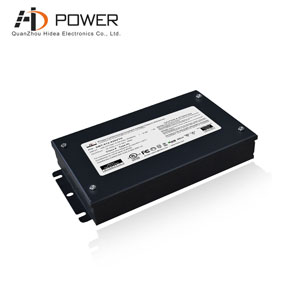

7-year warranty 30W triac dimming led driver is UL certified and sold primarily in North America
Mode：SMT-012-030VTH
Dimming Mode : triac dimming
Output Power : 30W
input voltage：100-277Vac
Size：165*92*26MM L*W*H）
|
