24V~96V Intelligent Electric Forklift Charger Lithium Battery Charger
1.Product Introduction:
1. **Touch Screen Interface:**
- Easily set output voltage and current through the intuitive touch screen interface.
- Convenient scheduling for charging based on specific machine charging requirements.
2. **Data Accessibility and Fault Display:**
- Charge data can be exported for detailed information.
- Instant and clear display of fault codes on the screen for quick troubleshooting.
3. **Intelligent Self-Developed Main Power Module:**
- The main power module has been independently designed with TUV Rheinland UL certification.
- Modular construction with digital power technology ensures reliability and efficiency.
- Internal components of the module utilize imported brands complying with North American standards.
4. **Advanced Charging Technology:**
- Features an APFC (Active Power Factor Correction) section using a three-phase Vienna rectifier circuit and DSP digital control technology. This enables precise one-phase power factor correction, ensuring a PF ≥ 0.99 at rated load.
- Utilizes DSP digital technology for the DC/DC section, implementing interleaved full-bridge LLC resonant circuit topology. This design achieves zero-voltage switching (ZVS) of the full-bridge MOSFET switches and zero-current switching (ZCS) of the rectifier diodes, reducing stress on the power components and optimizing system efficiency.
The 24V~96V Intelligent Electric Forklift Charger sets a new standard in charging technology, combining innovation and reliability for an optimized and efficient charging solution in industrial applications.
Experience the future of intelligent charging with this cutting-edge lithium battery charger.
2.Technical Parameters：
|
Input technical parameters :
|
|
Input voltage
|
Three-phase four-wire system (AC480Vac±10%)
|
|
Input voltage range
|
432Vac ~ 528Vac
|
|
Input maximum current
|
20A
|
|
Breaker specifications
|
C32A
|
|
Power system
|
TN-C
|
|
Maximum power
|
12.5kW
|
|
Frequency
|
60Hz
|
|
Power factor
|
≥0.99
|
|
Output parameters :
|
|
Maximum output voltage
|
110VDC
|
|
Minimum output voltage
|
40VDC
|
|
Maximum output current
|
100A
|
|
Minimum output current
|
20A
|
|
Maximum output power
|
11.0kW
|
|
Current limiting range
|
10% ~100% Continuous
|
|
Working efficiency
|
≥93%
|
|
Voltage regulation accuracy
|
≤±0.5%
|
|
Current regulation accuracy
|
≤±1%
|
|
Current sharing coefficient
|
≤±5%
|
|
Condition and Environment :
|
|
Operating temperature range
|
-20℃ ~ 45℃
|
|
Storage Temperature
|
-20℃ ~ 50℃
|
|
Relative humidity
|
5～95% , non-condensing
|
|

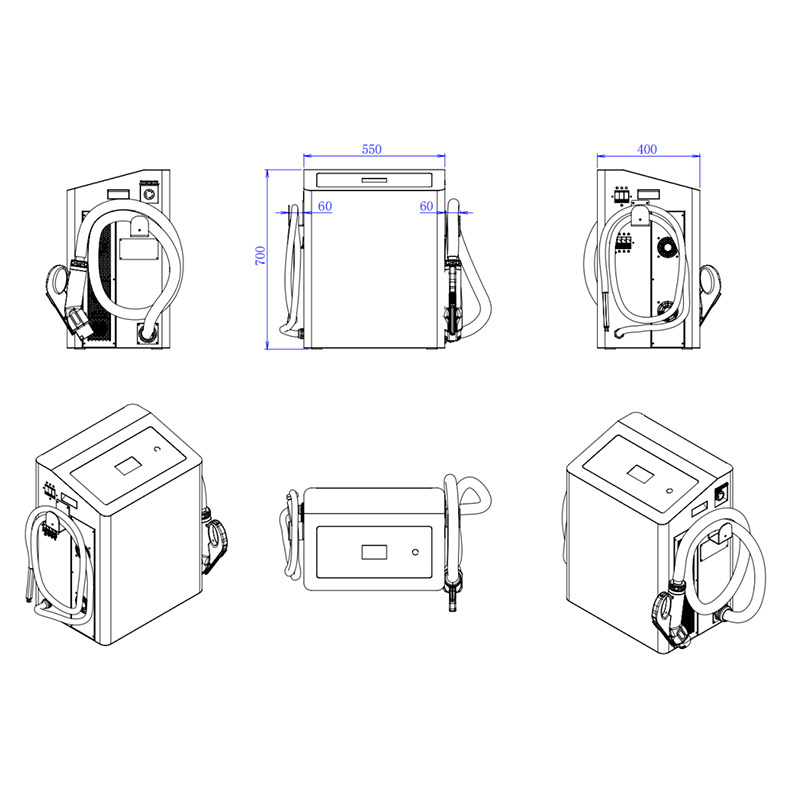

External dimensions
|
Lengths * Widths * Heights : 550 * 400 * 700 mm
|
|
Weight
|
55kg
|
|
Protective function :
|
|
Protection Class
|
IP 20
|
|
Level of protection
|
Class I
|
|
Environment of use
|
Indoor
|
|
Overvoltage category
|
OVC III
|
|
Pollution level
|
PD 2
|
|
Output short circuit protection
|
Enter shutdown protection mode within 1 second
|
|
Overtemperature protection
|
Reduced output: 45°C~65°C, above 65°C shutdown protection
|

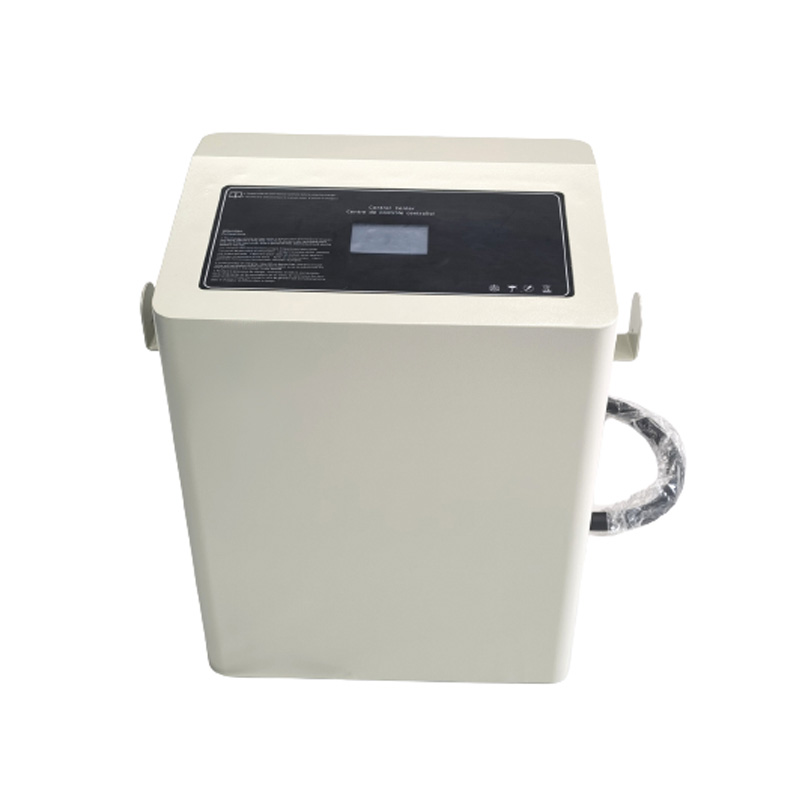

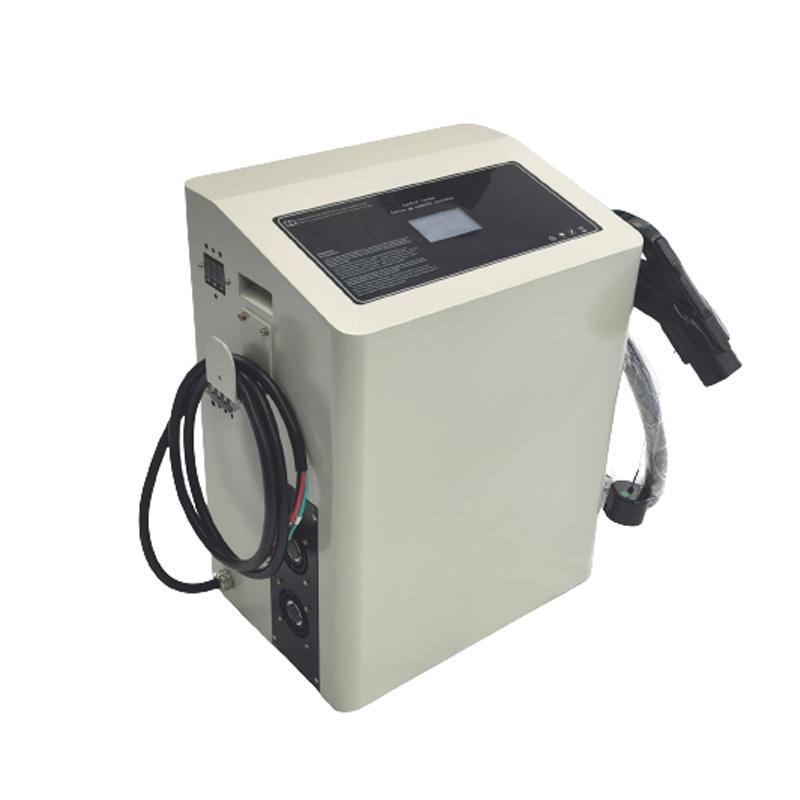

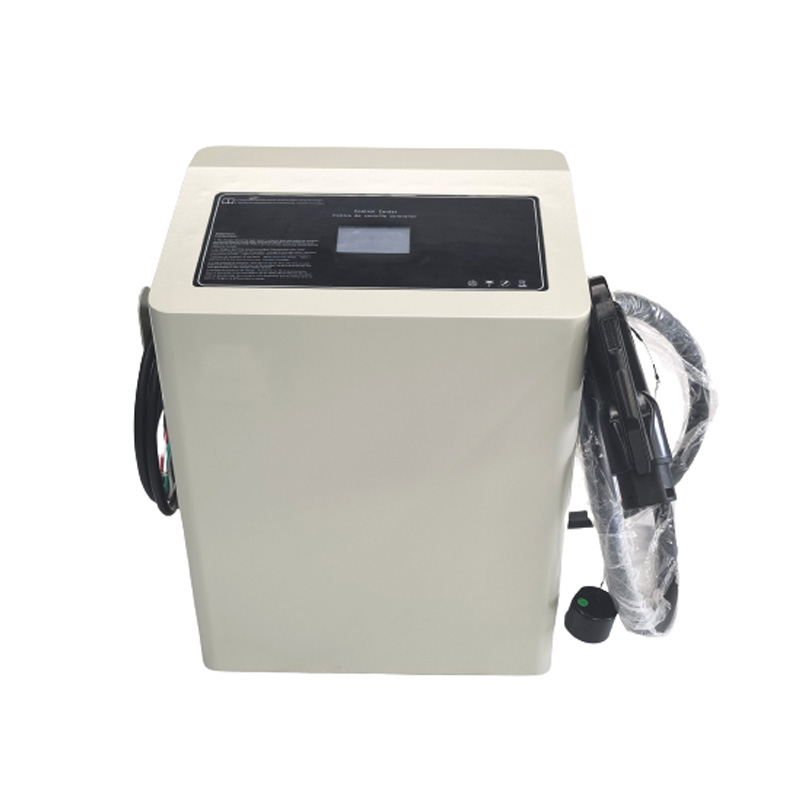

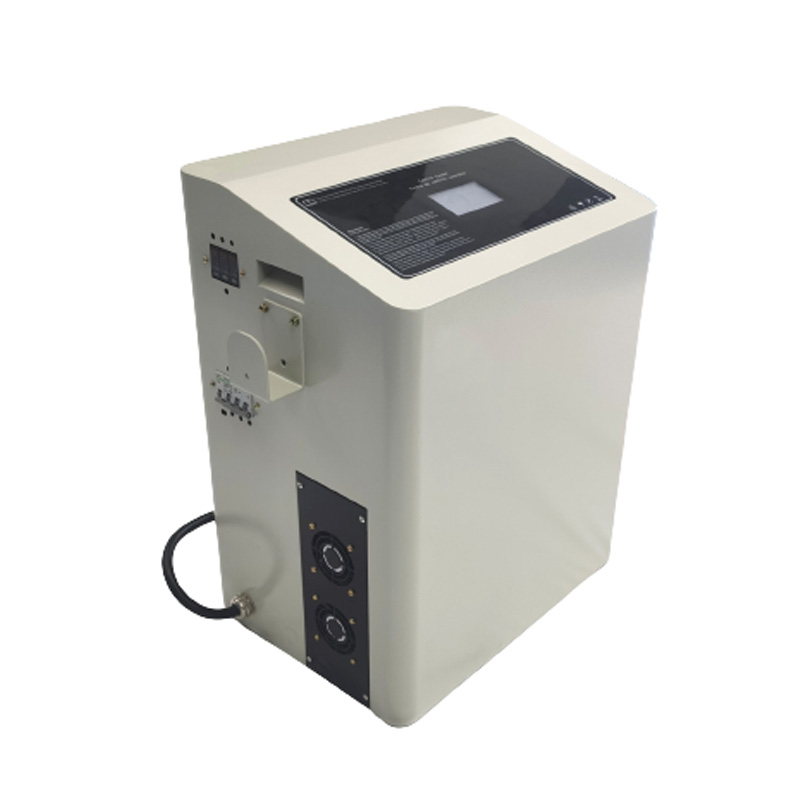

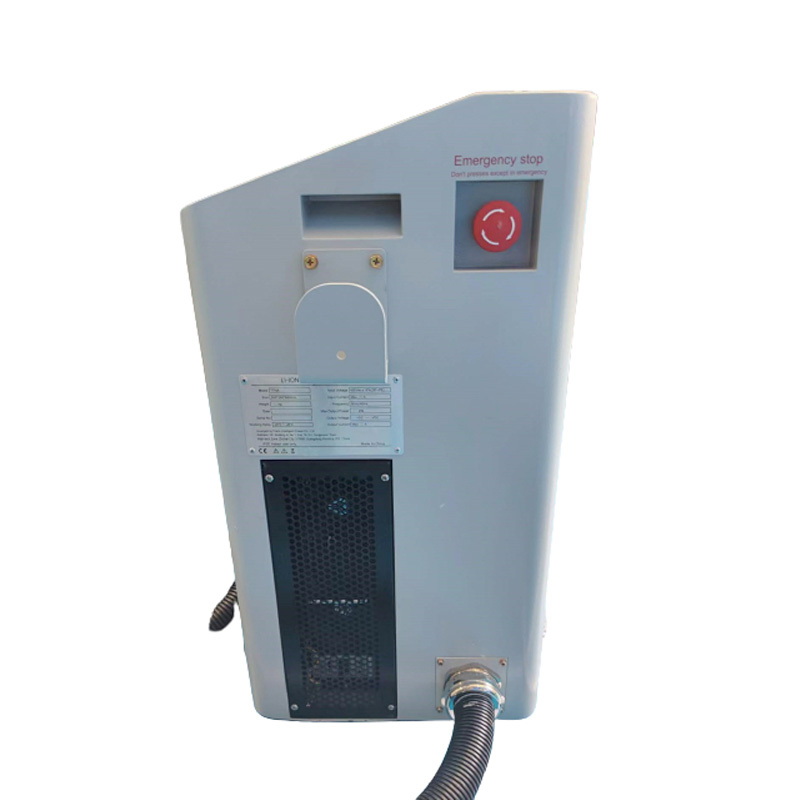

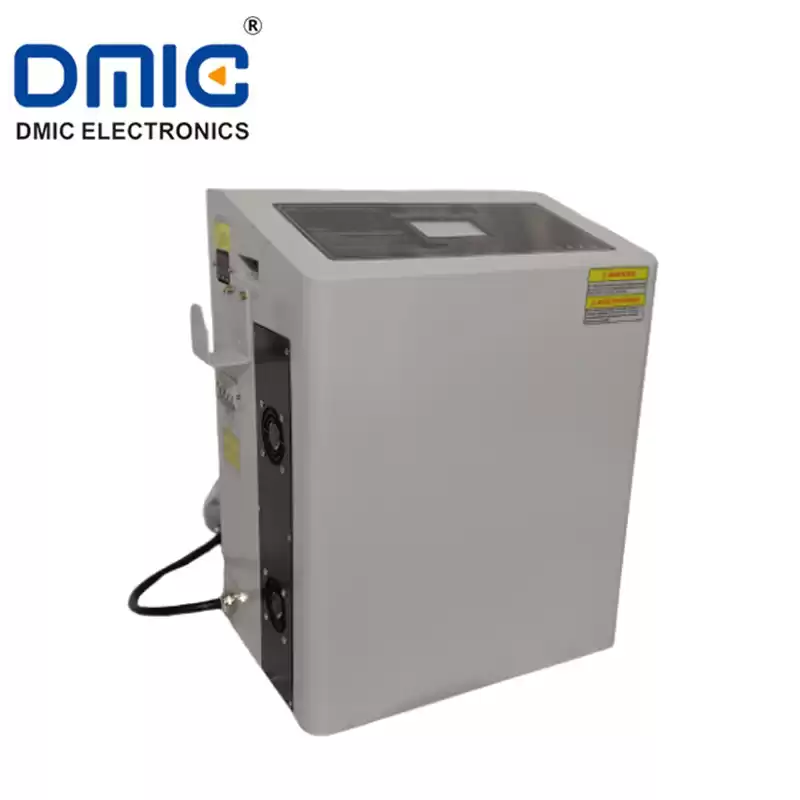

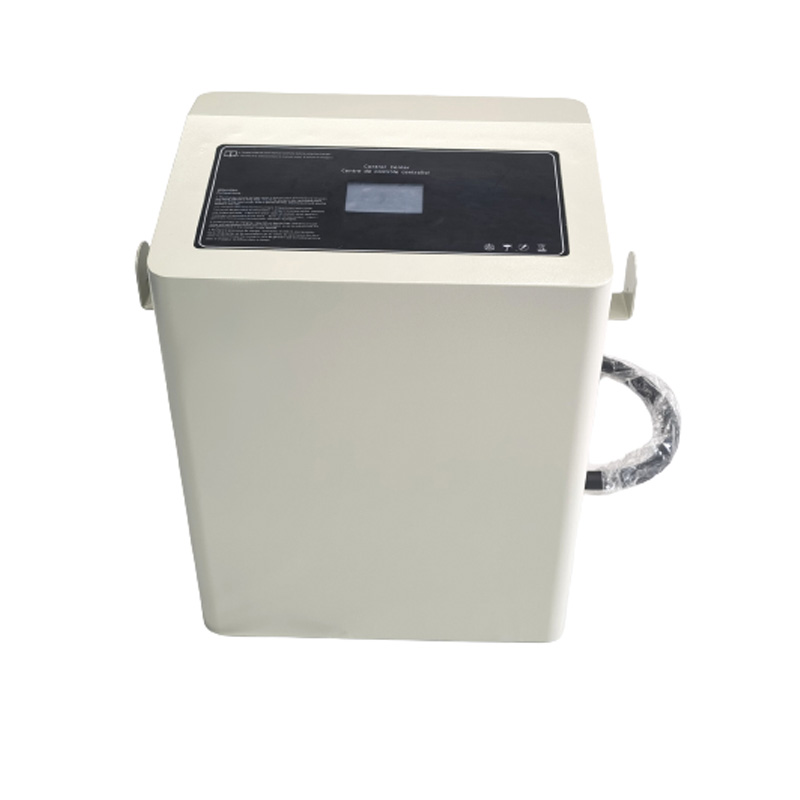

3.Picture Introduction:

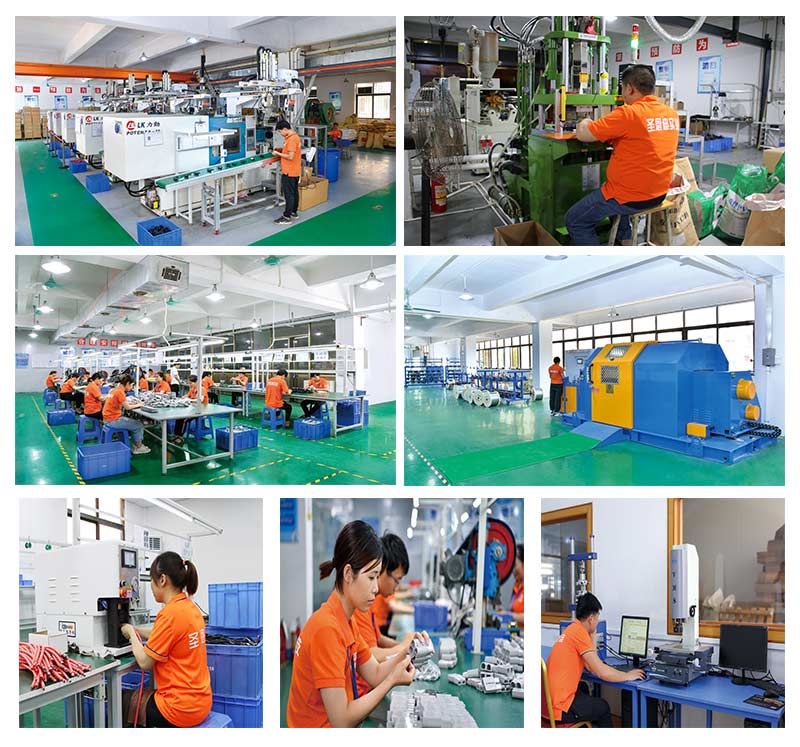

4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
