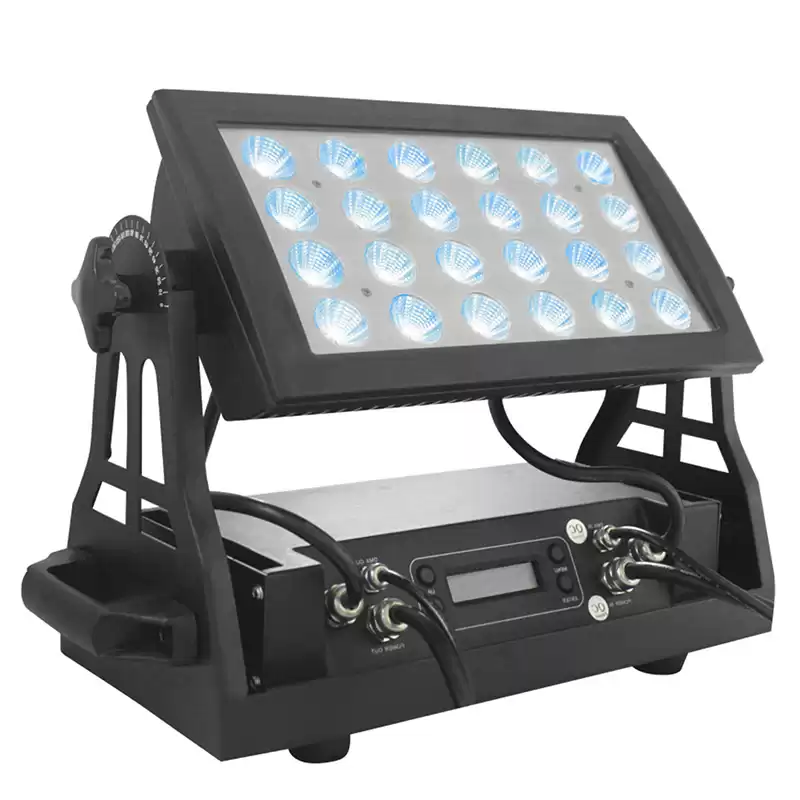

It is a uniquely designed luminaire, which can completely replace the traditional optical luminaire with excellent optical lenses. 24x10 w 4 in 1 RGBW LEDs. The lens uses shadowless technology ... Perfect curve dimming, light board The internal temperature test function makes the device more stable. The 4-state LCD screen is password protected. Channel: 3/4/5/6/11. IP: 65.

●  Optics

. LED : 24x10W RGBW LED, uniform and delicate color mixing effect

. Beam angle: 45 °

. Life span: 50000H, low power consumption, energy saving and environmental protection

●  Colour

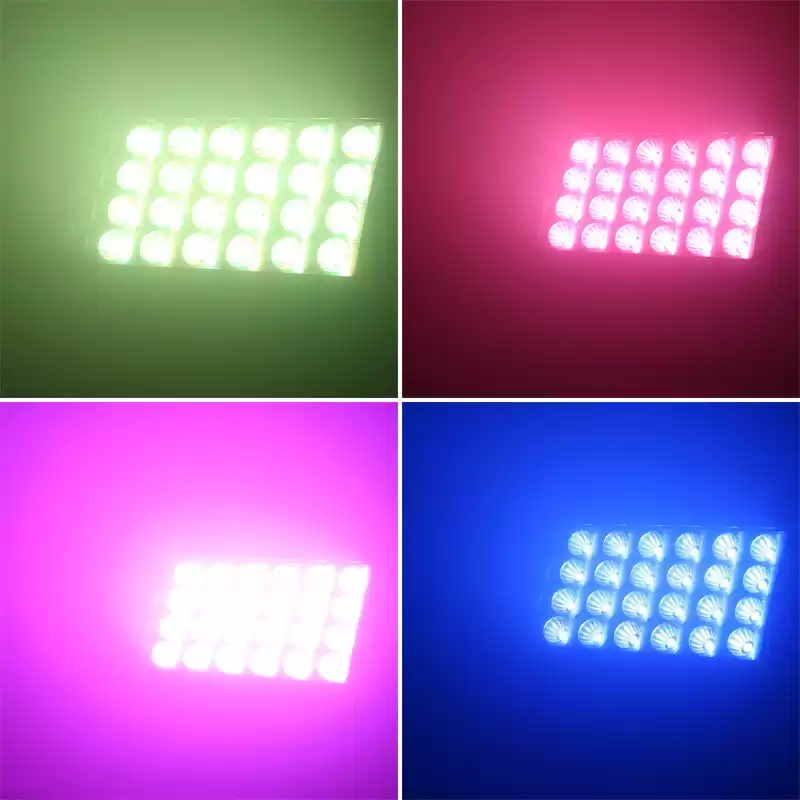

. Uniform RGBW color mixing system

. White balance can be adjusted manually

●  Specification

. 5 DMX channel modes: 3CH / 4CH / 5CH / 6CH / 11CH international standard DMX512 channels

. 2 control modes: DMX512, master-slave

. 10 programs can be customized and edited, and can be called from the console.

. Beam angle: 45 °

. 0-20HZ strobe

. Dimming: 0-100% linear dimming, which can control the change of light and dark of

4 colors and light off at the same time

●  Display

. LCD display

. Four function buttons

●  Software

. 4 dimming speeds

. LED dimming mode: LED mode and halogen lamp mode

●  Other functions

. LED temperature detection system to protect the life of lamp beads

●  Power / DMX connection

. Power connection: Waterproof power line input and output

. DMX connection: Waterproof signal line input and output

●  Power supply

. AC100-240V 50 / 60HZ

. Power consumption : 200W

●  Protection class

. Housing material: die-cast aluminum

. Waterproof level: IP65

●  Working environment

. Indoor working temperature: -20 ° C ～ + 40 ° C

●  Size and weight

. Packing size: 515x260x350mm

. Net weight: 13.5KG

. Gross weight: 15KG

●  Certification

. CE,ROHS
