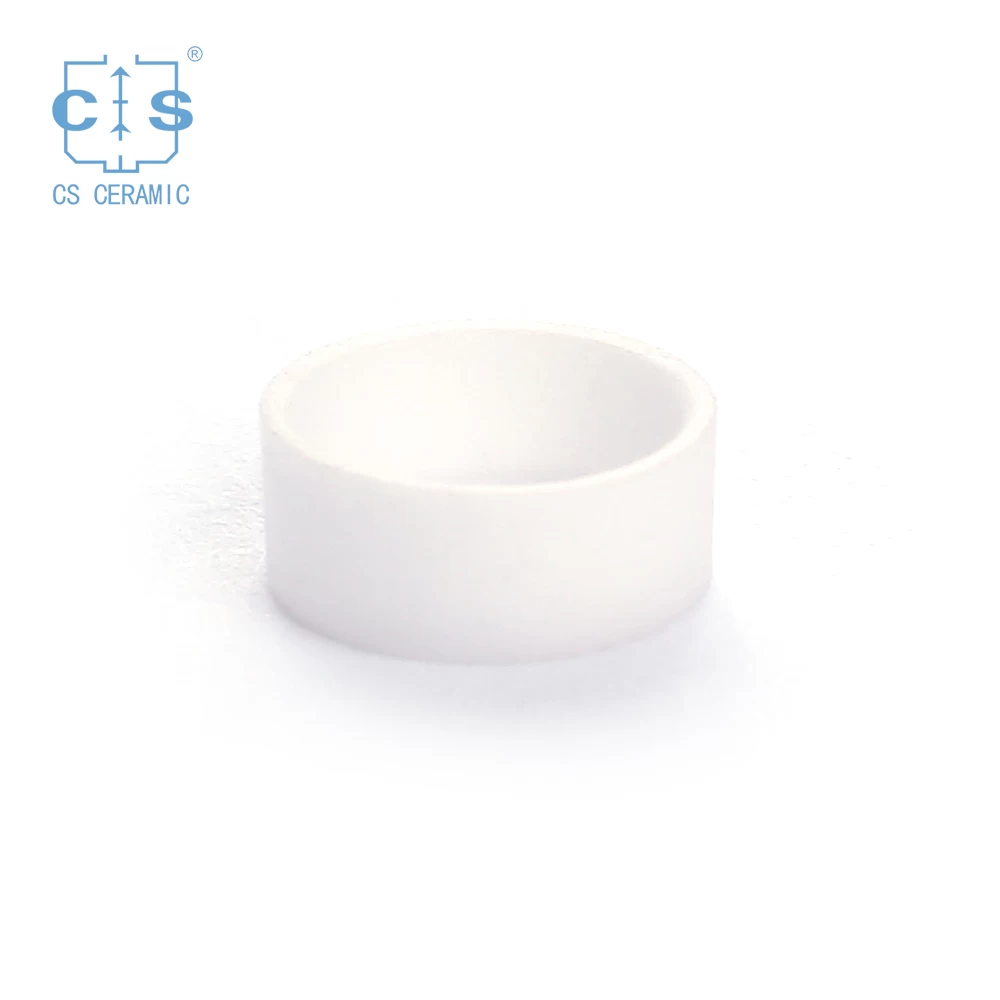

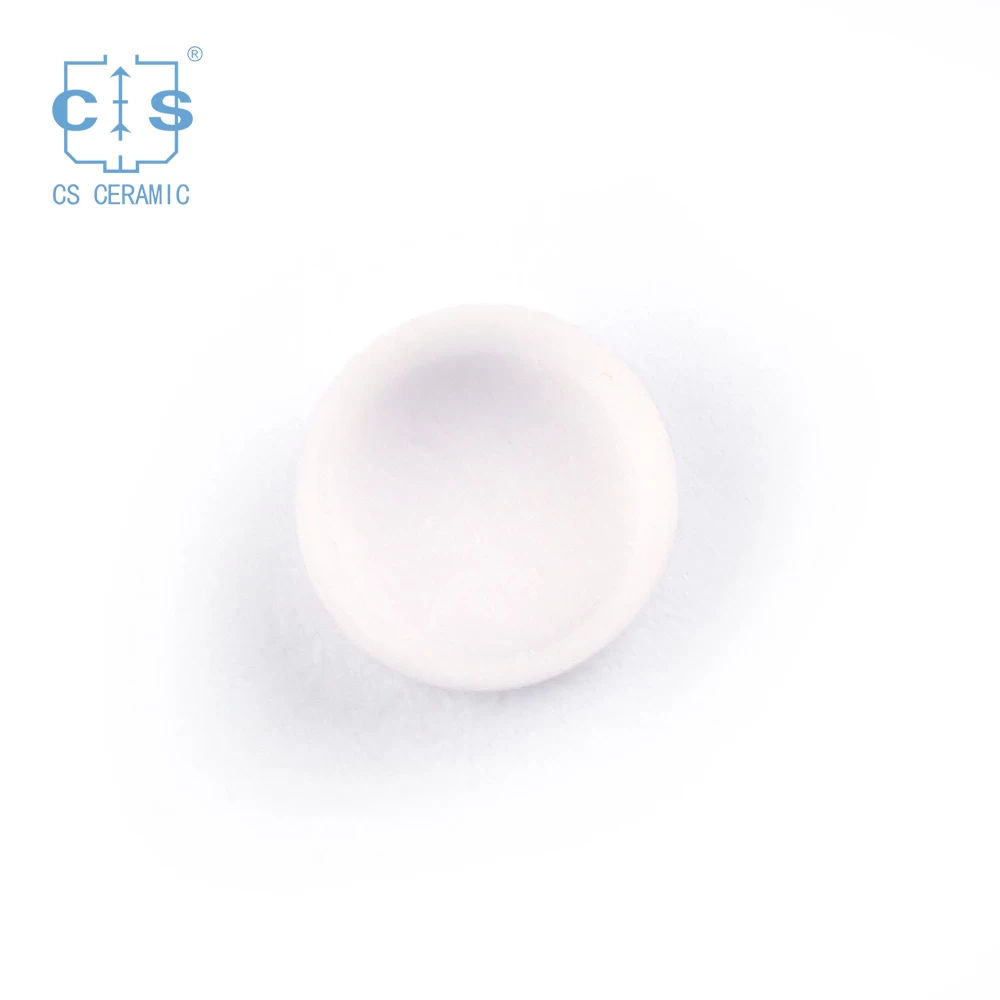

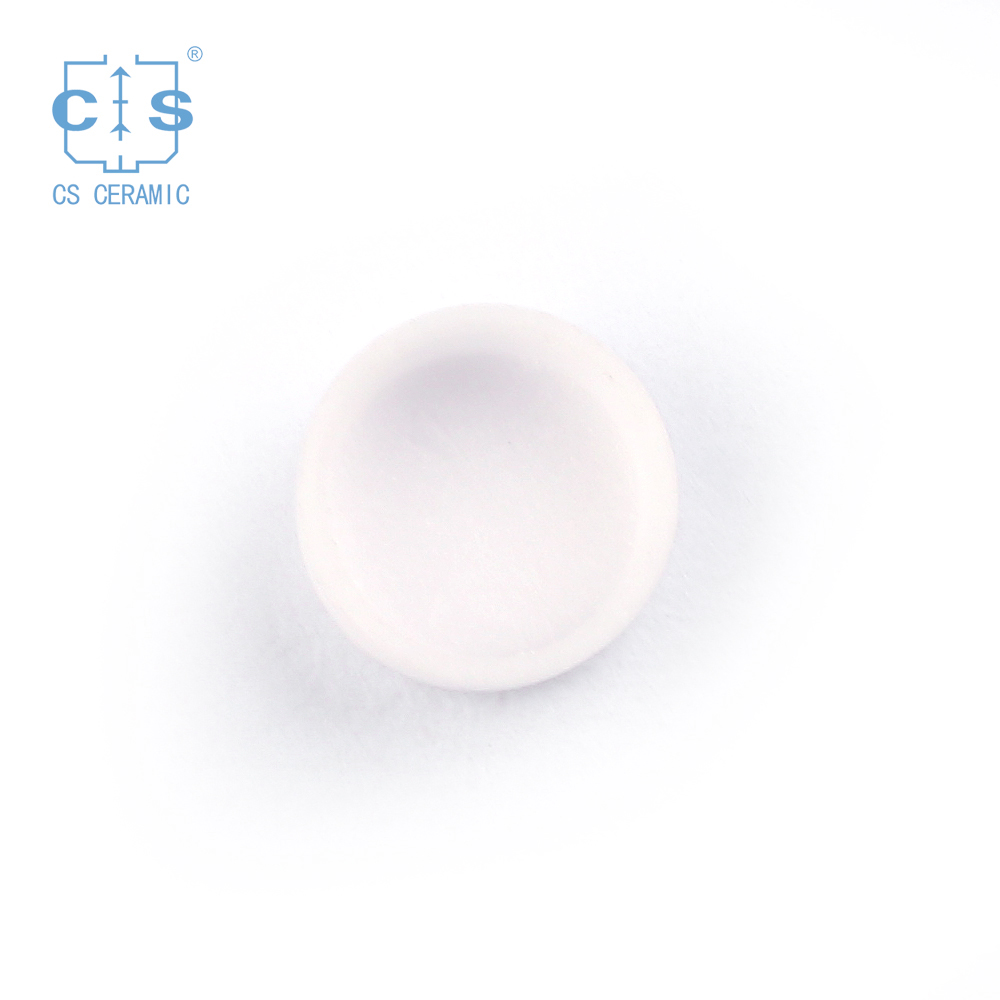

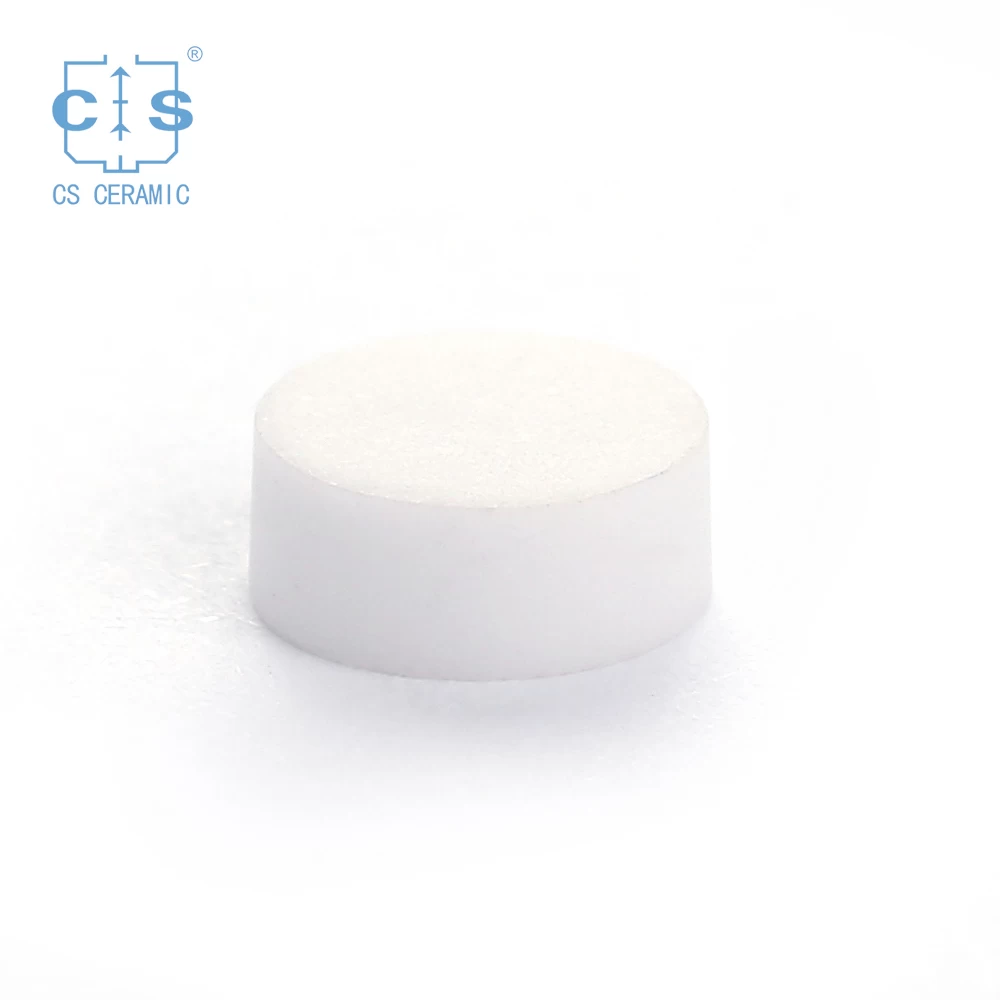

25μl Shimadzu Alumina Cells 201-54321 for Shimadzu (DSC Sample Pans)

25μl  Alumina crucibles cells for Shimadzu DSC-50/50Q/50V, DTA-50, TGA-50/50H, TGA-51/51H, DSC-60 y DTG-60.Manufacturer for Shimadzu crucibles and sample cups .Shimadzu Instruments good alternative DSC sample pans.Complete Shimadzu Consumables list .



  • Part NO201-54321
  • Materialceramic
  • Suitable forShimadzu

Product Item:25μl Shimadzu Alumina Cells 201-54321 D6*2.5mm for Shimadzu  (DSC Sample Pans)


Item info :

Type Sample pan /crucible
Suitable for Shimadzu DSC-50/50Q/50V, DTA-50, TGA-50/50H, TGA-51/51H, DSC-60 y DTG-60
Part NO Shimadzu
Volume μL 25μl
Llid  Without
Material Alumina Ceramic
Temperature range Room temperature to 1600℃
QTY/PKG 20PCS/BOX ;     100PCS/BOX (Both available)
Brand CS CERAMIC
Original MADE IN CHINA

Usage :

Shimadzu Alumina (Aluminum oxide) sample pans are the crucibles that are normally used for DSC and  TGA measurements.


Cleaning :

There sample pans (crucibles )can be reused .After mechanical cleaning ,store them ,if need be ,in water(or possibly even in 10% hydrochloric acid ) because many salts are soluble in water.Oxides form chlorides in hydrochloric acid,which can then be removed by rinsing.After drying,heat the crucibles to red heat to ensure that no weight loss occurs when they are used .


Shipping:    We do international shipping for clients.


Special offer:  Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
