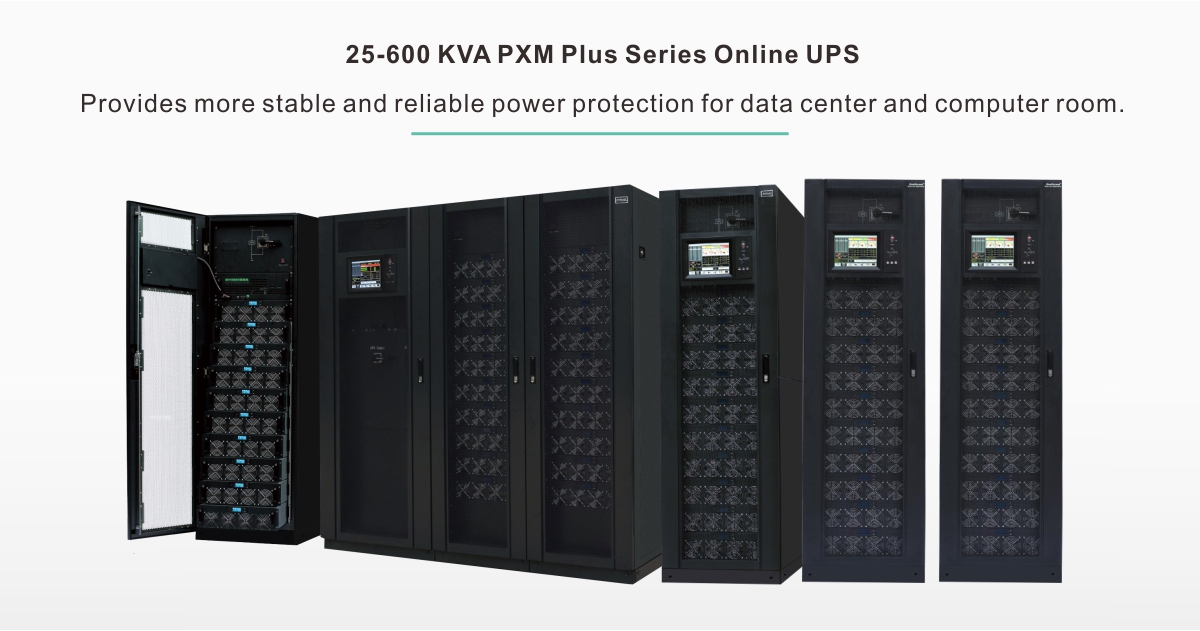

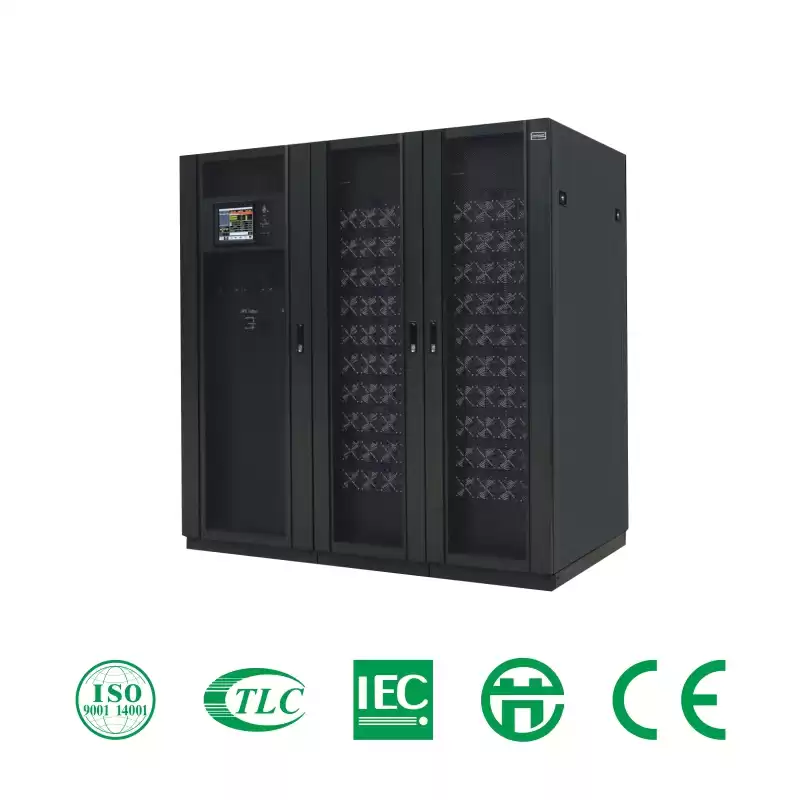

25-600kVA PXM Plus Modular UPS

25-600kVA PXM Plus Modular UPS

25kVA and 30kVA module, 380/400/415VAC, 3:3

PXM Plus Modular UPS is a new generation uninterruptible power supply. It provides the most compact design of less than 2㎡ with maximum capacity of 900kVA. The parallel architecture adopts a highly intelligent modular design to achieve maximum power availability and redundancy. With advanced IDC power solutions and smart management technologies, It is specially designed to meet the protection demands of mission critical loads in data centers or other important equipments.


  • ApplicationsISP, IDC, Computer room, Small & medium data center
  • EfficiencyUp to 99%
  • Rated frequency40Hz-70Hz
  • TypeModular
  • Rated voltage380/400/415VAC
  • Rated capacity25-600kVA
  • ModelPXM Plus
  • CertificateTLC, CE


Technical Feature




High reliability

Modular design

High efficiency

Full DSP control of high stability, reliability and safety. Integrated IGBT module with improved performance and reduced size with wide range of voltage
Modular design with N+X redundancy, online hot-swappable. Scalable from 30KVA to 900KVA, max 30 power modules in parallel
Green and energy saving due to smart sleeping mode: AC/AC efficiency>95%, input PF>0.99 while THDi <3%



Full compatibility

High power density

Comprehensive monitoring management


Excellent input performances for complete compatibility with input PF of 99%  & wide range of voltage



25/30 KVA power module in 2U height, saving great amount of space, easy for capacity expansion


Monitor runtime of critical components, such as fans and capacitors, settable alarm for service period. Automatically record the information when faults happen, easy for trouble shooting. 10.4" Independent LCD display for each power module with self- starting function.




Battery cold start

Smart battery management

Critical waveform recording


UPS can be powered on from the battery without utility. It will add great value to your workflow by providing on-demand power


Optimized battery management, intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery.


UPS can record & save the data of the main parameters automatically when faults happen for further analysis





Smart sleep function

Self aging mode

Friendly communication interface

UPS can be powered on from the battery without utility. It will add great value to your workflow by providing on-demand power


Self-Aging mode for full load test with less than 10% of the total power capacity needed.


Provide RS232, RS485, USB, SNMP & programmable dry contacts


Application

• ISP (Internet Service Provider),  • IDC (Internet Data Center),  • Computer Room,  • Small or medium data centers
