250 ML
Desktop Battery Slurry Mixer for Lab Lithium Ion Battery Making Equipment

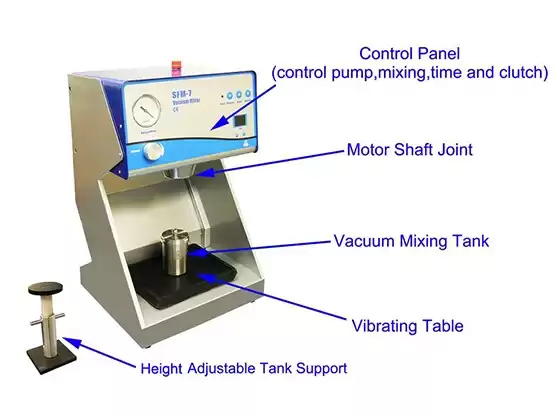

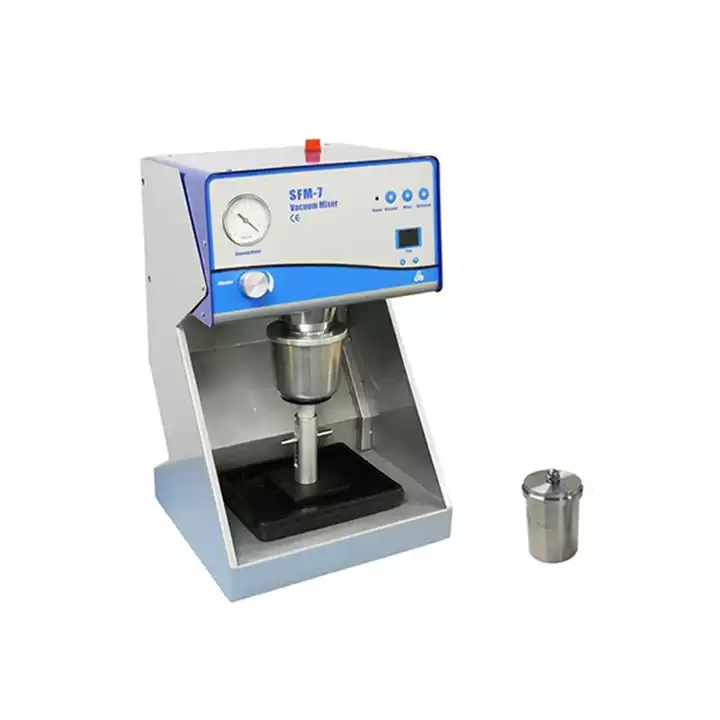

TMAX-SFM-7 is designed to produce coating slurry by mixing small batch of chemical and compound (500 ml Max) under vacuum to remove gas bubble and protect sample from oxidation. It has build-in pump which can vacuum the mixing container to 0.08Mpa(600 torr) and the stepless mixing speed variates from 0 to 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing to ensure better uniformity. It is excellent for preparing battery electrode paste and various ceramic materials in research lab.
|
Voltage Input
|
Single Phase 110VAC or 220VAC ( please choose from product option bar ) 220V AC Power plug is not included. Please click here to order the plug)
|
|
Power
|
150W
|
|
Rotary Speed
|
320 rpm
|
|
Mixing Container
|

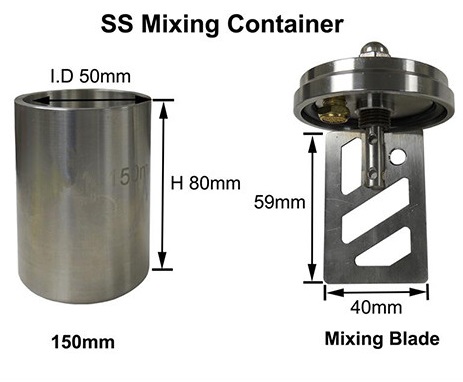

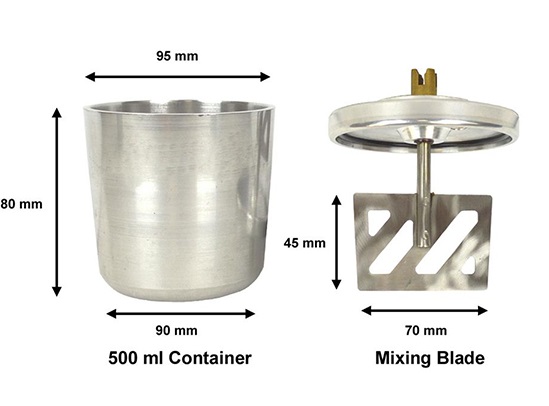

One 50ml stainless steel and one 200ml aluminum container are included. (It can be customized)
|
|
Vacuum pump
|
Built in
|
|
Vacuum Level
|
-0.08~0.09 Mpa
|
|
Vibration Plate
|
Vibrating at 1000 Hz
|
|
Dimensions
|
13''L x 12''W x 21''H
|
|
Shipping Dimensions
|
16''L x 15''W x 24''H
|
|
Net Weight
|
70 lbs
|
|
Compliance
|
CE certified
|
