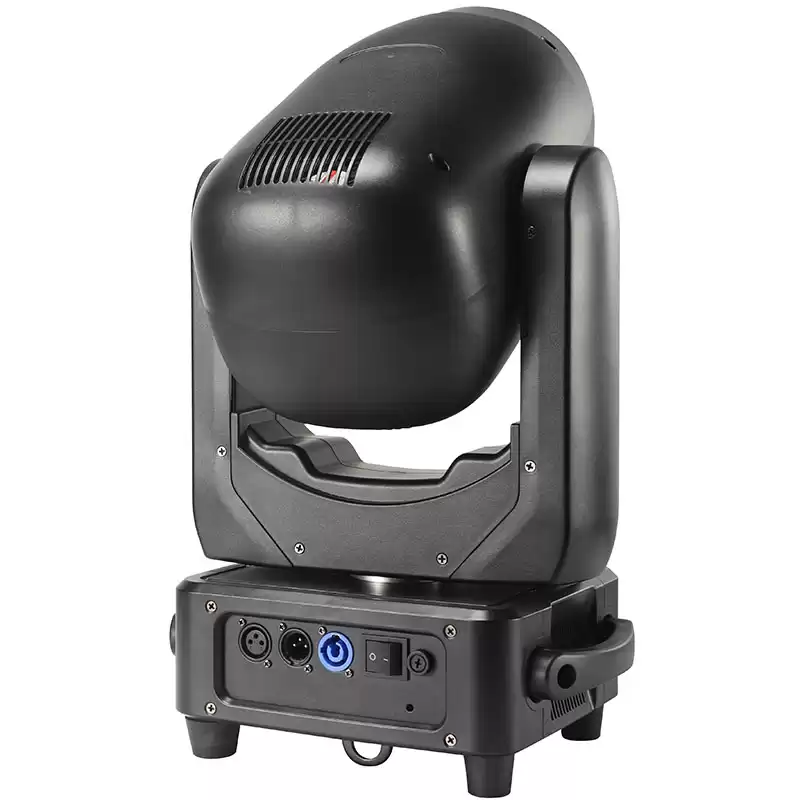

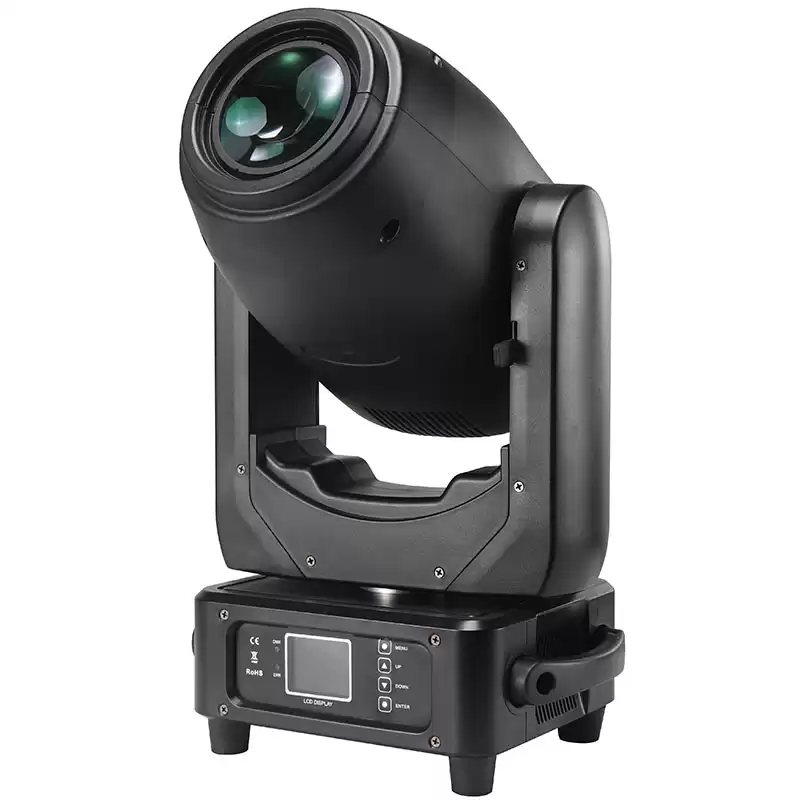

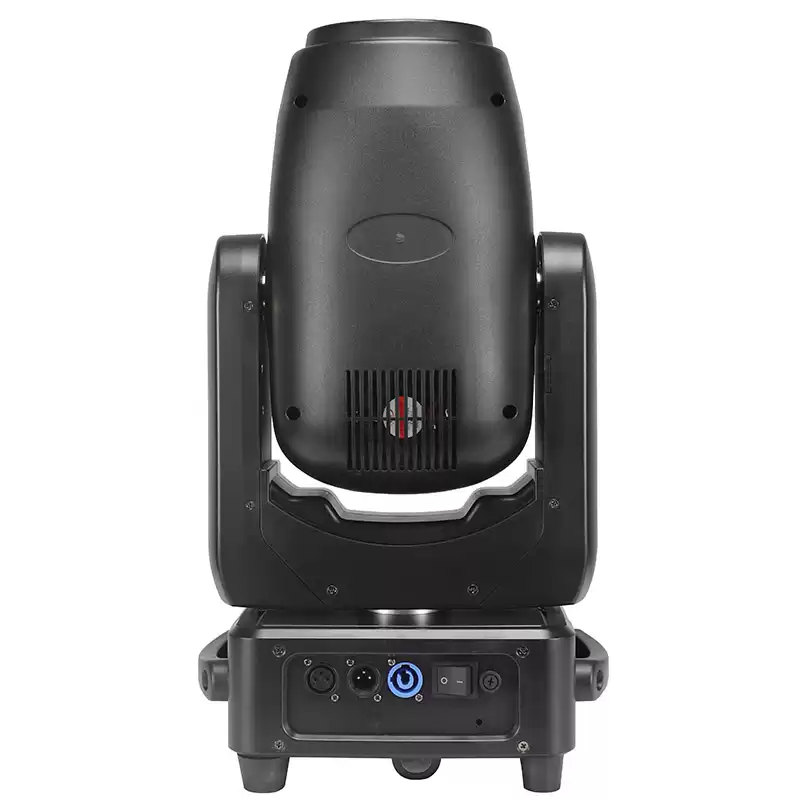

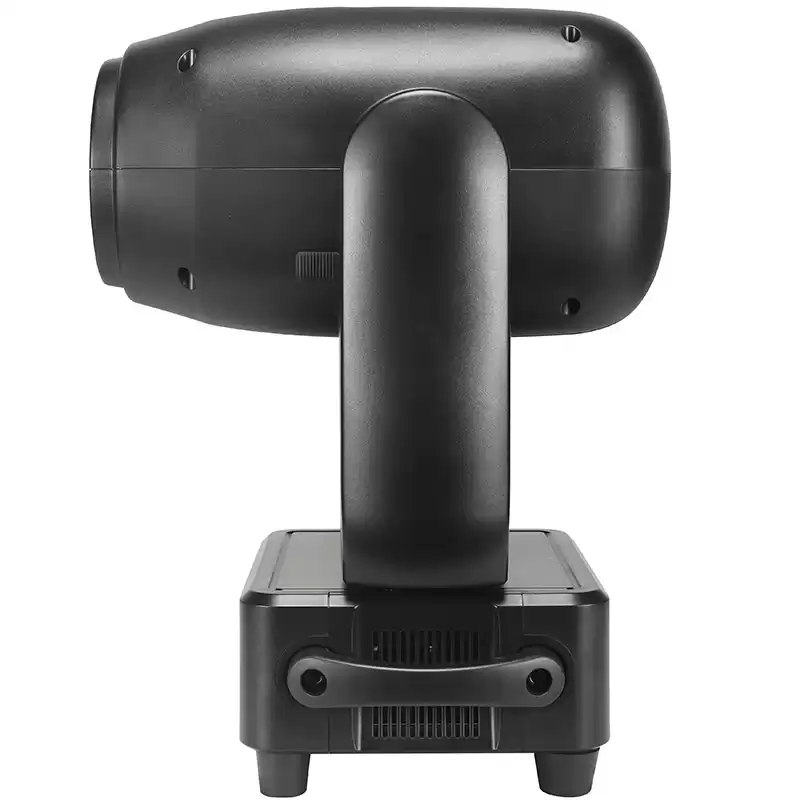

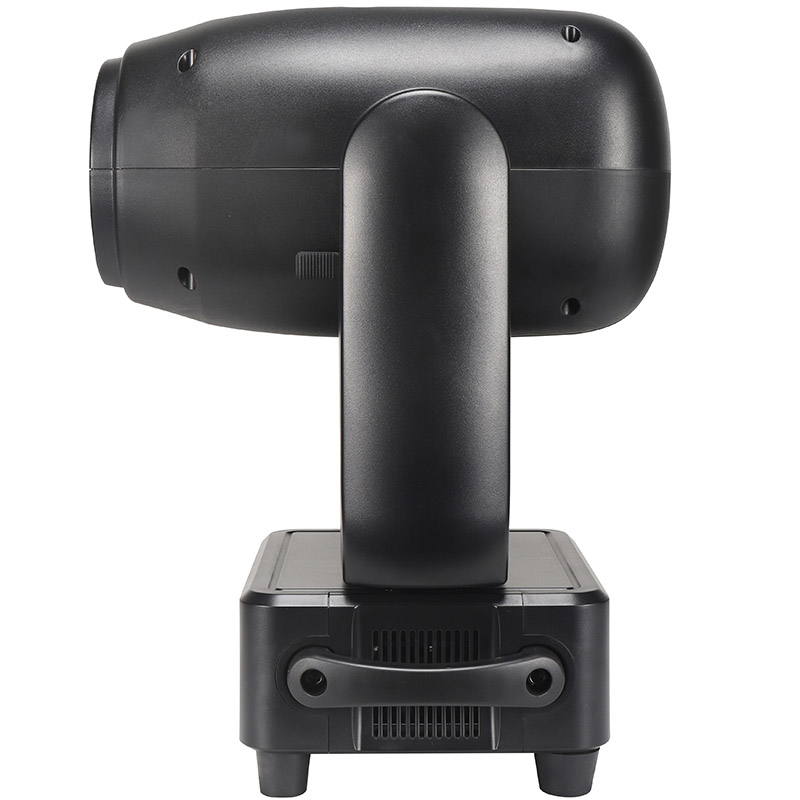

250W 3 IN 1 LED Moving Head Light

LED Hybird moving head light.It uses 250W white LED and owns color temperature 7000K,7 -35° linear zoom,a Gobo wheel fixed,a bidirectional rotating pluggable gobo wheel and a bidirectional rotating adjustable speed 3-facet prism plate.




The appearance design is exquisite, using a single 250W white LED light source, white light color temperature 7000K, 7°~35° linear zoom and high-efficiency output three-in-one LED moving head light, long service life. The colors are colorful and the transition is soft, a fixed picture disc and a bidirectional rotating pluggable gobo disc, which is convenient for customers to change the pattern. It has a built-in bidirectional rotating adjustable speed 3 prism and adjustable atomization effect. 16bit dimming technology, smooth, stable and precise mechanical movement, in addition to DMX control, there is also a powerful RDM control.

●  Optics

. LED type: 1x250W white light LED

※ The illuminance at 5 meters can reach 25,000Lux@7°

※ Beam angle: 7-35° zoom

※ Lens diameter: 90mm

Life span: 50000H, low power consumption, energy saving and environmental protection


●  Scanning

. Pan/Tilt operation:

※ 16bit fine-tuning

※ Smooth and precise positioning

※ Pan: 540°, Tilt 270°

※ Adjustable Pan and Tilt speed

. The scanning position can be memorized, and it will be automatically reset when there is no expected operation.

. Pan and Tilt error correction function


●  Colour

. One color plate, 8 fixed color plates + white light, half-color effect, color plates can be positioned arbitrarily, with rainbow effect of bidirectional rotation

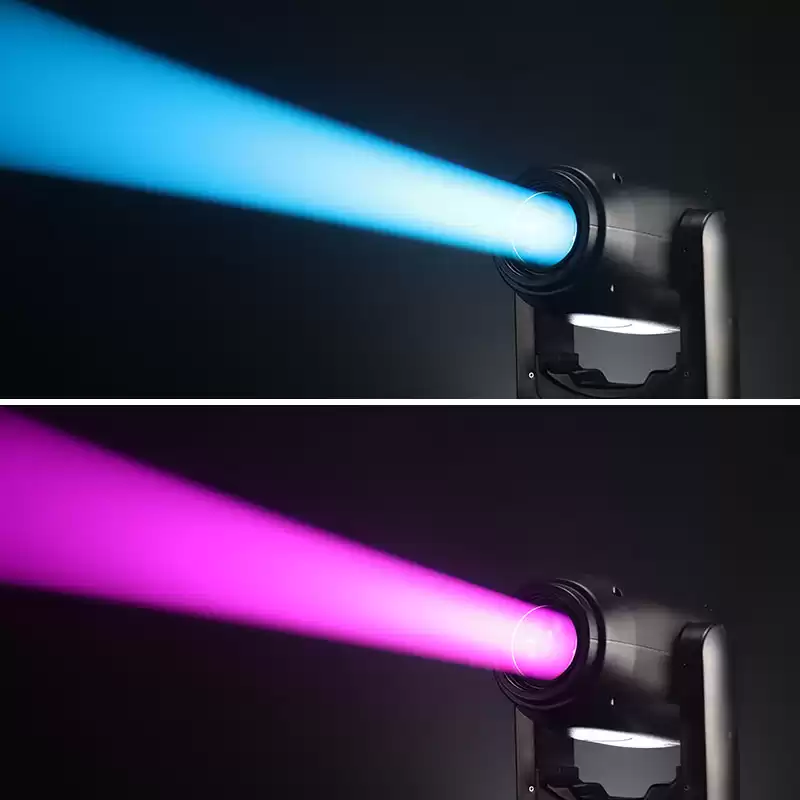

Beam


●  Gobo

. A fixed gobo  plate: 11 pattern pieces + white circle, with pattern jitter function

. A rotating gobo plate: 7 pluggable gobos + white light, with pattern jitter and pattern arbitrary positioning function


Gobo


●  Specification

. 2 DMX channel modes: 16CH/20CH international standard DMX512 channels

. 2 control modes: DMX512, master-slave

. Prism disk: bidirectional rotating 3 prism

. Focusing: electronic focusing, ultra-smooth adjustment

. Dimming: 0-100% 16bit dimming

. Frost: 0-100% linear frost

. Zoom: 7-35° linear zoom

. Strobe effect0-20HZ strobePuls strobeRamp up strobeRamp down strobeRandom strobeStrobe Break Effekt, 5s…..1sStrobe0-20Hz


●  Display

. 2.4 inch TFT color display

. The display board can be reversed 180°, suitable for installation in impassable locations


●  Software

. Software update :Update via DMX link

. Display the lamp usage time, which is convenient for customers to understand the lamp usage in time

. LED refresh rate: 25Khz

. 4 dimming curves: linear, square, inverse square, S curve


●  Other functions

. Settings and addressing: RDM

. Fan cooling (the fan changes its speed with temperature changes)

. LED temperature detection system to protect the life of the lamp beads


●  Power/signal link

. Power connection: PowerCON power cord input and output

. DMX card dragon seat: 3 Pin&5 Pin card dragon seat input and output


●  power supply

. AC100-240V 50/60HZ

. Power: 300W


●  Protection level

. Shell material: ABS plastic fireproof material

. Waterproof rating: IP20


●  Working environment

. Indoor working temperature: -20°C+40°C


●  Size and weight

. Packing size: 385x275x680mm

. Net weight: 13KG

. Gross weight: 14.5KG


●  Certificate

. CE,ROHS
