Features
Ø Up to 25Gb/s data rate SFF-8402 Compliant
Ø Operating case temperature of 0-70 °C
Ø Single 3.3V supply voltage
Ø BER better than 10-15
Ø Hot pluggable
Ø Compliant with SFF-8432
Ø Compliant with IEEE 802.3by
Ø Compliant with RoHS
Applications
Ø 25G Ethernet
Description

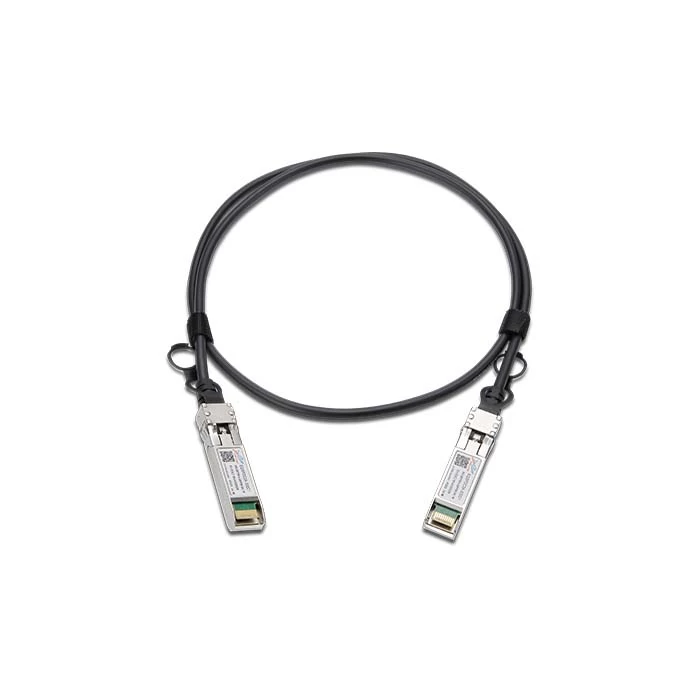

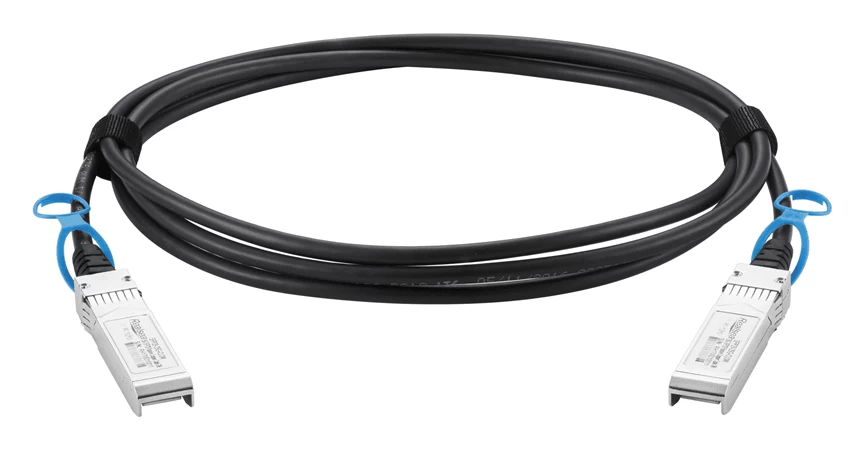

The ETU-LINK ES2DP2X-330CNxx passive copper cable is a high speed, cost-effective 25Gbp/s Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
The CAB-ZSP/ZSP-PXM passive copper cable contains a single high-speed copper pair, operating at data rates of up to 25 Gb/s. The cables are compliant with IEEE 802.3by Ethernet standard and SFF-8402 SFP28 standard. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system.
ETU-LINK’s unique quality passive copper cable solutions provide efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers .Rigorous production testing ensures the best out-of -the-box installation experience, performance, and durability.
