25L High Temp Industrial Vacuum Dry Oven With Digital Temperature Controller

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • CertificateCE, IOS, ROHS, SGS, UL Certificate

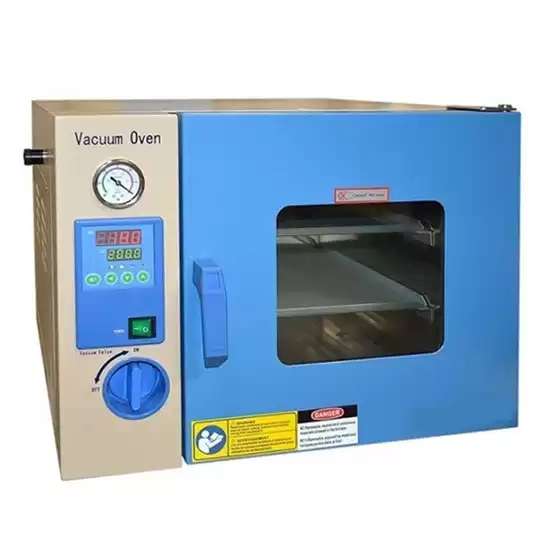

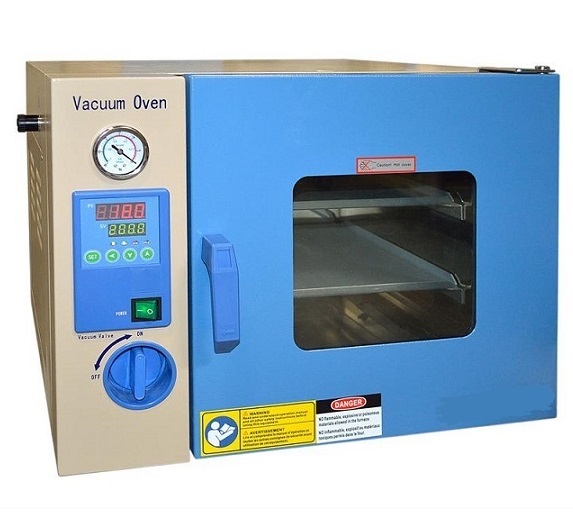

25L High Temp Industrial Vacuum Dry Oven With Digital Temperature Controller

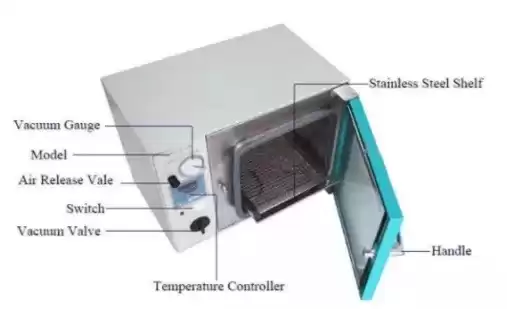

Vacuum drying oven adopts flexible and adjustable shelves, and the height of layers can be adjusted. Strip shelf, easy to take and place products. Large glass observation window is used for easy observation. Silicone rubber is used for sealing, which is heat resistant and durable, and has high vacuum.



Power Supply

Standard 220 V AC  50 Hz.

Power

400 W

Inner Chamber size

300 mm x 300 mm x 275mm    ( 12 x 12 x 11",  25 Liter )

Outside size

605mm x 490mm x 450mm(without vacuum pump)

Vacuum

< 133pa

Shipping size

650mm x 550mm x 500mm

Shipping weight

170 Lbs


In addition ,we can also provide the follows :

Model

DZF-6020

DZF-6050

DZF-6090

DZF-6090

Working Room Size(mm)

300*300*275

415*370*345

450*450*450

560*600*640

Overall Size(mm)

605*490*450

710*560*550

610*660*1400

720*820*1750

Loading Shelf/Bracket

1 layer

2 layer

2 layer

3 layer

Temperature range

RT+10~250 C

Temperature resolution

±0.1°C

Constant temperature volatility

±1°C

Achieved vacuum degree(pa)

-133

Time range

1~9999M

Total power

450W/1450W/1400W/2200W

Power supply requirements

AC220V ± 10% 50 ± 0.5HZ (Single-phase three-wire system)

AC220V ± 10% 50 ± 0.5HZ (Single-phase three-wire system)


Vacuum Oven

Vacuum Oven

Vacuum Oven

Pouch cell assembly
