Linear solenoids are on/off type actuators and develop force in one direction when energised. The return force must be provided externally, e.g. by a return spring. We supply push/pull solenoids (optimised for high holding force), tubular solenoids (optimised for long stroke, also as 3-position-solenoids), open frame solenoids (low cost versions, also as 3-position- solenoids) and proportional solenoids (for position control).
Product Description
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
open frame push pull solenoid
|
|
Model
|
SQ1880-0049
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
17-170w
|
Force
|
0-55N
|
|
Stroke
|
0-25mm
|
Duty Cycle
|
10-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Push pull type
|
Weight(N.W.)
|
0.826kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M4,3
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|

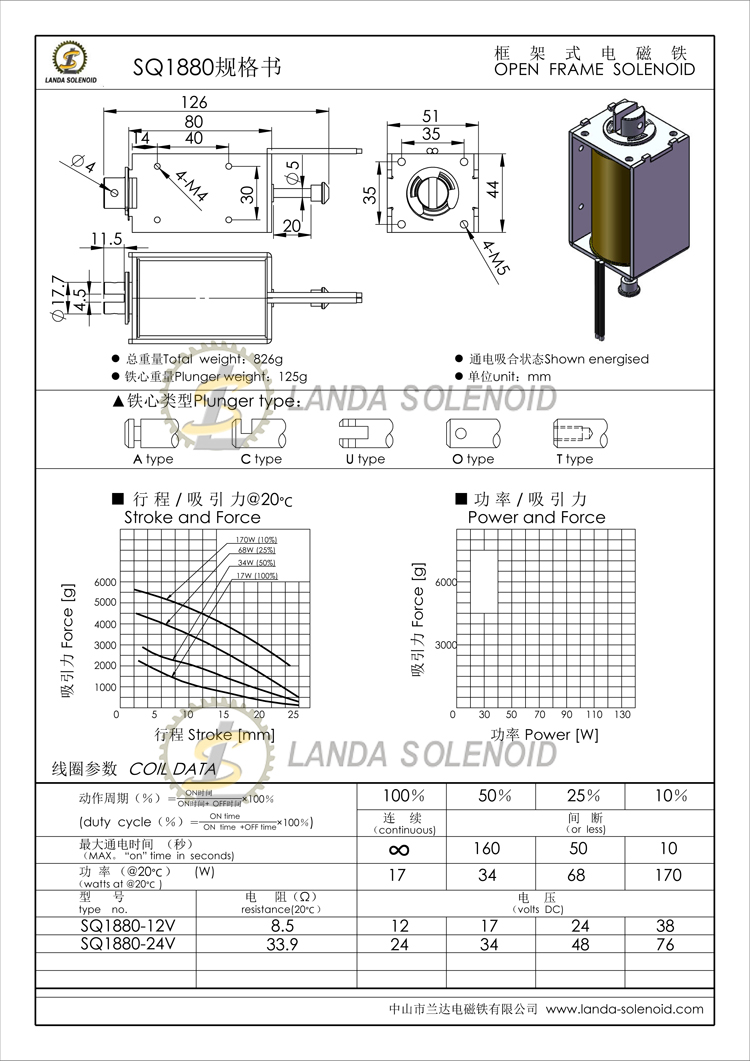

Body Size
|
80*51*44(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.
2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
4. Open frame structure with mounting holes, accepted custom as you needed.

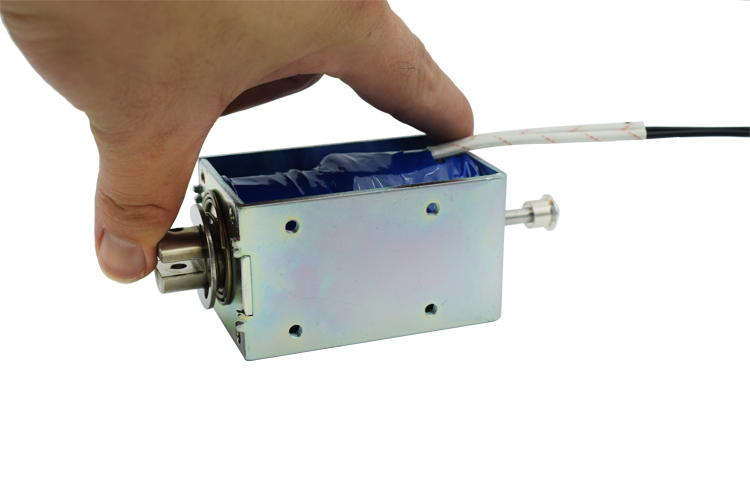

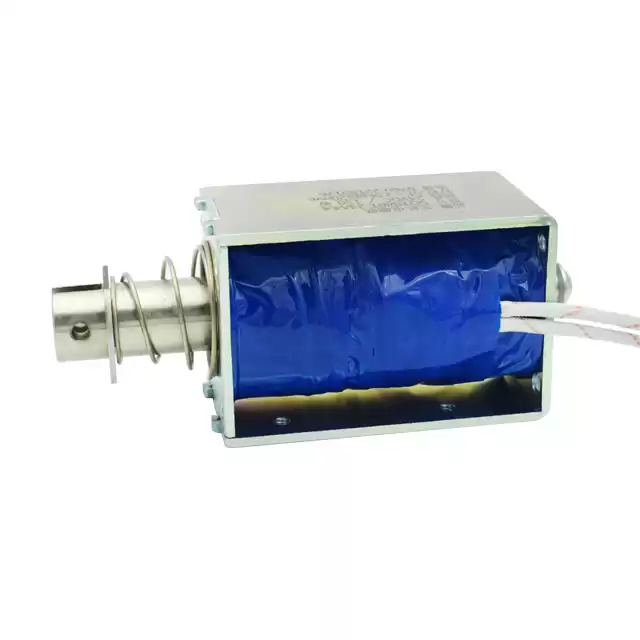

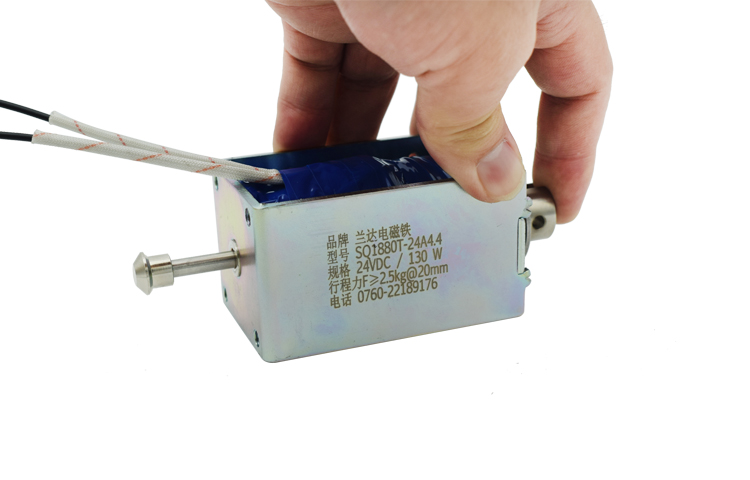

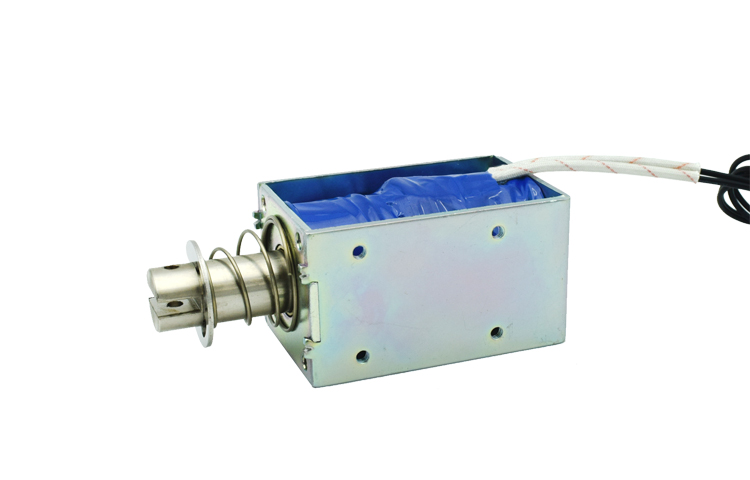

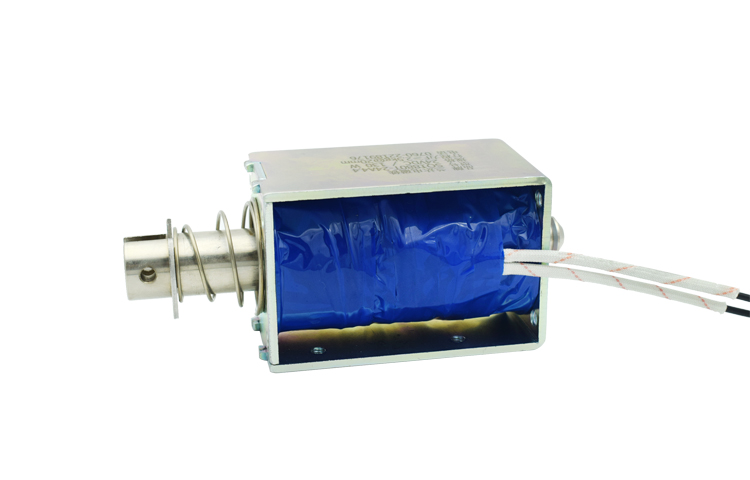

Detailed Images
