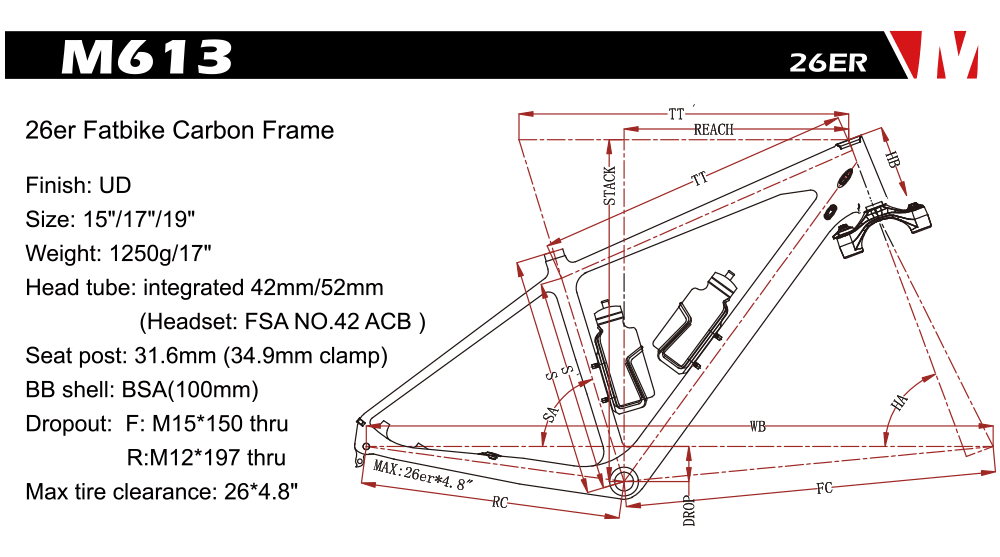

M613
26er Fatbike Carbon Frame
|
M613
|
SIZE
|
HB
|
HA
|
TT
|
TT"
|
FC
|
SA
|
S
|
RC
|
WB
|
DROP
|
WHEEL
|
POST
|
REACH
|
STACK
|
H/T INSERT
|
BB INSERT
|
|
15"
|
109
|
69.7
|
556.5
|
570
|
642.6
|
73
|
381
|
465.4
|
1100.7
|
62.9
|
26er*4.8"
Dropout:
β
12*197mm
|
β
31.6
|
382.6
|
611
|
FSA
NO:88
ACB
|
BB86
|
|
17"
|
130
|
69.7
|
569.4
|
590
|
663.8
|
73
|
432.3
|
465.4
|
1121.9
|
62.9
|
402.2
|
625
|
|
19"
|
149
|
69.7
|
585.3
|
610
|
684.9
|
73
|
484
|
465.4
|
1143.1
|
62.9
|
502.3
|
625
|

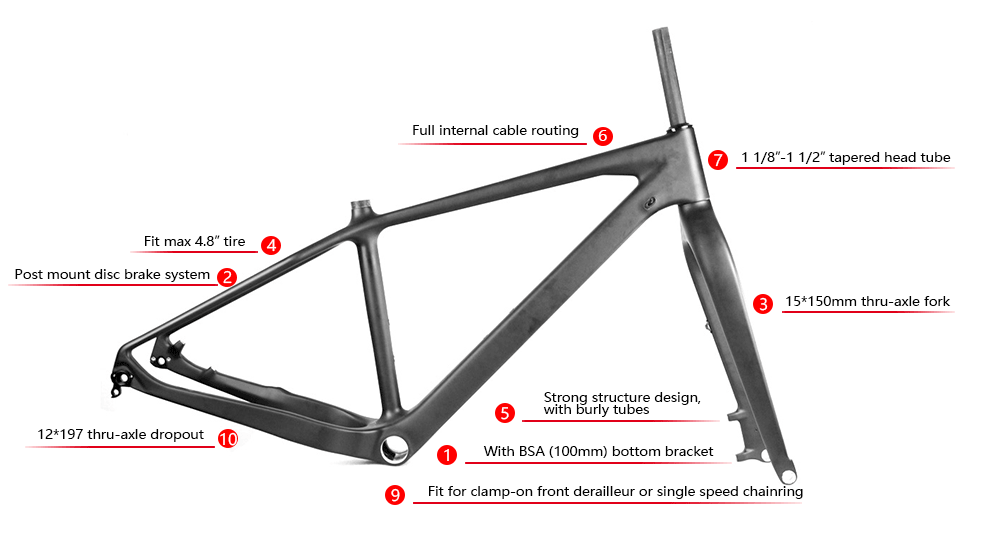

26er Full Carbon Fatbike Frame
|
Frame
|

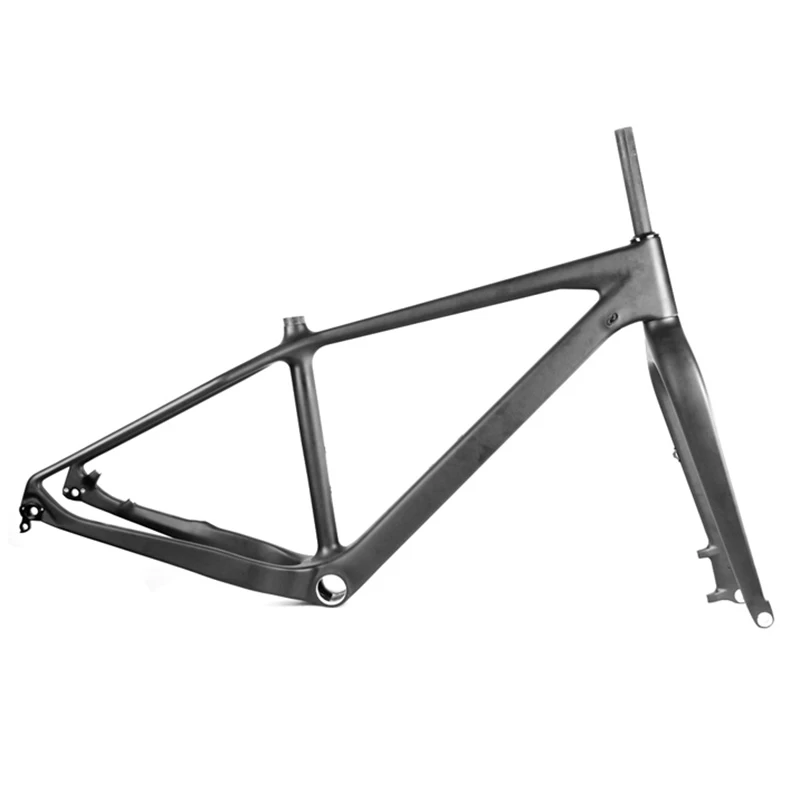

YISHUNBIKE full carbon 26 fatbike frameset with carbon fork
|
|
Material
|
High modulus Toray T700 carbon fiber
|
Size
|
15'', 17'', 19'' (Small, Medium, Large)
|
|
Headtube
|
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
|
|
Weight
|
1100g/Medium
|
|
Seatpost Diameter
|
31.6mm(34.9mm clamp)
|
|
Bottom Bracket
|
BSA
|
|
Max Tire Clearance
|
26*4.8''
|
|
Max Compatible Chainring
|
34T
|
|
Brake Type
|
Post Mount Disc brake 160mm
|
|
Front Derailleur
|
Clamp on
|
|
Dropout
|
Front 15*150mm TA Rear 12*197mm TA
|
|
Test Standard
|
ISO4210
|
Warranty
|
2 years
|
