26er Fatbike Carbon Rims

700C FATBIKE CARBON RIMS

Fat Bike 26 Carbon Rims

26ER FATBIKE RIMS
Modle	FAT26-65S	FAT26-85S	FAT26-90S
Rim
Weight	480+/-15g	620+/-15g	650+/-15g
Carbon Fiber	UD/3K/12K	UD/3K/12K	UD/3K/12K
Prepreg	T700	T700	T700
Max. Rider Weight	120kg/265lbs	120kg/265lbs	120kg/265lbs
Max. Tire Pressure	25psi/1.7bars	25psi/1.7bars	25psi/1.7bars
Rec. Tire Size	3.5-4.8"	3.5-4.8"	3.5-4.8"
Max Spoke Tension	140kgf	140kgf	140kgf
Rim Chart
Tire Bead	Hookless	Hookless	Hookless
Profile	20mm	22mm	40mm
OD	574mm	571mm	571mm
Dimension	560*60mm	557*80mm	559*83mm
ERD	547mm	543mm	498mm
Terrain	Snow Bike	Snow Bike	Snow Bike

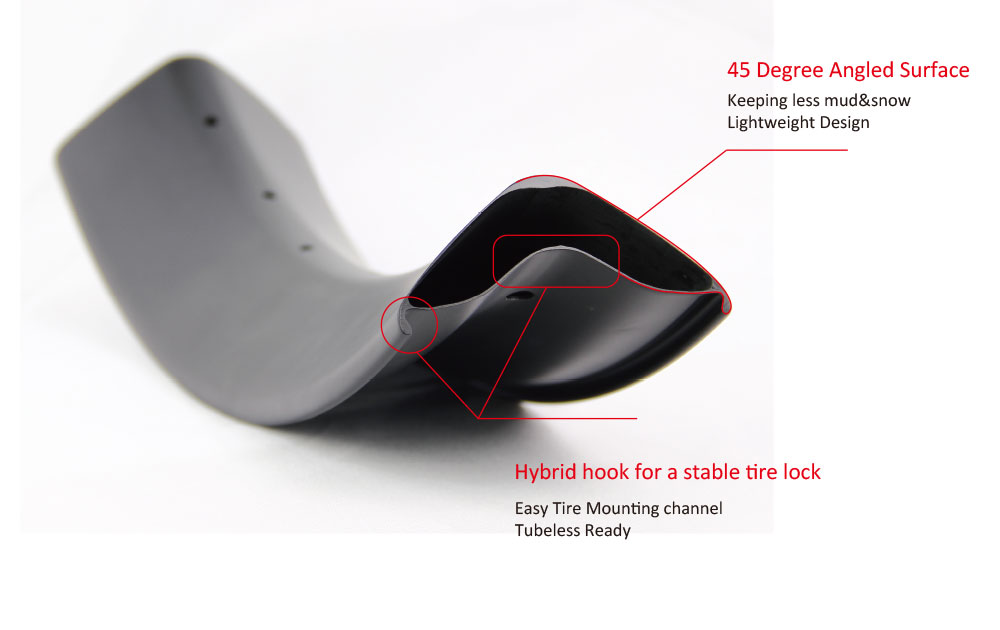

Advantage	■ Hookless design ■ Tubeless ready ■ Super light lay-up to minimize the rim weight ■ Symmetric profile ■ Internal&external nipple systems available
