27.5 Carbon Rims Best Carbon Mountain Bike Wheels

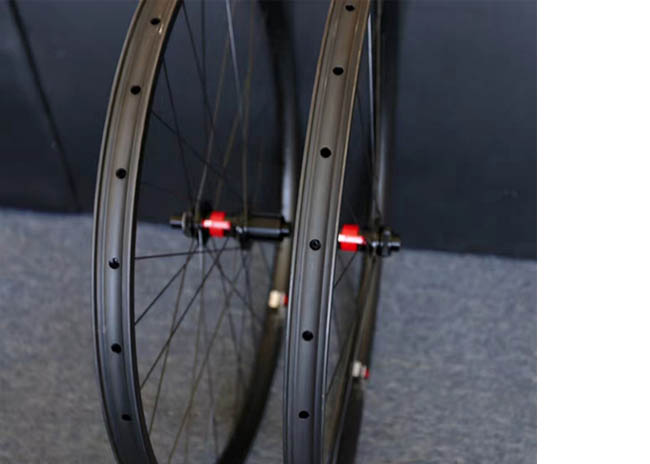

Hand-built carbon fiber mountain bike 650B wheels can provide instant acceleration and liveliness through the corners.


  • Hole Count28H / 32H
  • BrakeDisc Brake

BEST CARBON MOUNTAIN BIKE 27.5 CARBON RIMS



DESCRIPTION


This is a 650B carbon fiber wheels with a large wide tire and excellent riding comfort. (tubeless ready) 650B carbon rims with an internal width of 31mm/36mm/44mm can accommodate larger tires (2.3" ~ 3.5"), thereby providing higher comfort, compliance, and turning performance. 650B wheelset the deep silhouette is easy to handle in crosswinds, and it is also comfortable to ride on rough roads or rough rolling terrain.

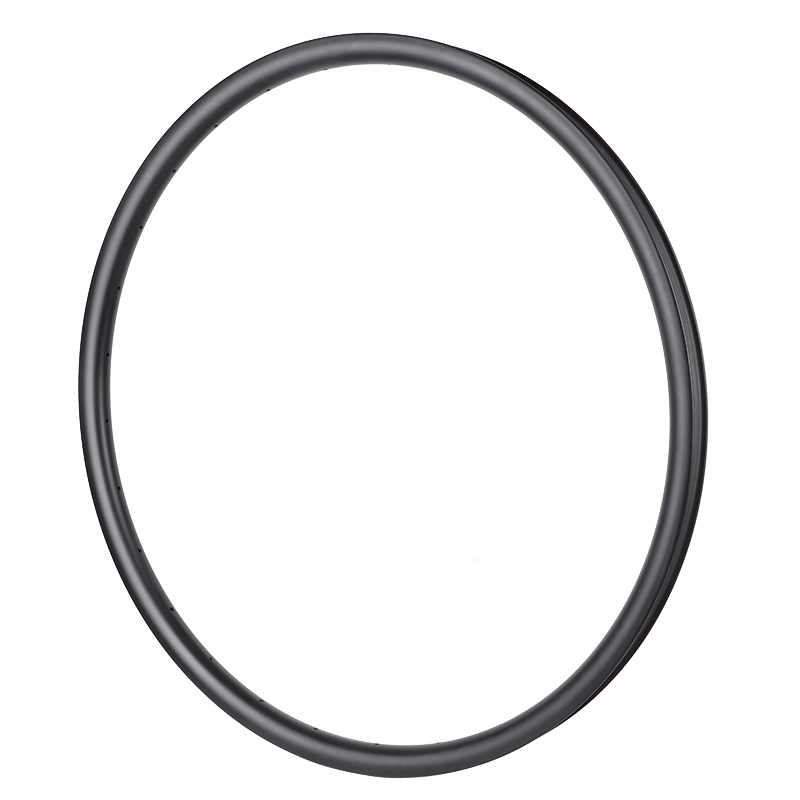

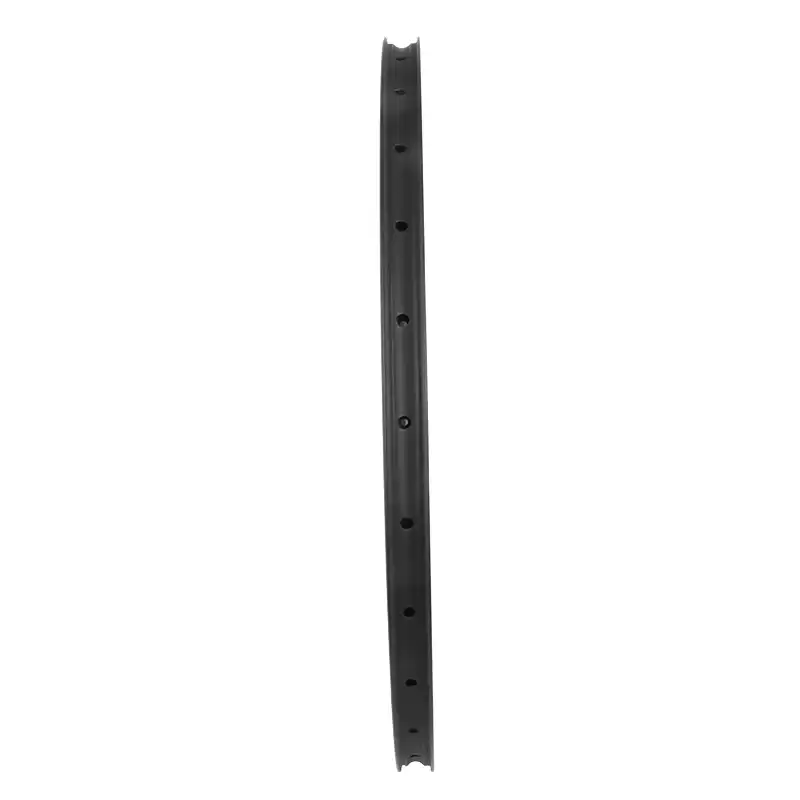

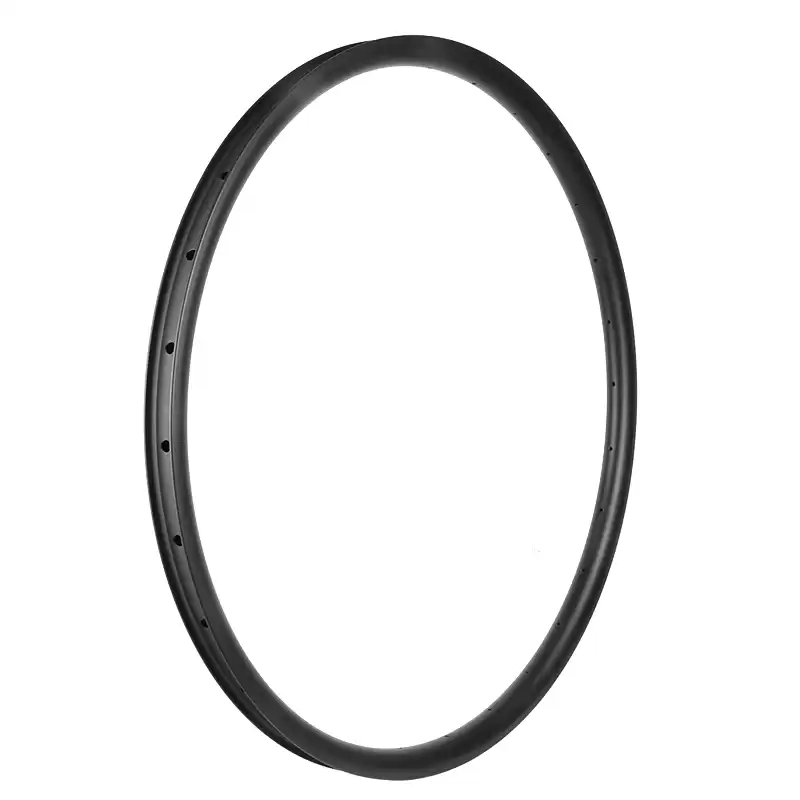

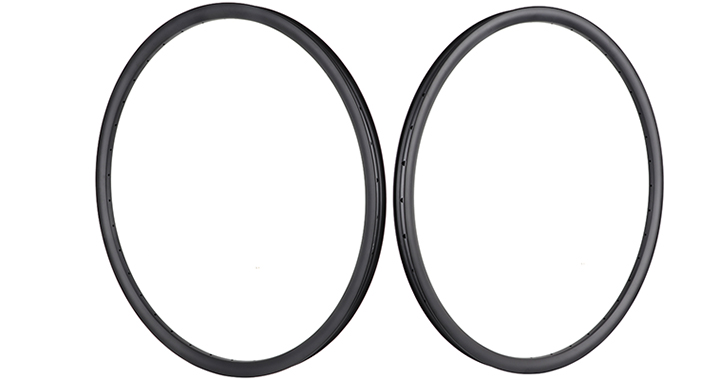

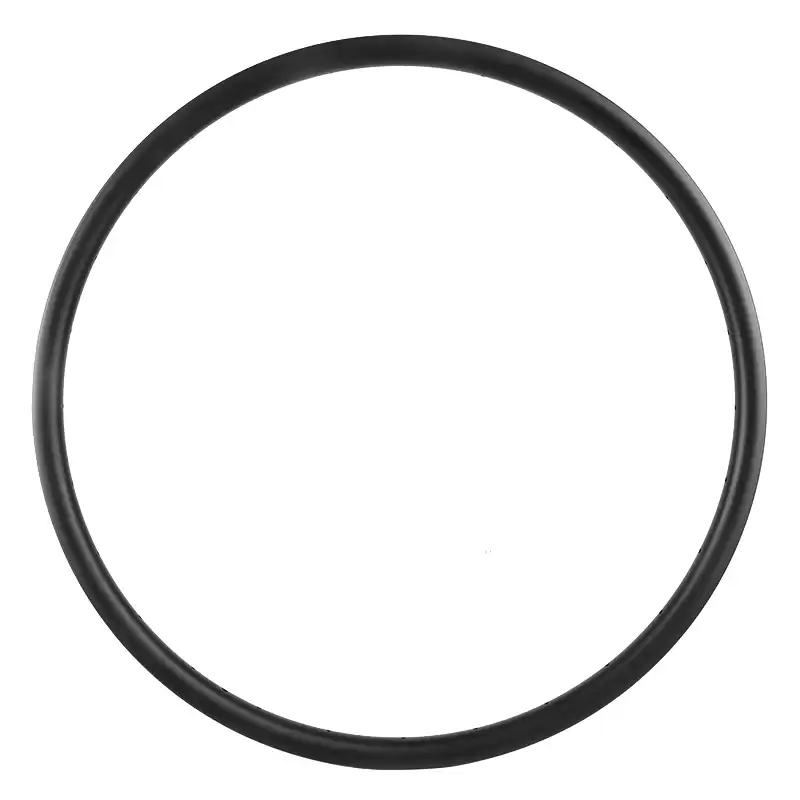

ORN800 CARBON RIM 650B

FEATURES:


- Higher impact resistance


- Reduced chance of pinch flatting


- More traction in rough corners


- Smoother ride in rocky terrain


- Ability to run lower tire pressure


- Reduced rider fatigue


- Hubus optional:  DT Swiss or Powerway hubs


 - Sram XD or Shimano 11S/12S driver bodies


 - 2 years' quality warranty






SPECIFICATIONS


Model
Orn830-25-AM
Orn837-24-XC
Orn837-24-TR
Orn837-24-AM
Orn837-24-DH
Orn842-28-AM
Orn850-30-AM
Cross Section




Sectional Drawing




Material T700 T800
T700 & T800 T700 & T800
T700 & T800
T700
T700
Use All Mountain Cross Country Trail All Mountain Down hill
All Mountain All Mountain
Type
Hookless
Hookless
Hookless
Hookless
Hookless
Hookless Hookless
Tubeless
Ready
Ready
Ready
Ready
Ready
Ready Ready
Internal/External Width
24mm/30mm
31mm/37mm
31mm/37mm
31mm/37mm
31mm/37mm
36mm/42mm 44mm/50mm
Depth
25mm 24mm 24mm
24mm
24mm
28mm 30mm
ERD
557mm 559mm 559mm
559mm
559mm
551mm 547mm
Weight
400+/-15g 350+/-15g 380+/-20g
410+/-20g
520+/-20g
470+/-15g 495+/-15g
Weight Limit
125kg 130kg 135kg
135kg 140kg
140kg 140kg
Spoke Tension
≤145kgf ≤145kgf ≤145kgf
≤145kgf
≤145kgf
≤145kgf 145kgf

Max Tire Pressure

40psi/2.75bar
40psi/2.75bar
40psi/2.75bar
40psi/2.75bar
40psi/2.75bar
40psi/2.75bar 35psi/2.4bar
Tire Recommended
2.1" ~ 2.4" 2.3" ~ 3.1"
2.3" ~ 3.1”
2.3" ~ 3.1”
2.3" ~ 3.1”
2.4" ~ 3.1” 2.8" ~ 3.5"



TECHNOLOGY


1. Advantages of Hookless Sidewalls

The bead of the hookless rim is straighter and smoother, and the tire can fully contact the rim wall. Compared with traditional hook rims, it is more durable and impact resistant. Provide more support during sharp turns.


2. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.


3. Burp Free Technology

When the tire is mounted, the raised portion reinforces the tire bead, making it harder to burp into the center channel.


4. One-Piece Layup Technology

We use a one-piece layup design to increase fiber continuity and reduce the number of overlapping seams increases the impact strength and helps distribute energy and shock from impacts to the rim. for better dynamic balance.

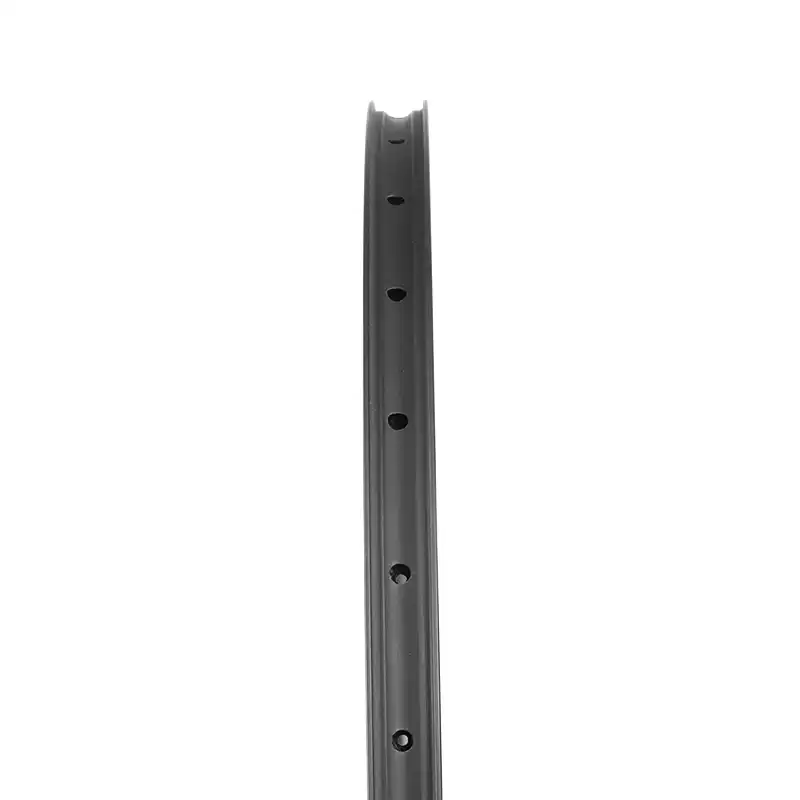

5. CNC Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. which allows the nipple to pull straight in line with the spoke for reduced stress. this results in fewer broken spokes and nipples.



MANUFACTURING PROCESS:


Our carbon fiber rims are formed in one piece, and each rim is made of long carbon fiber without wrinkles, to make the strength of the rim is the strongest. Every component, including the rim serial number, airbag, and carbon fiber prepreg, is collected, inspected, and weighed to confirm that everything has been taken into account.

Read more about carbon rim manufacturing process: link here


100% QUALITY INSPECTION:


In the production process of each carbon fiber rim product, Ornanbike strictly conducts 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim To ensure the best after-sales service.

Read more about carbon rim quality control: link here


WARRANTY POLICY:


Coverage: 2-year warranty from the date of purchase.


Conditions:

1. The Standard Warranty program is not transferable and only applies to the initial purchaser. Valid proof of purchase, pictures of the defect, video, and the product serial number is required for a warranty claim.


2. If any manufacturing defect occurs within 90 days of the date of being received, Ornan Bike is obligated to replace the carbon rim and pay for the shipping cost. If any manufacturing defect occurs after 91 days and up to 2 years, Ornan Bike is obligated to replace the carbon rim, and the customer is responsible for the shipping costs.


3. Any problem found on the warranty replacement product should be claimed within 7 days after the replacement is received, otherwise, the replacement is viewed as settled. The warranty period applies to the original purchase date and does not reset with a replacement rim.


Warranty coverage does not cover:

1. Normal wear and tear (spokes, nipples, rim tape, decals, stickers, etc).


2. Improper assembly or maintenance, including maintenance by an unauthorized technician.


3. Damage or failures caused by a crash, accidental damage, misuse of the product, non-compliance with manufacturer specifications of usage, or any other fractious reasons.


CLAIMS FOR DAMAGE OR LOSS OF SHIPMENT:


Please thoroughly inspect the package before signing.


1. If there is no damage, sign for the product. If there is damage, report this on the delivery slip or, alternatively, refuse the shipment and it will be returned to Ornan Bike. If a claim is made against the shipping company, they will provide a compensation number. Please inform Ornan Bike of this number for delivery tracking. Arrangements for reshipment will be made within 10~15 business days upon receiving the returned item.


2. If the items are damaged but accepted and not reported, there is no recourse against the delivery company and you are responsible for purchasing any replacement product.


3. If the package is in good condition, but the product is significantly damaged in transit, please keep the waybill, packaging and the shipment gets lost in transit, please get in touch with us (info@ornanbike.com) immediately and all Ornan Bike packages have been covered by insurance.


ORN800 CARBON RIM 650B


CHOOSE YOUR FAVORITE HUB ASSEMBLE WHEELS


HUBS Spoke
Nipples
Driver Body
Brake System Front Thru Axle
Rear Thru Axle
Front Count Rear Count
DT SWISS 180 Ratchet EXP 36
Sapim CX Ray
Sapim Self-Locking

Shimano 12S Micro spline

or

 Sram XD

Center Lock

15*110mm

12*148mm

28H 28H
DT SWISS 240 Ratchet EXP 36
Sapim CX Ray
Sapim Self-Locking

Shimano 11S

or

Shimano 12S Micro spline

or

Sram XD

Center Lock

or

Disc 6-bolt

15*110mm (Boost)

or

15*100mm

12*148mm (Boost)

or

12*142mm

DT SWISS 350

Sapim Race

Sapim Self-Locking
Powerway-CT36

Pillar 1420

or

Pillar 1423

Pilla
Center Lock
15*110mm (Boost)
12*148mm (Boost)
Powerway-M82A Disc 6-bolt
Powerway-CT31
Center Lock
15*100mm
12*142mm
Powerway-CT11A
Center Lock
15*100mm
12*142mm




ORN800 CARBON RIM 650B


ORN800 CARBON RIM 650B VIDEO
