27.5er carbon MTB asymmetric hookless rims (SC-33M25A275 / SC-38M28A275)



Specification                                                Highlights

Material: Toray T700                                               Super smooth 3k inside wall without excess resin

Size: 27.5er                                                            Carbon fiber wrap over to the bead area to provide the best impact resistance

Type: Asymmetric Hookless                                     Tubeless setup easily

Weave: UD / 3K / 12K                                              Precise layup design results the lighter weight

Finish: Matt / Glossy                                                Lab impact test to guarantee the best strength.

Spoke Count: 16-32H                                              Asymmetric design for better balance and stiffness

Nipple Hole: External / Internal                                Ability to run lower pressure and improve traction and rolling resistance

Outer Width: 33.5mm / 38.5mm                              Increased width at leading edge dissipates impact energy and prevent pinch flats

Inner Width: 25.5mm / 30.5mm

Depth: 25mm / 28mm

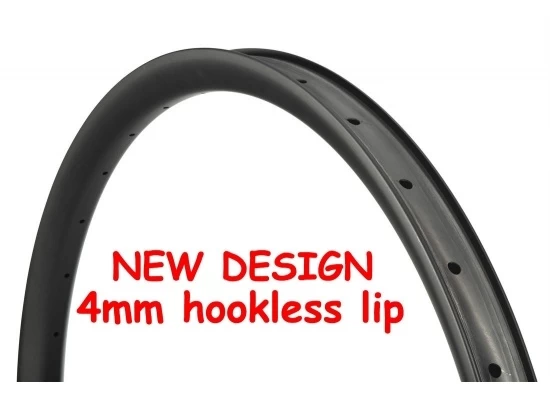

Hookless lip: 4mm

Offset: 2.6mm

Weight for 33mm wide: 320g+/-15g (T800 XC)  340g+/-15g (XC)  360g+/-15g (AM)

Weight for 38mm wide: 340g+/-15g (T800 XC)  360g+/-15g (XC)  380g+/-15g (AM)

Flatness: ≤0.2mm

Roundness: ≤0.3mm

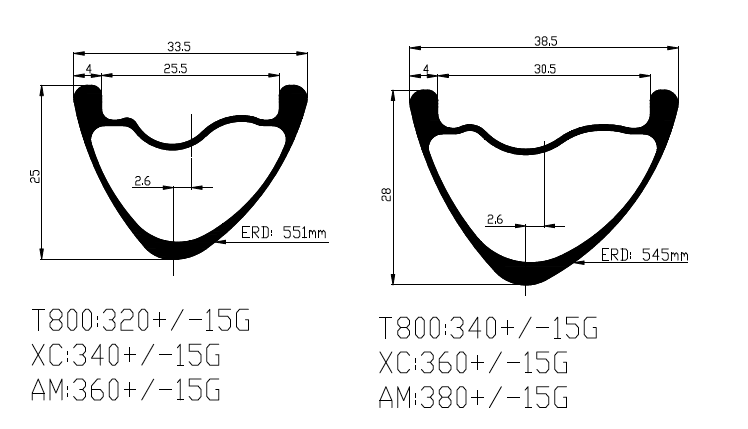

Cross Section
