2711-K3A5L1
|
|
Dimensions ：
|
14cmx8cmx19.6cm
|
Weight：
|
0.52KG
|
|

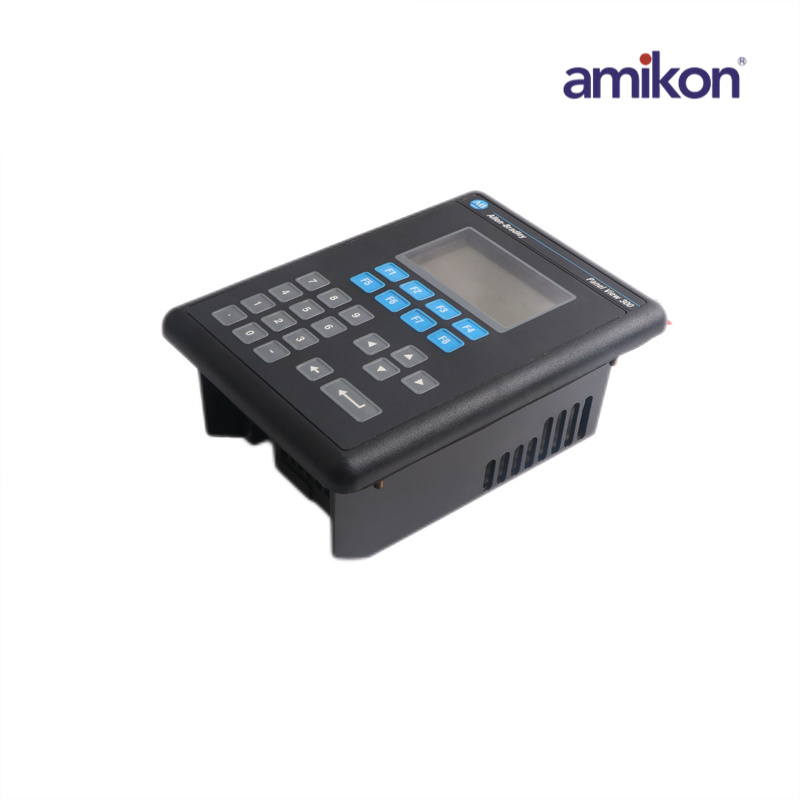

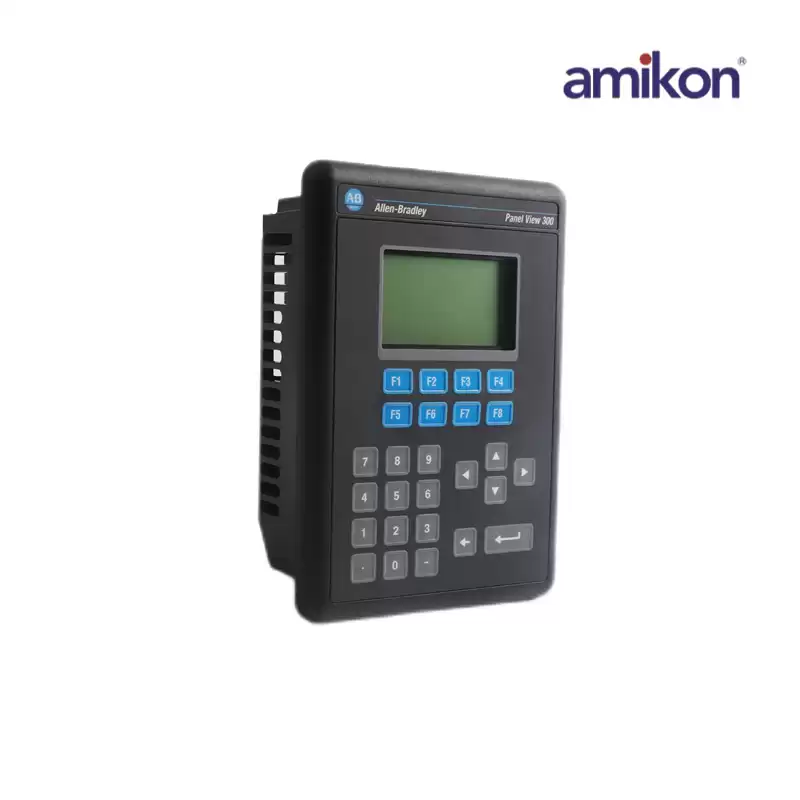

The 2711-K3A5L1 Panelview 300 is a product by that has a keypad operator input with eight function keys (F1 to F8) and a 3-inch LCD monochrome display with a LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, with a 100,000-hour, LED back-light standby life.
The 2711-K3A5L1 comes with an irreplaceable battery, an internal memory of 240 KB, and a runtime application memory of 170 KB. It accepts applications developed with PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports ATA Memory card. The input voltage range of the 2711-K3A5L1 is 18-32 Volts DC with 24 Volts DC nominal value and a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC).
The 2711-K3A5L1 is capable of communicating with Programmable Logic Controllers (PLC) such as PLC5, MicroLogix, SLC500 and Logix family of controllers. For storing application data, the 2711-K3A5L1 has an internal 240KB non-volatile memory along a 170KB runtime memory. The non-volatile memory may be expanded by installing an ATA memory card to accommodate larger files.
|
|
