277v ac dc 12v 150w led driver 0-10V dimmable power supply

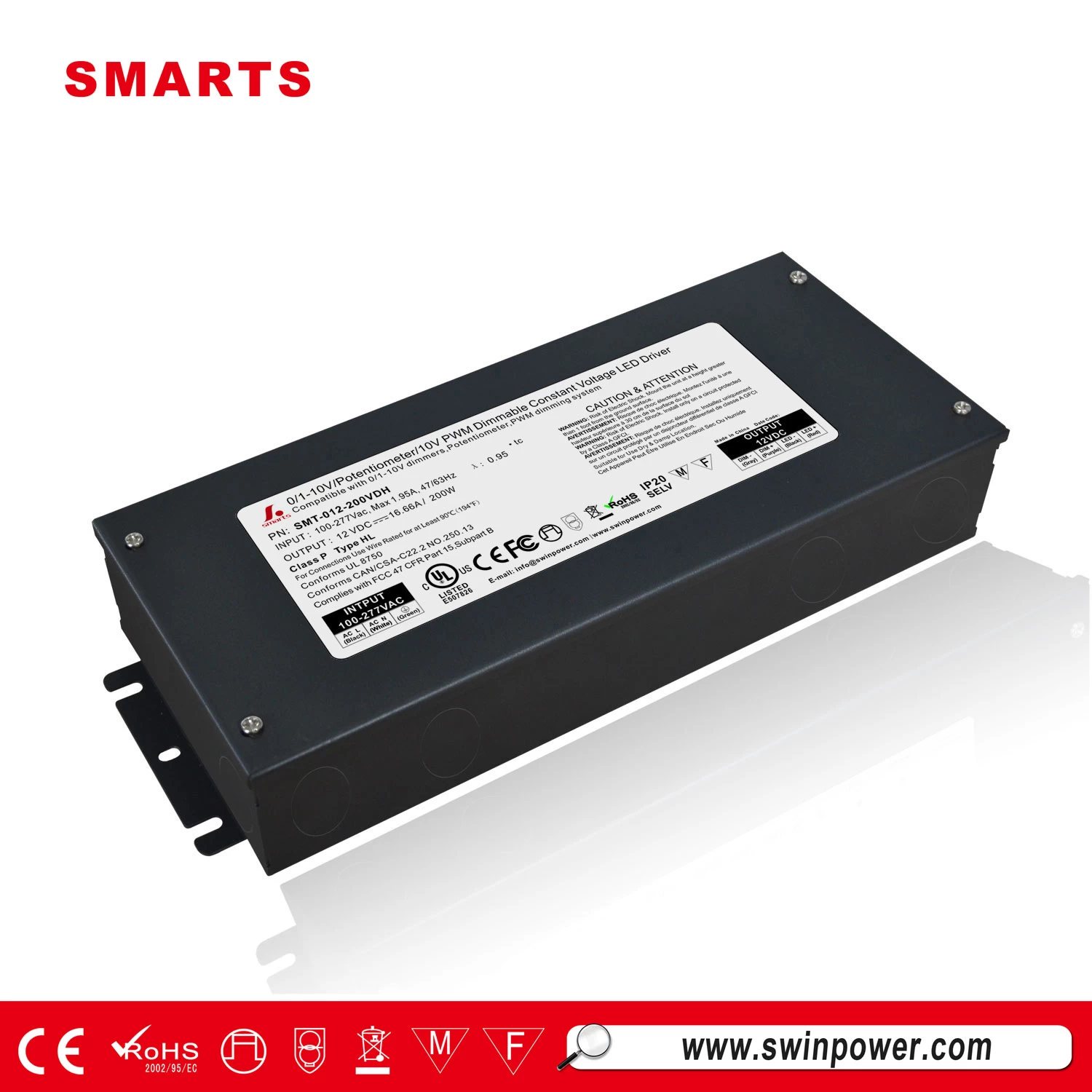

SMT-012-150VDH is UL approved 150w led driver. It is driver and junction box integrated with high PF>0.95, high Efficiency>88%, 7 years warranty.
Features of led power supply：
Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Specification of led power supply:
|
Model
|
SMT-012-150VDH
|
SMT-024-150VDH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Rated current
|
12.5A
|
6.25A
|
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.98/110V , PF≧0.95/277V
|
PF≧0.98/110V , PF≧0.95/277V
|
|
|
Full Load
Efficiency（Typ.）
|
>87%
|
>88%
|
|
|
AC Current（Typ.）
|
1.8A@110VAC
1.32A
|
|
|
Inrush Current （Typ.）
|
15A, 50%, 1.4ms
|
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
|
TEMP .coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z
axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge about 4KV）
|
|
Others
|
Weight
|
1.8Kg
|
|
|
Size
|
260*103*46mm (L*W*H)
|
|
|
packing
|
440*295*145mm ,10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Mechanical Specification
