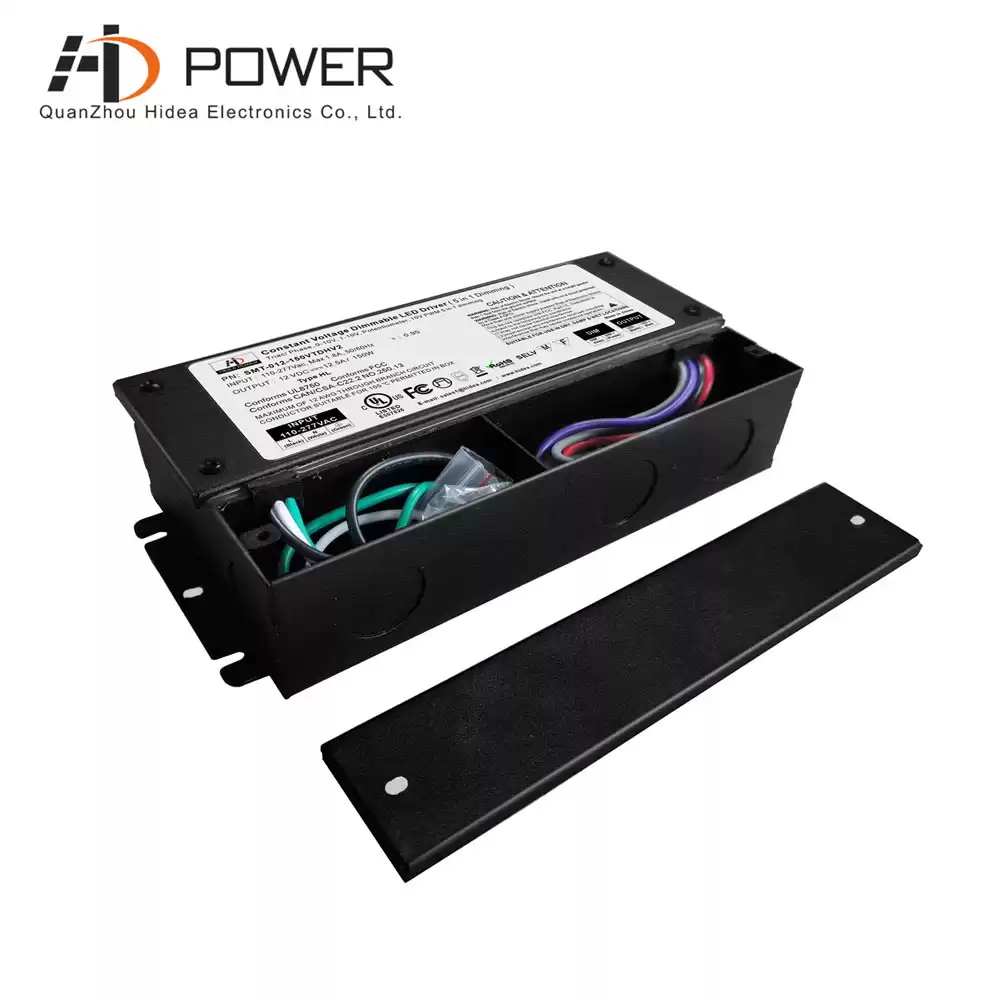

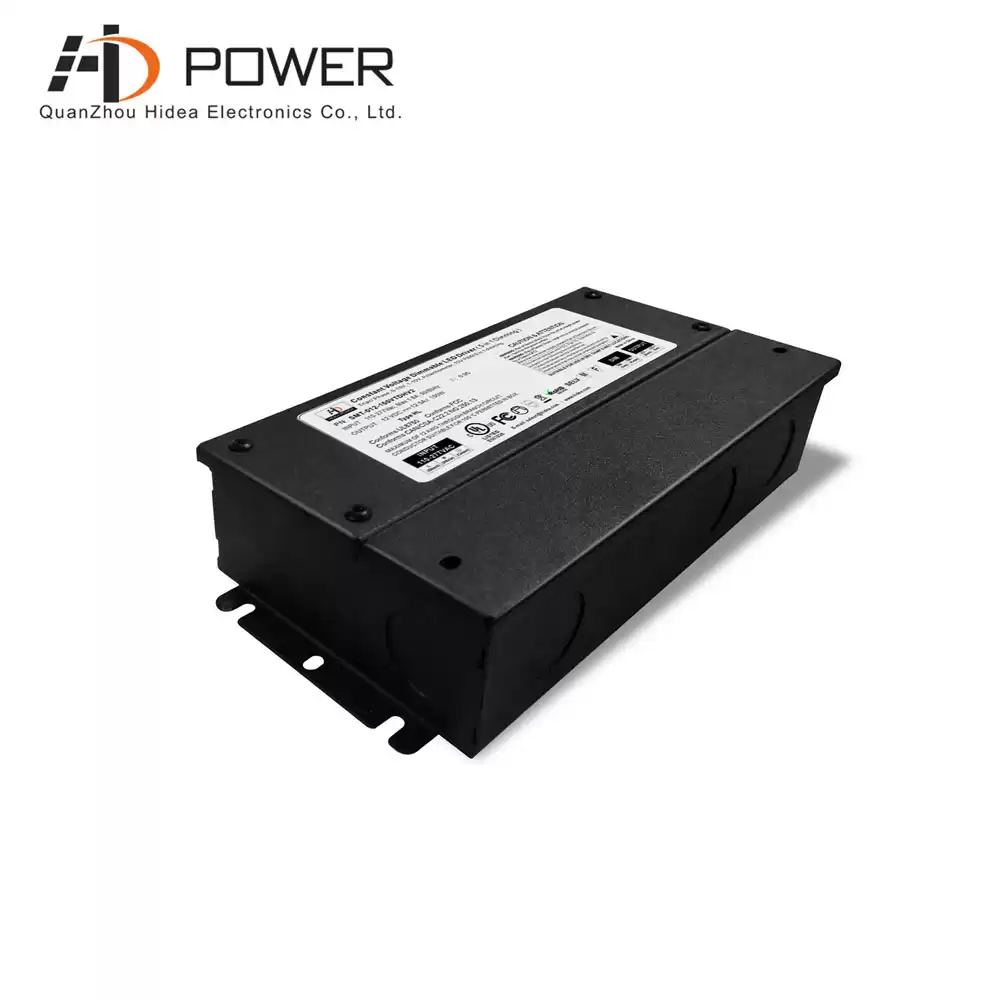

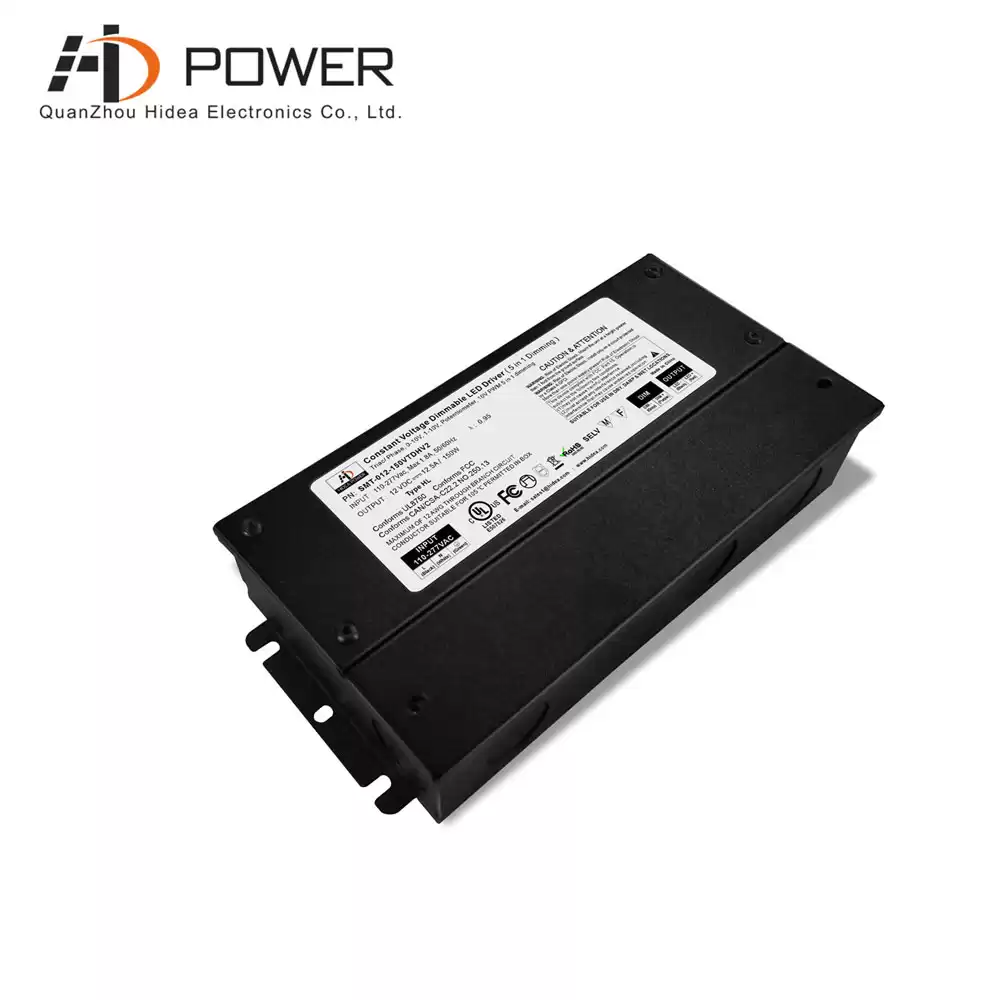

SMT-012-150VTDHV2 dimmable 12v led driver is high efficiency, high reliability, can save energy when working with CPS Led LED Lumen Strip 5000k, the illumination solution in commercial, industrial, retail and residential applications.
Specification
|
model
|
SMT-012-150VTDHV2(1.0version)
SMT-012-150VTDHWV2(2.0version)
|
SMT-024-150VTDHV2 (1.0 version)
SMT-024-150VTDHWV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
12.5A
|
6.25A
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
|
±2%
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor@ full load
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency @ full load
|
85% @120Vac 86%@277Vac
|
85% @120Vac 87%@277Vac
|
|
AC Current(Max.)
|
1.8A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.8Kg
|
|
Size
|
1.0 version: 260*105*45mm / 2.0 version: 260*125*45mm (L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
Dimming led driver 150 watt is with widely input voltage of 100-277VAC, it can be used with CPS Led LED Lumen Strip IP20 in storage/utility areas, coves, display cases, shops, and general area.
Related Products
|

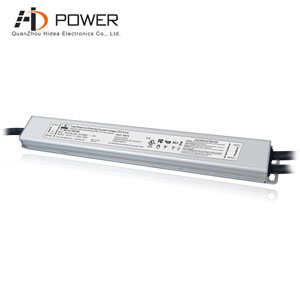

 UL listed triac dimmable 12v 24v 150w waterproof led driver, the slim size is good for Led mirror, liner lights project...
Mode：SMT-012-150VTSW
Dimming Mode : Triac Dimming
Output Power : 150W
intput voltage：110- 277VAC
Size：330*32*23MM （L*W*H）
|
