The slim type led transformer driver with triac are available in 30–150 watt models. The amount of power needed for Led Lighting Wholesale Inc Linear Strip Light 4000K is dependent on the watts required by your LED lighting.
Label
Specification
|
Model
|
SMT-012-036VTSW
|
SMT-024-036VTSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
Rated power
|
36W
|
36W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>84%
|
|
AC Current(Typ.)
|
0.5A/100VAC / 0.23A/277VAC
|
|
Inrush Current(Typ.)
|
7A, 50%, 420us
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

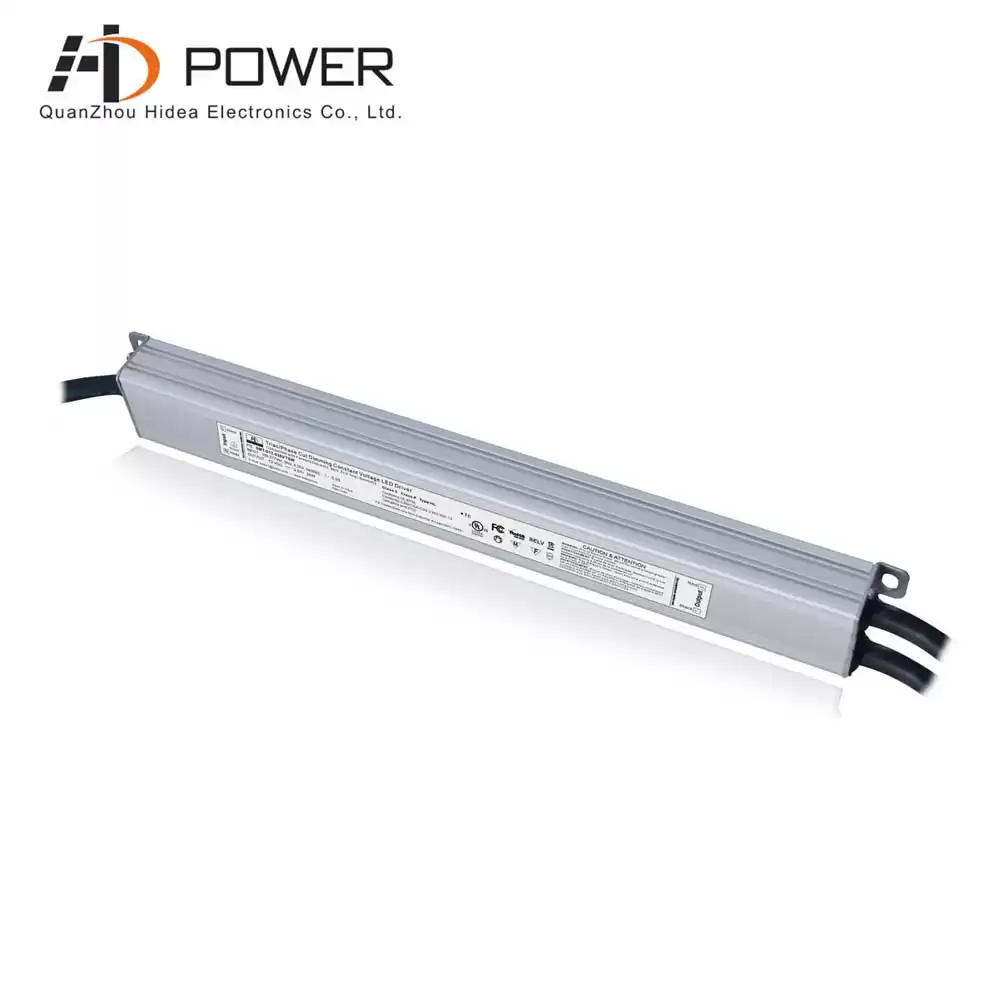

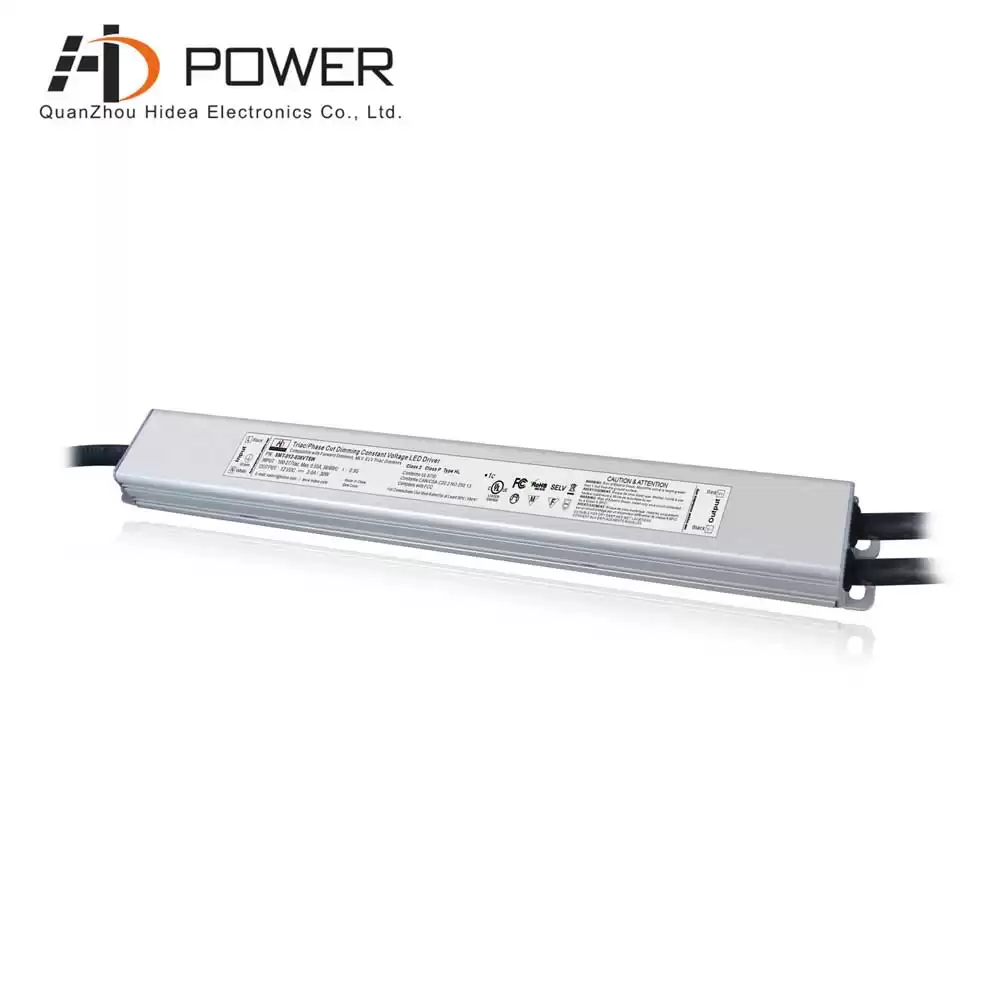

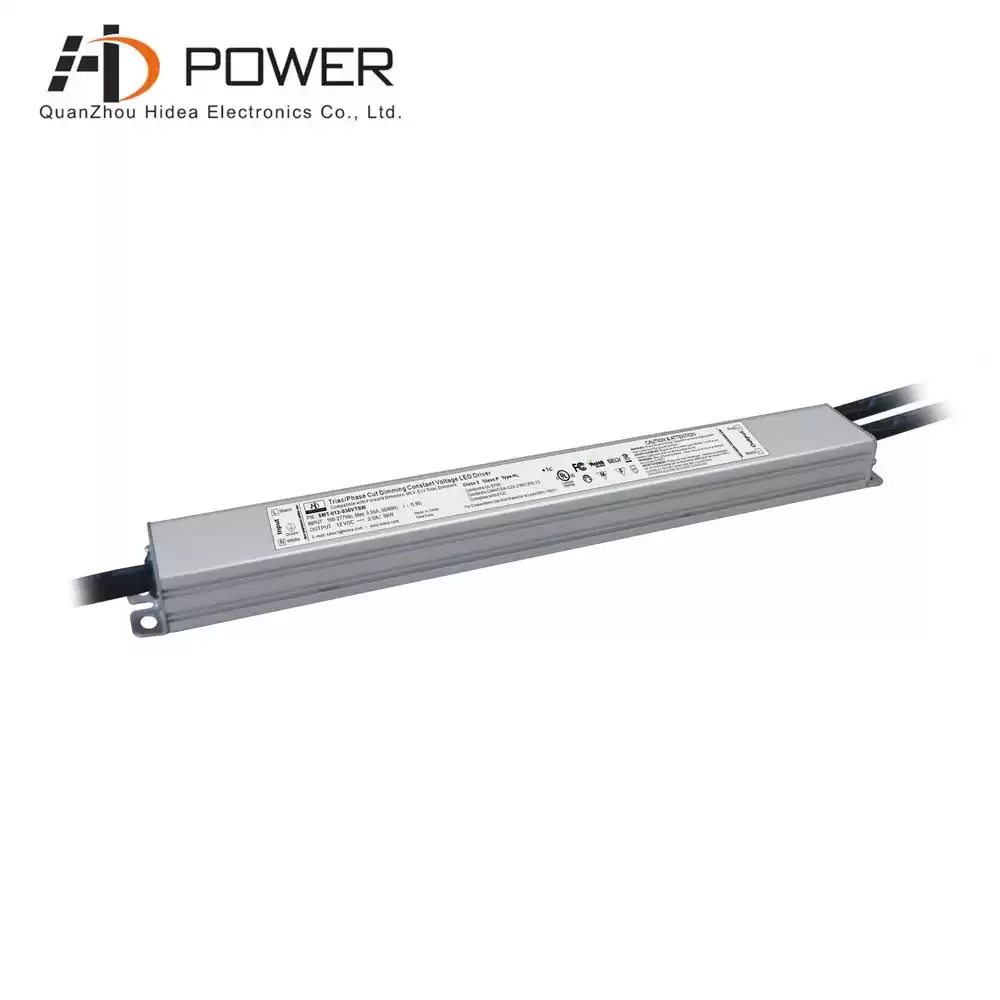

SMT-012-036VTSW led transformer driver 24v 36w with triac dimming, aluminum case, 7 years warranty, high PF & high efficiency, which is the good choose for Led Lighting Wholesale Inc Linear Strip Light 24w.
Related Products
|

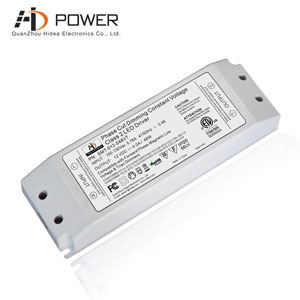

ETL,CE,ROHS,FCC listed 12v 36w triac dimmable led driver, the small size with plastic case is workable for indoor use.
Mode：SMT-012-036VT
Dimming Mode : Triac Dimming
Output Power : 36W
intput voltage：100-130v/170-265vac
Efficiency > 86%
Size：180*60*34MM （L*W*H）
|
