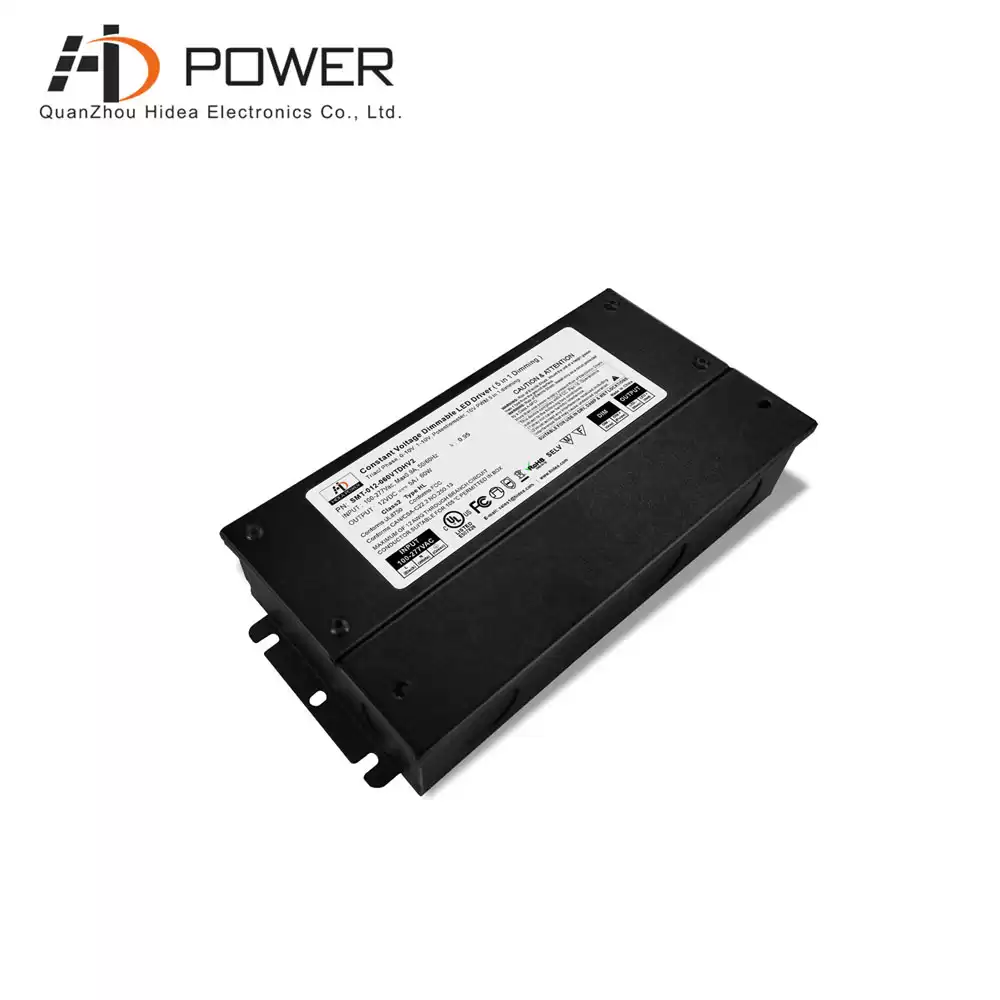

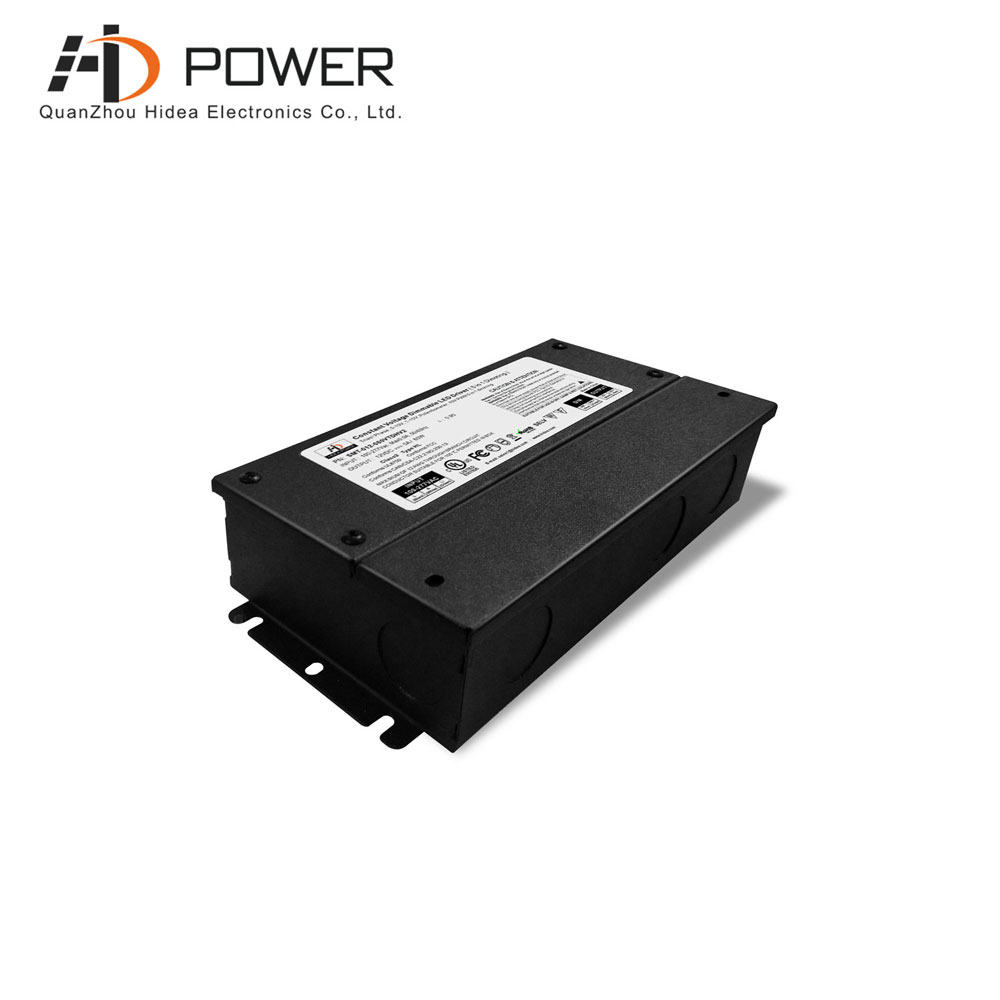

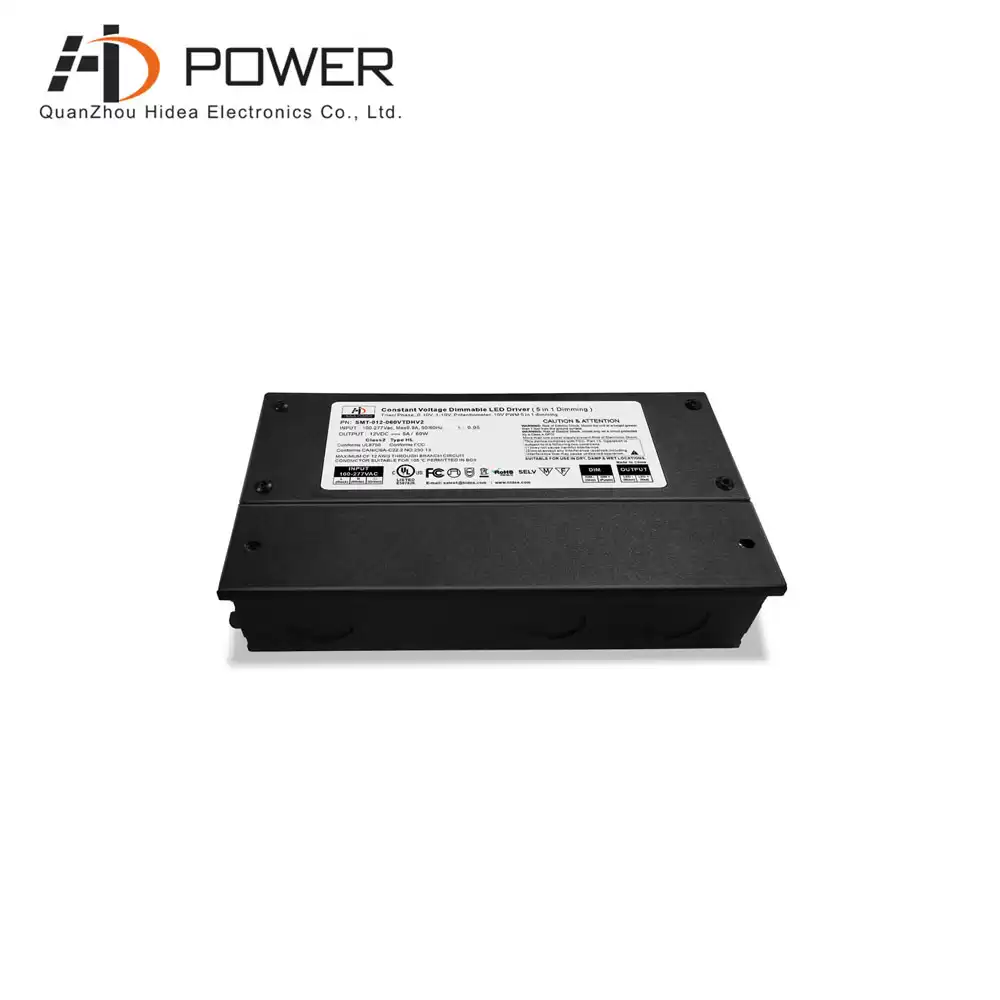

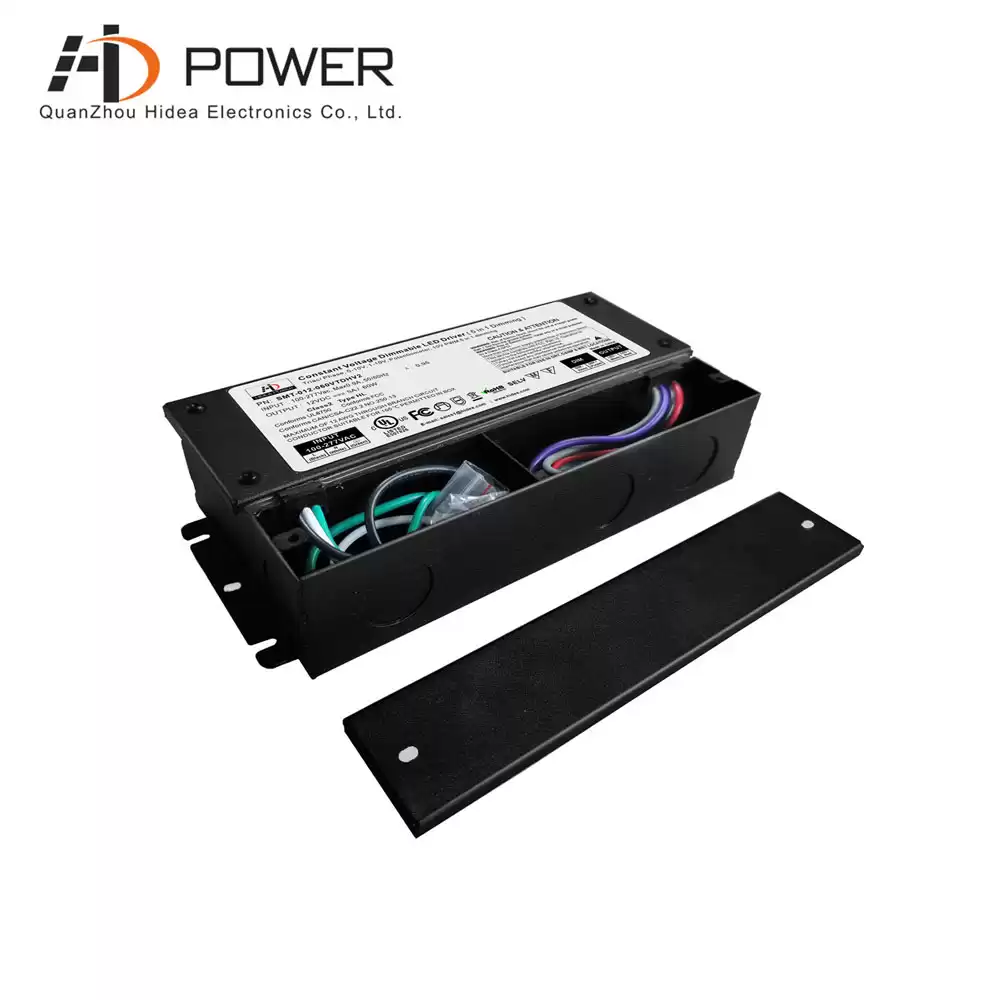

277vac Triac+0-10V 5 in 1 dimmable led power supply 60w, it's led driver built in junction box, UL/FCC listed, 7 years warranty, can perfectly work well with Stouch Lighting Fluorescent Lighting 12vdc for indoor and outdoor project.
Specification
|
model
|
SMT-012-060VTDHV2
|
SMT-024-060VTDHV2
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
5A
|
2.5A
|
|
Rated Power
|
60W
|
60W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83% @120Vac 85%@277Vac
|
83% @120Vac 84%@277Vac
|
|
AC Current(Max.)
|
0.5A@100Vac
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us @120Vac 15A, 50%, 660us @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 1.1Kg
|
|
Size
|
188*94.5*40mm(L*W*H)
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
dimmable led driver 60w 12v is a UL, Class 2, FCC listed, with wide world input voltage range 100-277vac for using in 120vac and 277vac applications. its performance is better if working with Stouch Lighting Fluorescent Lighting 277v.
Related Products
|

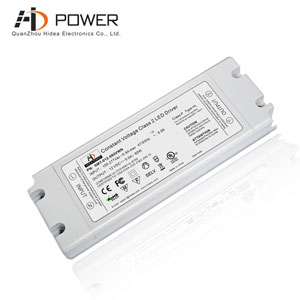

 UL listed 12v/24v 60w non-dimmable led driver, it's high PF>0.98, high efficiency>90%, plastic case, 5 years warranty...
