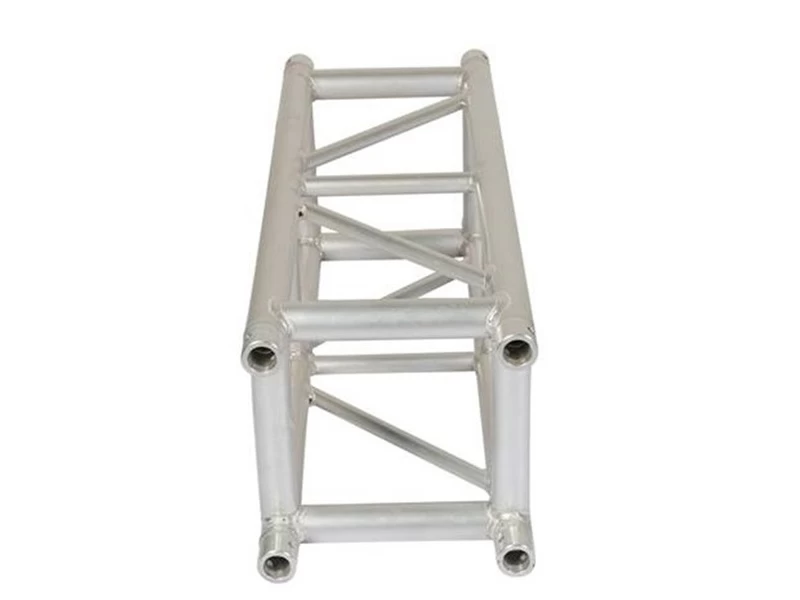

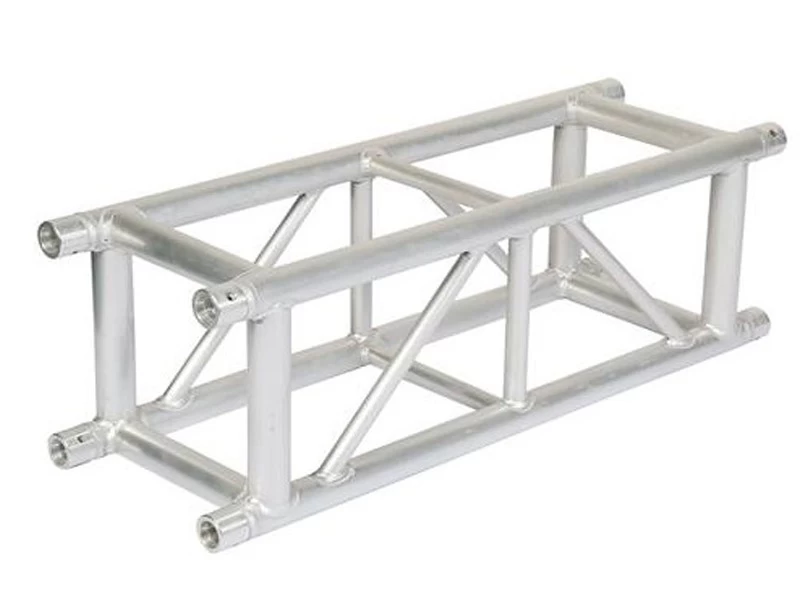

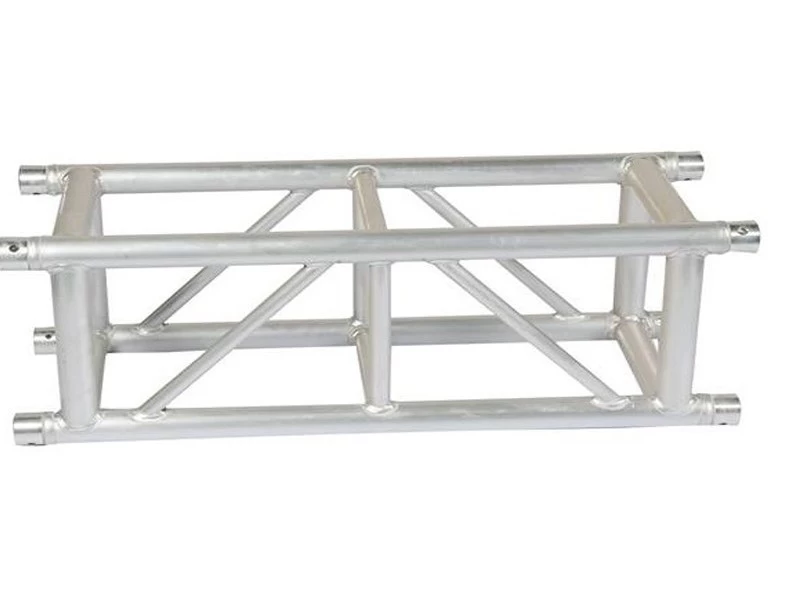

290 Spigot Metal Square Truss Ladder:
This Square Truss Ladder is featured with 50mm Sub-main tubes on 2 sides to offer stronger vertical loading as Stage lighting Truss Beam in structures, and it also offers convenience to hang moving heads on sides. It is customized according to concerts events special designs.
Features:
-
4- point nodding
-
TUV and SGS approved
-
Free design and technology support
-
OEM and ODM acceptable
-
Powder coating and anodizing to any color without any peeling
Specification:
|
Material
|
Aluminum Alloy 6061-T 6/ 6082-T 6
|
|
Types
|
Square
|
|
Main tubes
|
50 x 3 mm
|
|
Sub-Main tube
|
30 x 2 mm
|
|
Braces
|
25 x 2 mm
|
|
Connection type
|
Conical couple system
|
Length and Weight:
|
Length
|
Weight
|
|
50 cm
|
5.25 kg
|
|
100 cm
|
8.25 kg
|
|
150 cm
|
11.25 kg
|
|
200 cm
|
14.25 kg
|
|
250 cm
|
17.25 kg
|
|
300 cm
|
20.6 kg
|
Other length can be custom on request.
Application:
The Square Aluminum Truss Ladder is widely used for concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
