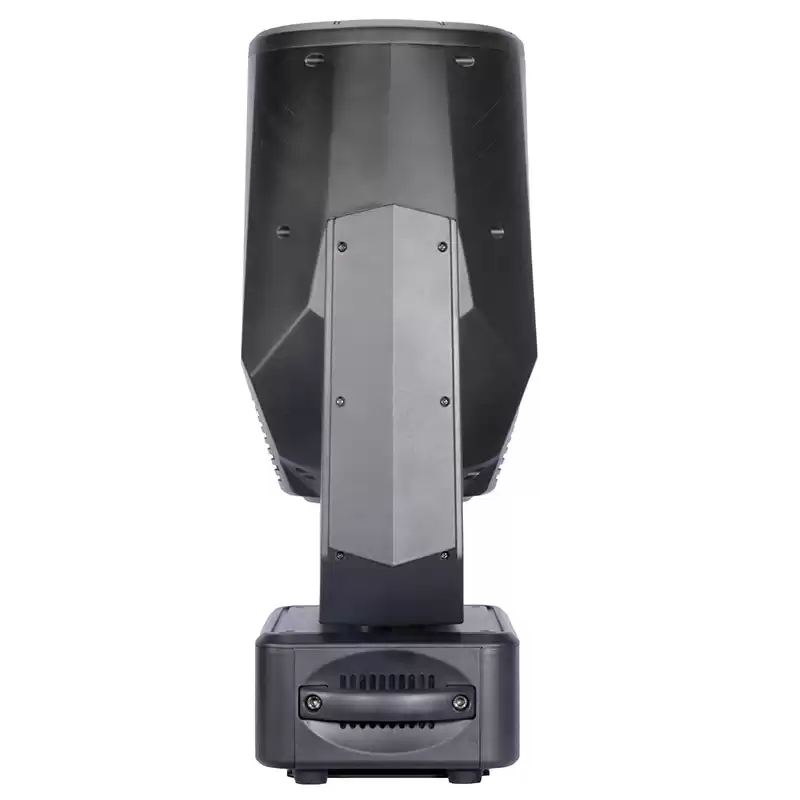

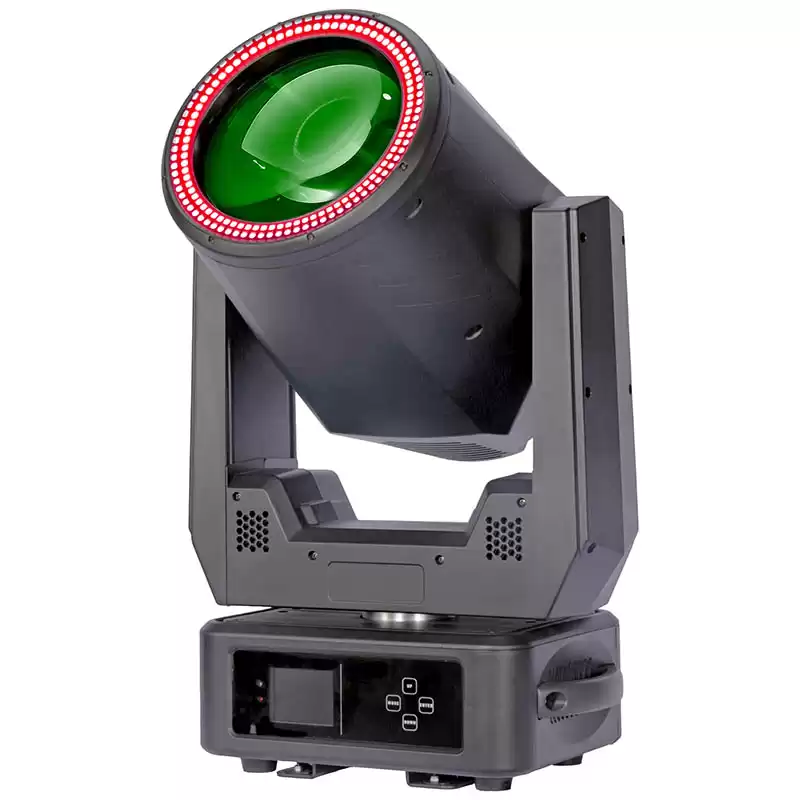

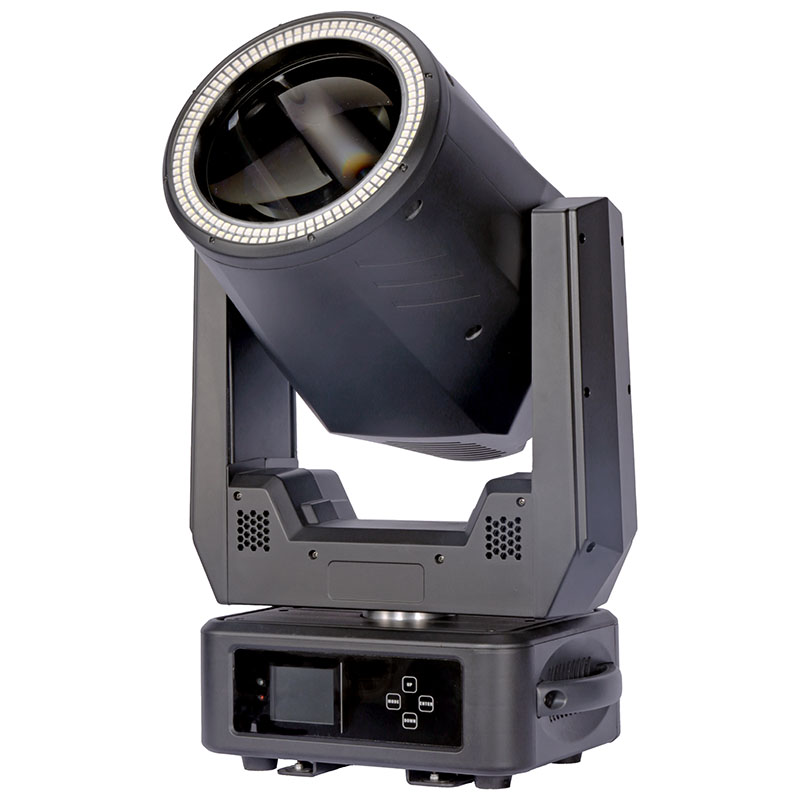

295W Beam Moving Head Light with LED Ring

295W beam moving head.It owns RDM function and follow DMX&RDM protocols.Besides including 1x195W lamp&162X0.5W RGB LEDs of  double LED halo rings and 1° sharpy beam angle.




The product owns unique housing design,And uses Osram 295W lamp and 162*0.5W RGBw LEDs of double halo ring.The beam angle of white light is 1 ° and 110°beam angle of LED halo rings.Besides the three-phase motor responds quickly and smoothly pan  and tilt .Besides it has one static gobo wheel , one color wheel, one of 48 facet rotatable prism, one of 6 fact rotatable prism, one of frost wheel and full-colorful wheel which make powerful beam effect. This product also owns double LED halo rings with 162pcs 0.5W RGBW.when there is no ring effect.,the LED of LED halo ring can be controlled seperately to bring 3D effect. DMX control method: DMX, Artnet. In addition to DMX control, it also has a powerful RDM.

● Optics

. Light source:Osram 295W lamp  311,350,380W lamp optioanl)

. Beam angle2°,LED ring beam angle110°

. Lamp color temperature:  7000K

. 162x0.5W RGBW LED can bring LED halo rings,LED of LED rings can be controlled seperately

. Lam life2000H


● Scanning

. Pan  / tilt operation

 8bit and 16bit fine-tuning

Smooth and precise positioning

Pan : 540 °,Tilt  220 °

The scanning position can be memorized, and it will be reset automatically after no expected operation.

Pan  and tilt  with error correction function


● Colour

. Color wheel: 14 colors + Open, the color wheel has half-color effect and continuous forward and reverse of the color wheel.

. The double rigns composed of 162*0.5W RGBW LEDs can show dynamic effects, and the effects can be combined.




● Specification

. 5DMX channel modes: 26/31/45/261CH/DMX15+Artnet 216 international standard DMX512 channels

. Static gobo wheel: 21 fixed patterns + white circles, pattern jitter effect, continuous forward and reverse patterns

. Electronic focusing, ultra-smooth adjustment

. Frost filter for wash effect

. Colorful mirror effect wheel

. Prism: one 48 prism and one eight prism, which can be rotated in the forward and reverse directions

. 4 control modes: DMX512, Artnet, Sound control, master-slave

. Beam angle2°

. Strobe effect :0-20HZ strobePuls  strobe|Ramdom strobe

. The illumination of 10 meters at 2 ° is 500,000 Lux.

.  Halo effect, can chase, flowing effect.

. LED halo rings of 162*0.5W RGBw LEDs can create 135xdynamic effects, and effects can be combined


● Display

. 2.4-inch TFT color display

. High anti-interference four-button touch button

. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.


● Software

. oftware update :Update via DMX link

Can inpit double signals to control the lights at the same time oftware update :Update via DMX link

. Each lgiht can be individually set with IP address and subnet mask to be convenient to use ArtNet control.

. Display the light usage time, which is convenient for customers to know the light usage in time


● Other functions

. Setting and addressingRDM

. Fan cooling (fan changes speed with temperature change)


● Power / DMX connection

. Power connection:PowerCON power cable input and output

. DMX XLR socket3 Pin&5 Pin XLR socket input, output

. ArtNet connectionRJ45 input&out put


● Power

. AC100-240V 50/60HZ

. Power consumption400W


● Protective class

. Housing material: ABS plastic fireproof material

. Waterproof level: IP20


● Working environment

. Indoor working temperature-20°C~+40°C


● Size and weight

. Packing size 410x290x710

. Net weight17KG

. Gross weight19KG


● Certification

. CE,ROHS
