29er 24mm Width 24mm Depth Lightweight Carbon XC Rims

29er 24mm wide 24mm deep lightweight xc rims are constructed from Toray T7007T800.The max rider weight of carbon mtb rims 29 is 100kg.



29er 24mm  Width 24mm Depth Lightweight Carbon XC Rims


Product Feature

  • Super lightweight,29er 24mm wide 24mm deep xc rims are constructed from Toray T700&T800 that structure minimize the rotational weight.
  • 29er carbon mtb rims have flyweight version(250±10g),but only UD.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Specification

Item NO.:
M924X-24
Size:
29er
Terrain:
Cross Country
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700+T800)
Spoke Hole:
24/28/32/36H
Outer width:
24mm
Depth:
24mm
ERD:
590mm
Type:
Tubeless
Weight:
Standard:295±10g  Flyweight:250±10g(only UD)
Standard:
En Standard
Tyre Size:
1.25-1.95"
Max Tire Pressure:
60psi
Max Rider Weight:
100kg

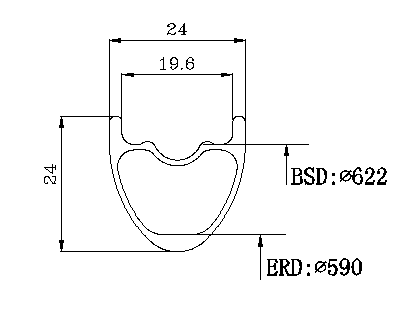

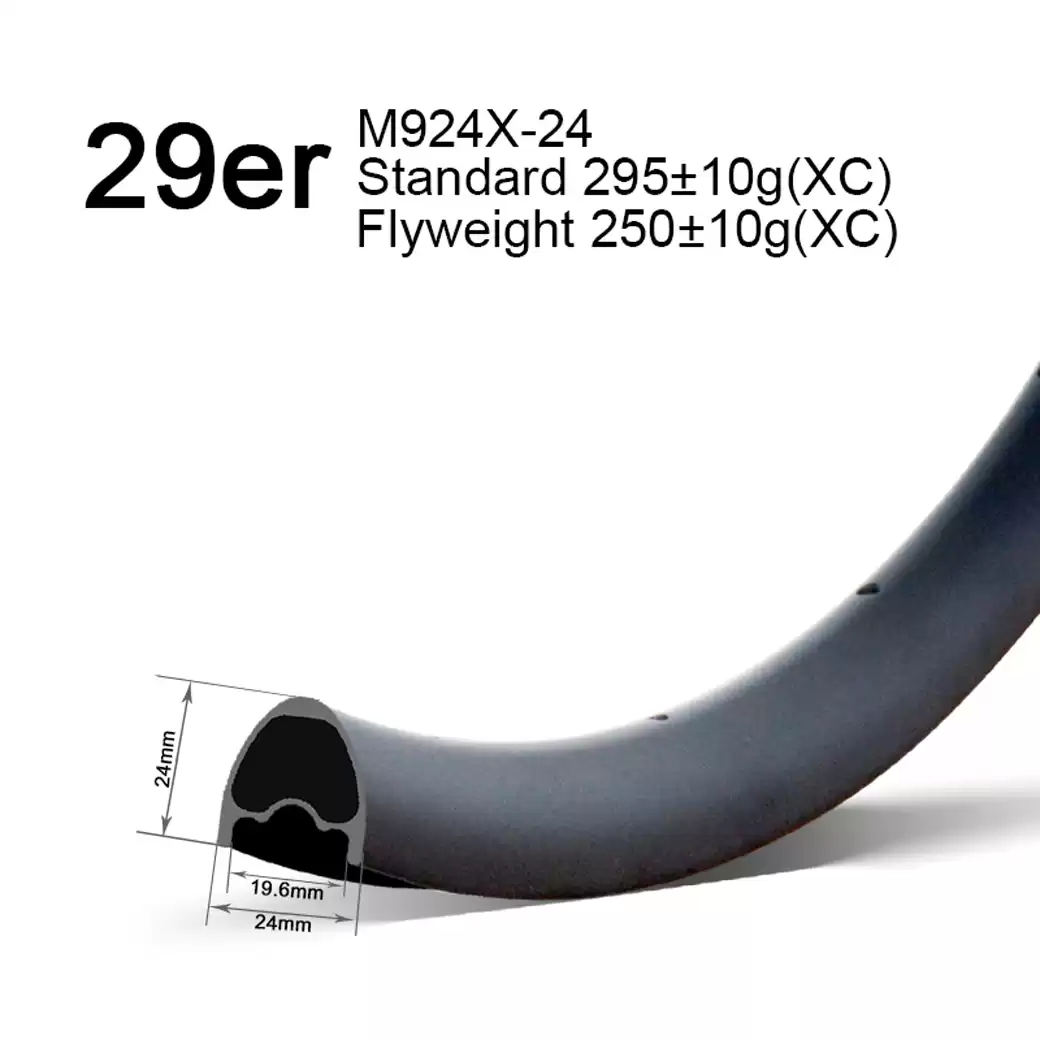

Geometry

29er24mm wide xc rims




Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory



100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
