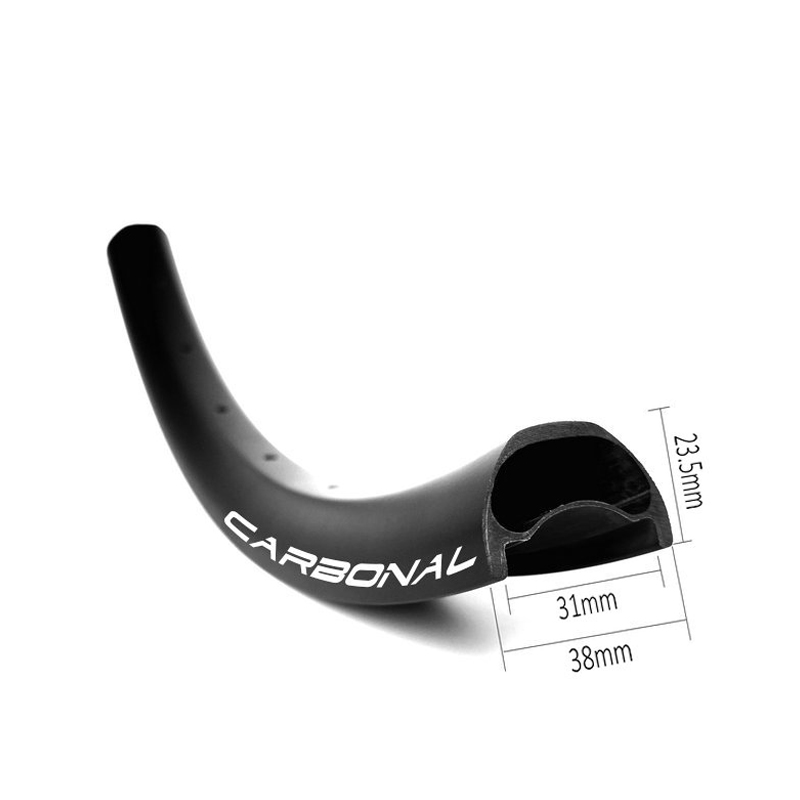

29er carbon 38mm wide 23.5mm depth hookless enudro mtb rim

Item MX938EN, weight 500g, ERD 598mm. This enduro carbon rim with its 31mm internal width is an ideal position in the middle of the strength, to weight, to width range, it works with many tire sizes.


  • Max weight limit125kg
  • Max spoke tension140kgf
  • Depth23.5mm
  • Outer width38mm
  • Inner width31mm
  • ERD598mm
  • Weight500g±20
  • Typehookless (tubeless ready)
  • Materialfull carbon Toray T700 & T800
  • Size29 inch

Product Item: 29er carbon 38mm wide 23.5mm depth hookless enudro mtb rim

carbon clincher rim for Ebike

This enduro carbon rim with its 31mm internal width is an ideal position in the middle of the strength, to weight, to width range, it works with many tire sizes.


Specification:

 Item:
 MX938EN
 Use:
 Enduro, AM, E-bike
 Rim type:
 29" hookless
 Material:
 Toray T700 & T800 carbon fiber
 Tubeless ready:
 Yes
 Weight:
 500g±20
 External/Internal width:
 38mm / 31mm
 ERD:
 598mm
 Depth:
 23.5mm
 Finish:
 Matte, glossy
 Weight limit:
 125kgs
 Weave:
 UD, 3k, 6k, 3k twill, marble  see different carbon weaves
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 60psi / 4.1bar
 Tire size:
 2.3" ~ 3.0" (recommended)
 Min tire pressure:
 25psi / 1.75bar
 Decal:
 None or Customized
 Standard:
 EN standard


Features:

  • Wider 38mm rim profile offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Unique Manufacturing Process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control


Related Gallery & Comments:

>>> 29-inch-enduro-38mm-wide-mtb-rim-mount-with-santa-cruz-bike
