700C MTB RSD CARBON RIMS
Key Features

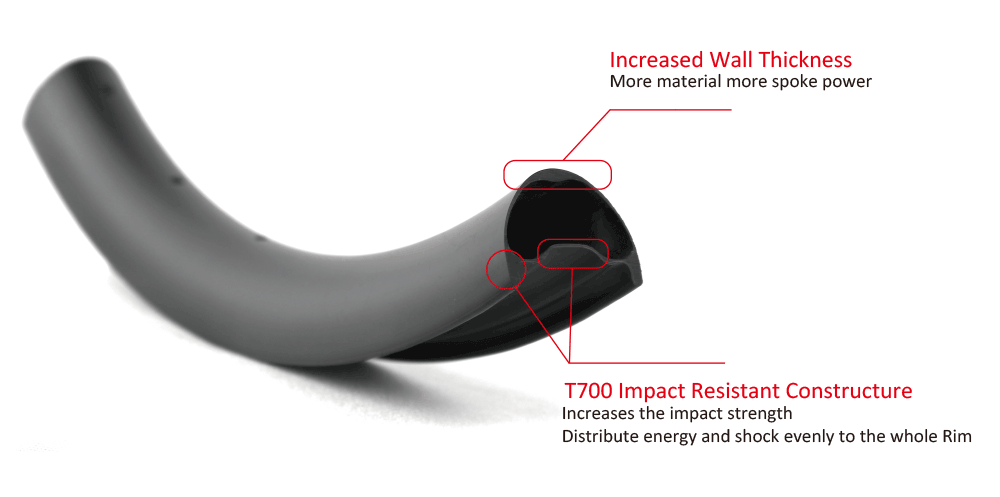

Increase wall thickness for 120%+ spoke tension
High life durability w/t max. 150kg rider weight
High profile design for more aggresive riding torque
Ease of tubeless inflation and best tire bead retention
Ultra smooth inner wall technology for better strength
|
29ER RSD SYMMETRY MTB RIMS
|
|
Modle
|
RSD930XC
|
RSD933TR
|
RSD938TR
|
RSD938AM|ED
|
RSD938-DH|EBIKE
|
RSD942TR
|
RSD942AM&ED
|
RSD952TR
|
RSD952AM&ED
|
|
Rim
|
|
|
|
|
|
|
|
|
|
|
Weight
|
365+/-10g
|
445+/-10g
|
425+/-10g
|
500+/-10g
|
550+/-10g
|
450+/-10g
|
550+/-10g
|
485+/-10g
|
590+/-10g
|
|
Finish
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
UD/3K/12K
|
|
Prepreg
|
T700
|
T700
|
T700
|
T700
|
T700
|
T700
|
T700
|
T700
|
T700
|
|
Max. Rider Weight
|
100kg|220lbs
|
100kg|220lbs
|
100kg|220lbs
|
100kg|220lbs
|
115kg|250lbs
|
115kg|250lbs
|
115kg|250lbs
|
115kg|250lbs
|
115kg|250lbs
|
|
Max. Tire Pressure
|
40PSI|2.7bars
|
40PSI|2.7bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
40PSI|2.7bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
35PSI|2.4 bars
|
Rec. Tire Size
|
2.1-2.5"
|
2.2-2.6"
|
2.3-2.8"
|
2.3-2.8"
|
2.3-2.8"
|
2.4-3.0"
|
2.4-3.0"
|
2.4-3.0"
|
2.4-3.0"
|
Rim Chart
|
|
|
|
|
|
Profile
|
26mm
|
28mm
|
30mm
|
30mm
|
30mm
|
25mm
|
25mm
|
25mm
|
25mm
|
OD
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
633mm
|
|
Dimension
|
621*24mm
|
621*27mm
|
621*32mm
|
621*32mm
|
621*32mm
|
621*36mm
|
621*36mm
|
621*46mm
|
621*46mm
|
|
ERD
|
592mm
|
587mm
|
583mm
|
584mm
|
584mm
|
595mm
|
595mm
|
595mm
|
595mm
|
|
Terrain
|
Cross Country
|
Trail
|
Trail
|
All Mountain
|
Down Hill|Ebike
|
Trail
|
All Mountain Enduro
|
Trail
|
All Mountain Enduro
|
Advantag
|
■ Hookless design ■ Tubeless ready ■ Super light lay-up to minimize the rim weight
■ Asymmetric profile ■ Internal&external nipple systems available
|
