Applications:

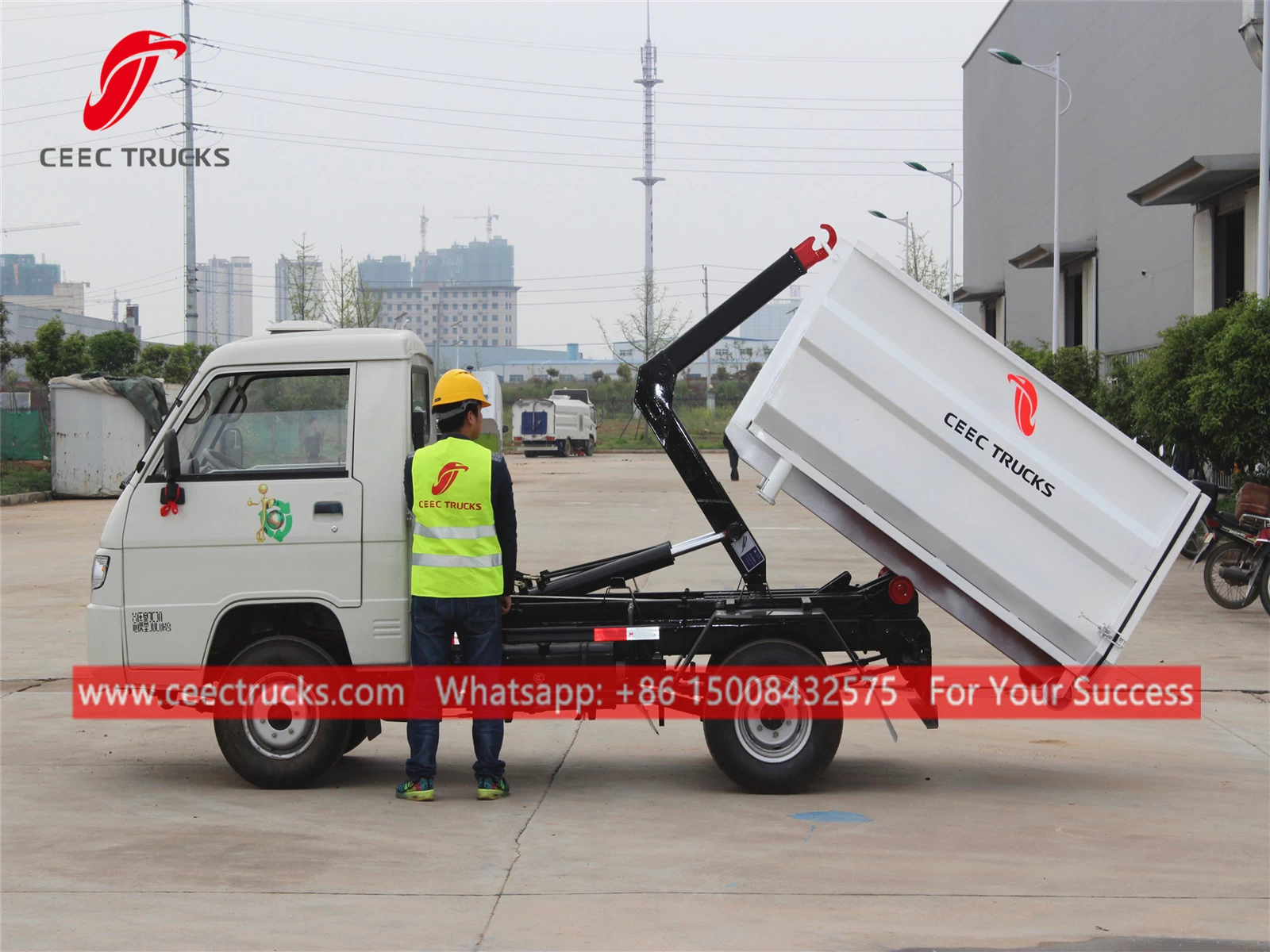

Hook Loader Truck FOTON (also called roll
on roll off garbage truck, hook loader container truck, hook lift
truck, hook lift garbage truck, hook loader, detachable garbage
container truck, garbage collection truck, carriage removable garbage
truck, hook lifting garbage truck ) is designed
to collect and transport municipal solid waste, widely used in
residence community, hospital, municipal environmental section, garbage
collection and transportation station, etc.
CEEC TRUCKS roll on roll off trucks loading capacity can ranges from 1tons, 2tons,
3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.
The hook loader with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- FOTON chassis, perfect performance
---- XICHAI / QUANCHAI diesel engine (Japanese brand), super powerful, no overhaul within 100,000 km.
---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

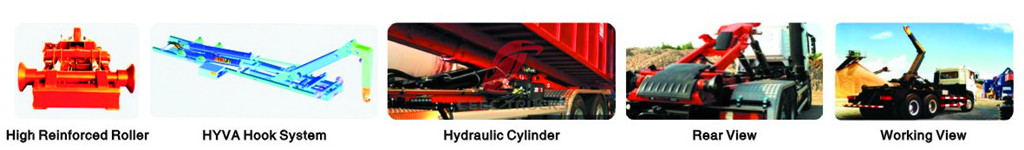

---- Rational design of hook and locking structure, and truck more reliable.
---- Optional Electrical Control in cabin, easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|

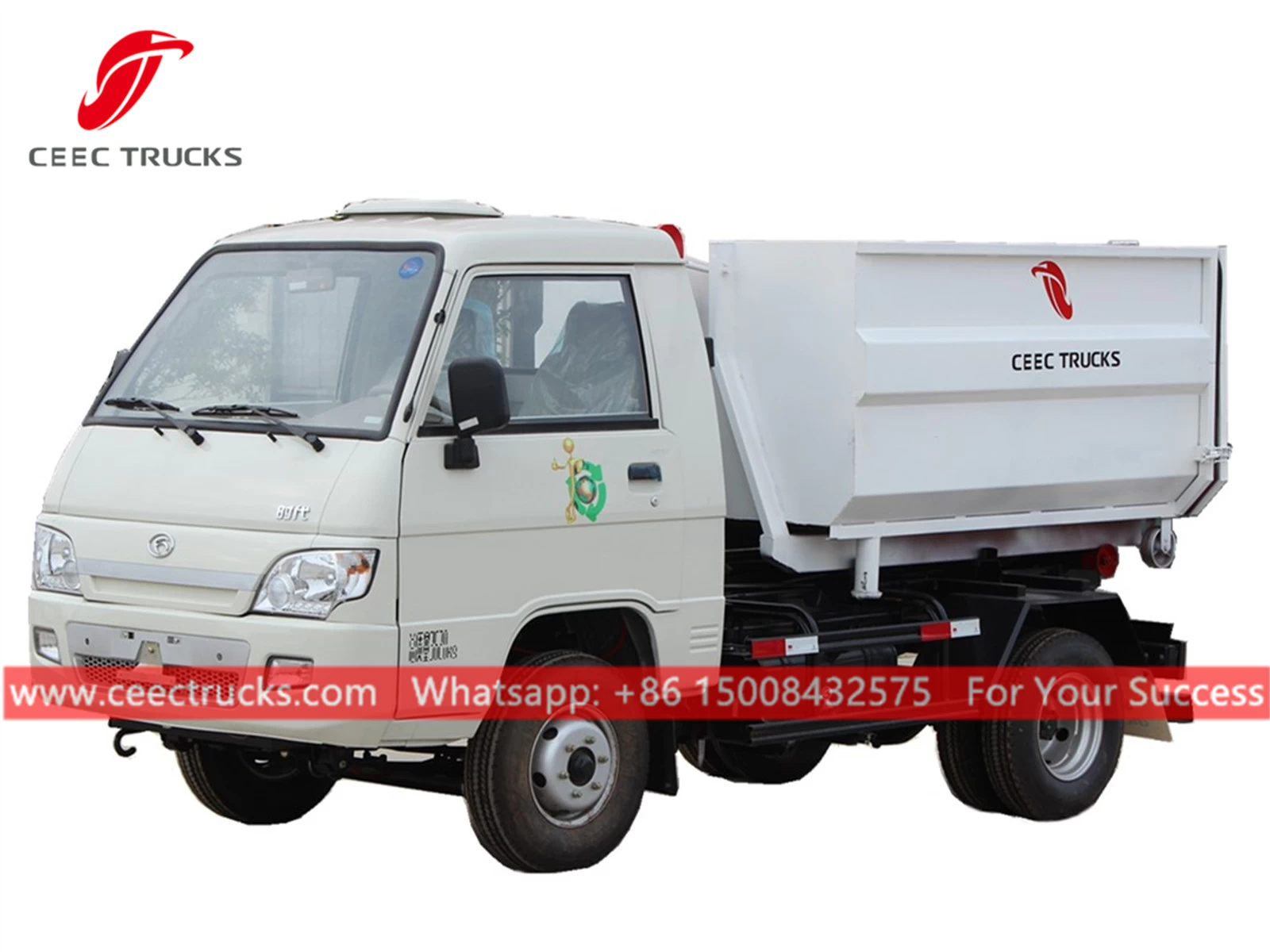

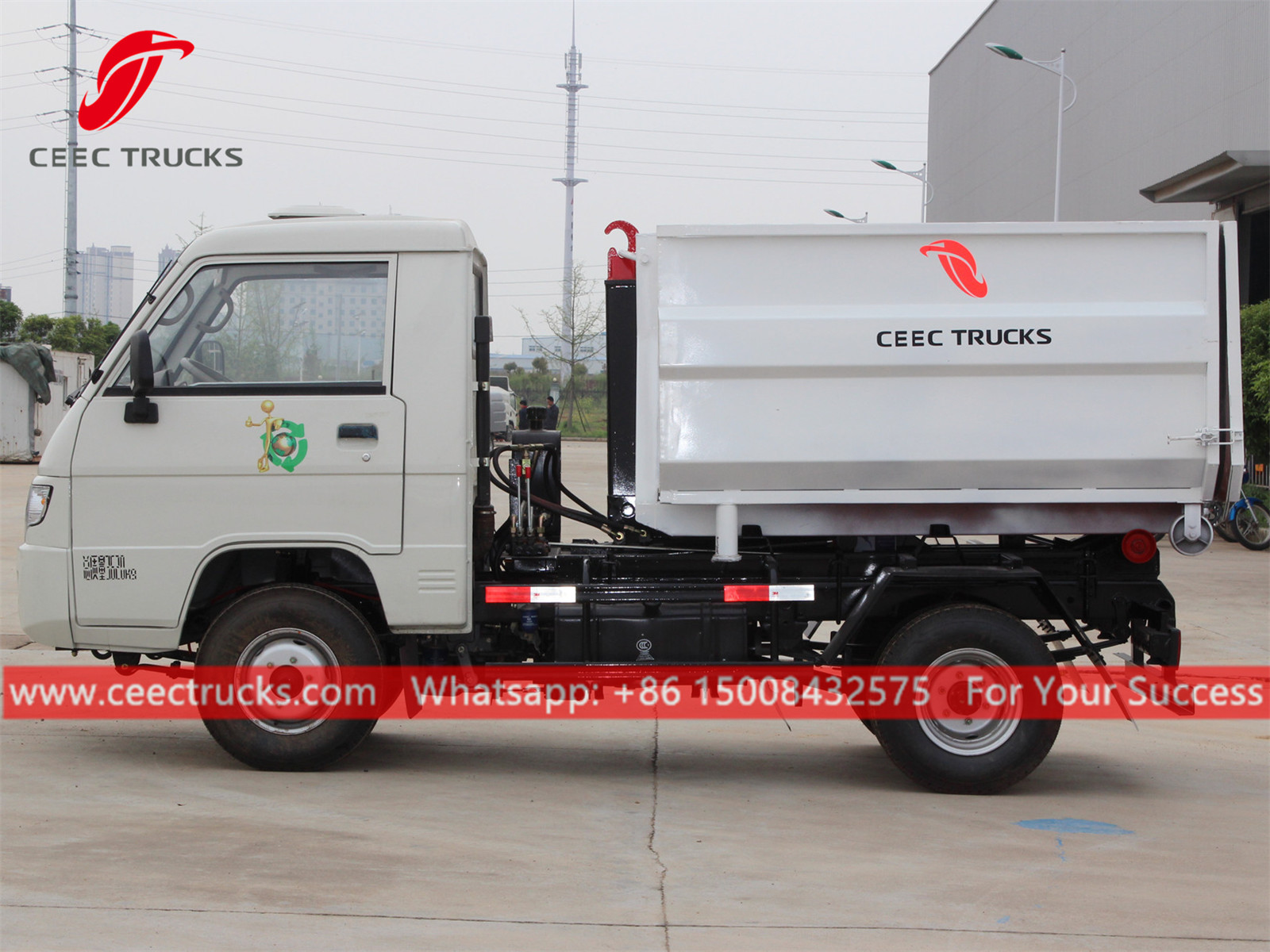

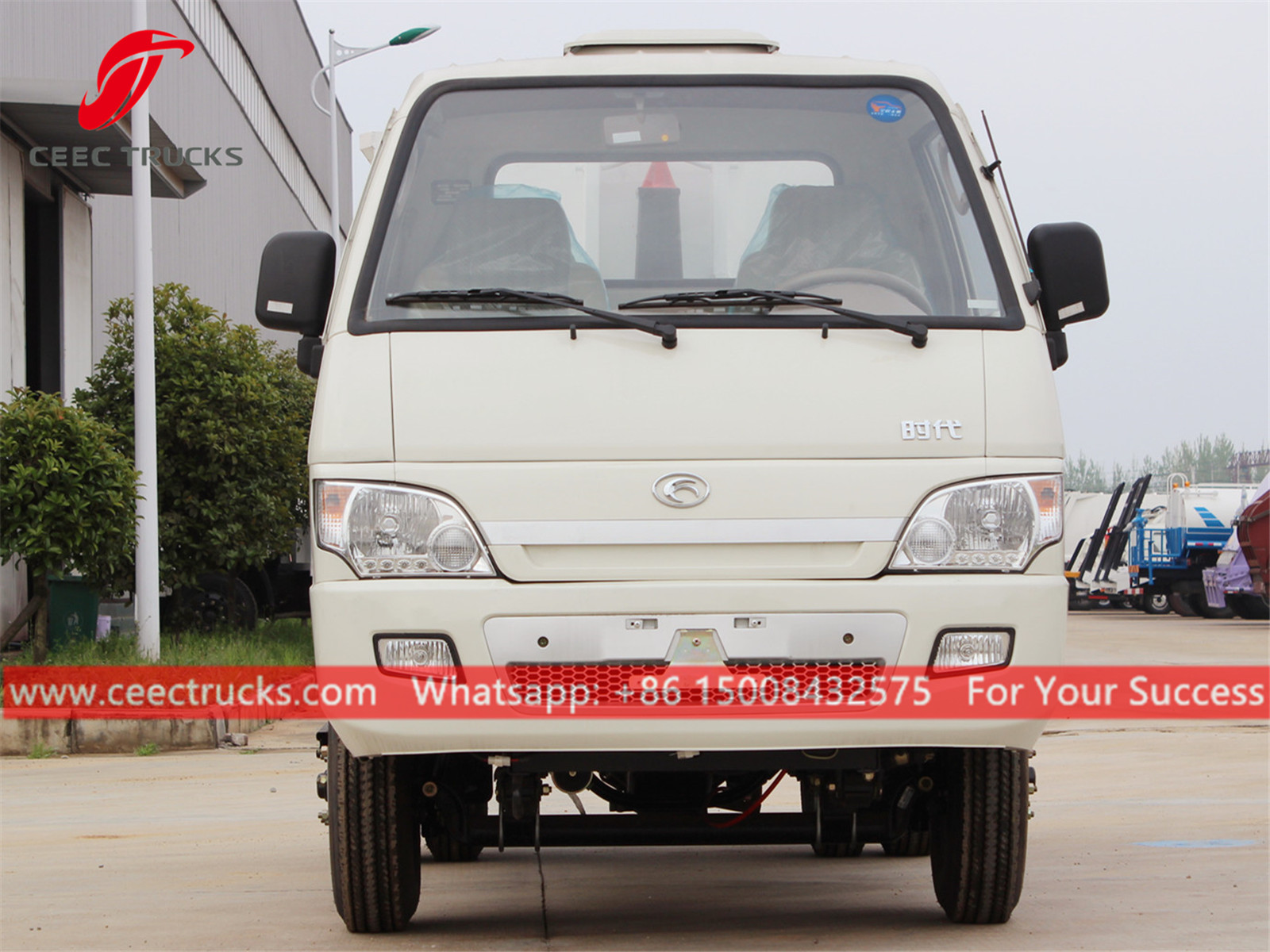

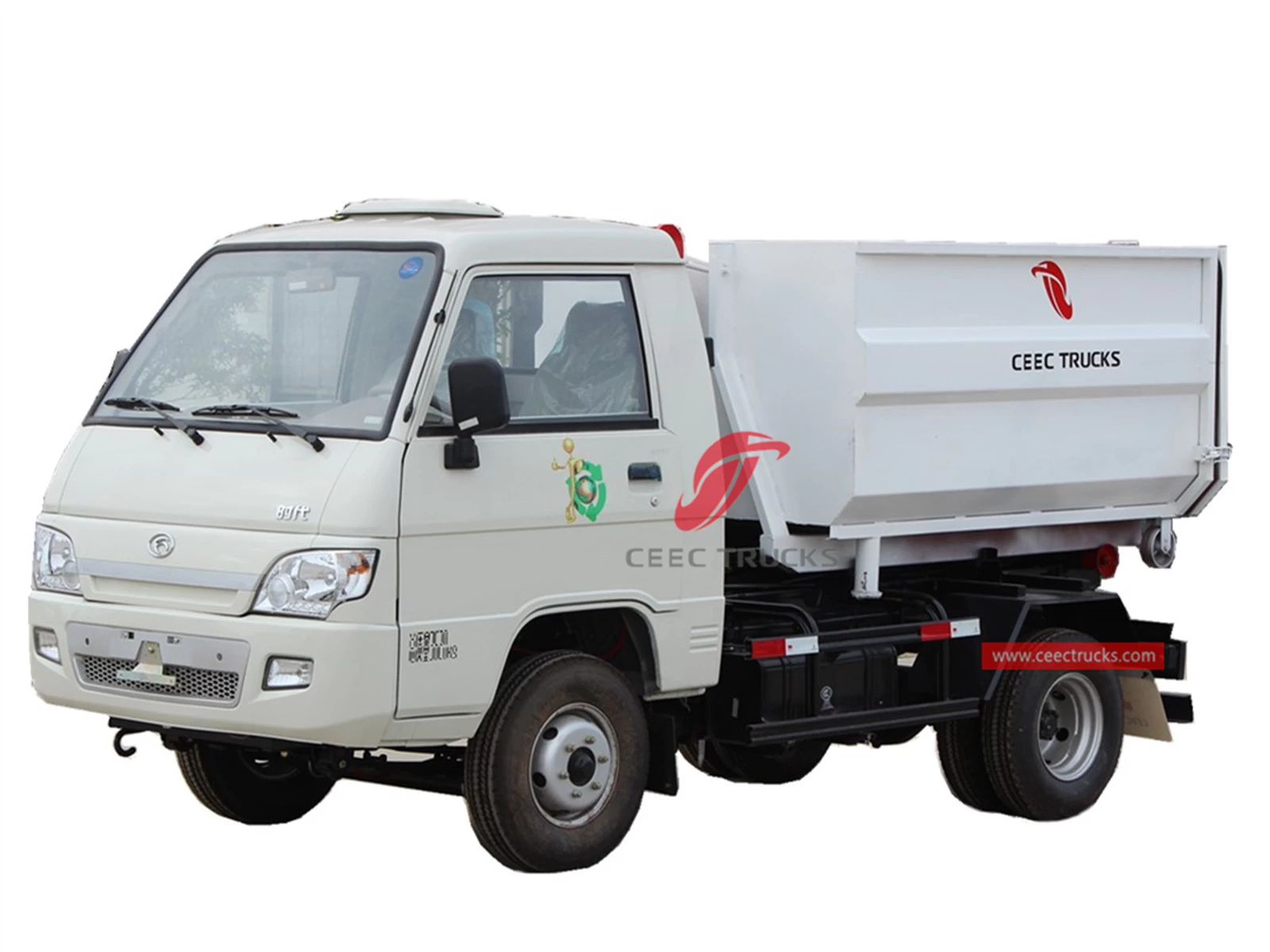

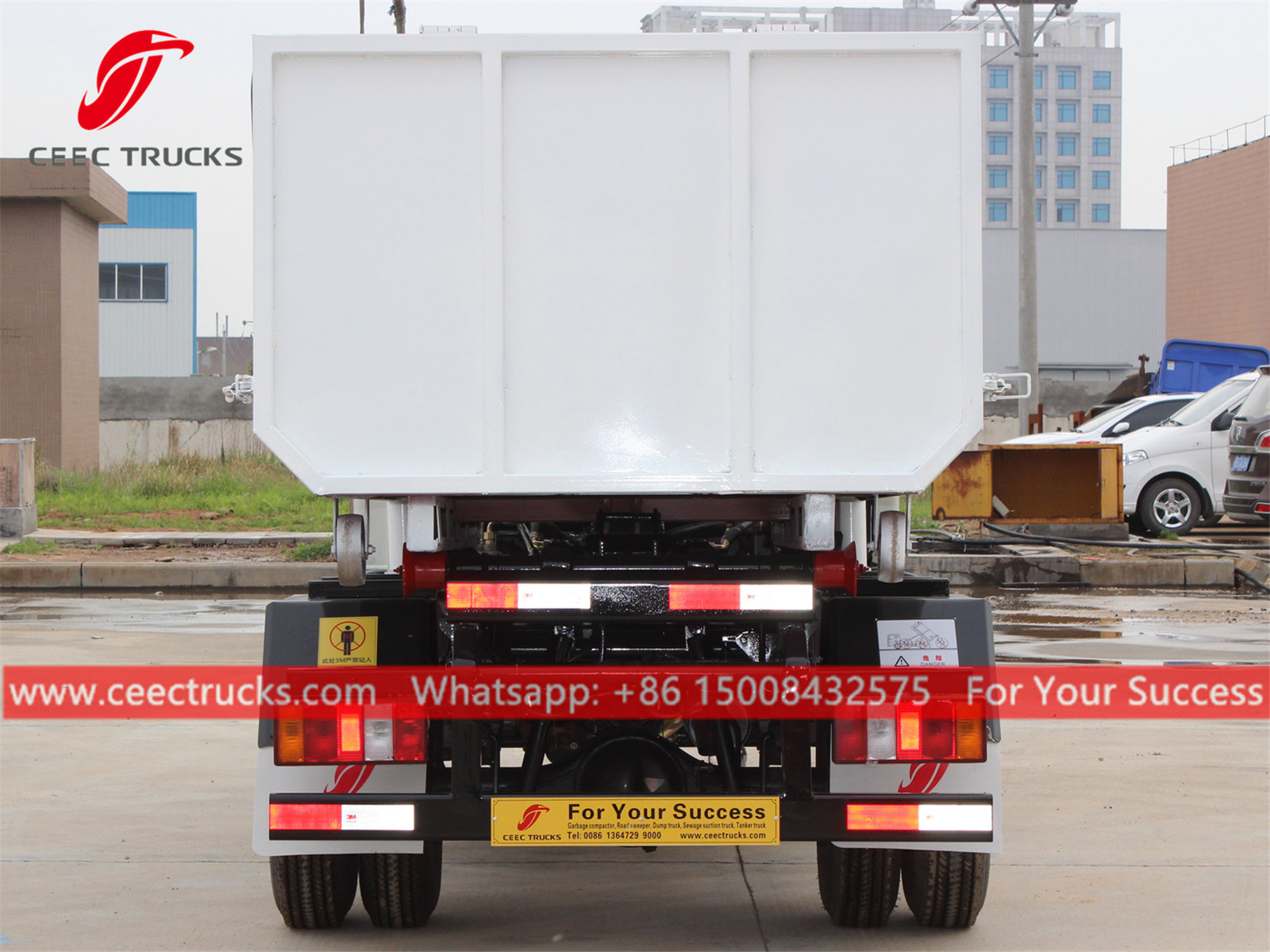

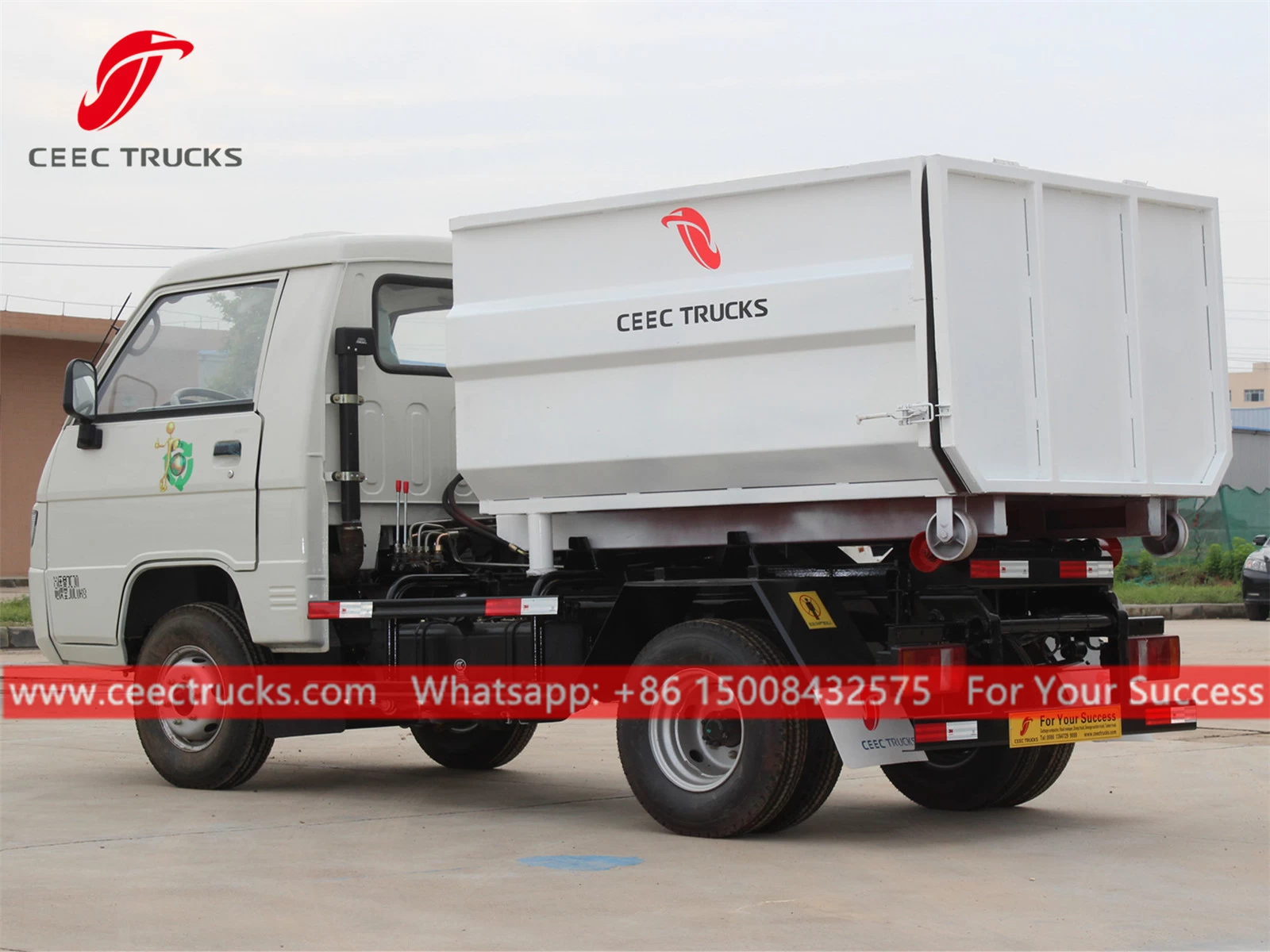

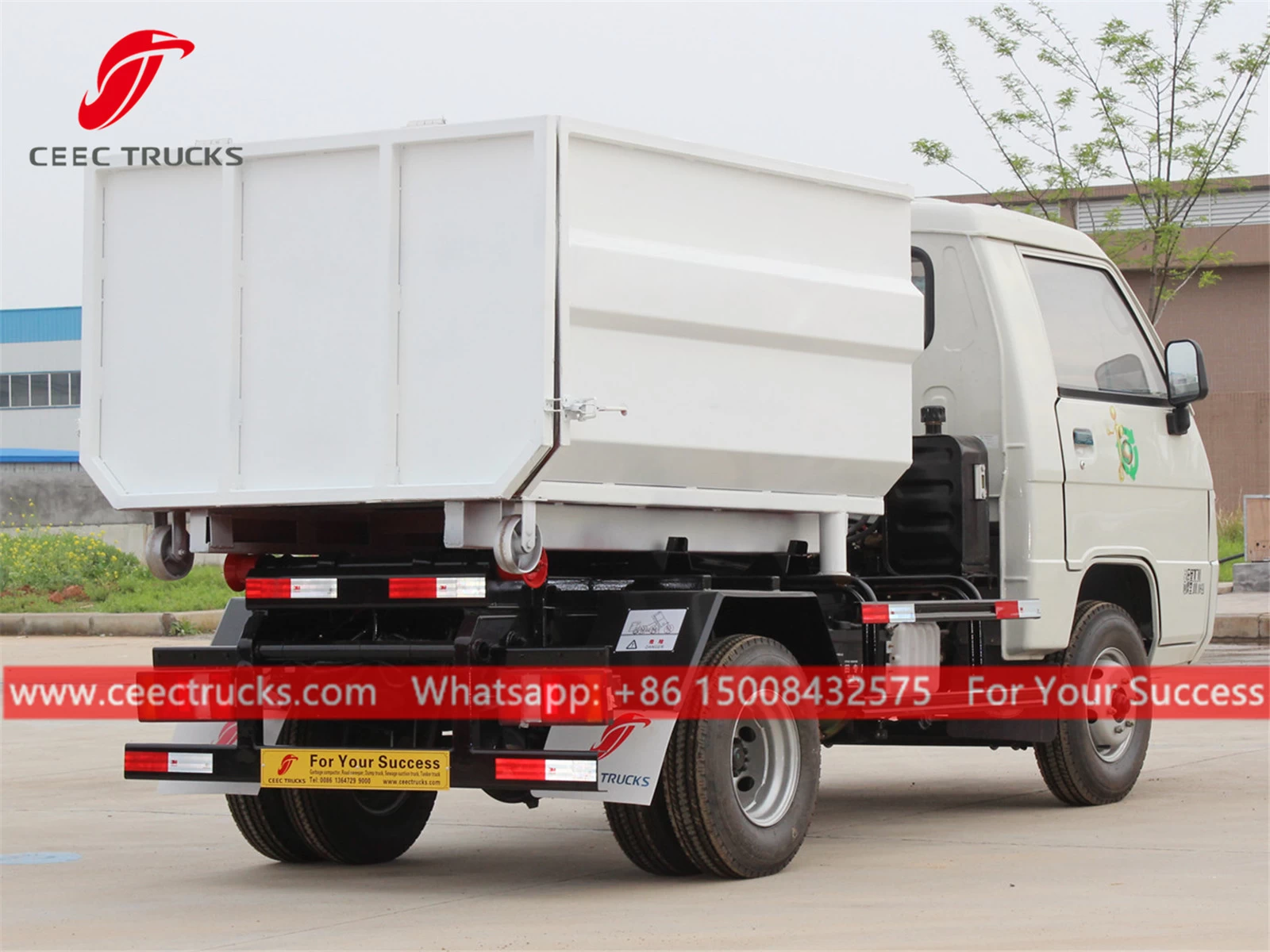

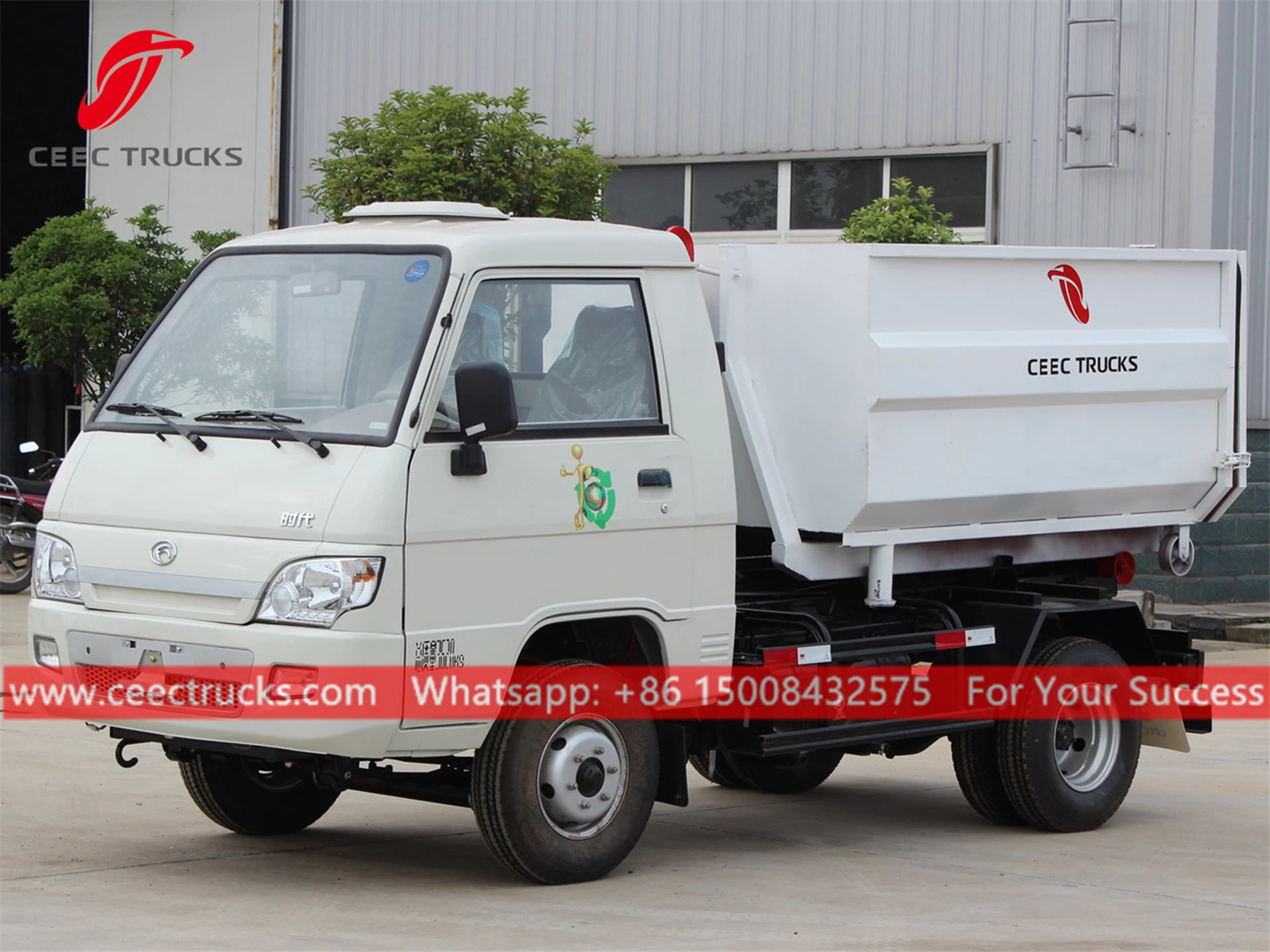

FOTON Hook loader garbage truck (2 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
FOTON
|
|
Overall Dimension
|
4150 * 1600 * 2180 mm
|
|
GVW / Kerb Weight
|
3,600kg / 1,800kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
QUANCHAI
|
|
Power
|
68 HP (50 KW)
|
|
Displacement
|
1800 ml
|
|
Emission Standard
|
Euro 2 or 3
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
Manual 5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
2300 mm / 2
|
|
Tire Specification
|
6.50-14
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|

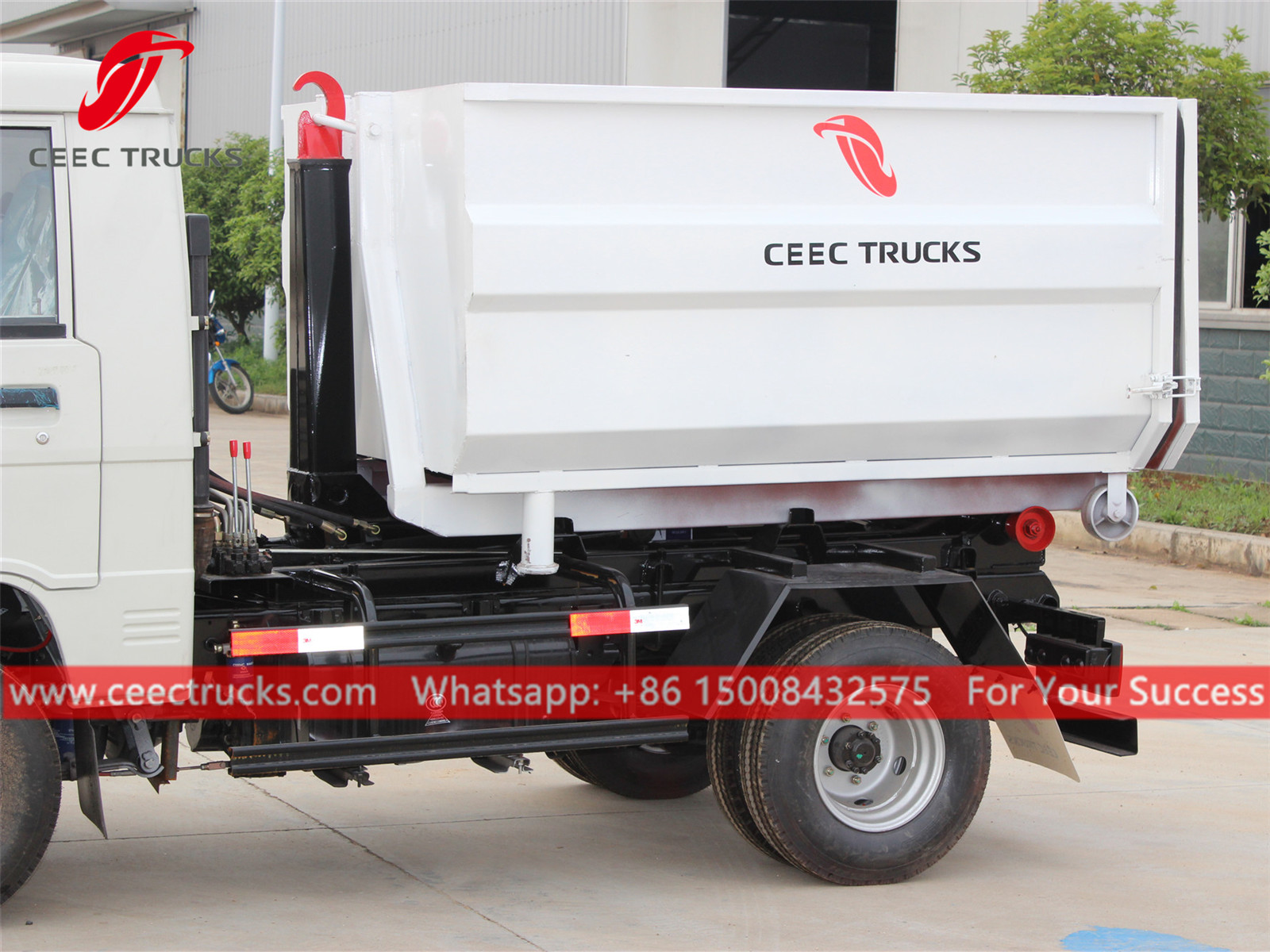

Superstructure
|
Body capacity
|
2CBM capacity detachable container
|
|
Container material
|
Anti-corrosive steel
|
|
Hydraulic system
|
Chinese top brand cylinders and matched valves
|
|
Control Box
|
1. Electric Control Box in Cabin
2. Hydraulic control valve at rear
|
|
Self-discharge angle
|
≥45 °
|
|
Discharging time
|
≤45 s
|
|
Lifting time
|
≤45 s
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Remote Control Box can be optional.
** Garbage container can be of stainless steel
|
