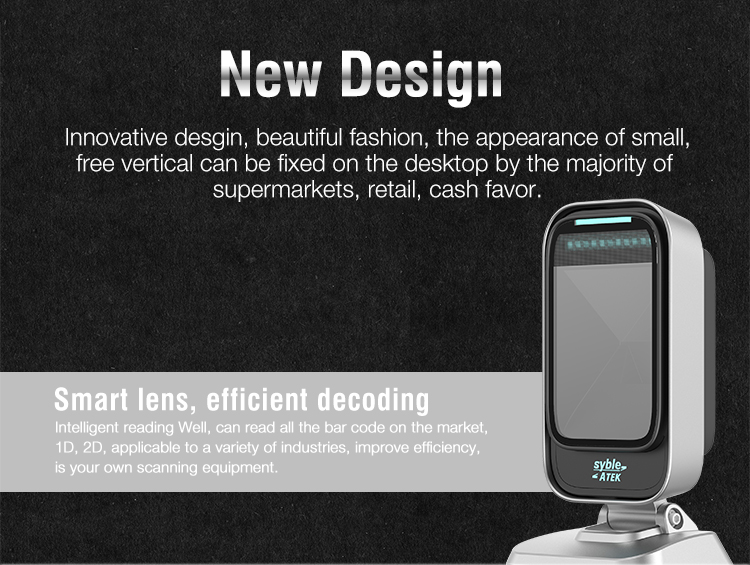

2D Desktop Image Barcode Scanner

Atek new product 2D desktop image barcode scanner with good performance. Hands free of the workers, raise the working efficiency.



Product features:

1. Fast and accurate decoding to improve user exprerience

2. Support all kinds of bar code scanning.
3.No handheld design adjustable scan angle up and down.
4.High speed 3.8m/sec. motion tolerance.

5.Compatible with windows,IOS,LINUX operating system.

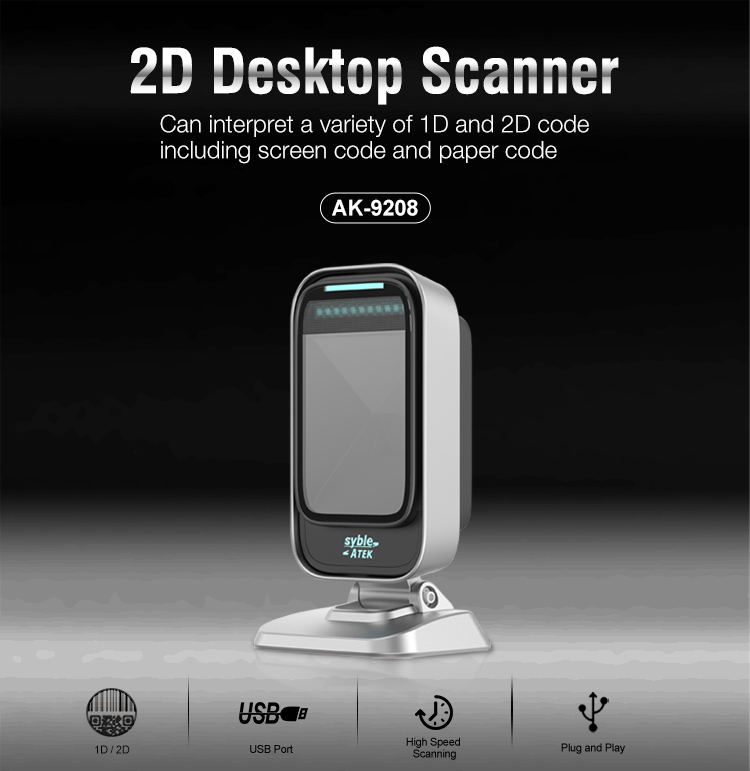

Model number: AK-9208


It is 2D desktop barcode scanner with very good performance, can read all kinds of barcodes. Hot selling item now.

Especially applicable to the supermarket, retail stores,catering industry, hospital industry cashier payments.


Specification

Performance Parameters

Light Sources

SXGA-W(Width1280*high1024) Ratio(5:4)

Supported Symbologies

1D:EAN-8、EAN-13、EAN-13 2 add-on、EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、ISBT-128、GS1-128、GS1 DataBar(RSS14)、GS1 DataBar Limited、GS1 DataBar Expanded.

2D:PDF417、MicroPDF417、QR-code、MicroQR, Data Matrix、QR、Aztec.

Scan Range

5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm

System compatibility

Linux、Android、Windows XP、7、8、10、MAC

Minimum recognition accuracy

Code 39 4mil

Barcode Type

1d or 2d barcodes for Paper or Film;1d and 2d for screen ,like Phone tablets

Motion tolerance

3.8meters/second

Scan Mode

Automatic continuous reading mode

Support Keyboard

Support Multi-Language

Barcode output editing

Support for adding suffixes

Print contrast

20%

Recognition angle range

Turn angle ±360°, elevation angle ±60°, declination angle ±70°

Mutual Move

Led: Red and blue bi-color indicator: red light reading code, blue light power indicator.

Beeper: Startup prompts, reading tips.

Keys (touch keys): Key Switch and 2d barcodes.

Interfaces

USB(Drive - Free)、RS232

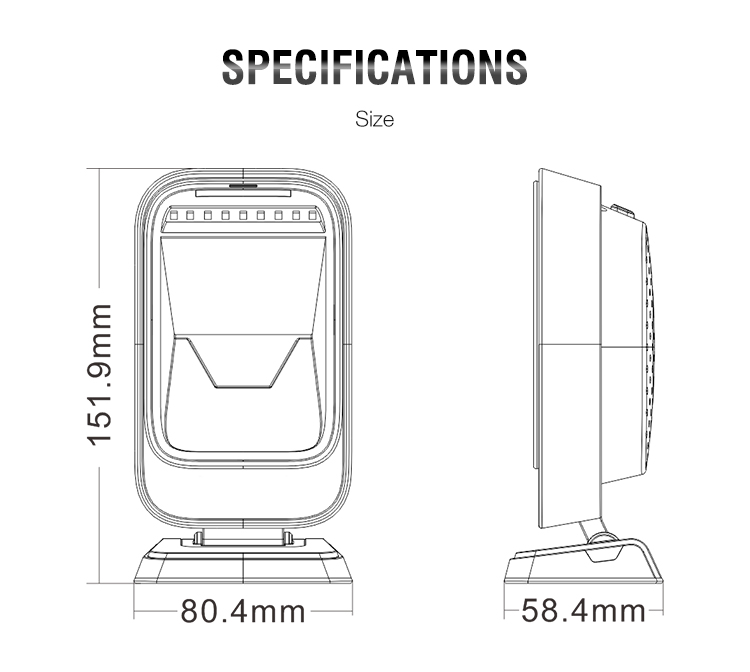

Physical Parameters

Dimensions


80mm*58.4mm*151.9mm


Weight

150g

Material

ABS+PC

Cable Length

180CM(±3CM)

Environmental Parameters

Operating Temperature

-20℃~55℃

Storage Temperature

-20℃~60℃

Relative Humidity

5%~95% RH(non-condensing/non-freezing)

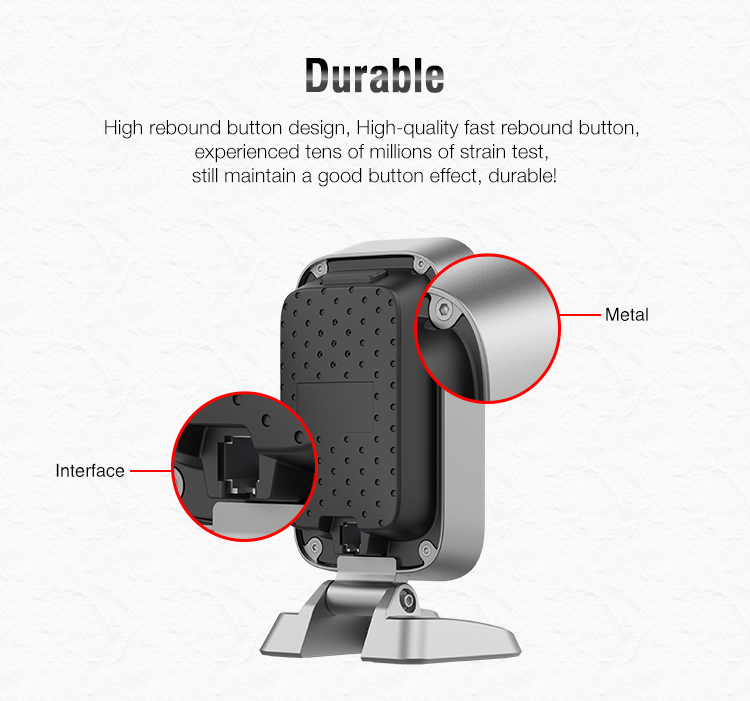

Shock Resistance:

Withstands three times1 . 5 meters drops to concrete

Waterproof and Dustproof

IP54 standard

Ambient Ligh

0-70000LUX
