Product Name:CBD Series Electric Pallet Truck 2.0/2.5/3.0t
High performance EFORK CBD series electric pallet trucks are perfect for your warehouse requirement
Product Advantage:
Performance
● Station-driving standard power distribution steering makes the control lighter and more flexible.
● The control system, precise and stable control, and higher efficiency.
Comfort
●The platform is equipped with a shock absorption design, which greatly improves the ride comfort and reduces the fatigue of long driving.
●With integrated joystick, it is simple and beautiful, and all operation functions can be easily completed with one hand.
Safety
●It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving.
●The speed of the station-drive standard is automatically reduced with the increase of the steering angle.
Basic parameters:
|
Name
|
Electric pallet truck（24V）
|
|
Operation Type
|
Standing type
|
|
Model No.
|
UNIT
|
CBD20
|
|
Power Type
|
|
Full electric
|
|
LoadCapacity
|
Kg
|
2000
|
|
Max lifting height
|
H（mm）
|
200
|
|
Load center
|
C（mm）
|
600
|
|
Wheel type
|
|
Polyurethane tire
|
|
Forksize
|
(mm)
|
1200*175
|
|
Fork outside width
|
(mm)
|
685/540
|
|
Minimum ground clearance
|
H1（mm)
|
85
|
|
Overall length
|
L（mm）
|
1918
|
|
Overall width
|
S(mm)
|
780
|
|
Turning radius
|
WQ（mm）
|
1760
|
|
Distance from front wheel to fork end
|
(mm)
|
180
|
|
Right angle channel width（Pallet1000*1200）1200 placed along the fork, gap 200
|
（mm）
|
2490
|
|
Right angle channel width（Pallet800*1200）1200 placed along the fork, gap 200
|
（mm）
|
2398
|
|
Max.Walking Speed
|
Km/h
|
4~5
|
|
Grade ability
|
%
|
8/10
|
|
Total Weight
|
Kg
|
~715
|
|
Driving wheel
|
mm
|
Ø230*75
|
|
Front wheel
|
mm
|
Ø80*80
|
|
Balance wheel
|
mm
|
Ø125*50
|
|
Battery capacity
|
V/Ah
|
24/210
|
|
Charger
|
V/A
|
24/30
|
|
Driving motor
|
Kw
|
1.5
|
|
Lifting motor
|
Kw
|
0.8
|
|
Brake
|
|
Electromagnetic
|
|
Drive Controlling Type
|
|
AC
|
Configuration:
1. Curtis brand AC control system, stepless speed regulation;
2.Famous brand hydraulic lifting pump station;
3. 24V / 210ah lead acid battery;
4. 24V / 30A external intelligent charger.
5.Famous brand seal for vehicle
6. Vertical AC drive motor
7. ZF transmission in Germany
8. High wear resistant polyurethane wheel (bearing wheel, driving wheel, balance wheel)
9. Pedal with damping
10. Drive damping
11. Curve speed limiter
12.Famous brand waterproof plug-in
14. Electromagnetic brake
15. Electronic steering

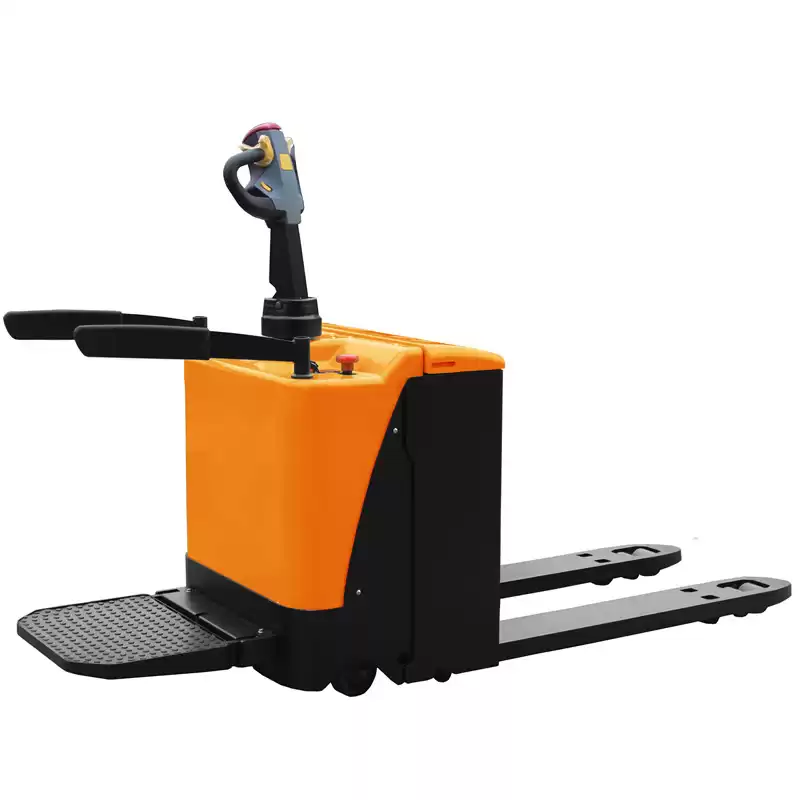

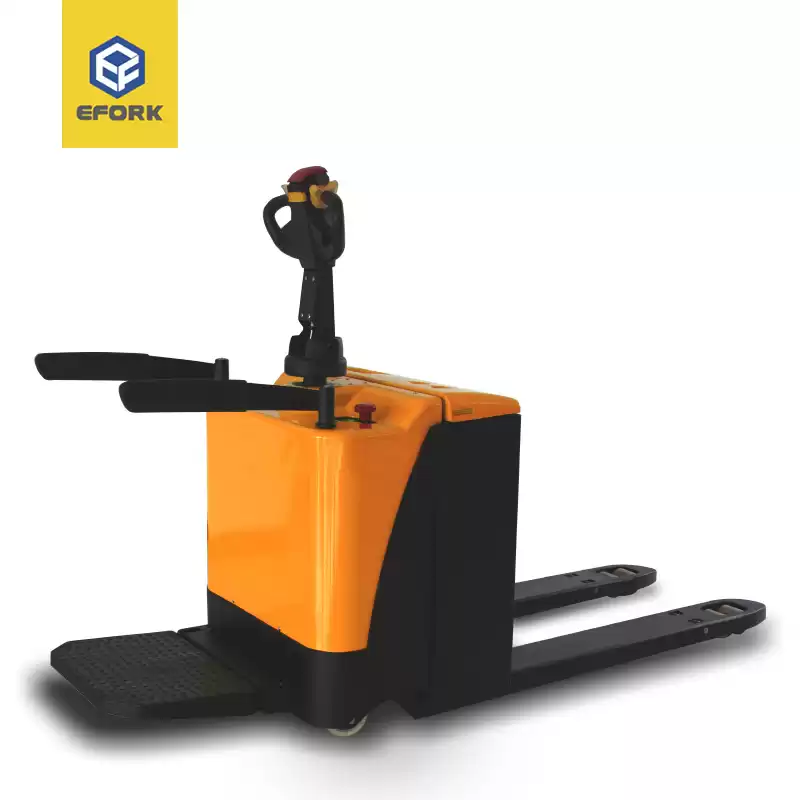

Product Display
