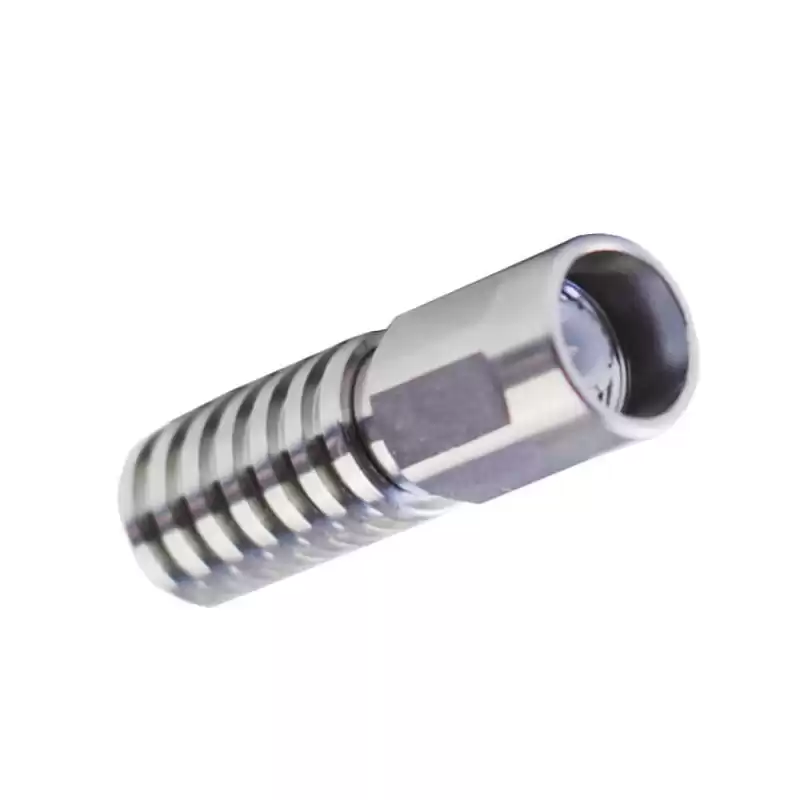

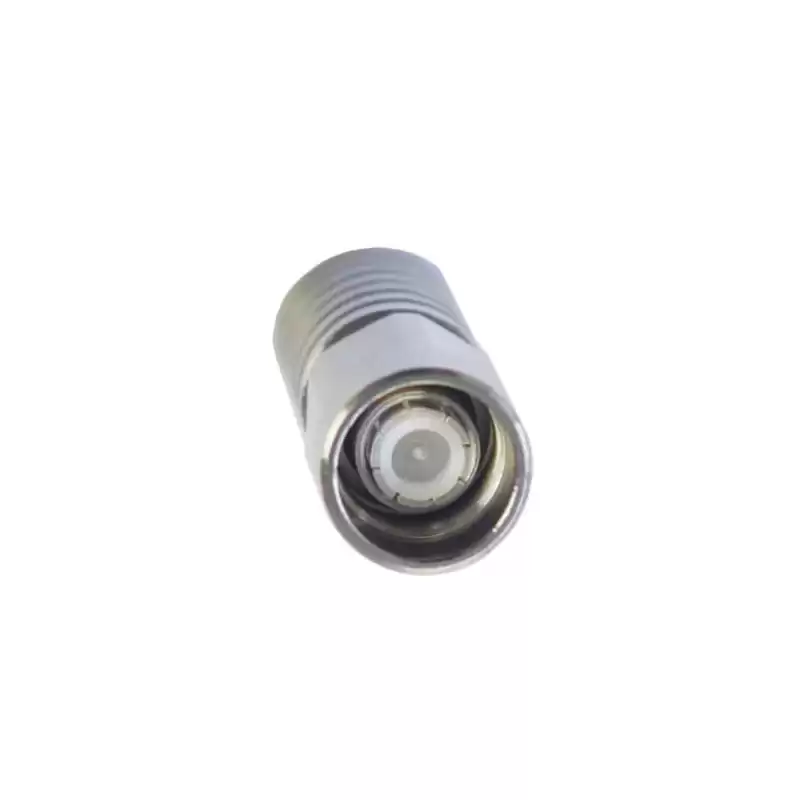

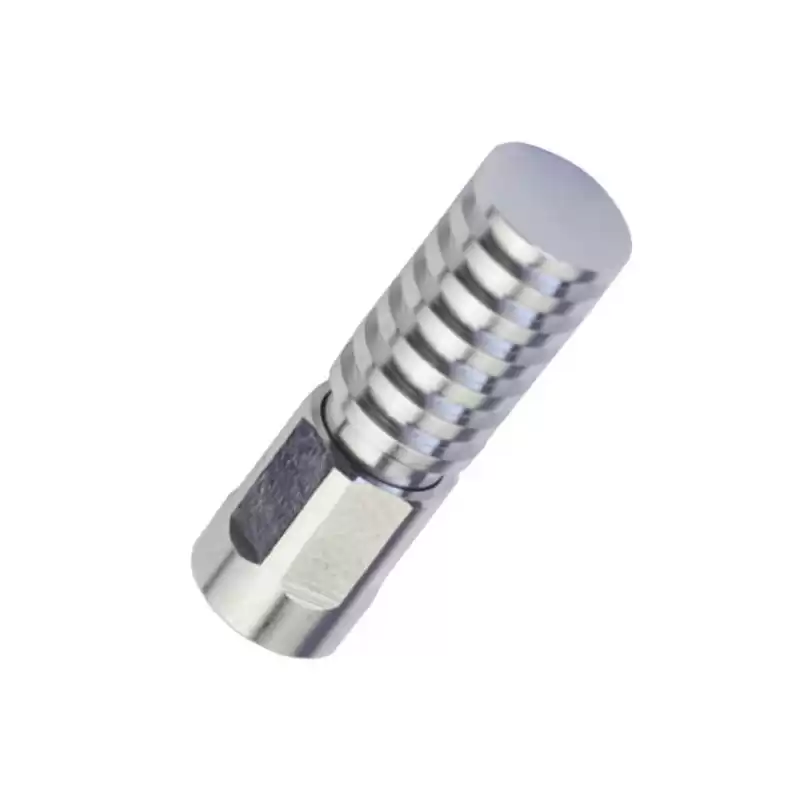

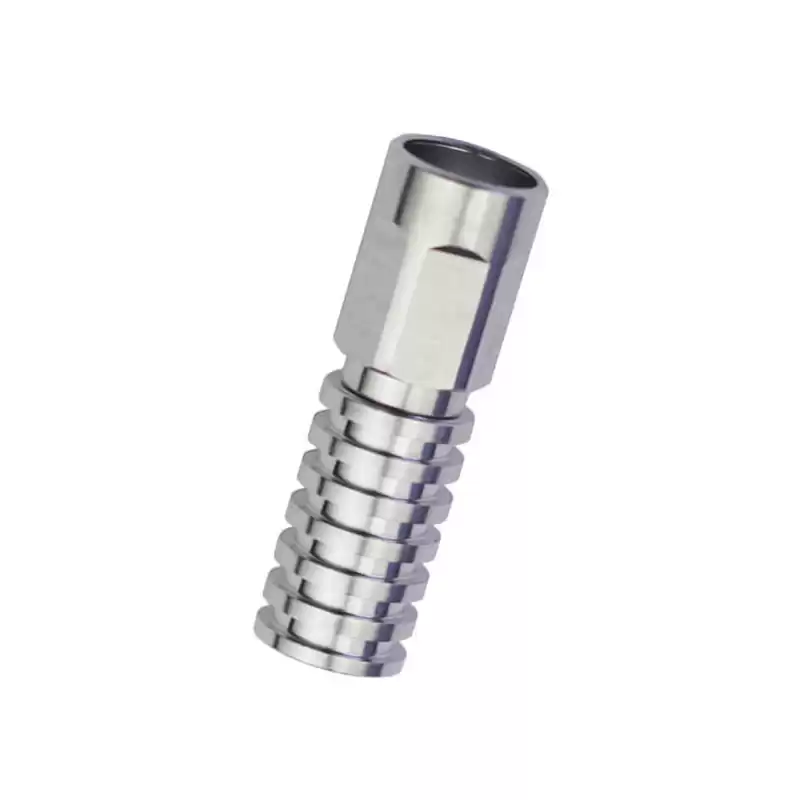

2W NEX10 Male Termination Dummy Load 50ohm DC-3GHz/6GHz RF Terminator
The 2W NEX10 RF dummy loads (also known as 2W NEX10 RF termination loads, or 2W NEX10 RF terminations ), it is mainly used to absorb the power of the RF or microwave system. Termination Load / dummy load is a resistive component and indispensable components in many RF, microwave systems where signal reflection from unused ports can potentially damage the device or reduce the signal. By using a termination load on an unused port, the incident energy will be absorbed with minimal reflection, it acts as a protector. The termination load is commonly used to terminate devices, such as couplers, circulators and switches.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz/6GHz |
| Connector |
NEX10 Male |
| VSWR |
≤1.2 |
| Power |
2W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni or Tri-Metal |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
