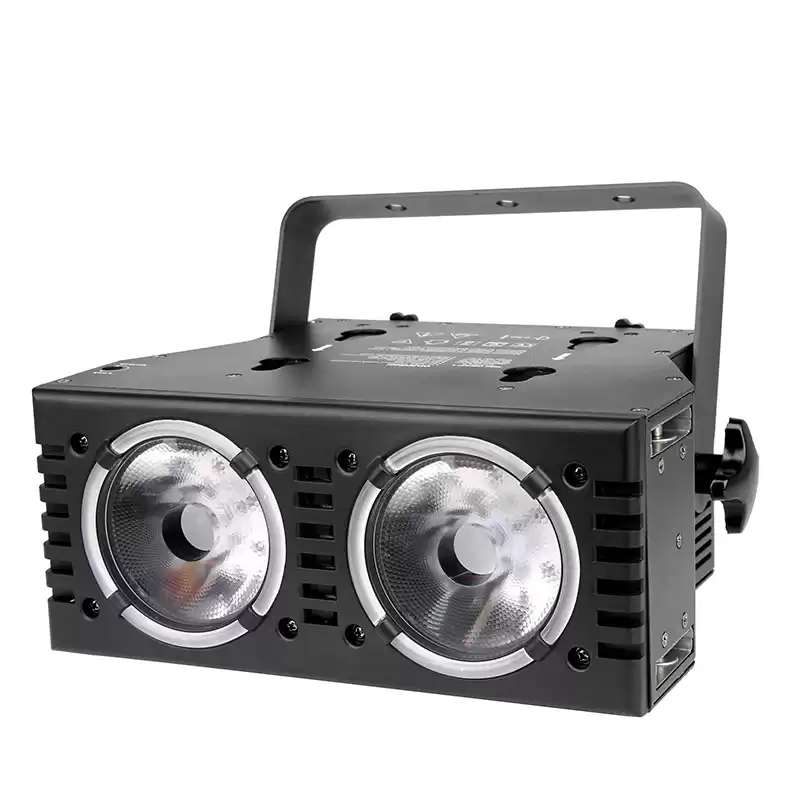

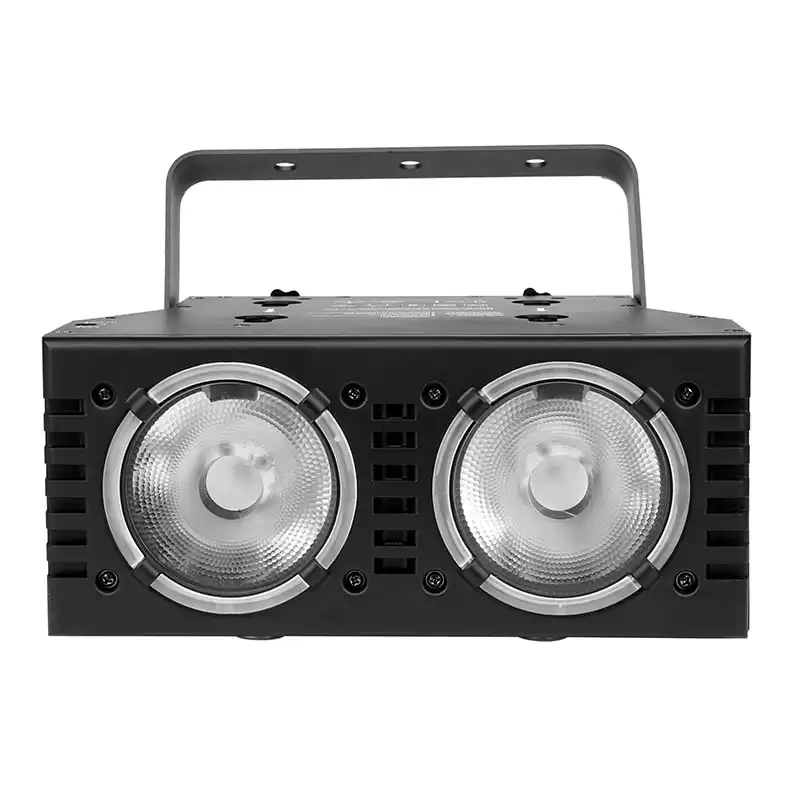

2X60W LED RGBW Blinder with LED RGBW Ring


LED RGBW Blinder.It uses 2x60W RGBW LEDs&16X0.5W RGB LEDs of LED ring. Each 60W RGBW LED individually controlled and 94mm diameter high efficient lens to create the high intensity with Beam angle of 5°




It Special unique housing design. The product is with 2 pcs 60W 4 in 1 RGBW LED as the light source and matches the new high efficiency optical system diameter 94mm,Beam angle less than 5 degree,RGBW  LED multiple chips to create beam effect.Each LED can be controlled individually ,two rings with 16 pcs 0.5W RGB 3 IN 1 LED,  two rings  can creat RGB color change and chasing effect.It also matches the new 60W RGBW LED and94mm diameter high efficient lens to create the high intensity.LED light source uses the electrically neutral thermal path.It can be made long shape and matrix shape.

  Optics


. LED qty

※ 2x60W 4 in 1 RGBW LED,uniform and delicate color mixing effect

※ 16x0.5W RGB LEDs (LED ring)

. Lens94mm high intensity PMMA lens

. Beam angle

. Lifetime50000Hlow power consumption, energy conservation

 and environmental protection


●  Colors

. Uniform RGBW mixing color system and rainbow effect

. Manually adjustable White balance

. LED ring can create more colorful chasing effect.

. Color temperature selection

. Static color set up


●  Specification

. 3 DMX channel modes12/24/45CH international standard DMX-512 channel

. 3 control modes:DMX512SoundMaster-Salve

. Beam angle

. DMX functionsdimmerstrobeRGBWfunction setupcolor jumping changecolor gradual

changeLED ring  auto-program selectionAuto speeddimmer curve selection

. Stand-alone modecolor jumping changecolor gradual changeAuto-program,slavestatic color settingauto-program selection

. Strobe effect0-20HZ strobepulse strobeAsynchronous strobe effect

. Dimmer:0-100% linear dimming which can control brightness change and closing of 4 colors at the same time


●  Display

. 2.4inch TFT color display screen operation

. High anti-interference four touch buttons

. Display screen can be reversed 180° and fit for different places installation

●  Software

. Software upgradequick software upgrade via DMX cable

. Display the use time of the light, so that customers can know the use details of the light in time

. LED refresh rate3000Hz

. 4kinds of dimming curvelinear dimmerSqaure dimmerI. Sqaure dimmerS-Curve dimmer


●  Other functions

. Setting and addressingRDM

. Fan cooling(the fan change the speed with the temperature changes

. Fan running modeAuto mode and high speed mode

. LEDs temperature detection system to protect the LEDs

. Lights can be combinate in Horizontal and vertical directions

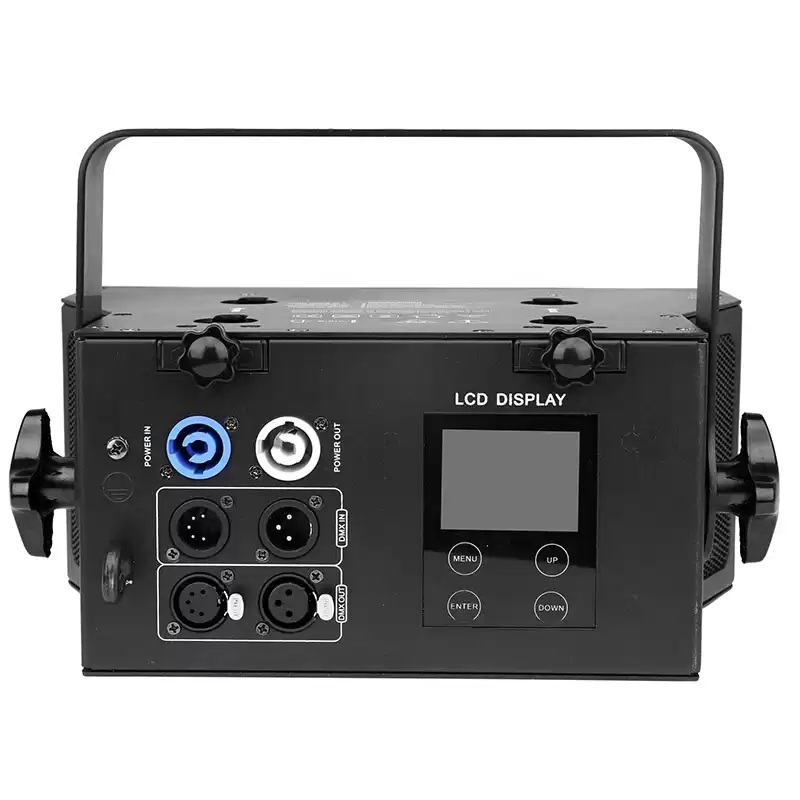

●  Power/Signal connection

. Power connectionPowerCON input/output

. DMX XLR3 Pin&5 Pin XLR input/output


●  Power

. AC100-240V 50/60HZ

. Power consumption180W


●  Protection class

. HousingABS fireproof material

. IP classIP20


●  Operation environment

. Indoor operation temperature-20°C+40°C


●  Size/weight

. Packaging size405*360*200mm

. Net weight7KG

. Gross weight8.2KG


●  Certification

. CE,ROHS
