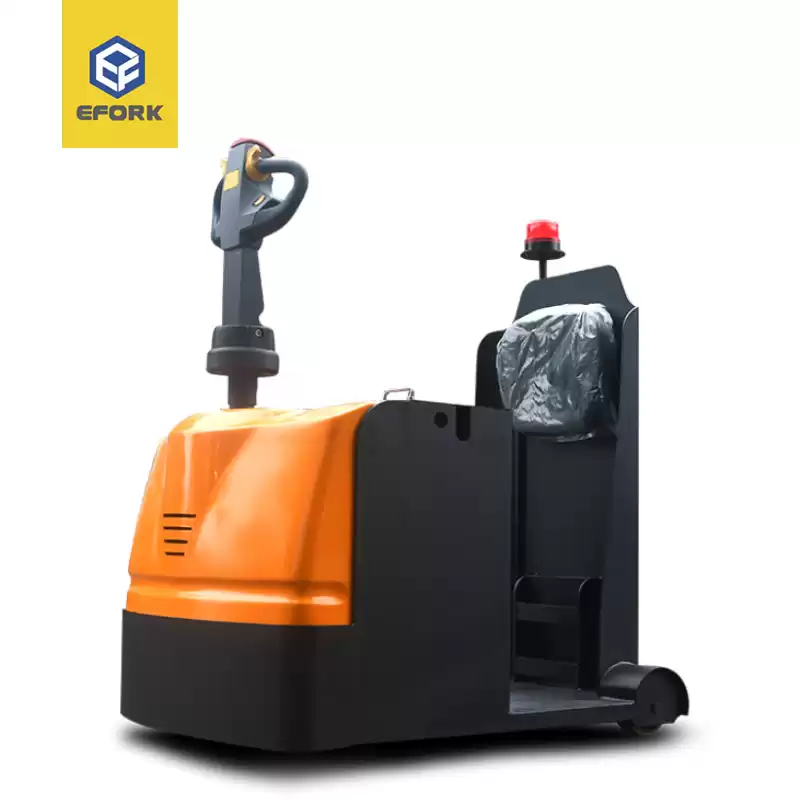

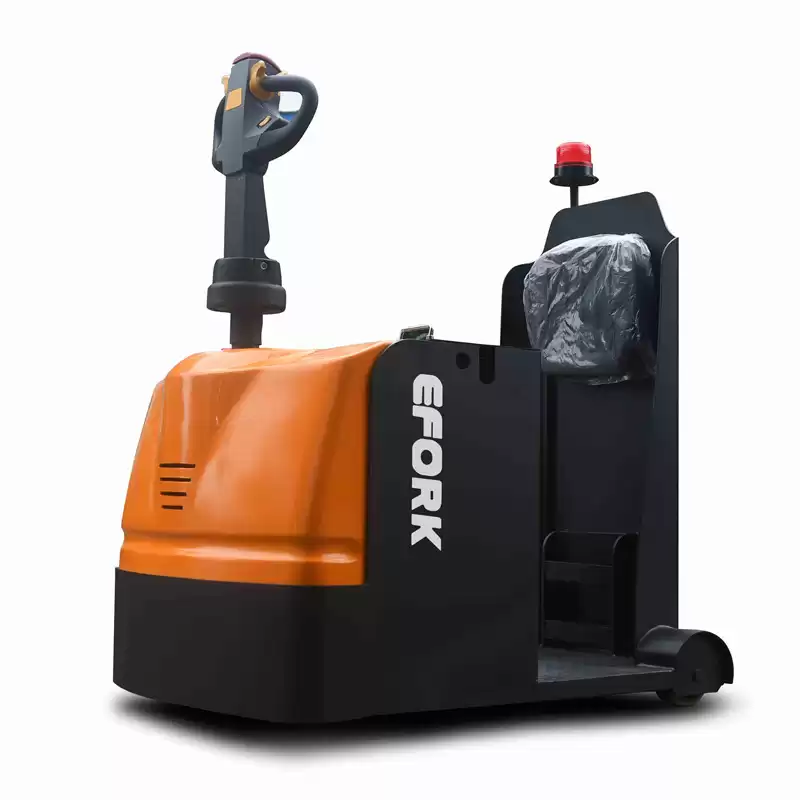

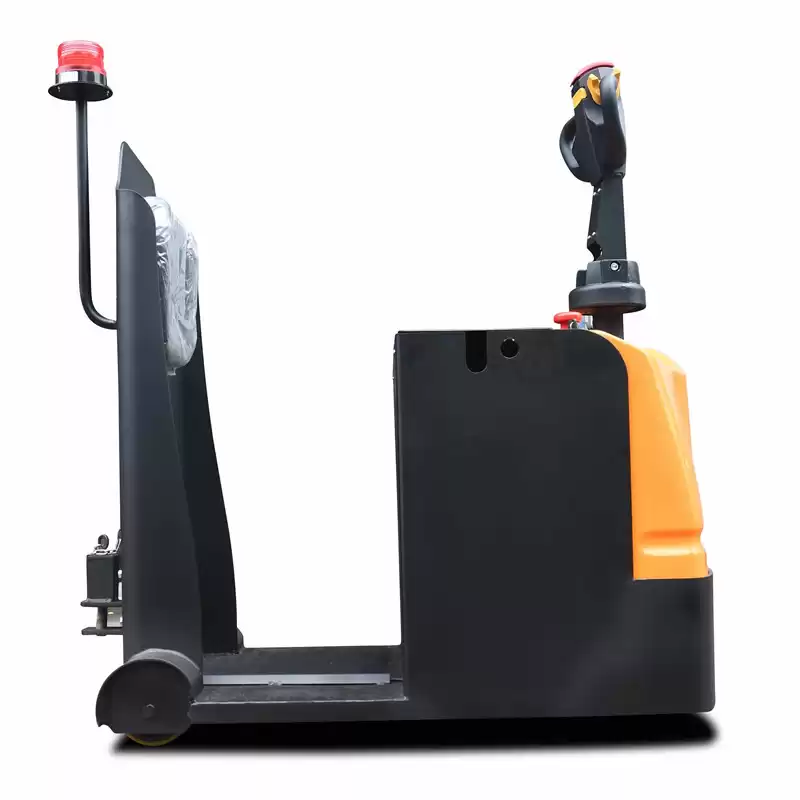

Product Name:Standing-on electric tow tractor 24V
capacity 3000kg
Product Advantages:
Suitable for short distance tractor on flat road;
The stand up driving with pedal type complete all kinds of tractor work easily and comfortably.
Excellent parts;
Ergonomic design;
Features:
1. Drive motor, controller are well organized.Easy for maintenance.
2. Imported Curtis controller ensuring better performance and less maintenance.
3.Vertical drive motor without brush is for easy maintenance;
4. Electric power steering (EPS) improve work efficiency.
5.Imported ZF gearbox for better performance and longer service lifer.
6. Ergonomic design tiller and smooth operation control levels offer comfortable driving experience.
7.Curtis hour meter
8.Side-removable battery for easy maintenance.
Specification:
|
Name
|
Tow tractor（stand on）（24V）
|
|
Model No.
|
|
Stand on
|
|
Capacity
|
Unit
|
EPQ30A
|
|
Operation type
|
|
Electric
|
|
Power type
|
|
Polyurethane tire
|
|
Wheel type
|
KG
|
3000
|
|
Maximum traction weight
|
N
|
1100
|
|
Max.traction
|
H2(mm)
|
1400
|
|
The vehicle height
|
L(mm)
|
1334
|
|
Overall length
|
S(mm)
|
850
|
|
Overall width
|
Km/h
|
4.0/6.7
|
|
Max travel speed
|
mm
|
967
|
|
Wheelbase
|
Wa(mm)
|
1160
|
|
Battery weight
|
KG
|
200
|
|
Parking type
|
|
Regenerative Brake
|
|
Body weight
|
KG
|
～550
|
|
Front wheel
|
mm
|
Ø230*75
|
|
Rear wheel
|
mm
|
Ø150*50
|
|
Battery
|
V/Ah
|
24/210
|
|
Charger
|
V/Ah
|
24/30
|
|
Drive motor
|
Kw
|
1.5
|
