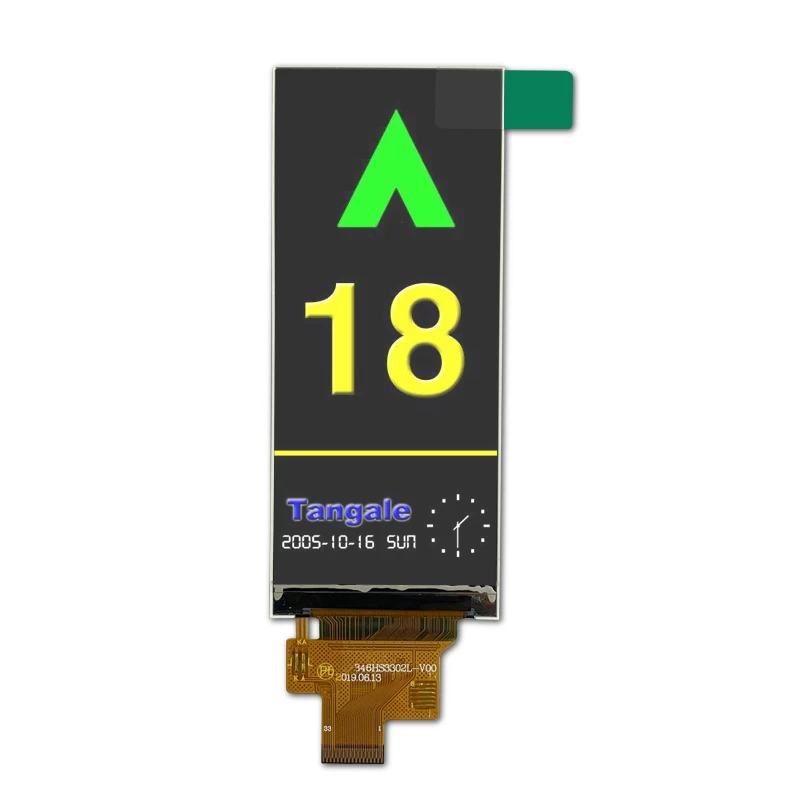

3.46 inch 340x800 resolution 3.5 inch IPS LCD display for electronic cigarette

3.46 inch 340x800 resolution 3.5 inch IPS LCD display for electronic cigarette

Facebook Twitter Pinterest LinkedIn 分享
Main parameters
Item 3.5 inch TFT LCD display
Model name TST035WVBS-53
Display Mode Normally White,Transmissive
Resolution 340*800
Technology Type a-Si TFT active matrix
Driver IC ST7701S
Pixel Configuration R.G.B. Vertical Stripe
Outline Dimension
37.27mm*89mm*1.5mm

Active Area(mm)
33.96mm*81mm
Interface TTL
Viewing Direction ALL  O'clock
Surface Luminance 300 nits
Backlight Type 10-LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C



3.46 inch 340x800 resolution 3.5 inch lcd ips display for electronic cigarette
