3.5 Inch TFT 320(RGB)*240 lcd module 850 nits brightness

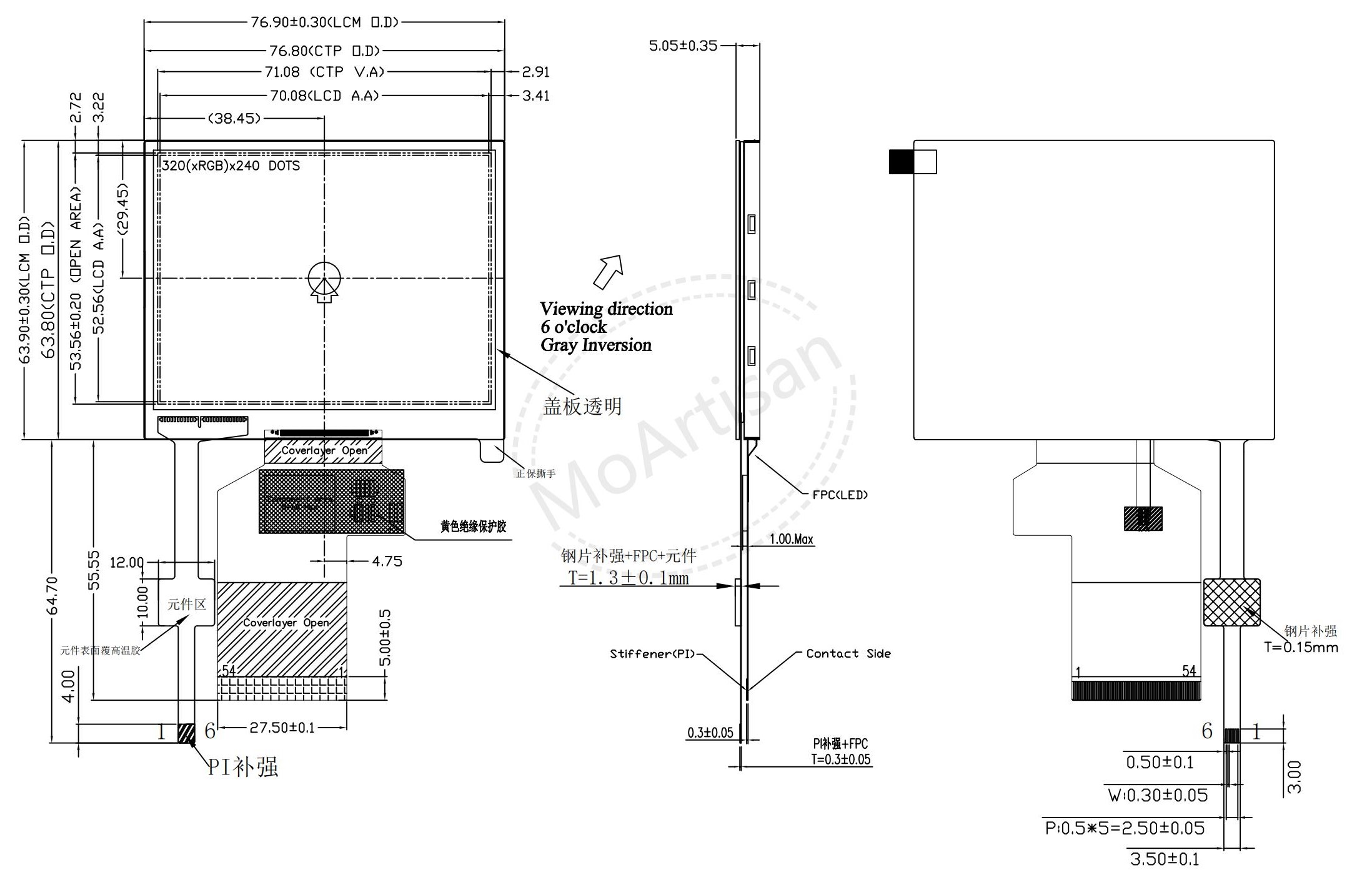

Production Drawings

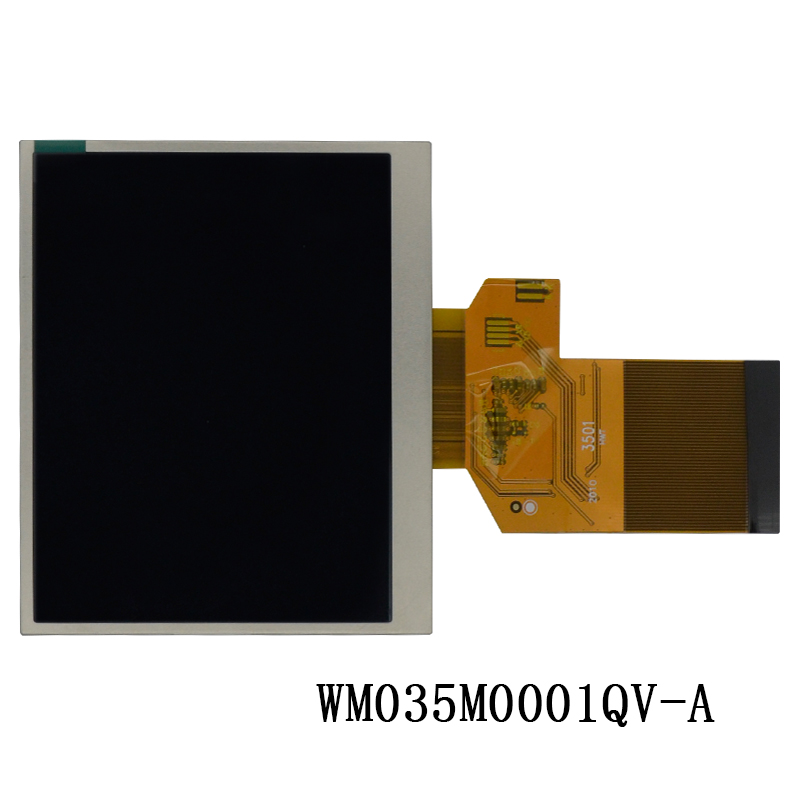

WM035MO002QV-A Introduction
-
A 3.5 (4:3) inch diagonally measured
active display area.
-
QVGA (320 horizontal by 240 vertical pixel)
resolution.
-
TN gray inversion 6 O'clock landscape view lcd module.
-
LCM surface brightness 850 nits.
-
54 PIN FPC, RGB interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
3.5
|
QVGA, 320*RGB*240, TN, 6-O'clock, landscape LCD screen
|
76.9*63.9*3.3
|
1*6 LED
(50K)
|
54 PIN FPC, 24-Bit RGB
|
850 Nits/400
|
Topa: -20~+70
Tstg: -30~+80
|
50/60/60/60
|
WM035MO002QV-A
|
Production Applications
GPS, Personal
Navigation Device, Multimedia
applications and Others AV system.
Product Customized
This kind of product can be customized.
Lead time of samples: 3~4 Weeks.
FAQ:
IPS LCD screen has been widely used, why is TN LCD in using still now?
ANSWER:
The TN screen is a simpler technology, easy to produce and cheap, but some users were reluctant to replace it, which led to the original tft factory still producing and supplying it.
However, as more and more users replace TN to IPS screens, the demand for TN screens will be decreased. Due to the numbers of TN screen, the manufacturing cost of TN screen will rise, and the price advantage of TN panels will be lost.
IPS LCD screen has been the main product of most TFT manufacturers, I believe that the users will eventually choose IPS screen in the near future.
