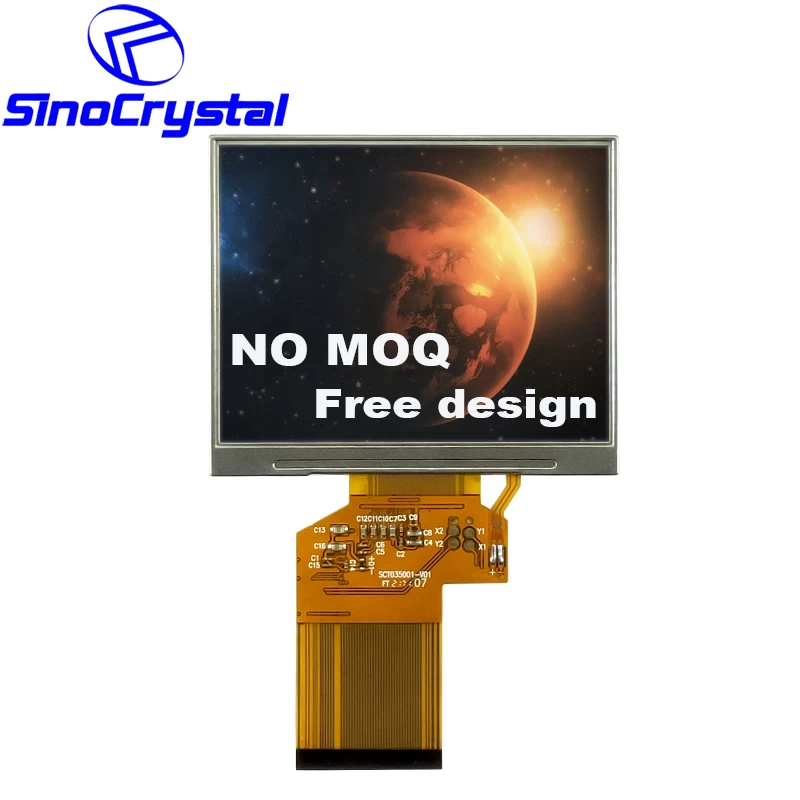

3.5 inch touch screen display with 320RGB*240 resolution 24bit RGB interface HX8238-D IC 54 PIN

SCT035001-V05 is a 3.5 inch TFT LCD Display with 320RGB*240 resolution, it built in with HX8238-D IC, and it supports 24bit RGB interface, 54 PIN, 12 o'clock view direction

Touch ScreenCTP
IC Part No.HX8238-D
Interface24bit RGB
View Direction12
Viewing Area (mm)-
Active Area (mm)70.08*52.56
Brightness (cd/m²)300
Outline Dimension (mm)76.90*63.90*3.27
Resolution320*240
Temperature (℃)-20°C~70°C

Facebook Twitter Pinterest LinkedIn 分享

Description

Basic Information

Resolution: 320RGB*240

Outline Dimension: 76.90*63.90*4.40

Active Area: 70.08*52.56

View area: 72.5*54.4

Interface: 24bit RGB

Driver IC: HX8238-D

View Direction: 12 o'clock

PIN: 54

Backlight: White LED

Touch Screen: Resistive Touch Screen

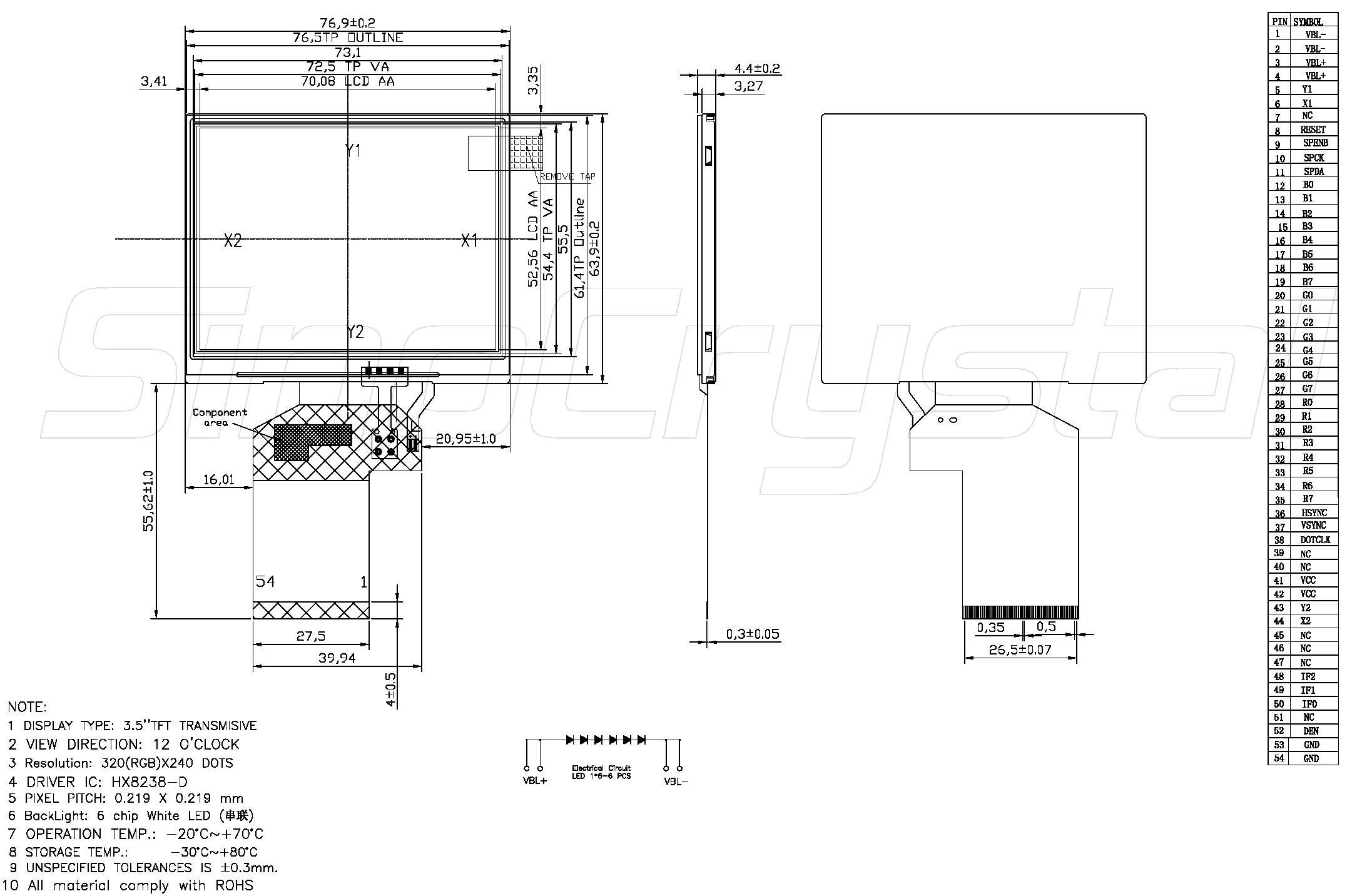

Drawing

General Specification

Item	Nominal Dimension	Unit
Dot Matrix	320 x RGB x 240	Dots
Module Size ( W×H×T )	76.9063.904.40	mm.
Active Area ( W×H )	70.08*52.56	mm.
Color depth	262K(MAX)	colors
Interface	24bit RGB with Serial Interface	-
Driving IC	HX8238-D	-
Operating temperature	-20 ~70	ºC
Storage temperature	-30~80	ºC
LCD Type	Active maritx TFT, Transmissive type	-
LCD Mode	TN / Normal White	-
Backlight Type	LED x 6	PCS
