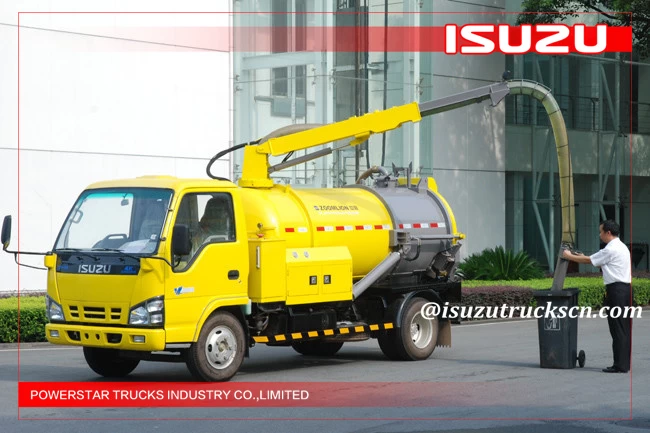

3-5m3 Ghana NKR77 Isuzu Vacuum Sewage Tanker Trucks
Isuzu vacuum suction truck is mainly used to
suck, transport, unload, and load sewage and sludge existing in the sewer lines
and rainwater wells, and it can also be used to suck and transport wastewater,
industrial waste oil, and sewage in large factories. Furthermore, sometimes it
can even be used to dredge and clean small watercourses.
Key Features:
◆ Isuzu chassis, Durable and comfortable
◆ Tanker size: 3000 L up to 20,000 Liters
◆ English control panel is
simple and easy to use
◆ Carbon Steel,
Stainless Steel, and Aluminum Tanks Available
◆ Customer Preference Vacuum Pumps Available
Main specifications:
|
Model
|
PT5070JGK
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
Wheelbase
|
3360 mm
|
|
Engine
|
88 kw (120hp)
|
|
Vacuum
Tank
|
Tank shape
|
Cylinder
|
|
Material
|
Carbon Steel
|
|
Dirty water
tank
|
3000
~5000 Liters
|
|
Thickness
|
5 mm
|
|
Dish
thickness
|
5 mm
|
|
Designed
pressure
|
-0.9 bar
|
|
Strengthen ring
|
Cool bended U
shape, add the strengthen ring on the tank our circle
|
|
Over Pressure
device
|
Fixed on the top
of the tank
|
|
Vacuum valve
|
For keeping the
tank's inside vacuum
|
|
|
|
|
Safety support
|
fix with safety
valve during working
|
|
Rear
Cover
|
Operation
|
Opened by
hydraulic
|
|
Lock device
|
Manual locking
device
|
|
Seal
|
Rigidity and
manual synthetic rubber seal rings
|
|
Water discharge valve
|
one way 100mm
ball valve
|
|
Vacuum
Pump
|
Model
|
As option
|
|
Working pressure
|
400 Pa
|
|
Flow rate
|
45 L/s
|
|
Color
|
As option
|
Customers build examples:
