Product Overview
|
Item
|
Description
|
|
Product Name
|

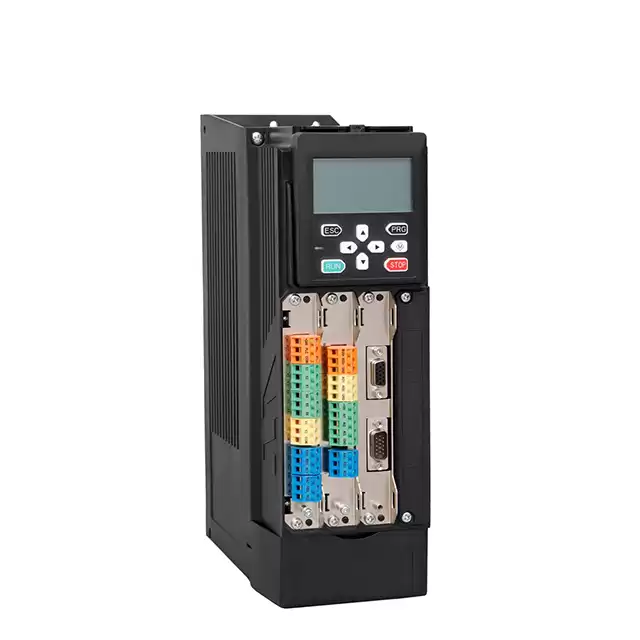

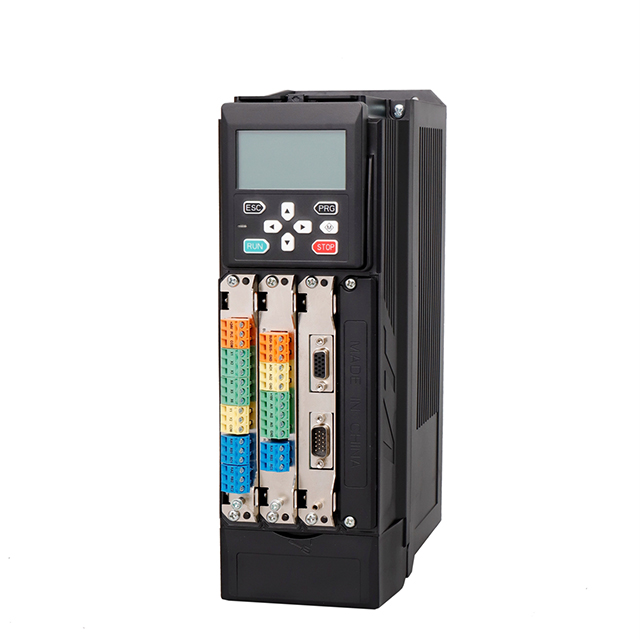

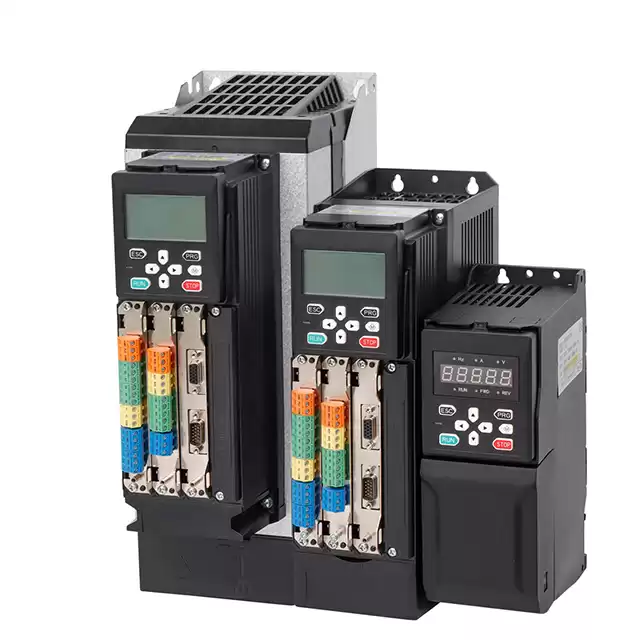

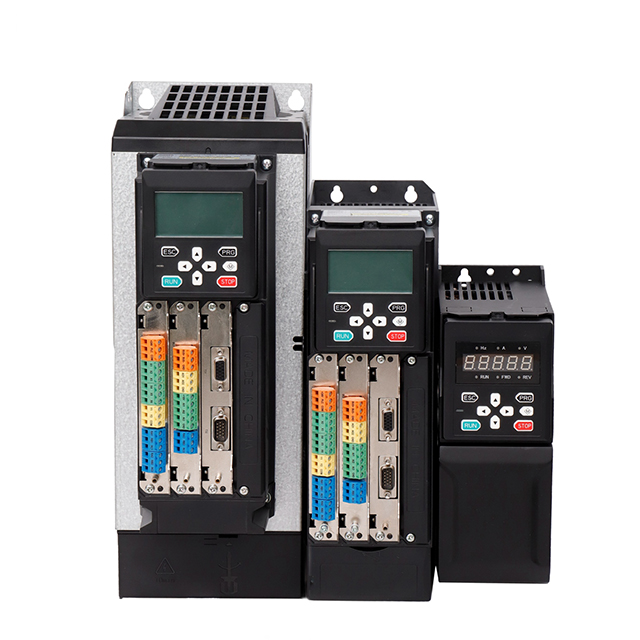

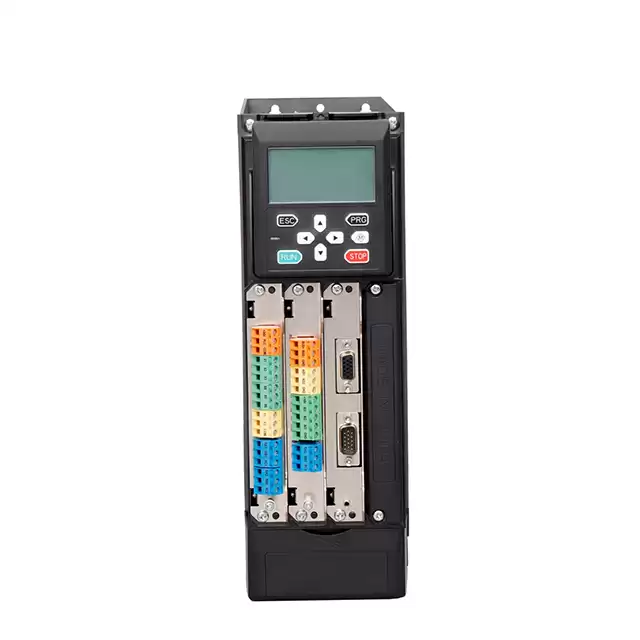

Frequency Inverter/ AC Drive
|
|
Model Number
|
VTSxxx-4TxxxKxx-xxxx
|
|
Power Range
|
0.75kW-500kW
|
|
Rated Input Voltage
|
3 phase 380V/480V
|
|
Rated Output Voltage
|
3 phase 0 to rated input voltage
|
|
Input Frequency
|
50Hz/60Hz
|
|
Adaptable Motor
|
Asynchronous Motor, Synchronous Motor
|
|
Control Mode
|
V/F Control, Vector Control, Sensorless Vector Control, Sensor Vector Control, Vector Torque Control
|
|
Communication
|
Modbus 485 RTU, CAN, Profibus-DP, Profinet, EtherCAT
|
|
IP Class
|
Standard IP20
|
|
Overload Capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
Feature
■ Book Compact Design，Low cost, smaller size and weight
■ low speed can be open loop control, closed loop control minimum speed of 0.25 Hz 200% torque; closed loop 60000 turn, open loop 110000 rpm
■ Rich selection of communication boards
■ Support multiple encoder types
■ Compatible with the control of synchronous motors, asynchronous motors, and reluctance motors
■ Multiple language keyboard, friendly interface, reliable and easy to use

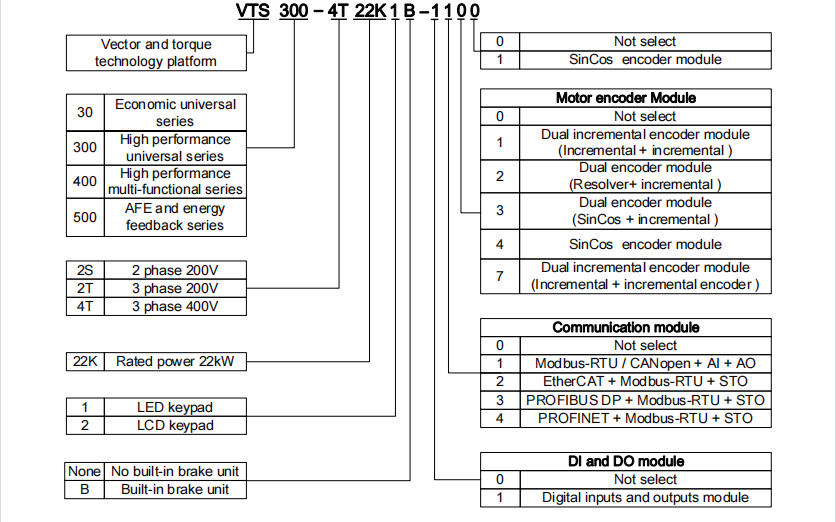

Model Explanation
Product Catalogue
VTS□□□−4T□□K□□-□□□□
|
Rated Power (kW)
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
110
|
|
Applicable motor (kW)
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
90
|
110
|
|
Output
|
Voltage (V)
|
Three−phase 0 to rated input voltage
|
|
Rated current (A)
|
13
|
17
|
24
|
30
|
39
|
45
|
60
|
75
|
91
|
112
|
150
|
176
|
210
|
|
Maximum current (A)
|
23
|
31
|
43
|
54
|
70
|
81
|
108
|
135
|
164
|
202
|
270
|
317
|
378
|
|
Overload capability
|
150% for 60s, 180% for 10s, 200% for 0.5s, interval: 10 minutes (Inverse time characteristic)
|
|
Input
|
Rated voltage / frequency
|
Three−phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage
|
323V ~ 528V; voltage imbalance ≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current ;(A)
|
15
|
19
|
26
|
33
|
37
|
42
|
57
|
69
|
89
|
106
|
139
|
164
|
196
|
|
DC reactor
|
DC reactor is not built-in
|
DC reactor is built-in
|
DC reactor is built-in
|
|
Brake unit
|
Built−in as standard
|
Built−in as ;optional
|
|
Protection ;level
|
IP20
|
|
Cooling mode
|
Force air cooling
|
|
Rated Power (kW)
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
|
Applicable motor (kW)
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
|
Output
|
Voltage (V)
|
Three−phase 0 to rated input voltage
|
|
Rated current (A)
|
253
|
304
|
350
|
380
|
426
|
470
|
520
|
600
|
650
|
690
|
775
|
860
|
|
Maximum current ;(A)
|
455
|
547
|
630
|
684
|
765
|
846
|
936
|
1080
|
1170
|
1242
|
1395
|
1548
|
|
Overload capability
|
150% for 60s, 180% for 10s, 200% for 0.5s, interval: 10 minutes (Inverse time characteristic)
|
|
Input
|
Rated voltage / frequency
|
Three−phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage
|
323V ~ 528V; voltage imbalance ≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current ;(A)
|
240
|
287
|
326
|
352
|
385
|
437
|
491
|
580
|
624
|
670
|
775
|
840
|
|
DC reactor
|
DC reactor is built-in
|
|
Brake ;unit
|
External
|
|
Protection ;level
|
IP20
|
|
Cooling mode
|
Force air cooling
|
Technical Specifications
|
Control characteristics
|
Control mode
|
Sensor-less control
|
Sensor control
|
|
Applicable motor type
|
Synchronous motor
Asynchronous motor
|
Synchronous motor
Asynchronous motor
|
|
Starting torque
|
● Asynchronous motor:
200% of rated torque at 0.25Hz
● Synchronous motor:
150% of rated torque at 1.5% of rated speed
|
200% of rated torque at 0 speed
|
|
Speed regulation range
|
1:200
|
1:5000
|
|
Steady speed precision
|
± 0.5%
|
± 0.02%
|
|
Maximum speed
|
VF control: 600Hz
; Vector control: 600 Hz ;
Note: Higher frequency products can be customized
|
600Hz
Note: Higher frequency products can be customized
|
|
Torque control
|
Y
|
Y
|
|
Torque control precision
|
±5%
|
±3%
|
|
Torque response time
|
<20ms
|
<10ms
|
|
Positioning control
|
N
|
Y
|
|
Positioning precision
|
N
|
±1 ;pulse
|
|
Product function
|
Key function
|
Torque limit, speed control, positioning control, motor ;auto tune ;deep ;flux-weakening ;control, current limit control, over-voltage control, under-voltage control, ;motor ;speed tracing function, droop control, oscillation suppression, random carrier frequency, inertia auto-tune, etc.
|
|
Speed reference source
|
Modbus communication, Keypad, ;external digital input, analog ;AI1/AI2/AI3, ;high speed pulse input, ;simple PLC, PID, CAN, PROFIBUS DP, PROFINET, EtherCAT, etc.
|
|
Dynamic ;brake
|
Brake unit action voltage: 650 ~ 750V.
The brake ;unit can be built-in for 110kW and below equipment
● 5.5~30kW: brake unit is built- in as standard.
● 37~110kW: brake unit is built- in as optional.
|
|
Communication
|
Built-in modbus-RTU communication, the maximum distance up to 500 meters. It can switch to CAN by jumper.
EtherCAT, PROFIBUS ;DP and PROFINET are optional.
|
|
Keypad
|
LED Keypad and LCD Keypad are optional
the Keypad can be used as ;remote-control box ;via straight-through wired cable.
|
|
Common DC bus
|
75kW~160kW: required pre-charge circuit to realized common DC bus
Other power level drive: support common DC bus directly
|
|
Independent air duct
|
All series product adopts independent duct design
|
|
Protection function
|
Power supply under-voltage, over-current protection, over-voltage protection, ;auto-tune fault, module protection, heat-sink overtemperature ;protection, drive overload protection, motor overload protection, peripheral protection, current ;abnormal ;detection, output short-circuit ;to ;ground protection, EEPROM abnormal detection, temperature sampling disconnection, encoder disconnection, analog input abnormal detection, motor overtemperature, communication ;fault, hardware overload protection, etc.
|
|
Efficiency
|
At rating condition:
● 0.75kW to ;7.5kW: ;≥93%
● 11kW to ;45kW: ;≥95%
● 55kW and ;higher ;power class: ;≥98%
|
|
Environment
|
Operating site
|
● Install vertically in a well-ventilated electrical cabinet. Horizontal or other installation methods are not allowed.
● The cooling medium is air.
● Installed in an environment free from direct sunlight, dust, corrosive gases, flammable gases, no oil mist, no steam, no dripping.
|
|
Ambient temperature
|
● −10～+40℃
● Derating use when the temperature between 40 to 50℃, the rated output current is reduced by 1% for every 1 °C increasing.
|
|
Humidity
|
5～95%, ;no condensation is allowed.
|
|
Altitude
|
● 0～2000 ;meters
● Derating use when the altitude over 1000 meters, the rated output current is reduced by 1% for every 100-meter rising.
|
|
Vibration
|
● 3.5 m/s2, ;2～9Hz
● 10 m/s2, ;9～200Hz
● 15 m/s2, ;200～500Hz
|
|
Storage temperature
|
−40～+70℃.
|

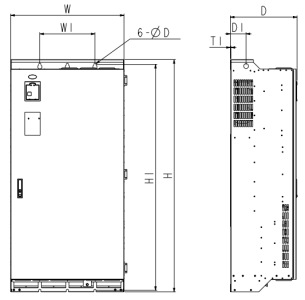

Installation dimension
5.5kW ~15kW ; ;18.5kW~160kW
185kW~500kW

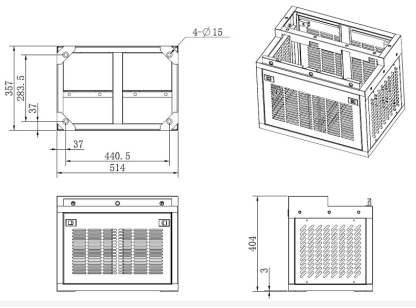

The base dimensions for VTS□□□−4T250K to VTS□□□−4T315K (The base is optional)
Base dimensions ;(from ;250kW ;to 315kW)
The base dimensions for VTS□□□−4T355K to VTS□□□−4T500K (The base is optional)
Base dimensions (from 355kW to 500kW)
|
Voltage
|
Model
|
Outline and mounting dimension (mm)
|
Weight
;(KG)
|
|
W
|
H
|
D
|
W1
|
H1
|
T1
|
⌀d
|
|
400V
|
VTS□□□−4T5.5K
|
100
|
291
|
220
|
60
|
275
|
4.5
|
5
|
3.5
|
|
VTS□□□−4T7.5K
|
|
VTS□□□−4T11K
|
|
VTS□□□−4T15K
|
|
VTS□□□−4T18.5K
|
145
|
412
|
260
|
120
|
396
|
1.0
|
7
|
9.5
|
|
VTS□□□−4T22K
|
|
VTS□□□−4T30K
|
|
VTS□□□−4T37K
|
210
|
498
|
290
|
150
|
478
|
3.0
|
10
|
20.5
|
|
VTS□□□−4T45K
|
|
VTS□□□−4T55K
|
|
VTS□□□−4T75K
|
290
|
705
|
285
|
240
|
683
|
3.0
|
10
|
48.5
|
|
VTS□□□−4T90K
|
|
VTS□□□−4T110K
|
|
VTS□□□−4T132K
|
315
|
970
|
325
|
250
|
946
|
3.0
|
12
|
78.2
|
|
VTS□□□−4T160K
|
|
VTS□□□−4T185K
|
420
|
1080
|
325
|
340
|
1050
|
3.5
|
14
|
99
|
|
VTS□□□−4T200K
|
|
VTS□□□−4T220K
|
|
VTS□□□−4T250K
|
512
|
1320
|
355
|
376
|
1286
|
4
|
16
|
The base can be customized with different weights
|
|
VTS□□□−4T280K
|
|
VTS□□□−4T315K
|
|
VTS□□□−4T355K
|
699
|
1432
|
407
|
340
|
1395
|
4
|
14
|
|
VTS□□□−4T400K
|
|
VTS□□□−4T450K
|
|
VTS□□□−4T500K
|

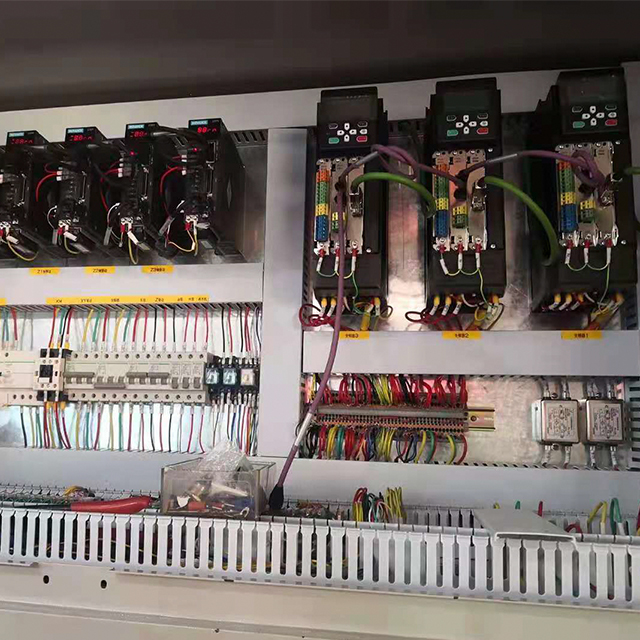

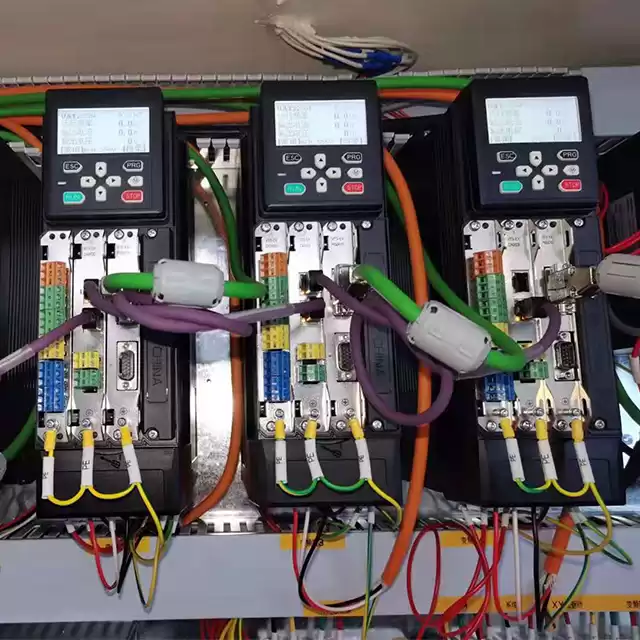

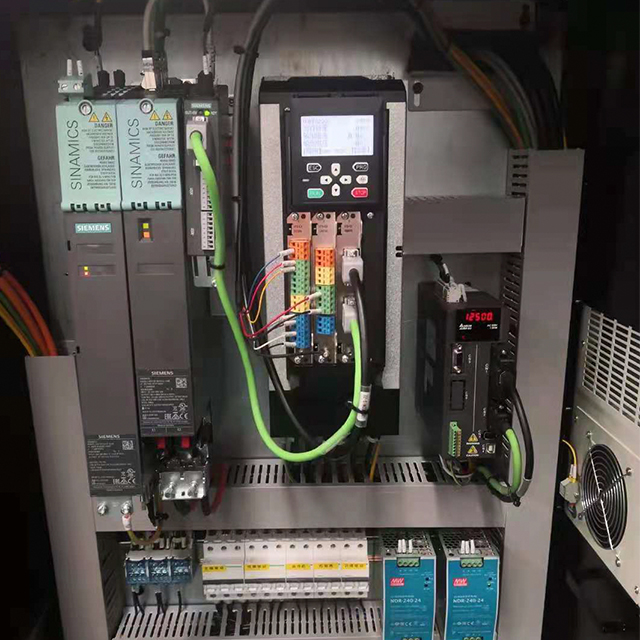

Applications
Representative Industry
Printing Packaging, Petrochemical, Textile, Cable Machinery, Food Packaging, Electric Vehicles, Plastic Machinery, Metal Products Equipment, Centrifuges, Universal fields and High-end applications requiring closed-loop vector or torque control.
