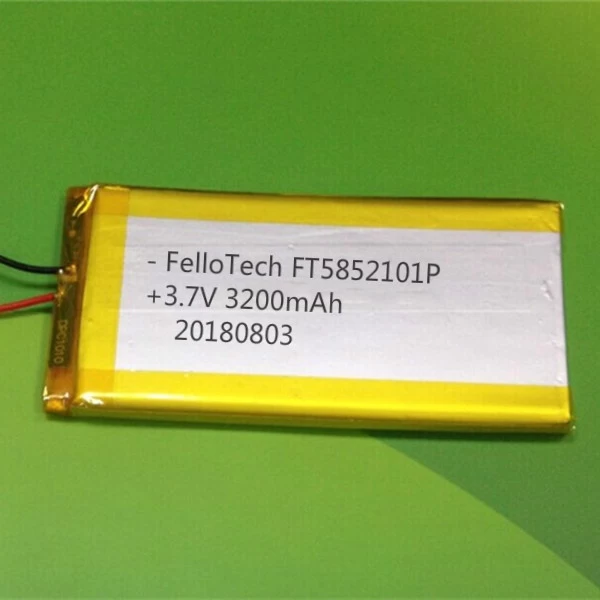

3.7V 3200mAh FT5852101P lithium polymer battery

FT5852101P lithium polymer battery with 3.7V 3200mAh for mobile power, backup power, kite lights, night fishing lights


  • Nominal Voltage (V)3.7
  • Nominal Capacity (mAh)3200
  • Internal Impedance (mΩ)180
  • Thickness (mm)5.8
  • Width (mm)52.0
  • Height (mm)101.5
  • Weight (g)58.5

3.7V 3200mAh FT5852101P lithium polymer battery


S/N

Details



Parameters



Remarks



1

Rated voltage

3.7V



2

Rated capacity

3200mAh

discharge with 0.2C to 2.75V after fully charge within 1h, measuring the discharge time

3

Limited charge voltage

4.2V



4

Internal resistance

≤180mΩ



5

charge mode

C.C/C.V.



6

Standard charge current

640mA

0.2C

7

Max Charge Current

3200mA

1C

8

Standard discharge current

640mA

0.2C

9

Max discharge current

Continuous3200mA

1C

10

Working temperature

charging

0~45



discharging

-10~60

11

Storage temperature

1 Month

-10~45

Charge to 40%~50% of capacity when storage

6 months

-10~30

12

Storage humidity

45%~75

relative humidity

13

Weight

Approx 58.5g



14

Cycle life

300 times

capacity≥80%


Product Tags lithium polymer battery sizes
