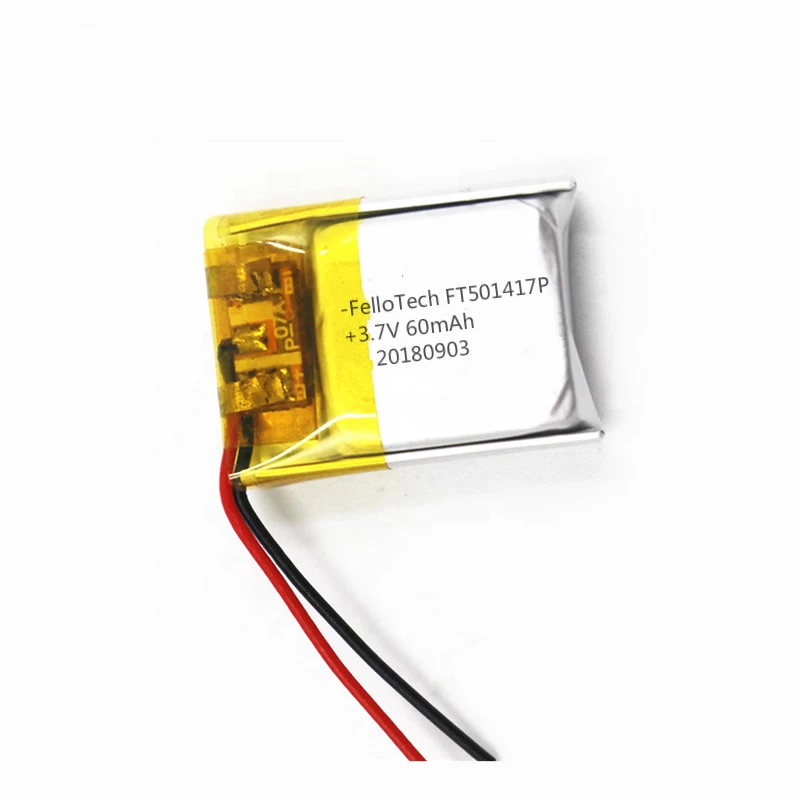

3.7V Lihtium polymer battery FT501417P with UL certificate

Lihtium polymer battery FT501417P with 3.7V 60mAh for Bluetooth, digital, LED, beauty series, mobile digital products


  • Height (mm)17.5
  • Width (mm)14.5
  • Thickness (mm)5.2
  • Internal Impedance (mΩ)180
  • Nominal Capacity (mAh)900
  • Nominal Voltage (V)3.7

3.7V Lihtium polymer battery FT501417P with UL certificate


S/N

Details



Parameters



Remarks



1

Rated voltage

3.7V



2

Rated capacity

60mAh

discharge with 0.2C to 2.75V after fully charge within 1h, measuring the discharge time

3

Limited charge voltage

4.2V



4

Internal resistance

≤180mΩ



5

charge mode

C.C/C.V.



6

Standard charge current

12mA

0.2C

7

Max Charge Current

60mA

1C

8

Standard discharge current

12mA

0.2C

9

Max discharge current

Continuous:60mA

1C

10

Working temperature

charging

0~45



discharging

-10~60

11

Storage temperature

1 Month

-10~45

Charge to 40%~50% of capacity when storage

6 months

-10~30

12

Storage humidity

45%~75

relative humidity

13

Weight




14

Cycle life

300 times

capacity≥80%
