Truck Description:

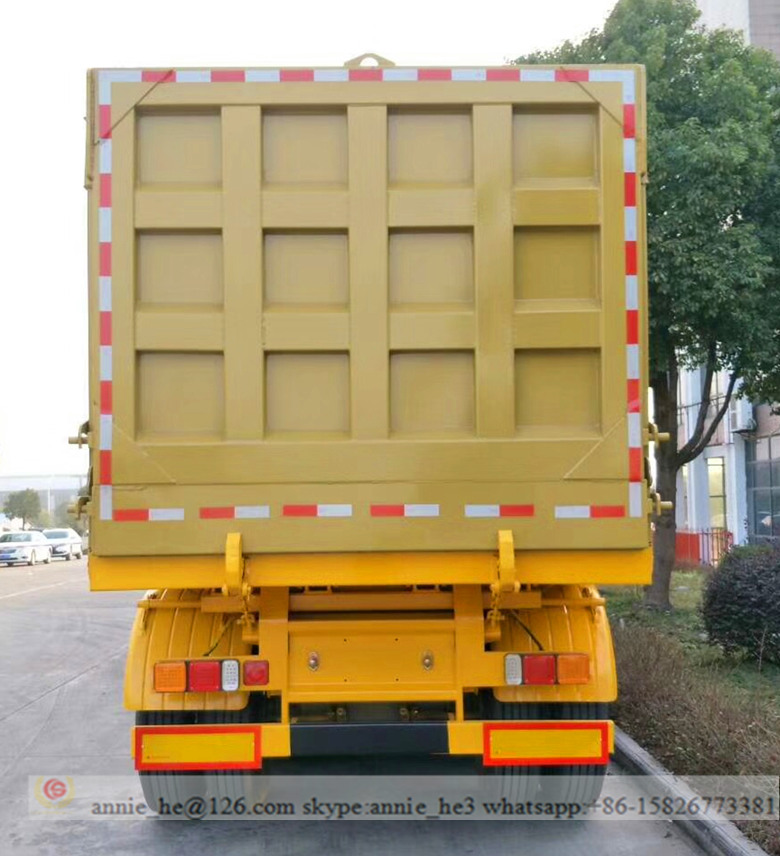

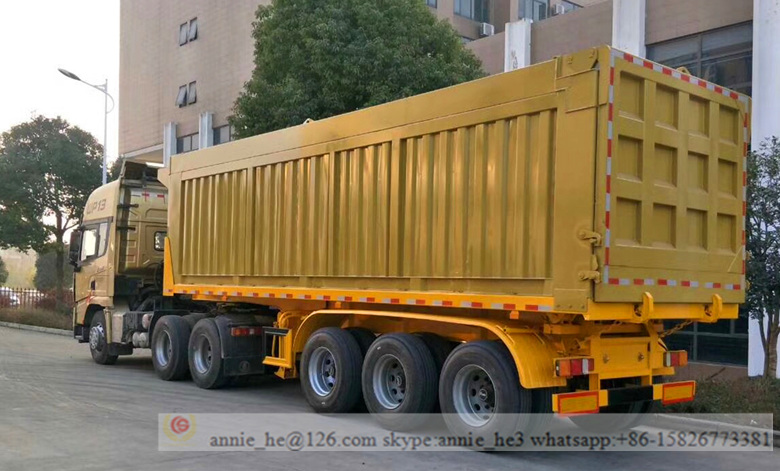

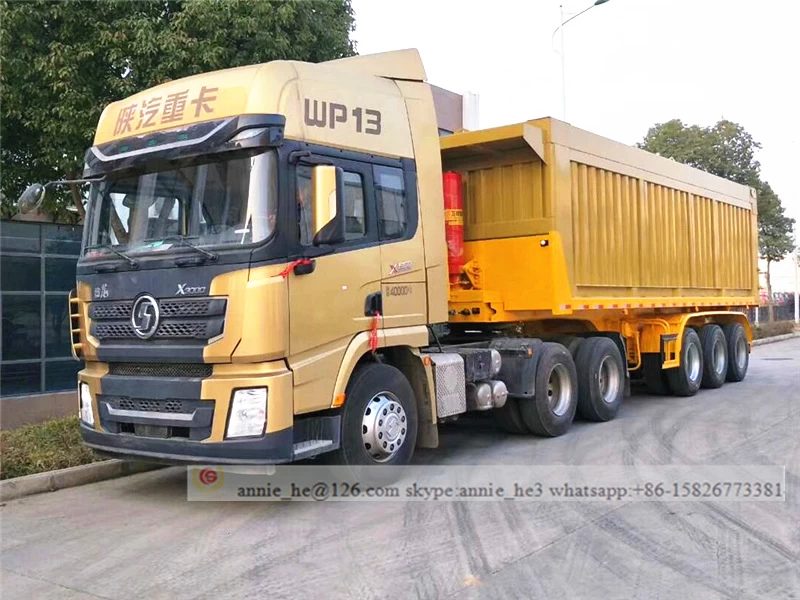

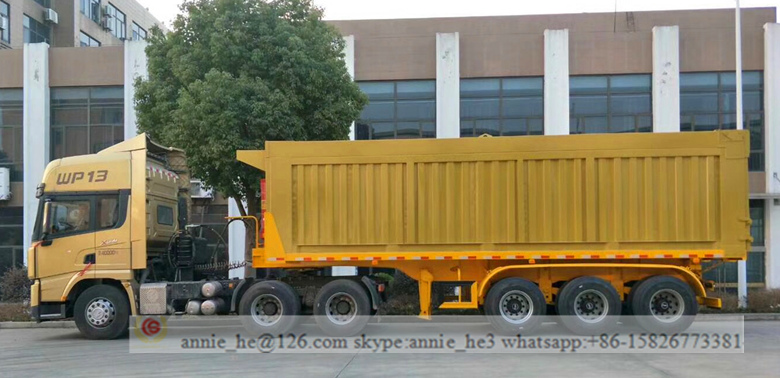

Hydraulic Dumper Trailer is main for transporting coal, dirt, sand and loose material etc. especially the large tonnage goods.
Advantages:
1.Dump Lorry Semi Trailer has stable performance.
2. High Strength material
3. Loading large tonnage
4. Nice appearance
Technical Specification:
We are
able to custom manufacture Dumper Semi Trailer in a wide range of
sizes and capacities as per customers' requirement.
|
Dump semi-trailer 60 Ton
|
|
Semi-trailer description
|
Kerb weight (kg)
|
8300
|
|
Overall
dimension (mm)
|
Length
|
9500
|
|
Width
|
2500
|
|
Height
|
3750
|
|
Box dimension(mm)
|
Length
|
8800
|
|
Width
|
2400
|
|
Height
|
2100
|
|
Axles
|
FUWA 13T, 3axle
|
|
Tire
|
12.00R
|
|
Brake system
|
16T
|
|
Landing leg
|
28T single action
|
|
Kingpin
|
90#
|
|
Air Chamber
|
4big and 2small
|
|
Upper/Lower flange
|
8/8mm
|
|
Web
|
6mm
|
|
Side (mm)
|
3 or changed as request
|
|
Bottom(mm)
|
4 or changed as request
|
|
ABS
|
Yes
|
|
Cylinder
|
Hyva Front type
|
|
Other remark
|
Above specification is just for reference, please send us your request
details.
|
|
