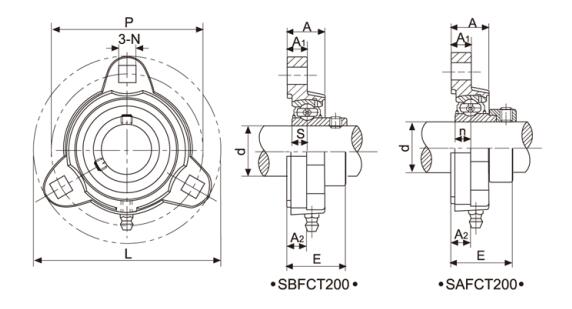

Unit No.
|
Shaft Dia
|
Dimensions (mm)
|
Bolt Size
|
Bearing
NO.
|
Housing NO.
|
Weight (kg)
|
|
d
|
L
|
P
|
A1
|
A
|
A2
|
N
|
s
|
E
|
|
(in)
|
(mm)
|
(mm)
|
(in)
|
|

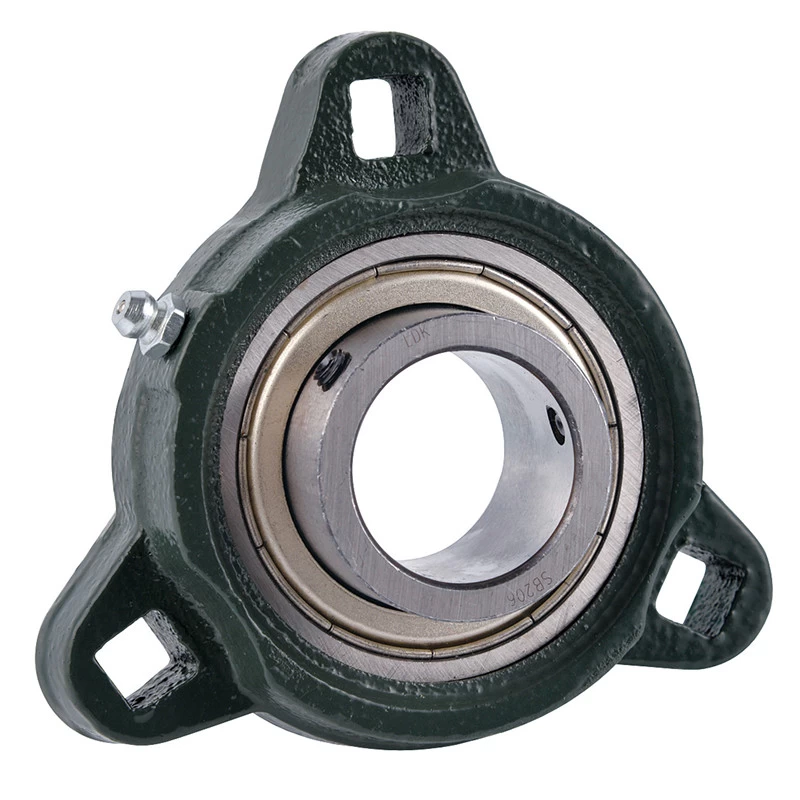

SBFCT201
|
|
12
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6
|
26.7
|
M6
|
1/4
|
SB201
|
FCT203
|
0.21
|
|
SBFCT201-8
|
1/2
|
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6
|
26.7
|
M6
|
1/4
|
SB201-8
|
FCT203
|
0.21
|
|
SBFCT202
|
|
15
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6
|
26.7
|
M6
|
1/4
|
SB202
|
FCT203
|
0.21
|
|
SBFCT202-10
|
5/8
|
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6
|
26.7
|
M6
|
1/4
|
SB202-10
|
FCT203
|
0.21
|
|
SBFCT203
|
|
17
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6
|
26.7
|
M6
|
1/4
|
SB203
|
FCT203
|
0.21
|
|
SBFCT203-11
|
11/16
|
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6
|
26.7
|
M6
|
1/4
|
SB203-11
|
FCT203
|
0.21
|
|
SBFCT204-12
|
3/4
|
|
90.5
|
71.4
|
11.1
|
19.8
|
11.1
|
8.7
|
7
|
29.1
|
M8
|
5/16
|
SB204-12
|
FCT204
|
0.32
|
|
SBFCT204
|
|
20
|
90.5
|
71.4
|
11.1
|
19.8
|
11.1
|
8.7
|
7
|
29.1
|
M8
|
5/16
|
SB204
|
FCT204
|
0.32
|
|
SBFCT205-14
|
7/8
|
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
29.8
|
M8
|
5/16
|
SB205-14
|
FCT205
|
0.36
|
|
SBFCT205-15
|
15/16
|
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
29.8
|
M8
|
5/16
|
SB205-15
|
FCT205
|
0.36
|
|
SBFCT205
|
|
25
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
29.8
|
M8
|
5/16
|
SB205
|
FCT205
|
0.36
|
|
SBFCT205-16
|
1
|
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
29.8
|
M8
|
5/16
|
SB205-16
|
FCT205
|
0.36
|
|
SBFCT206-18
|
1-1/8
|
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
8
|
34
|
M10
|
3/8
|
SB206-18
|
FCT206
|
0.57
|
|
SBFCT206
|
|
30
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
8
|
34
|
M10
|
3/8
|
SB206
|
FCT206
|
0.57
|
|
SBFCT206-19
|
1-3/16
|
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
8
|
34
|
M10
|
3/8
|
SB2206-19
|
FCT206
|
0.57
|
|
SBFCT206-20
|
1-1/4
|
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
8
|
34
|
M10
|
3/8
|
SB206-20
|
FCT206
|
0.57
|
|
SBFCT207-20
|
1-1/4
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
8.5
|
36.2
|
M10
|
3/8
|
SB207-20
|
FCT207
|
0.71
|
|
SBFCT207-21
|
1-5/16
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
8.5
|
36.2
|
M10
|
3/8
|
SB207-21
|
FCT207
|
0.71
|
|
SBFCT207-22
|
1-3/8
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
8.5
|
36.2
|
M10
|
3/8
|
SB207-22
|
FCT207
|
0.71
|
|
SBFCT207
|
|
35
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
8.5
|
36.2
|
M10
|
3/8
|
SB2207
|
FCT207
|
0.71
|
|
SBFCT207-23
|
1-7/16
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
8.5
|
36.2
|
M10
|
3/8
|
SB207-23
|
FCT207
|
0.71
|
|
Unit No.
|
Shaft Dia
|
Dimensions (mm)
|
Bolt Size
|
Bearing
NO.
|
Housing NO.
|
Weight (kg)
|
|
d
|
L
|
P
|
A1
|
A
|
A2
|
s
|
n
|
E
|
|
(in)
|
(mm)
|
(mm)
|
(in)
|
|

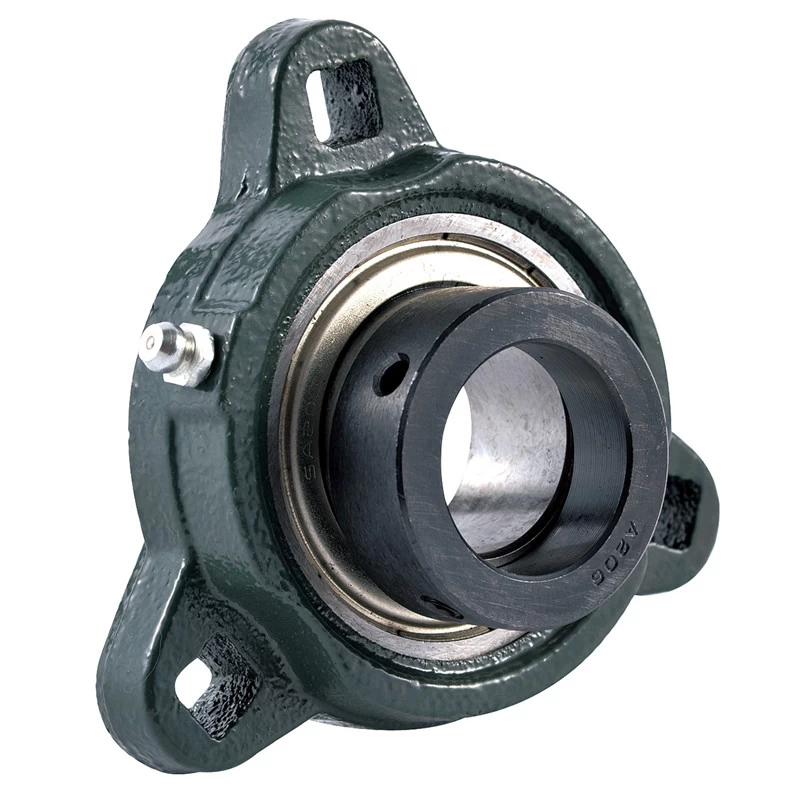

SAFCT201
|
|
12
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6.5
|
32.8
|
IV16
|
1/4
|
SA201
|
FCT203
|
0.26
|
|
SAFCT201-8
|
1/2
|
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6.5
|
32.8
|
IV16
|
1/4
|
SA201-8
|
FCT203
|
0.26
|
|
SAFCT202
|
|
15
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6.5
|
32.8
|
IV16
|
1/4
|
SA202
|
FCT203
|
0.26
|
|
SAFCT202-10
|
5/8
|
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6.5
|
32.8
|
IV16
|
1/4
|
SA202-10
|
FCT203
|
0.26
|
|
SAFCT203
|
|
17
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6.5
|
32.8
|
IV16
|
1/4
|
SA203
|
FCT203
|
0.26
|
|
SAFCT203-11
|
11/16
|
|
81
|
63.5
|
10.7
|
19.1
|
10.7
|
7.1
|
6.5
|
32.8
|
IV16
|
1/4
|
SA203-11
|
FCT203
|
0.26
|
|
SAFCT204-12
|
3/4
|
|
90.5
|
71.4
|
11.1
|
19.8
|
11.1
|
8.7
|
7.5
|
34.5
|
M8
|
5/16
|
SA204-12
|
FCT204
|
0.34
|
|
SAFCT204
|
|
20
|
90.5
|
71.4
|
11.1
|
19.8
|
11.1
|
8.7
|
7.5
|
34.5
|
M8
|
5/16
|
SA204
|
FCT204
|
0.34
|
|
SAFCT205-14
|
7/8
|
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
33.7
|
M8
|
5/16
|
SA205-14
|
FCT205
|
0.39
|
|
SAFCT205-15
|
15/16
|
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
33.7
|
M8
|
5/16
|
SA205-15
|
FCT205
|
0.39
|
|
SAFCT205
|
|
25
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
33.7
|
M8
|
5/16
|
SA205
|
FCT205
|
0.39
|
|
SAFCT205-16
|
1
|
|
95.2
|
76.2
|
10.3
|
19.8
|
10.3
|
8.7
|
7.5
|
33.7
|
M8
|
5/16
|
SA205-16
|
FCT205
|
0.39
|
|
SAFCT206-18 206 206-19 206-20
|
1-1/8
|
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
9
|
38.7
|
M10
|
3/8
|
SA206-18
|
FCT206
|
0.61
|
|
SAFCT206
|
|
30
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
9
|
38.7
|
M10
|
3/8
|
SA206
|
FCT206
|
0.61
|
|
SAFCT206-19 206-20
|
1-3/16
|
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
9
|
38.7
|
M10
|
3/8
|
SA206-19
|
FCT206
|
0.61
|
|
SAFCT206-20
|
1-1/4
|
|
113
|
90.5
|
12
|
22
|
12
|
10.3
|
9
|
38.7
|
M10
|
3/8
|
SA206-20
|
FCT206
|
0.61
|
|
SAFCT207-20
|
1-1/4
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
9.5
|
42.1
|
M10
|
3/8
|
SA207-20 207-21 207-22 207 207-23
|
FCT207
|
0.82
|
|
SAFCT207-21
|
1-5/16
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
9.5
|
42.1
|
M10
|
3/8
|
SA207-21
|
FCT207
|
0.82
|
|
SAFCT207-22
|
1-3/8
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
9.5
|
42.1
|
M10
|
3/8
|
SA207-22
|
FCT207
|
0.82
|
|
SAFCT207
|
|
35
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
9.5
|
42.1
|
M10
|
3/8
|
SA207
|
FCT207
|
0.82
|
|
SAFCT207-23
|
1-7/16
|
|
122.5
|
100
|
12.7
|
23.8
|
12.7
|
10.3
|
9.5
|
42.1
|
M10
|
3/8
|
SA207-23
|
FCT207
|
0.82
|
Notes:Cast iron housing is also available,Please check with LDK sales.
