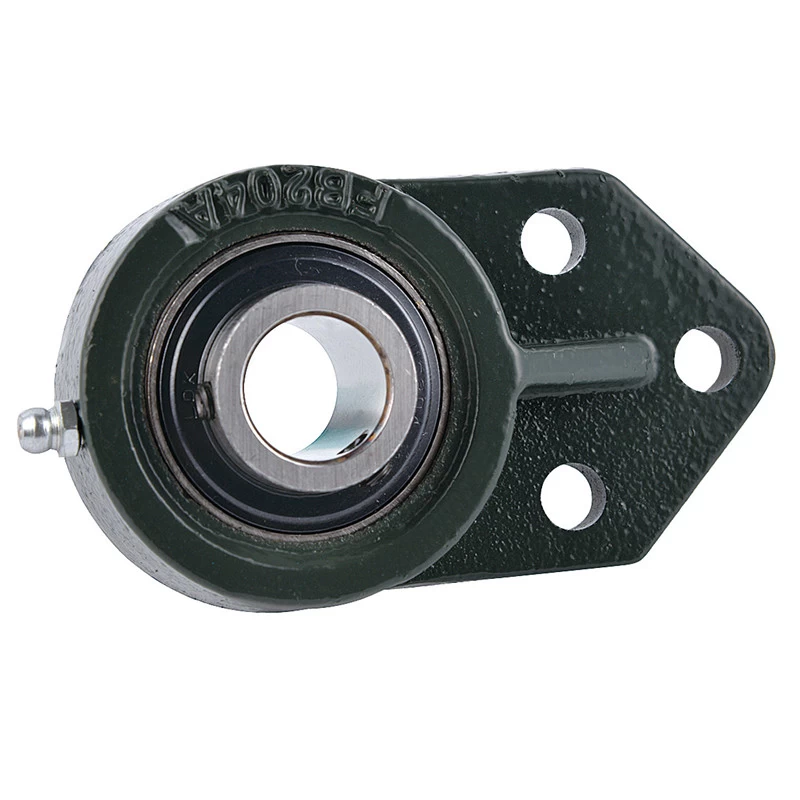

3-Bolt Flange Bearing Units UCFB2...A


UCFB..A Standard duty,Flange bracket,Inch-based housing,Wider inner ring bearing,Setscrew locking,Cast gray iron housing .

Cast ductile iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

Flange Mounted Bearings UCFB206A

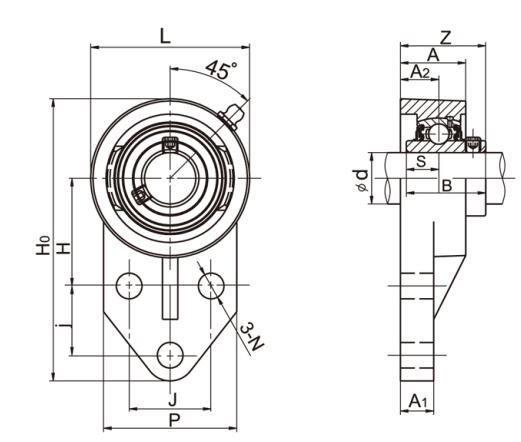

Unit No. Shaft Dia Dimensions(mm) Bolt Size (mill) Weight (kg)
d Ho H J j A2 A1 A N L P B S Z
(in) (mm)
UCFB201A  12 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB201-8A 1/2   107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB202A    15 107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB202-9A  9/16    107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB202-10A 5/8   107.95 42.86 38.1 22.22 15.88 7.94 25,4 9.92 63.5 60.33 31 12.7 34.18 MS 0.58
UCFB203A  17 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.57
UCFB203-11A 11/16   107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.57
UCFB204A  20 107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB204-12A 3/4   107.95 42.86 38.1 22.22 15.88 7.94 25.4 9.92 63.5 60.33 31 12.7 34.18 M8 0.62
UCFB205A  25 120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-14A  7/8    120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-15A  15/16   120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB205-16A 1   120.65 46.04 41.27 28.58 17.07 9.53 28.57 9.92 69.85 63.5 34.1 14.3 36.87 M8 0.69
UCFB206A  30 136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-17A  1-1/16    136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-18A  1-1/8    136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-19A  1-3/16    136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB206-20A 1-1/4   136.53 52.39 47.63 31.75 18.65 12.7 31.75 9.92 82.55 69.85 38.1 15.9 40.85 M8 0.93
UCFB207A  35 155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.30
UCFB207-20A  1-1/4    155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.30
UCFB207-21A  1-5/16    155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.30
UCFB207-22A  1-3/8    155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.30
UCFB207-23A 1-7/16   155.58 60.33 50.8 31.75 21.03 12.7 36.51 13.1 95.25 82.55 42.9 17.5 46.43 M8 1.30
UCFB208A    40 164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.80
UCFB208-24A  1-1/2    164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.80
UCFB208-25A 1-9/16   164.31 60.33 50.01 41.27 21.03 15.88 35.72 11.91 100.01 77.79 49.2 19 51.23 M10 1.80
